4-Bedroom, 3159 Sq Ft Country Plan with Vaulted Ceilings

Country Craftsman home plan (ThePlanCollection: House Plan #109-1059)
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph

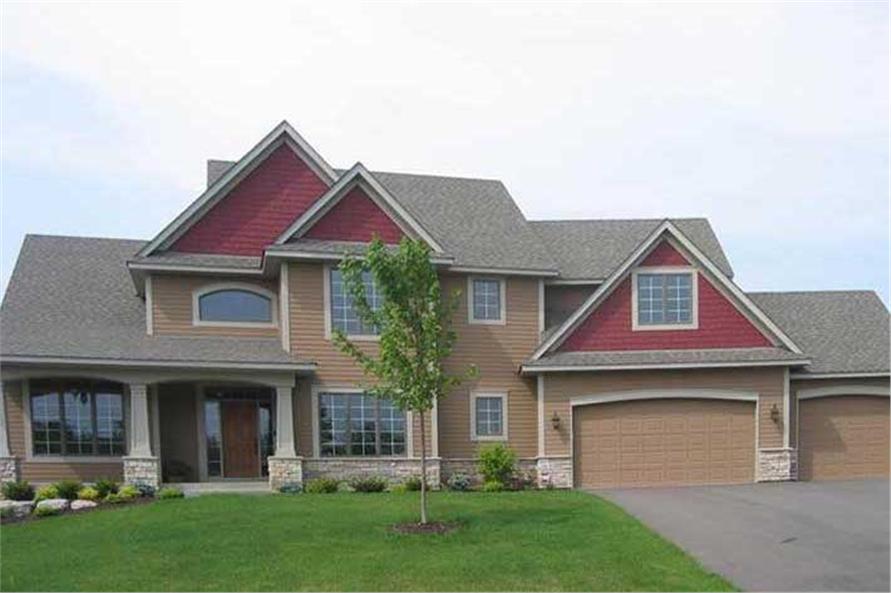

4-Bedroom, 3159 Sq Ft Country Home Plan - 109-1059 - Main Exterior
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph
Home Plan Aux Image
Home Interior Photograph

About Plan # 109-1059

About Plan # 109-1059

3159 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 82' 0" WIDTH 55' 0" DEPTH 3 GARAGE BAY

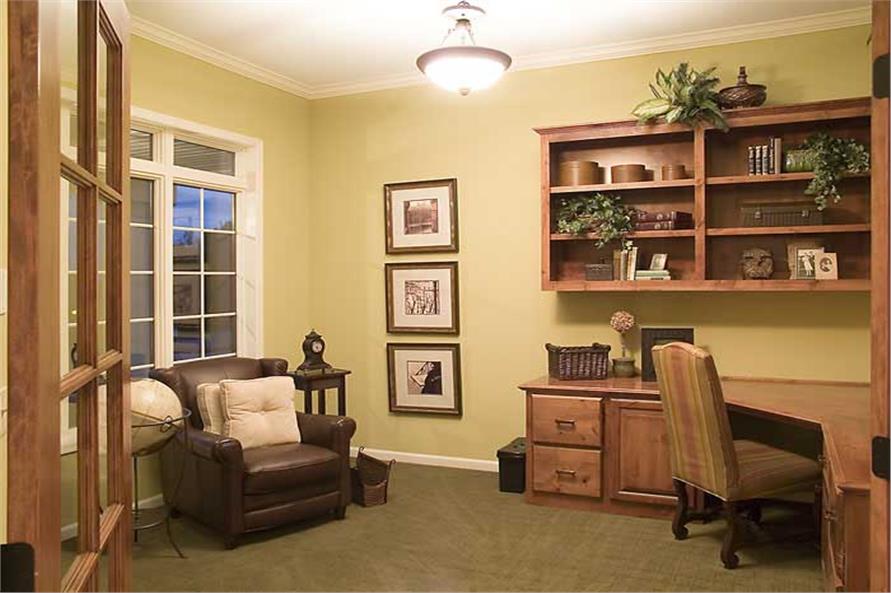

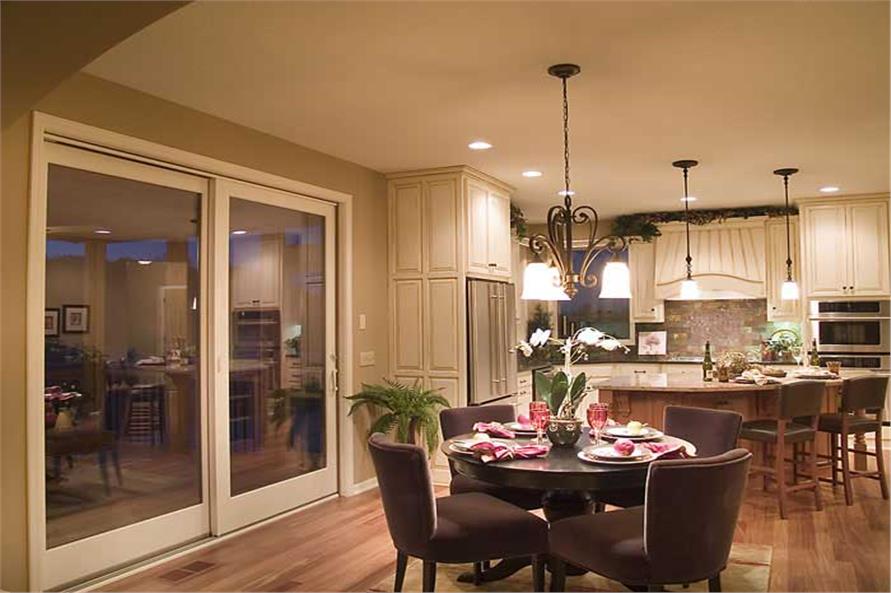

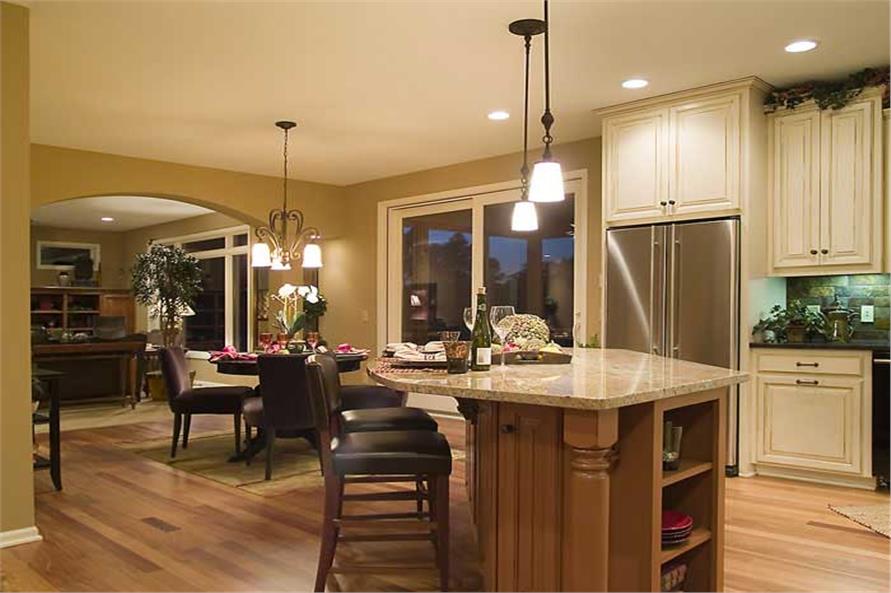

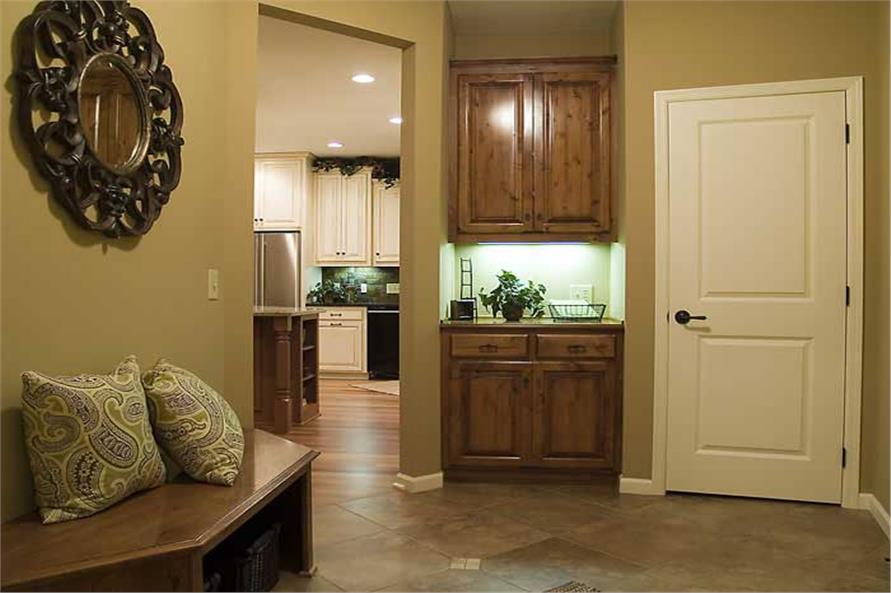

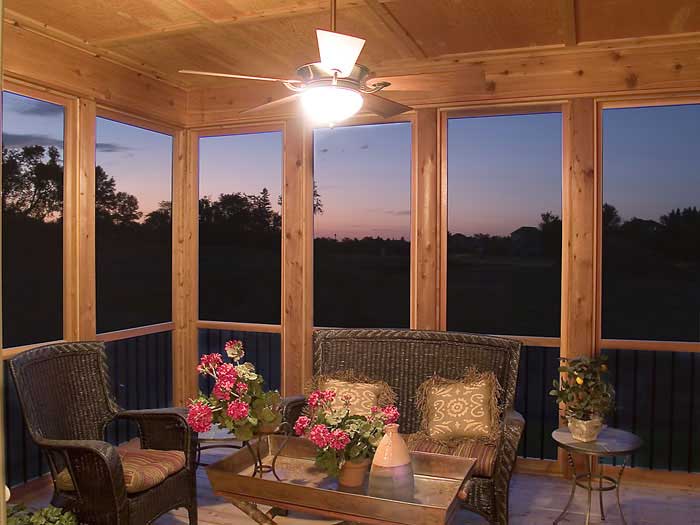

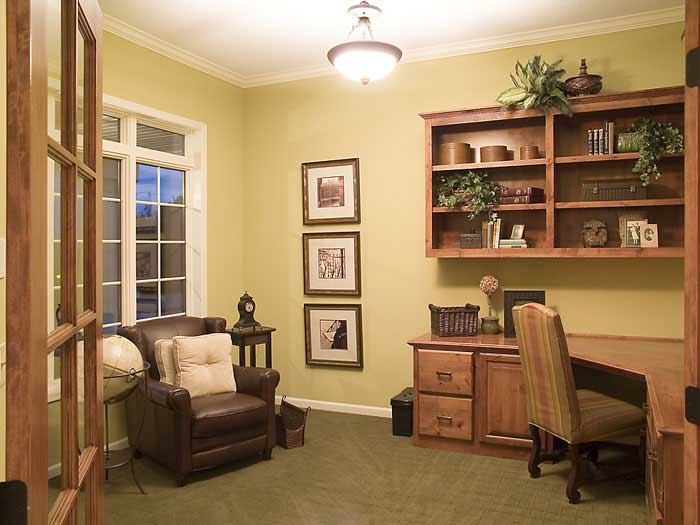

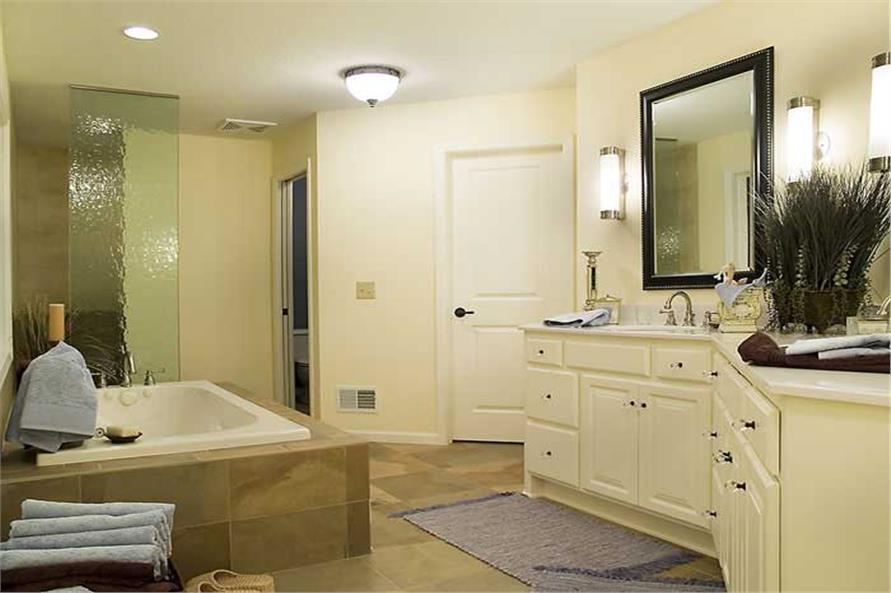

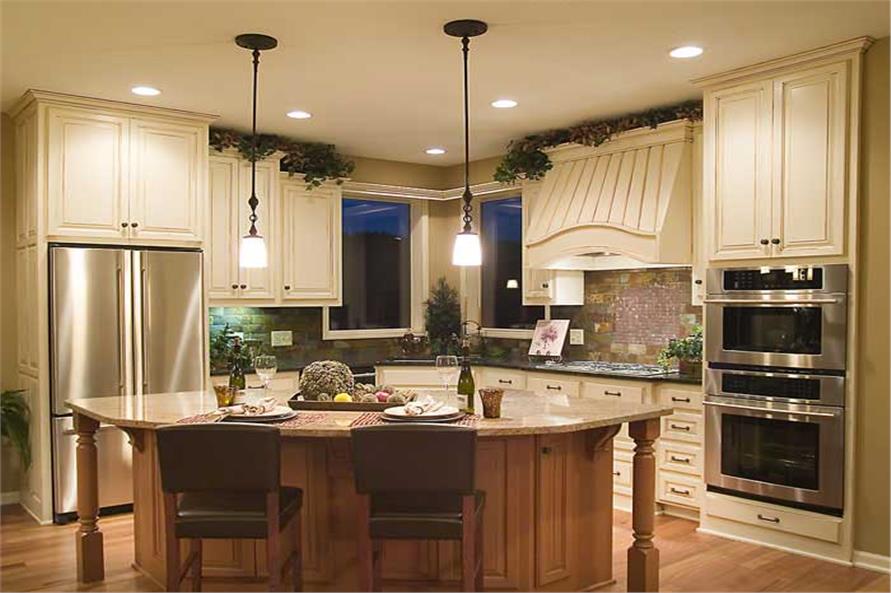

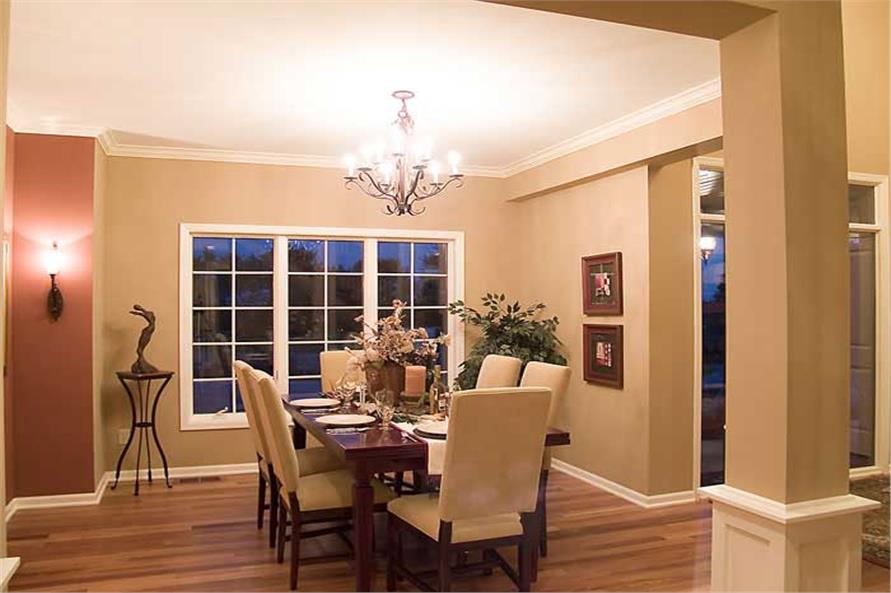

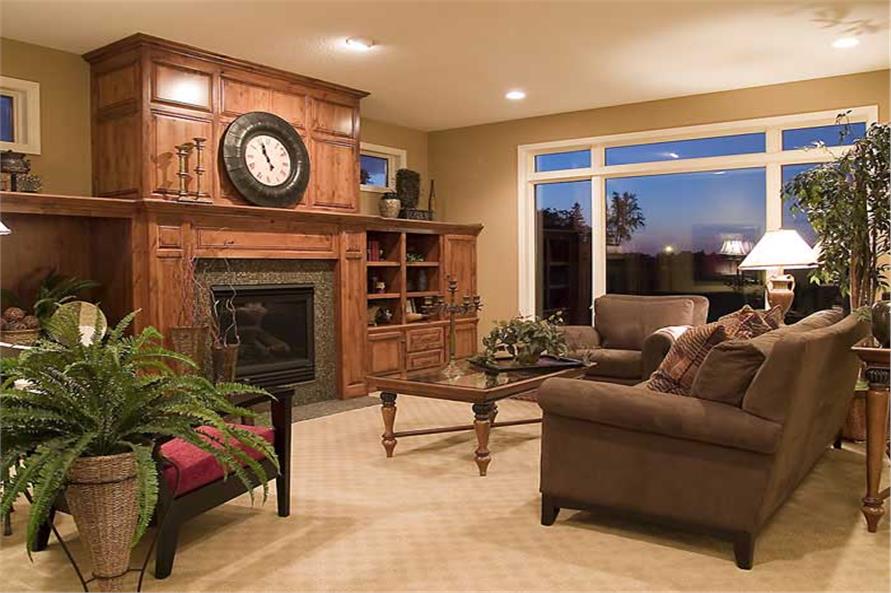

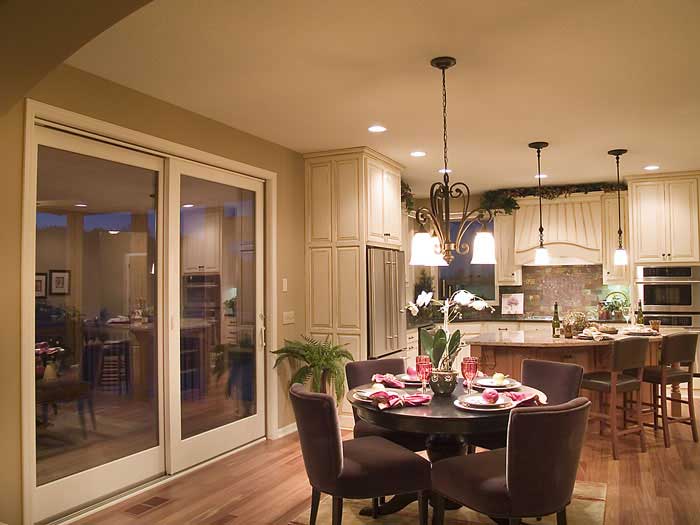

Welcome home to this delightful 3,159 sq. ft., 4 bedroom, 3.5 bathroom Craftsman gem. From the inviting covered front porch, you'll cross the threshold into the dramatic angled foyer. Immediately on the right is the elegant dining room, complete with a recessed area for a hutch cabinet. Just a few steps away is the gourmet kitchen which has a spacious center island. The sunny breakfast room has an entrance to the relaxing screened porch, which accesses the deck. Just off the breakfast room is the enormous great room nicely appointed with a fireplace, picture window and built-in cabinetry and shelves. Beyond the great room is a private study with a built-in work area. Completing this main level you'll find a powder room, walk-in pantry, 2 generous coat closets, an oversized laundry room and an entry hall off the garage that boasts a convenient message center and built-in bench. Ascend the stairs to the upper level where unexpected design elements await. Angled walls with picture niches, bookshelves and a plant ledge are sure to catch your eye. The secluded master suite measures 19 x 172 and features an arched soffit. The master bath is elegantly appointed with a built-in tub, walk-in shower, his-and-hers sinks, a linen closet and a private commode closet. The walk-in closet provides ample space for clothing. The three remaining bedrooms will accommodate family or guests with an abundance of closet space and two bathrooms.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

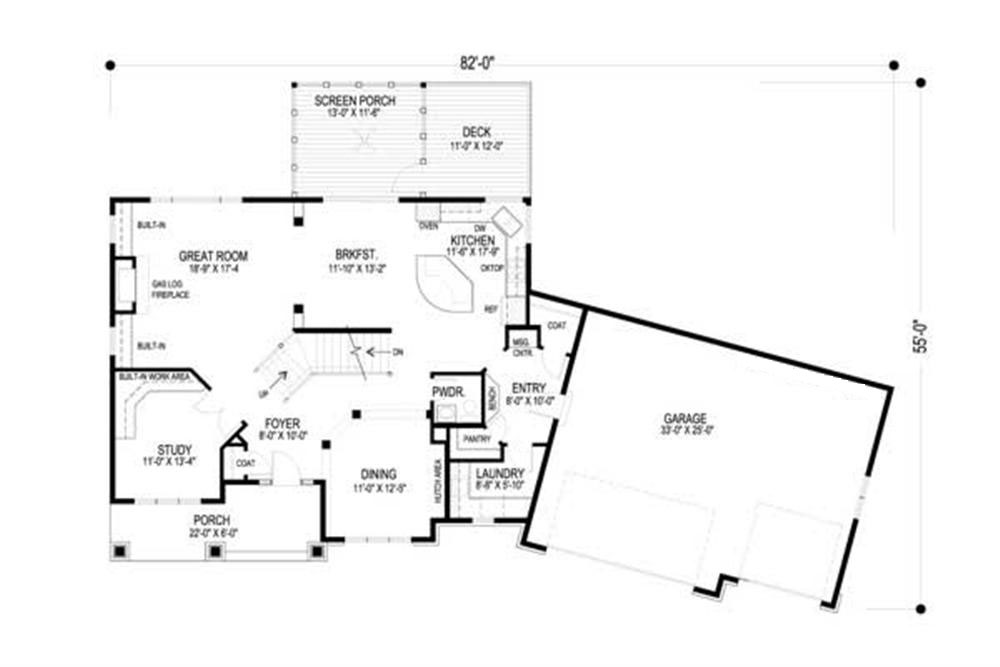

Home Plan: #109-1059 Floor Plan First Story - first story Floor Plan First Story of Country Plan #109-1059

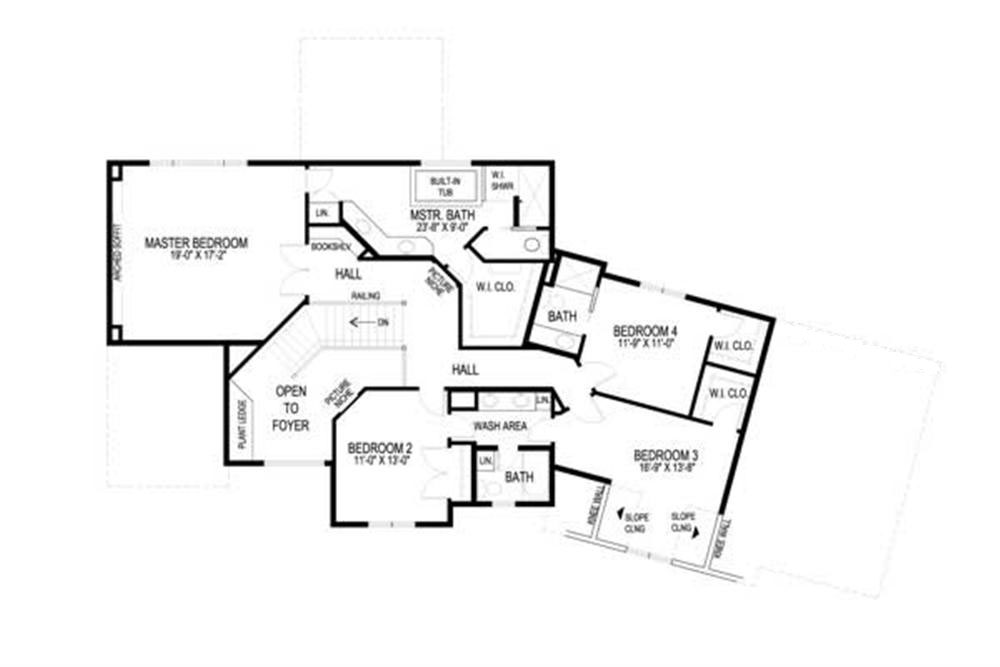

#109-1059 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #109-1059
