About Plan # 116-1078

About Plan # 116-1078

3100 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 52' 0" WIDTH 68' 0" DEPTH 2 GARAGE BAY

This elegant Modern style home plan with California Style influences (House Plan #116-1078) has 3100 square feet of living space. The 2 story floor plan includes 4 bedrooms, 3 full bathrooms, and 1 half bath.

The house plan features an enlarged pool courtyard, garage apartment, large upstairs bedrooms and a custom kitchen layout. The half bath at the base of the stairs also functions as an aboveground storm shelter and safe room. The plan is designed with a concrete slab on grade. The exterior walls are 2x8 wood framing with R-36+ spray foam insulation. The second floor system is pre-engineered wood trusses. The roof is a membrane, a plywood deck, and pre-engineered wood trusses.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

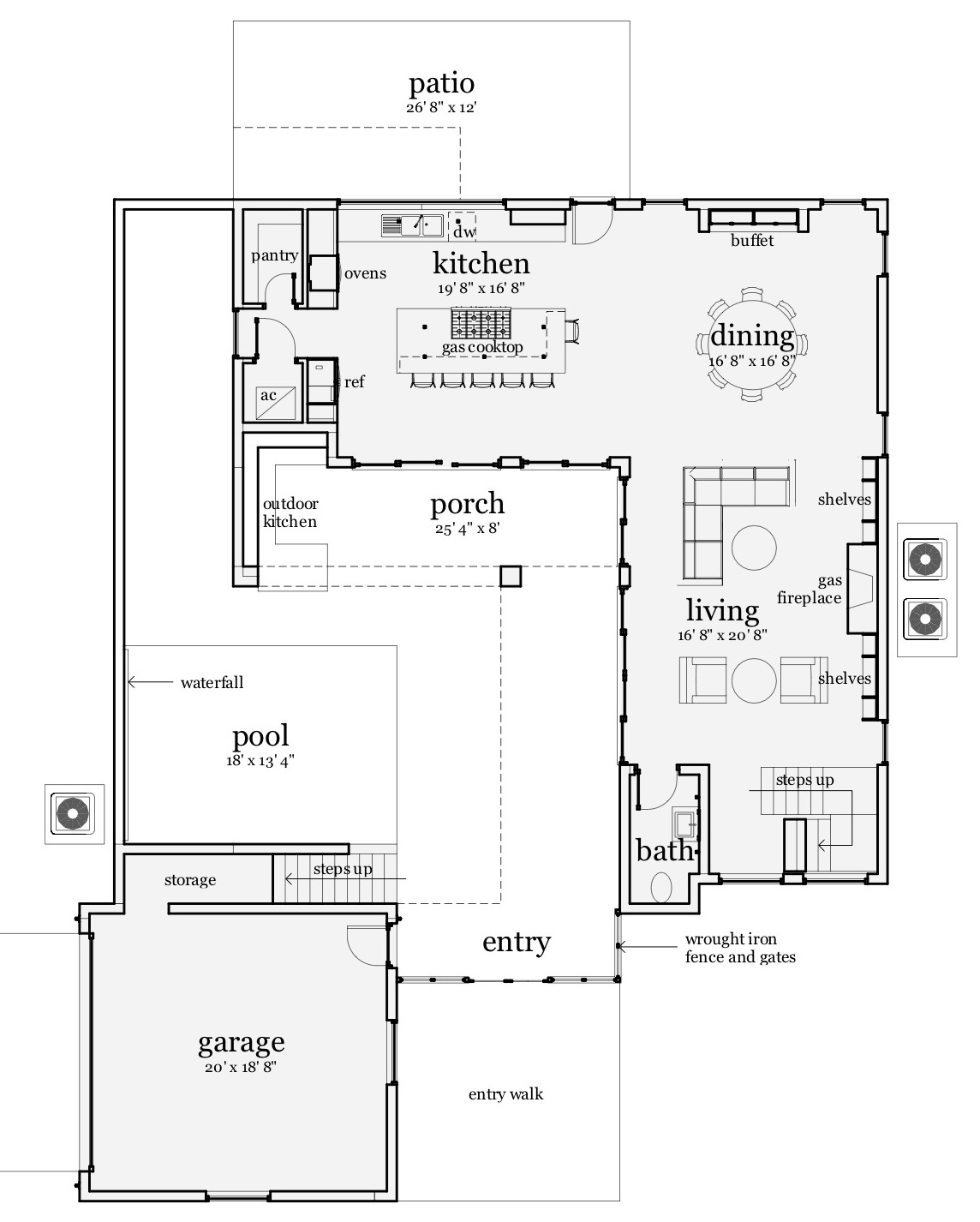

Home Plan: #116-1078 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1078

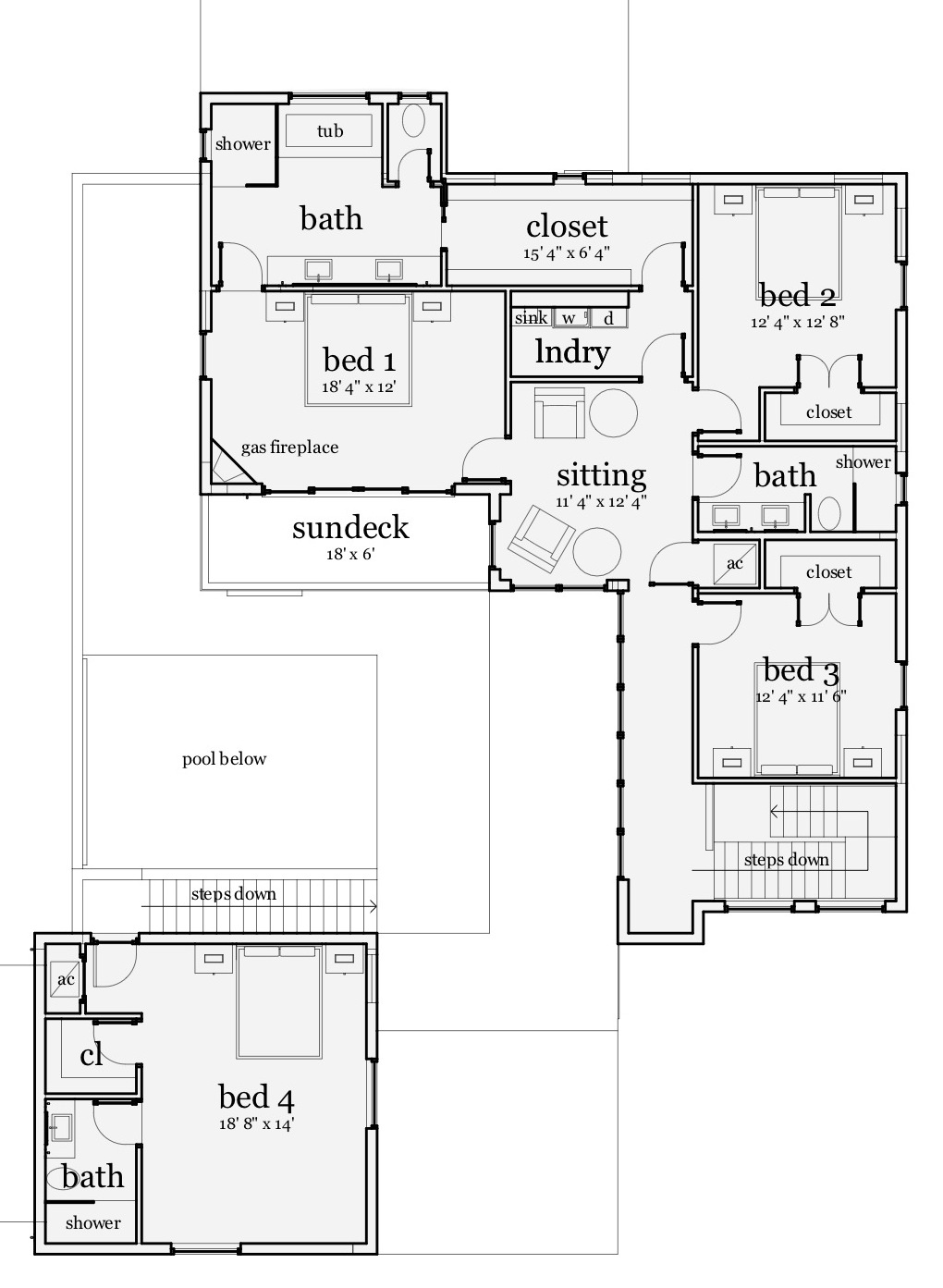

#116-1078 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1078
Home Plan: #116-1078 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1078
#116-1078 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1078
