2652 Sq Ft Modern Beachfront Plan with Pool

116-1081 front photo
116-1081: Home Exterior Photograph-Deck

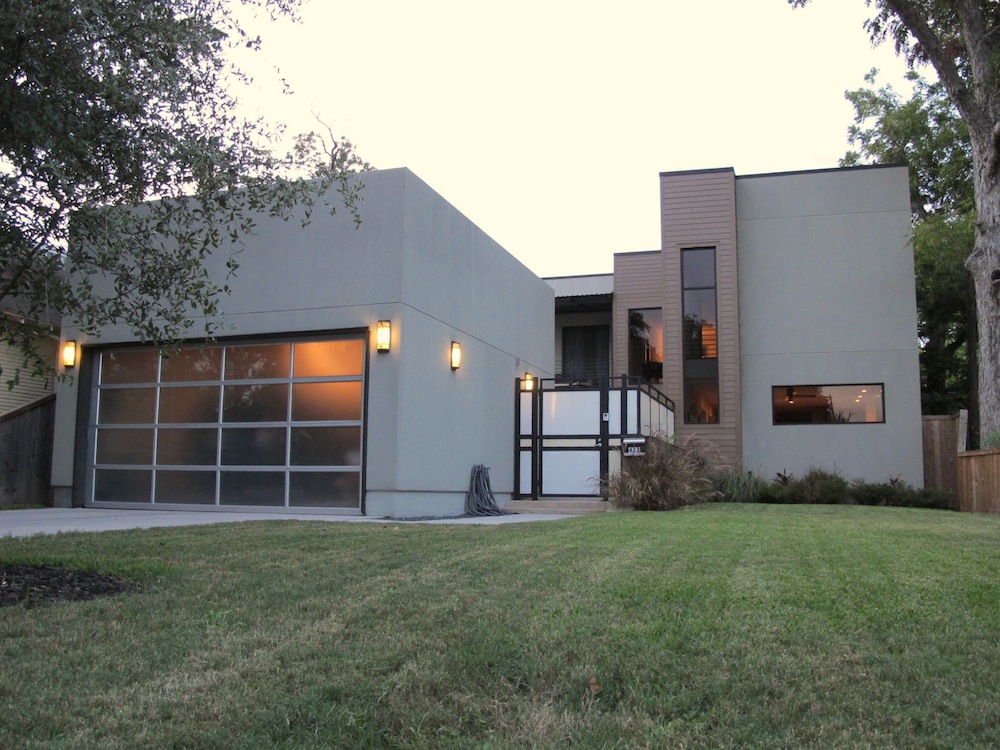

116-1081: Home Exterior Photograph
116-1081: Home Exterior Photograph

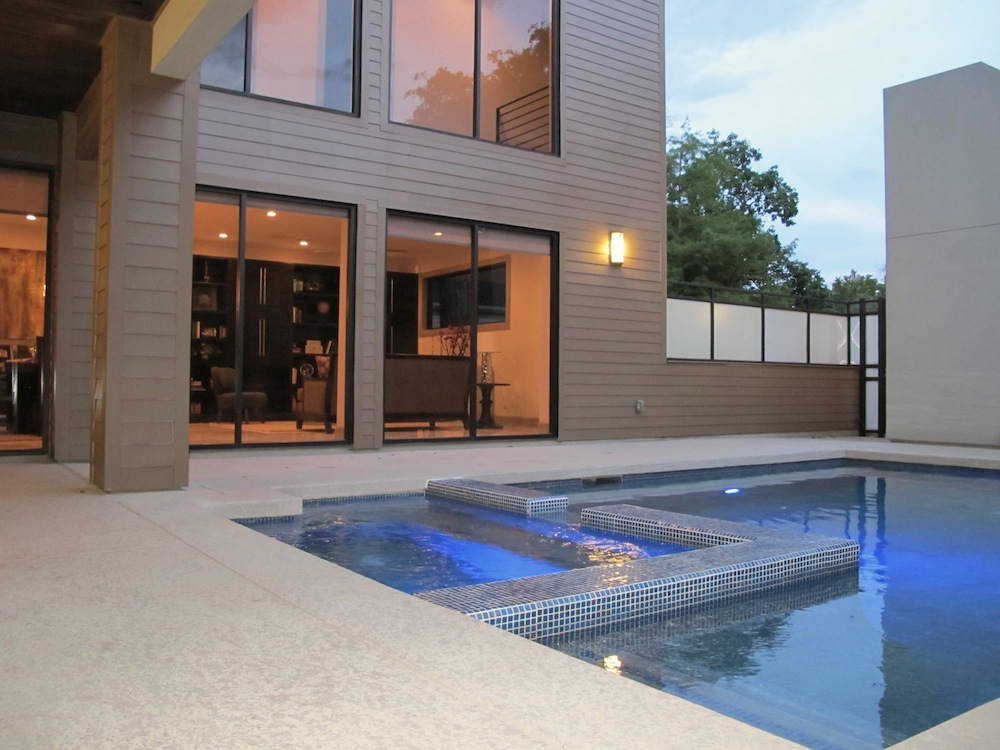

116-1081: Home Exterior Photograph-Pool
116-1081: Home Exterior Photograph-Pool
116-1081: Home Interior Photograph-Kitchen

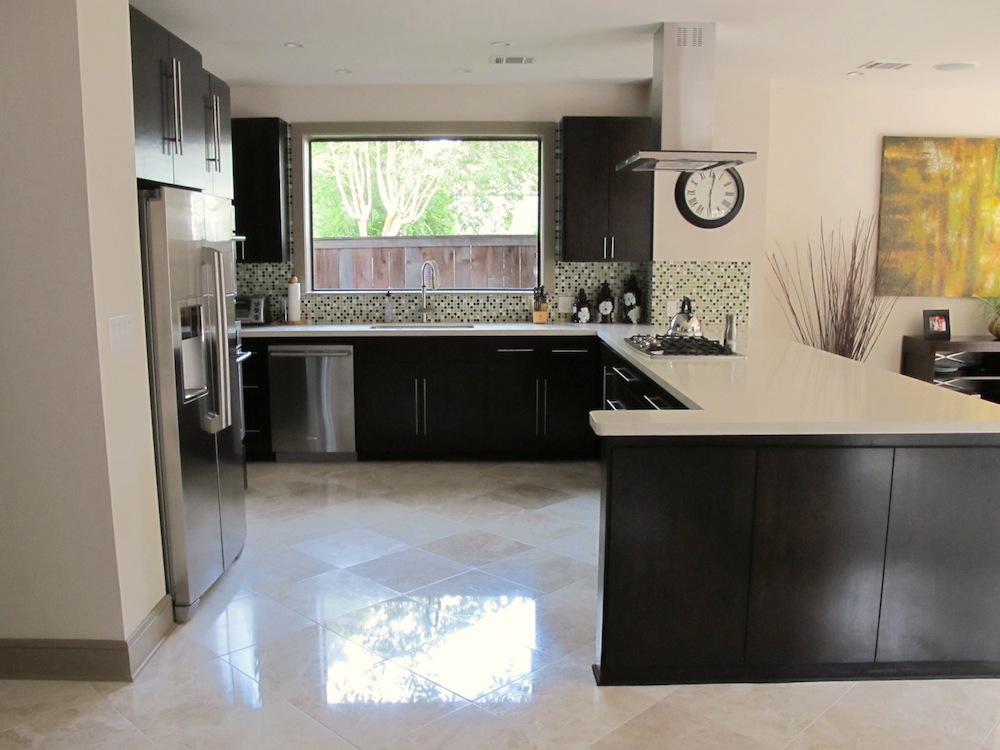

116-1081: Home Interior Photograph-Kitchen
116-1081: Home Interior Photograph-Great Room

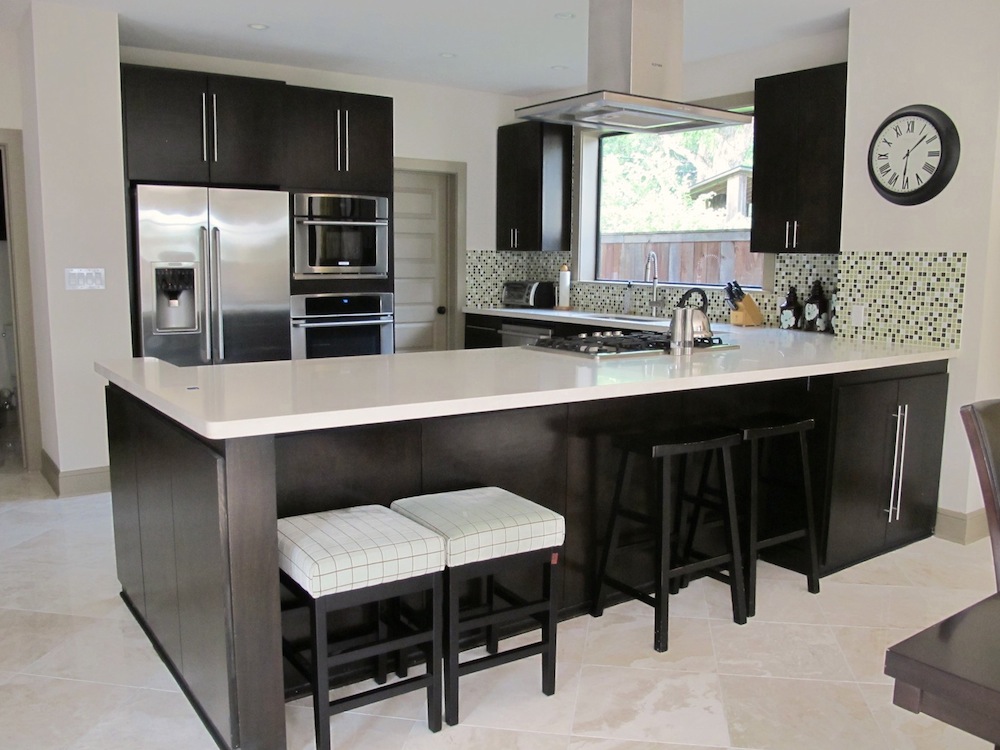

116-1081: Home Interior Photograph-Kitchen
116-1081: Home Interior Photograph-Bedroom

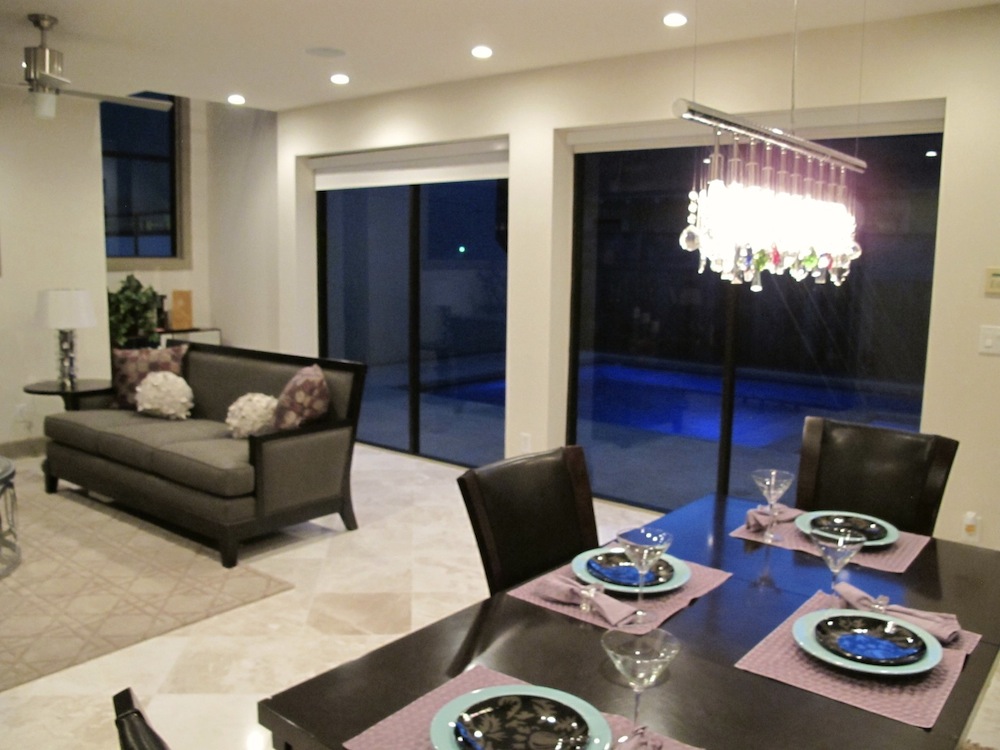

116-1081: Home Interior Photograph-Dining Room
116-1081: Home Interior Photograph
116-1081: Home Interior Photograph
116-1081: Home Interior Photograph
116-1081: Home Plan 3D Image-Front View
4-Bedroom, 2652 Sq Ft Modern House Plan - 116-1081 - Front Exterior
116-1081: Home Exterior Photograph-Deck
116-1081: Home Exterior Photograph
116-1081: Home Exterior Photograph
116-1081: Home Exterior Photograph-Pool
116-1081: Home Exterior Photograph-Pool
116-1081: Home Interior Photograph-Kitchen
116-1081: Home Interior Photograph-Kitchen
116-1081: Home Interior Photograph-Great Room
116-1081: Home Interior Photograph-Kitchen
116-1081: Home Interior Photograph-Bedroom
116-1081: Home Interior Photograph-Dining Room
116-1081: Home Interior Photograph
116-1081: Home Interior Photograph
116-1081: Home Interior Photograph
116-1081: Home Plan 3D Image-Front View

About Plan # 116-1081

About Plan # 116-1081

2652 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 44' 0" WIDTH 84' 0" DEPTH 2 GARAGE BAY

This modern house plan is inspired by the luxury beach homes of the Caribbean coast. The home's interior faces the pool and hot tub courtyard. The living and dining areas are divided by a textured glass wall, and open to the pool with folding doors by Nanawall. The upper floor includes 4 bedrooms, a laundry room, a sitting area, and a deck.

  • The standard version of this plan is designed with a concrete slab on grade.
  • The exterior walls are 2x6 wood framing downstairs, and 2x4 framing upstairs.
  • The roof is standing seam metal over plywood deck, and pre-engineered wood trusses.
  • The exterior is finished with stucco and wood siding over the wood structure.sitting area.

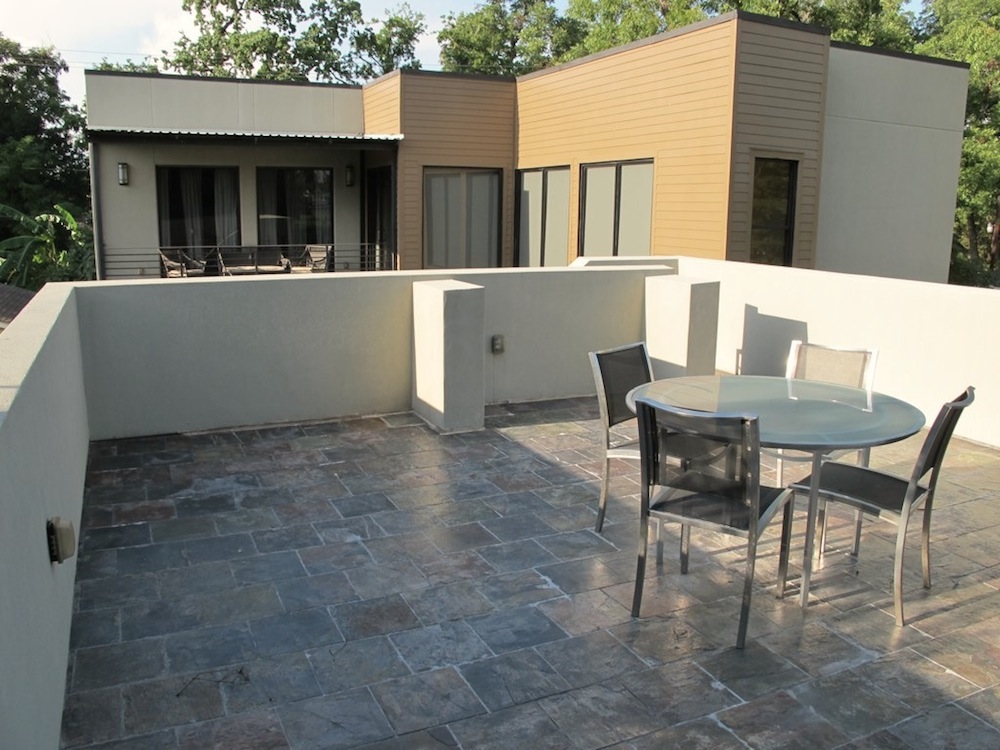

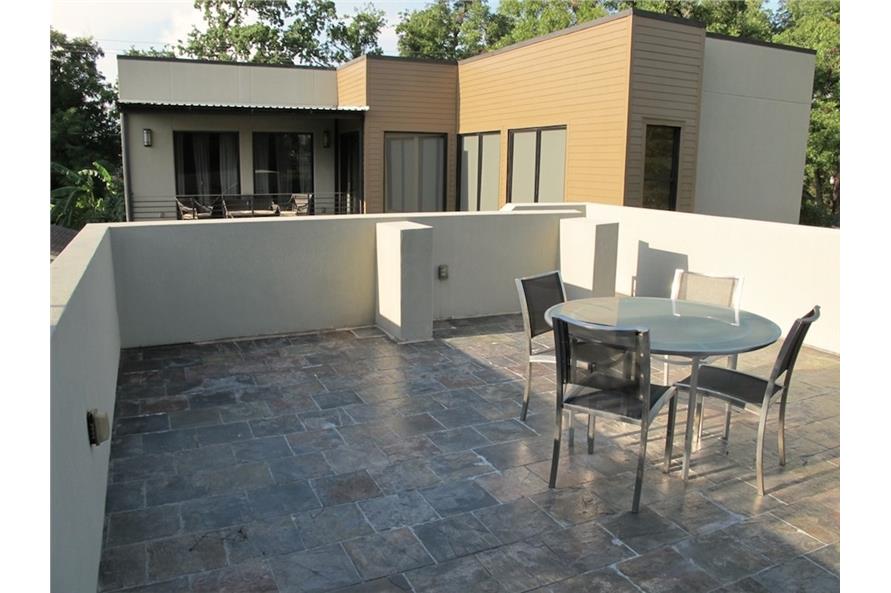

  • Stairs lead to the sundeck above the garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

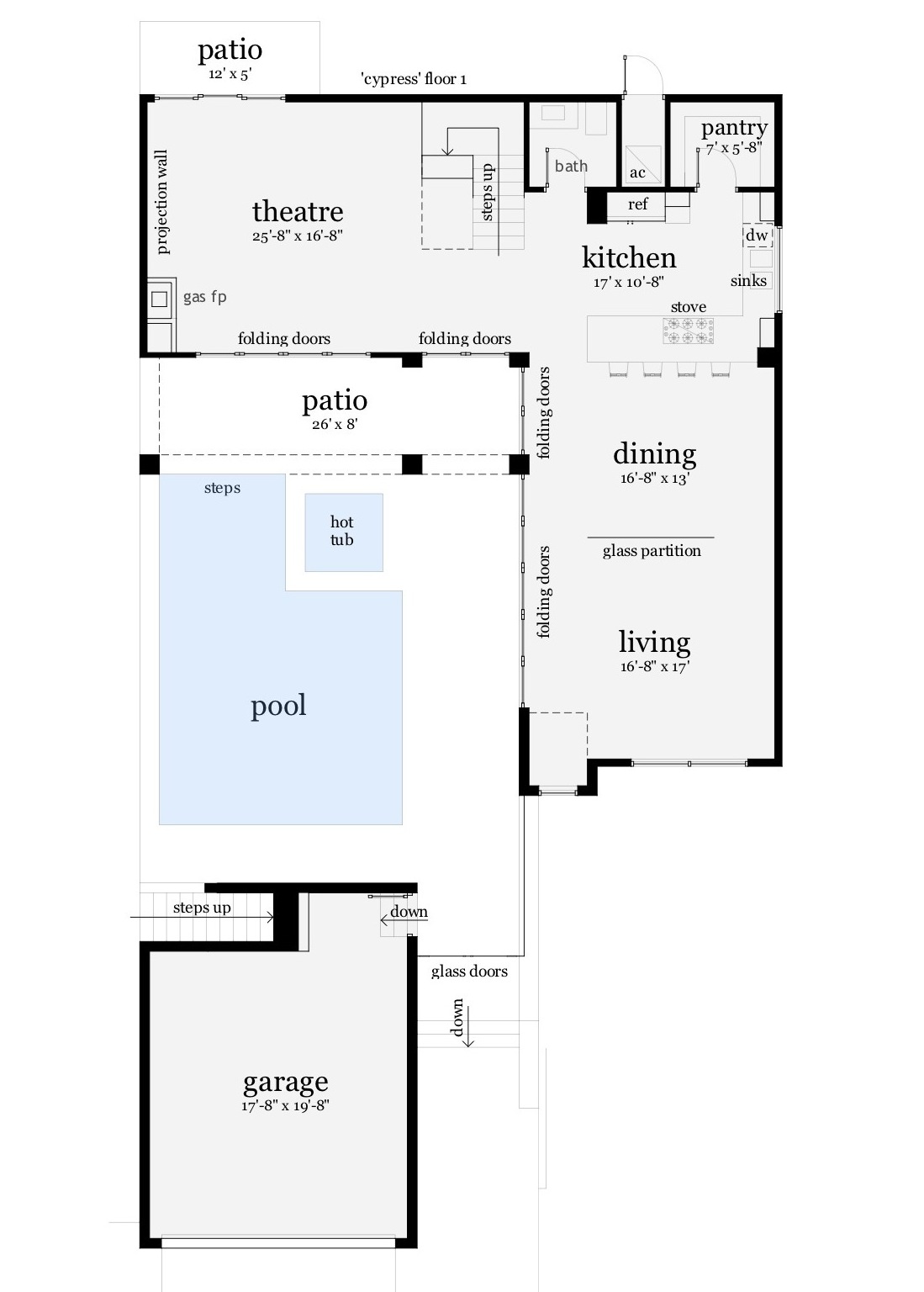

Home Plan: #116-1081 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1081

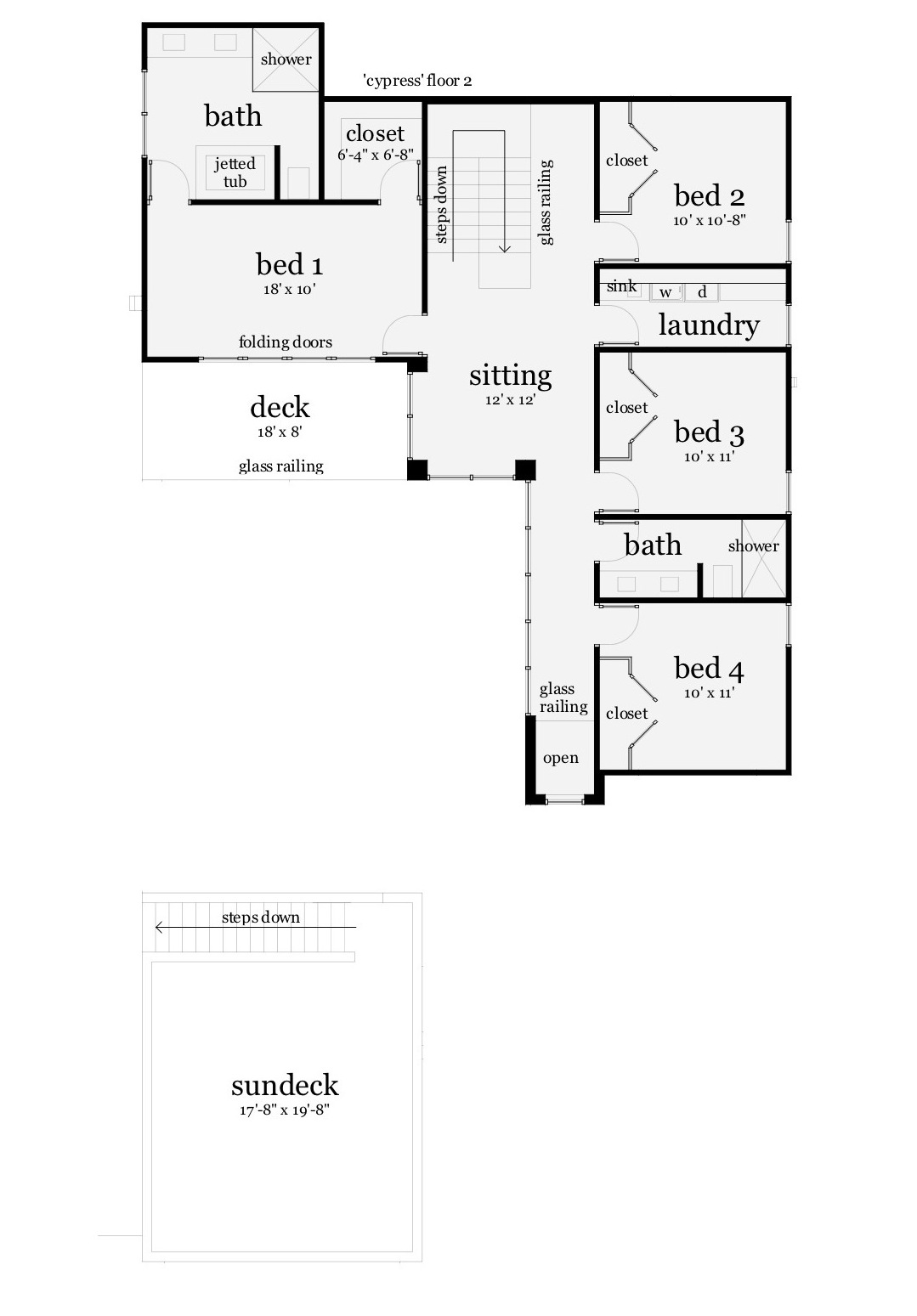

#116-1081 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1081
Home Plan: #116-1081 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1081
#116-1081 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1081
