About Plan # 116-1105

About Plan # 116-1105

5081 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 50' 0" WIDTH 72' 0" DEPTH 3 GARAGE BAY

This lovely Historic style home plan with European Castle influences (House Plan #116-1105) has 5081 square feet of living space. The 2 story floor plan includes 4 bedrooms, 2 bathrooms, and 1 half bath. The exterior walls are double 2x6 wood framing construction and are faced with stone.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

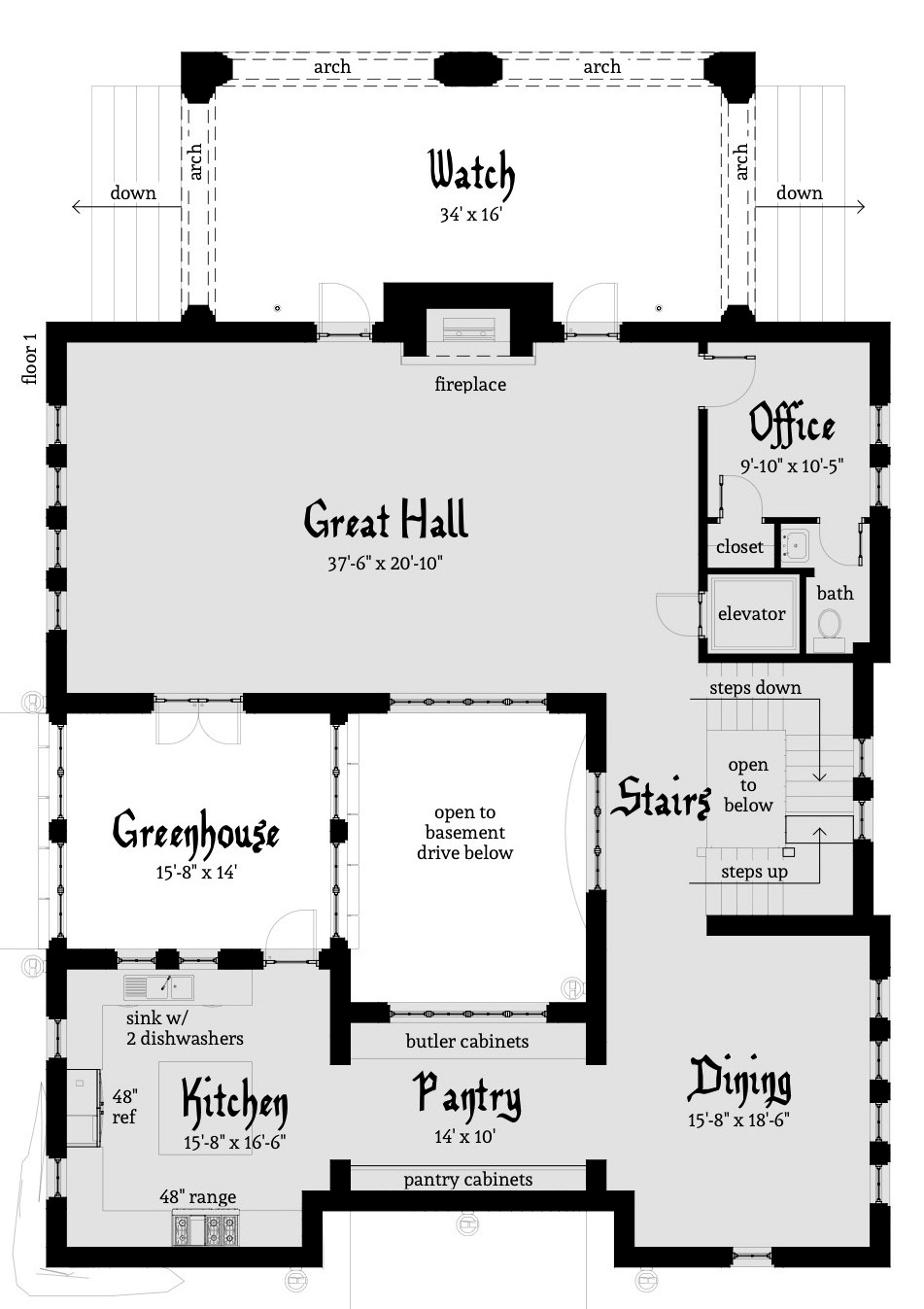

Home Plan: #116-1105 Floor Plan First Story - main level Floor Plan First Story of Historic Plan #116-1105

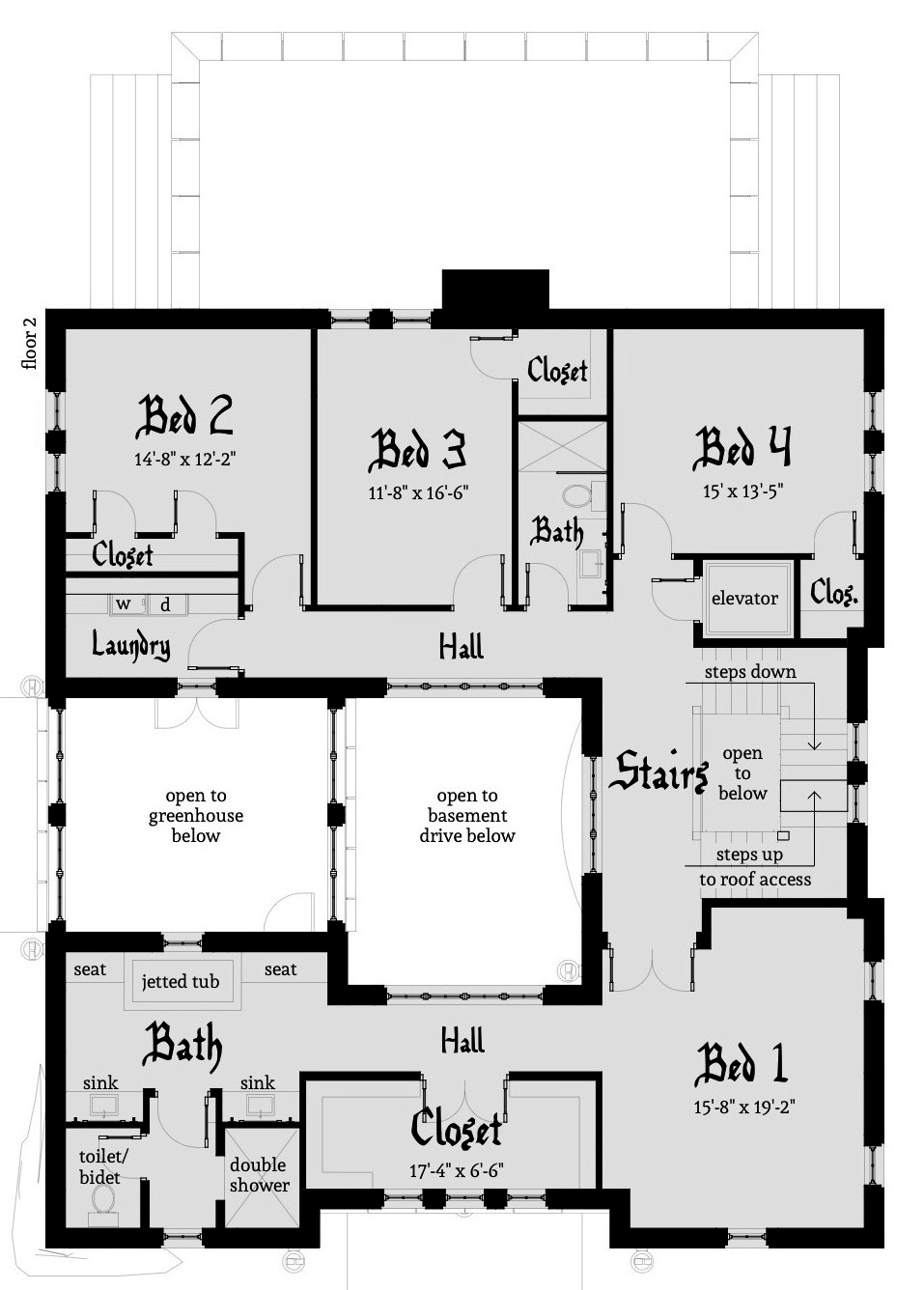

#116-1105 Floor Plan Second Story - upper level Floor Plan Second Story of Historic Plan #116-1105

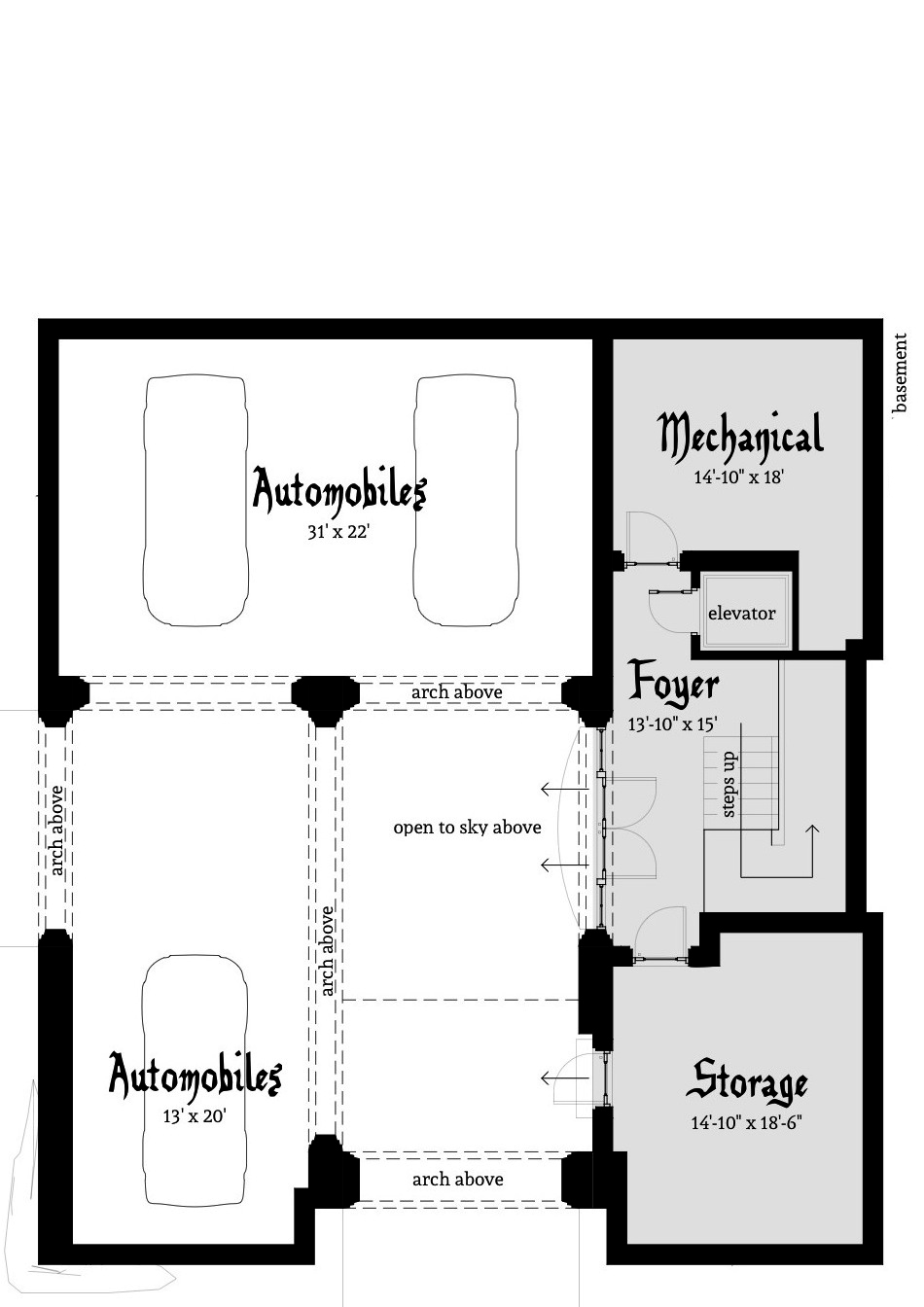

#116-1105 Floor Plan Basement - basement Floor Plan Basement of Historic Plan #116-1105
