Modern style home (ThePlanCollection: Plan #116-1106)

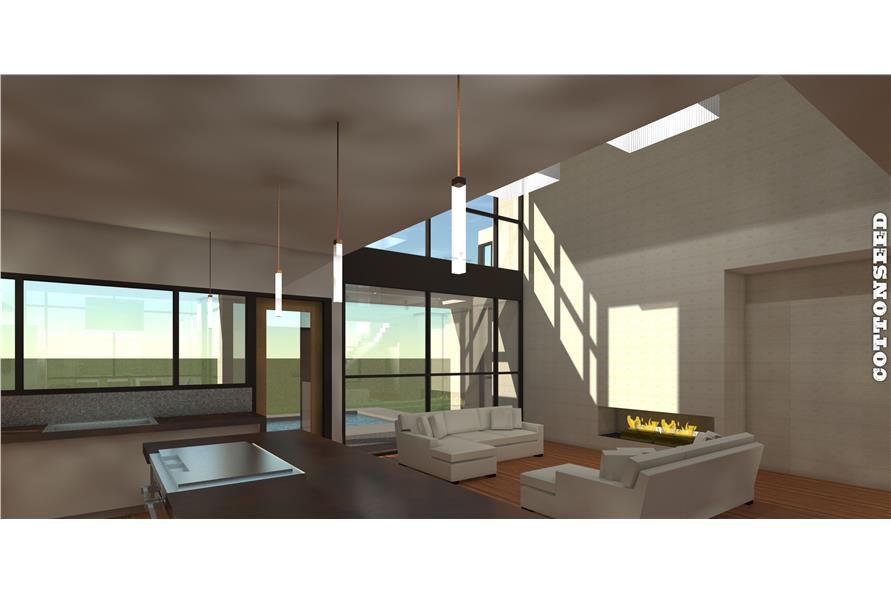

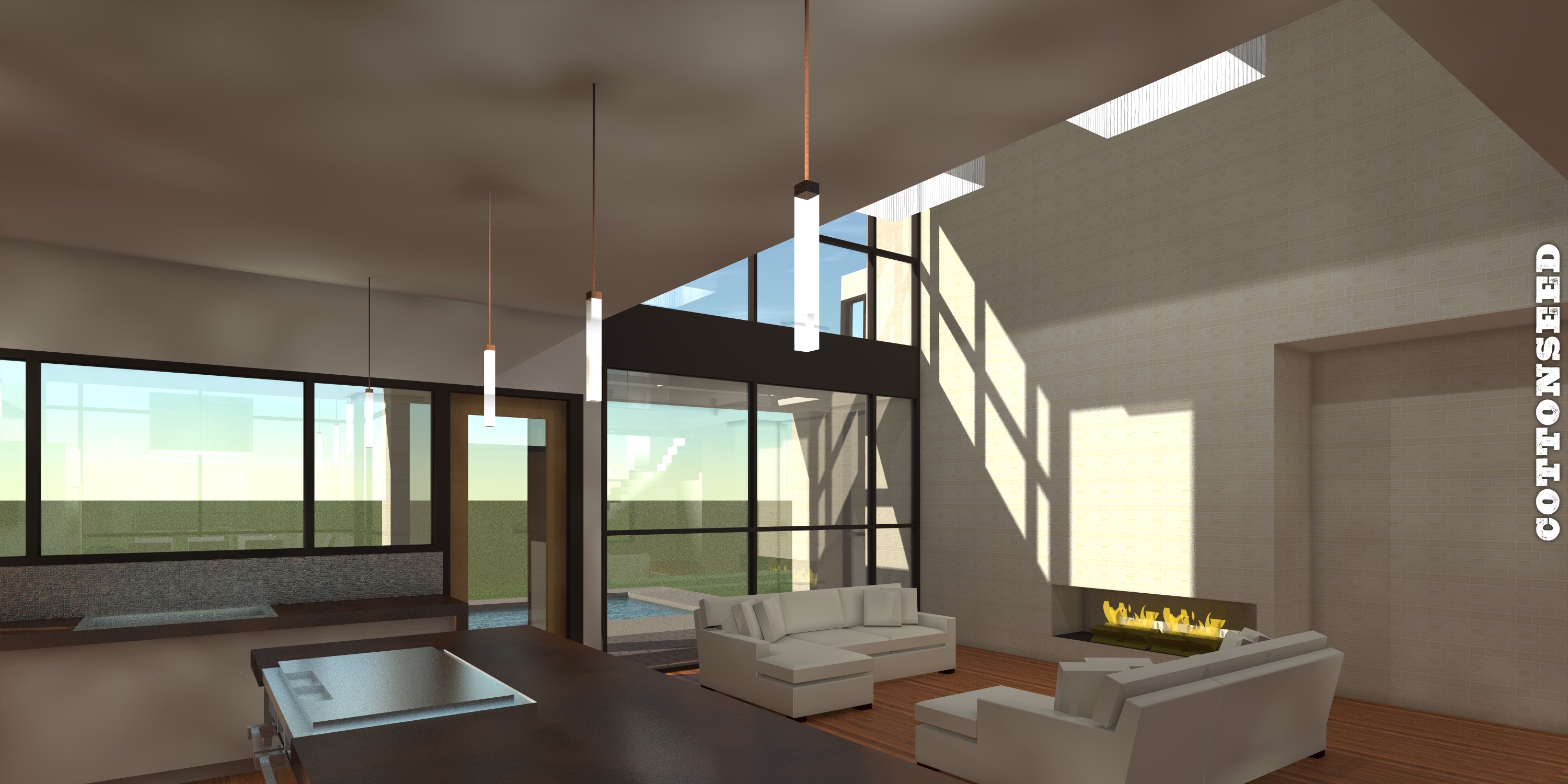

116-1106: Home Other Image-Living Room

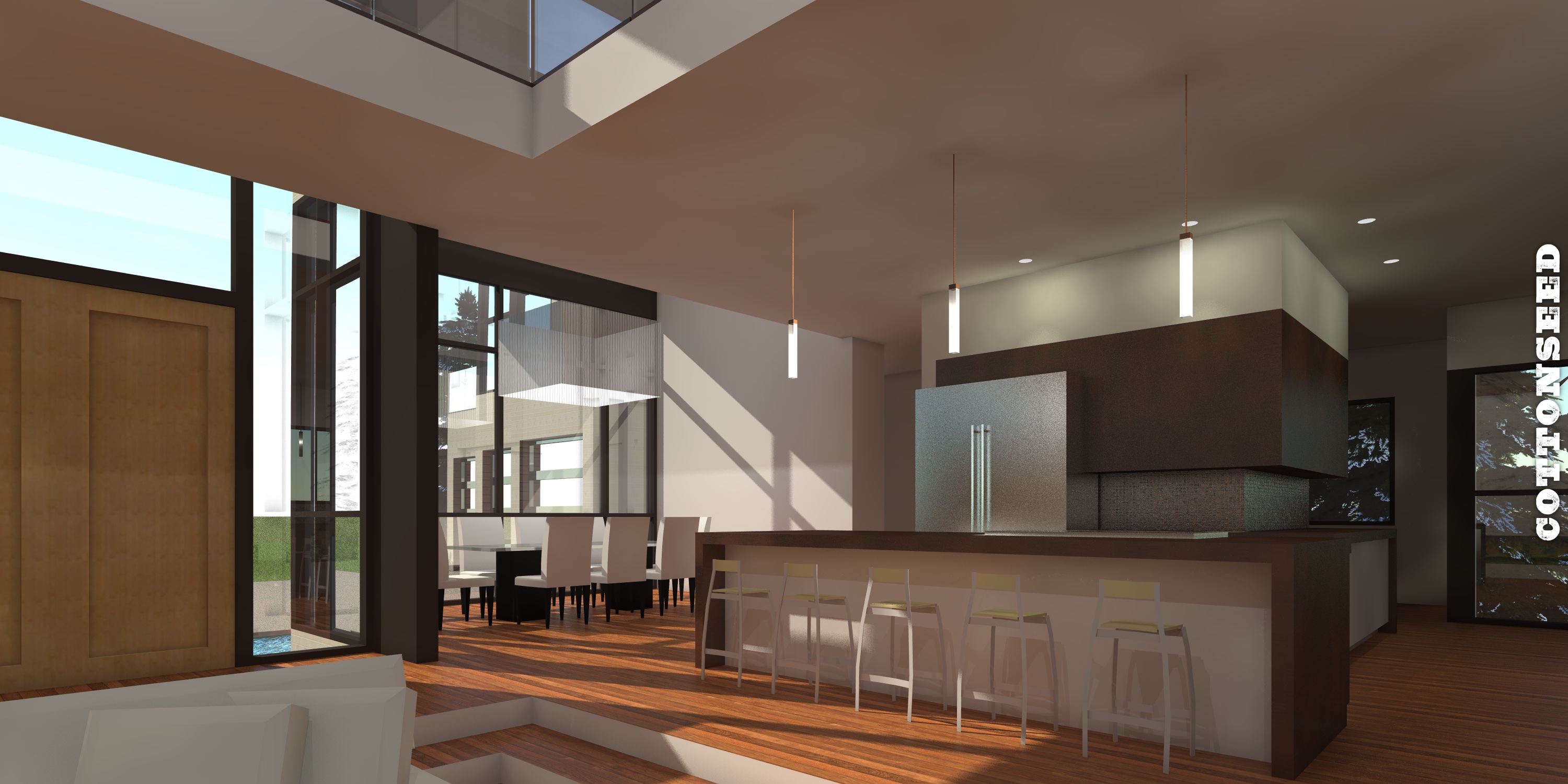

116-1106: Home Other Image-Kitchen
116-1106: Home Other Image-Patio
116-1106: Home Other Image-Rear View

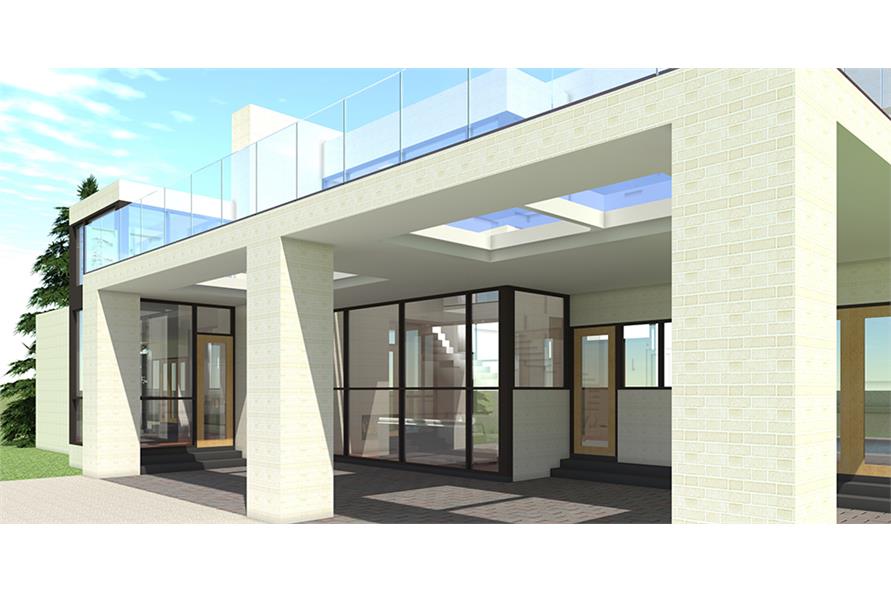

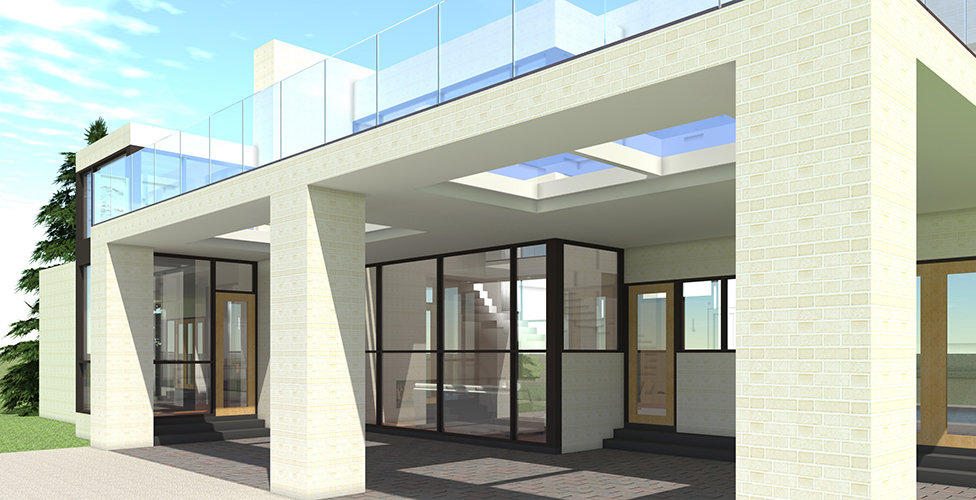

116-1106: Home Other Image-Front Door
116-1106: Home Other Image-Living Room
5-Bedroom, 5165 Sq Ft Modern Home Plan - 116-1106 - Main Exterior
116-1106: Home Other Image-Living Room
116-1106: Home Other Image-Kitchen
116-1106: Home Other Image-Patio
116-1106: Home Other Image-Rear View
116-1106: Home Other Image-Front Door
116-1106: Home Other Image-Living Room

About Plan # 116-1106

About Plan # 116-1106

5165 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 93' 0" WIDTH 104' 0" DEPTH 3 GARAGE BAY

This eye-catching, Modern-style home with luxurious details raises the bar for today's home design. Huge panes of glass, soaring ceiling heights, and bold lines are just the start of what makes this 5-bedroom, 5.5-bath home so stunning. From the motor court, take the path towards the front door while enjoying the peaceful setting created by the flanking zen-like ponds. Stepping over the transom and into the foyer, you will be immediately taken by the impressive sunken living area with its 22-foot ceiling height, grand fireplace, and wall of windows to the rear patio. The open floor plan layout of the main living areas is cleverly designed creating open yet defined spaces. The dining area looks out to the front pond. The chef-worthy kitchen is laid out to provide space for serious cooking and space for joyful entertaining. The large kitchen island includes plenty of seating for quick meals or relaxing with a bottle of wine with friends. A huge walk-in pantry provides plenty of storage space. A "gardening" space (sunroom) has direct access to the patio. A craft space is perfect for a large table for kids to do projects on. There is also a mudroom that leads to the attached 3-car garage. When quiet time is needed, there is an office right off the master suite.

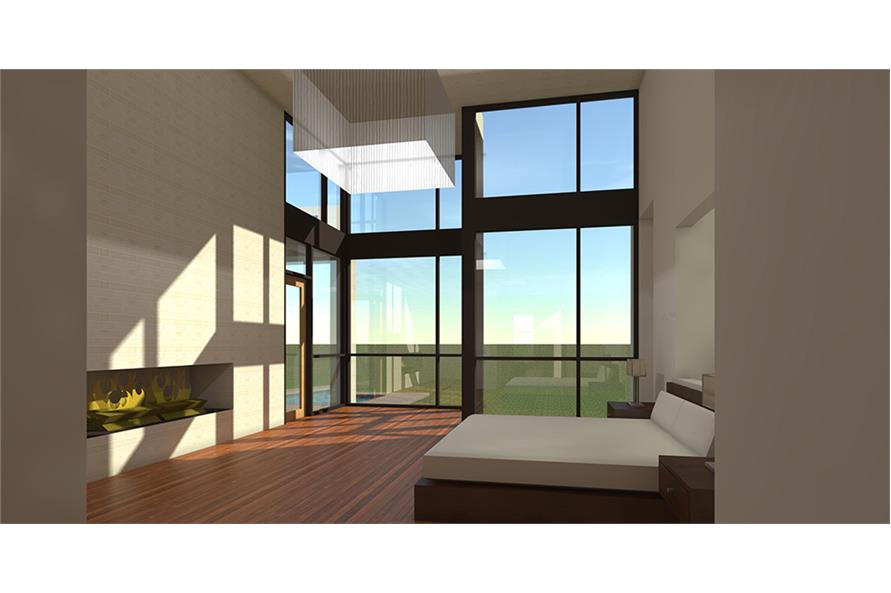

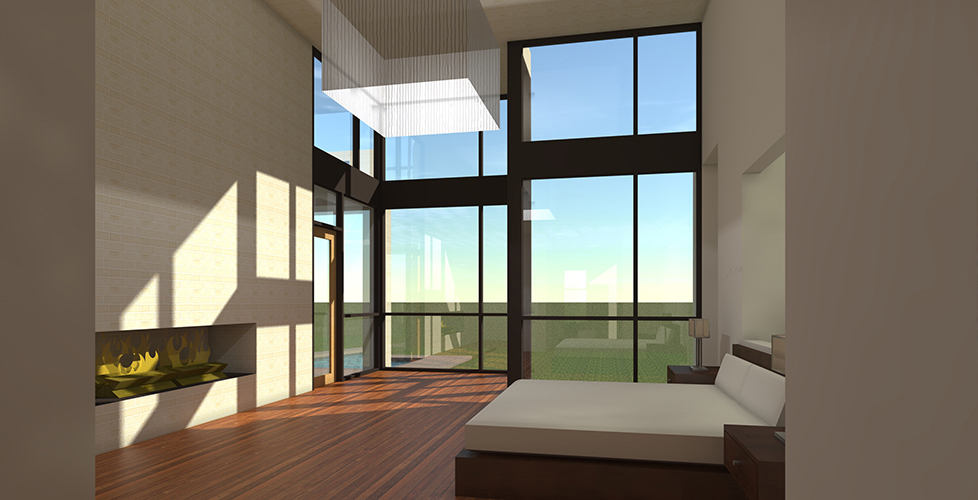

The main floor master suite has everything one could ask for. The master bedroom has 16-foot ceilings, a fireplace, and a sitting area with access to the covered patio. The master bathroom has a his-and-her layout with separate doors, two showers, separate his-and-her sink vanities, and even separate toilet compartments — only the large, jetted tub in the center is shared space. And, of course, there are his-and-her walk-in closets.

Take either of the two staircases up to the second floor. A loft space overlooks the living area and provides access to the sundeck. Bedrooms #2, #3, and #4 all have ensuite bathrooms and plenty of closet space. The fifth bedroom, just off the staircase nearest the garage, is designed as an in-law suite. Its studio space includes a living/dining area and a small kitchen. The bedroom area is in an alcove area and next to its full ensuite bathroom. The fifth bedroom also has a private sundeck.

Other amenities in this 5165-square foot modern home include a workshop off of the garage and a second-floor laundry.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
gichohitony1
i want this hows nooooooooow
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

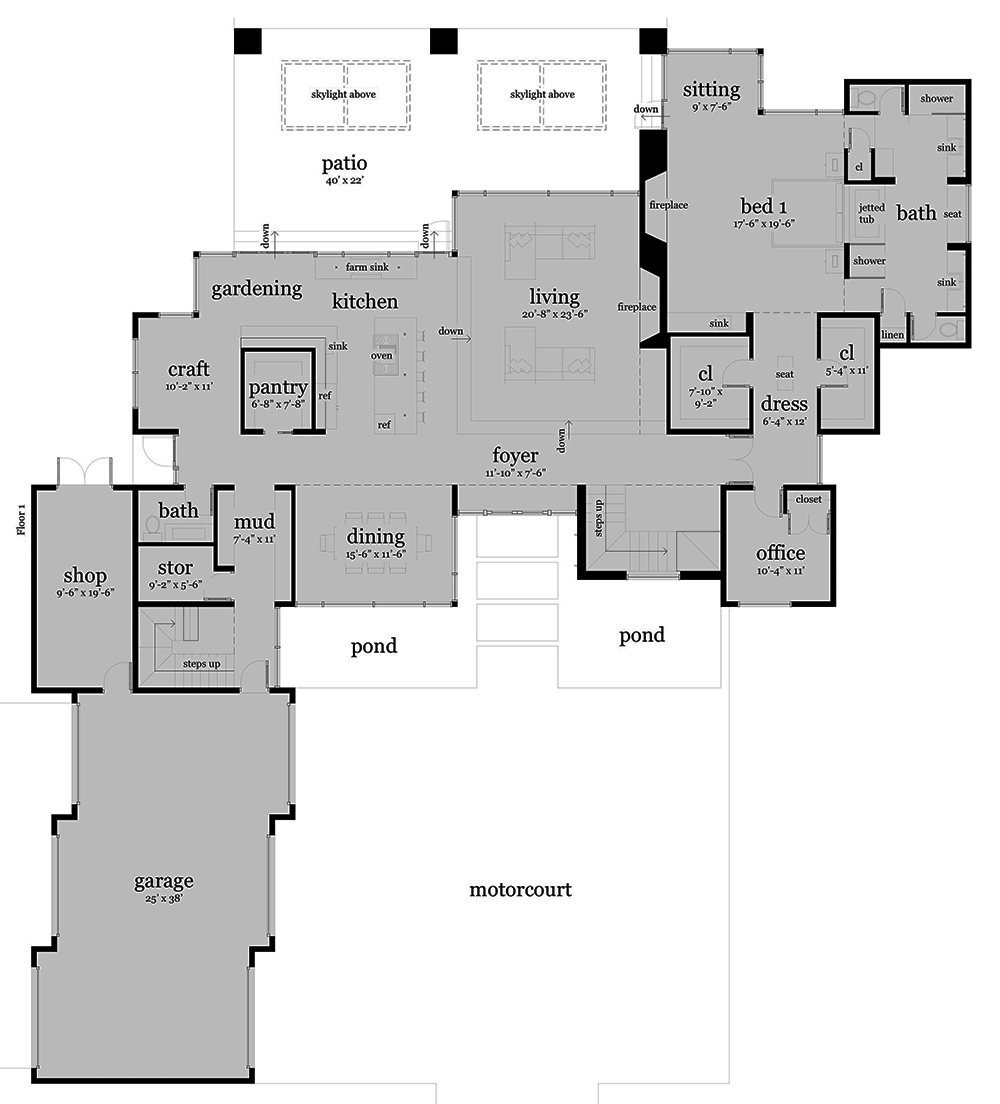

Home Plan: #116-1106 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #116-1106

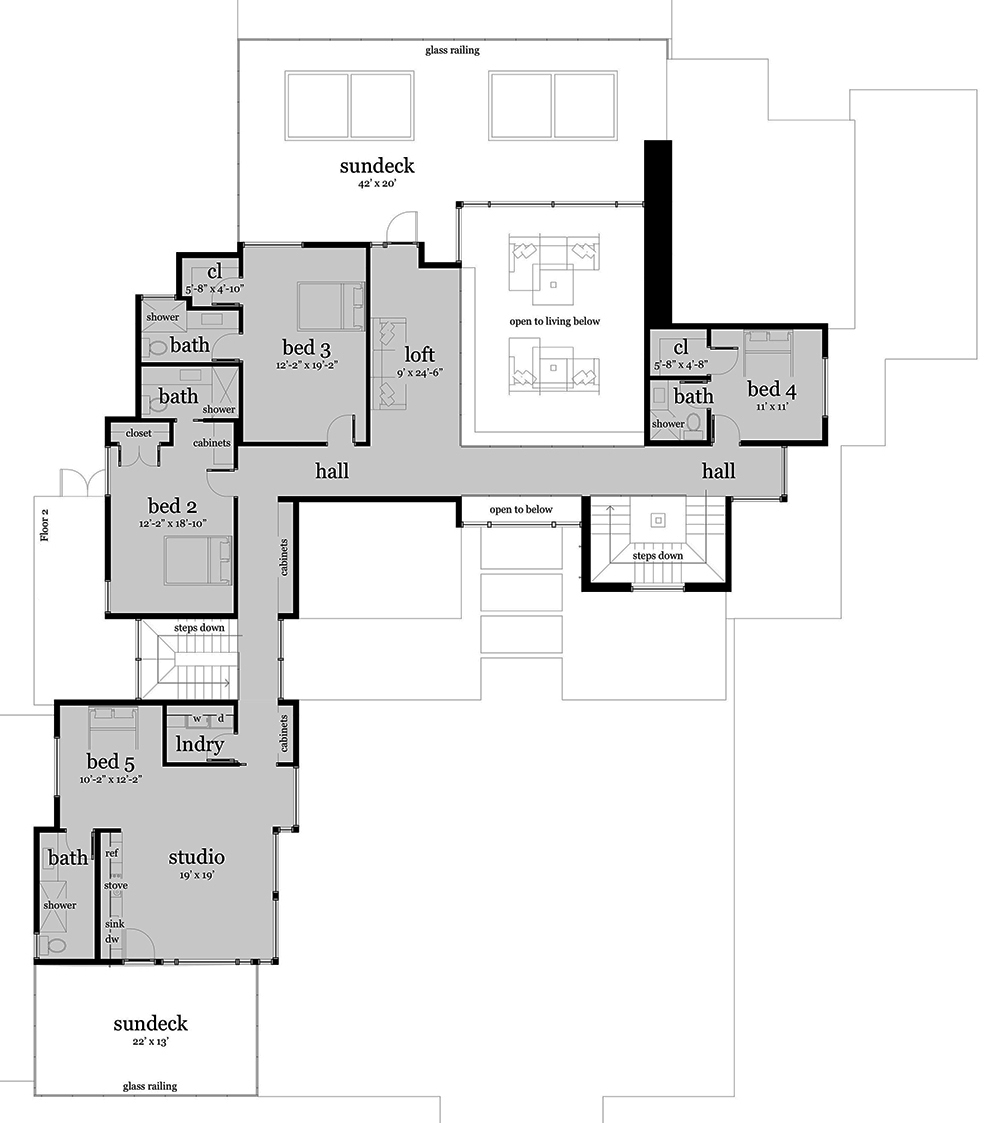

#116-1106 Floor Plan Second Story - upper level Floor Plan Second Story of Concrete Block/ ICF Design Plan #116-1106
Home Plan: #116-1106 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #116-1106
#116-1106 Floor Plan Second Story - upper level Floor Plan Second Story of Concrete Block/ ICF Design Plan #116-1106
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1106
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
5165
Main Floor:
3020
Upper Floor:
2145
Unfinished Sq Ft:
Main Floor:
200
Garage :
800
Porch :
792

Dimensions

Width:
93' 0"
Depth:
104' 0"
Ridge Height:
29' 0"

Architectural Styles

Contemporary
Luxury
Modern

Exterior Wall Material

Brick
Stucco

Roofing Type

Flat

Roofing Material

Metal

Roof Pitch

2/12

Ceiling Height

10 Foot Ceiling
8 Foot Ceiling

Special Feature

Mother in law apartment
Fireplace
Swimming Pool
Dining Room
Home Office
Mud Room
Main Level Laundry
Loft
Storage
Workshop
Second Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Butler's Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck
Covered Rear Patio

Master Suite Features

Main Floor Master
Two or More Master Suites
Fireplace in Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
