5-Bedroom, 5653 Sq Ft Coastal Plan with Wine Room

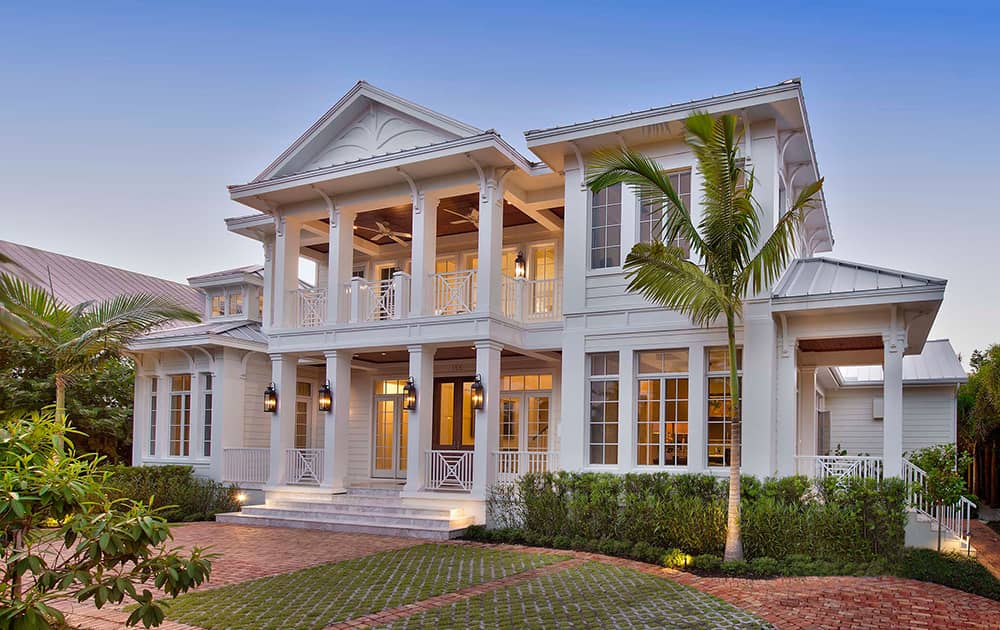

Colonial style Coastal home (ThePlanCollection: Plan #175-1243)
5-Bedroom, 5653 Sq Ft Coastal Home - Plan #175-1243 - Main Exterior

About Plan # 175-1243

About Plan # 175-1243

5653 SQUARE FEET 5 BEDROOMS 5 FULL BATH 2 HALF BATH
2 FLOOR 83' 8" WIDTH 104' 4" DEPTH 3 GARAGE BAY

This breathtaking Coastal style home with Contemporary Colonial characteristics (Plan #175-1243) has 5653 square feet of living space. The 2 story floor plan includes 5 bedrooms, 5 bathrooms, and 2 half baths.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

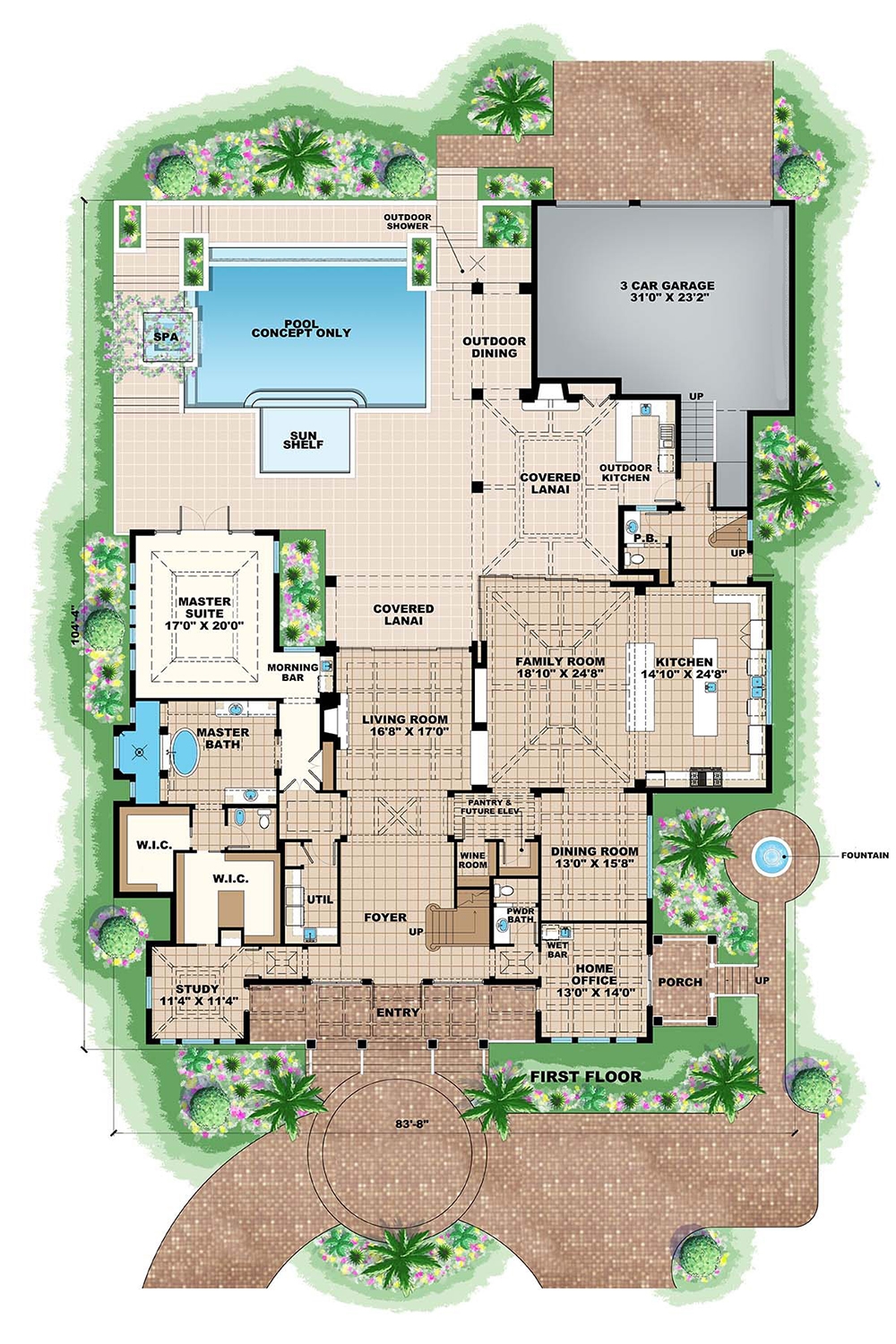

Home Plan: #175-1243 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #175-1243

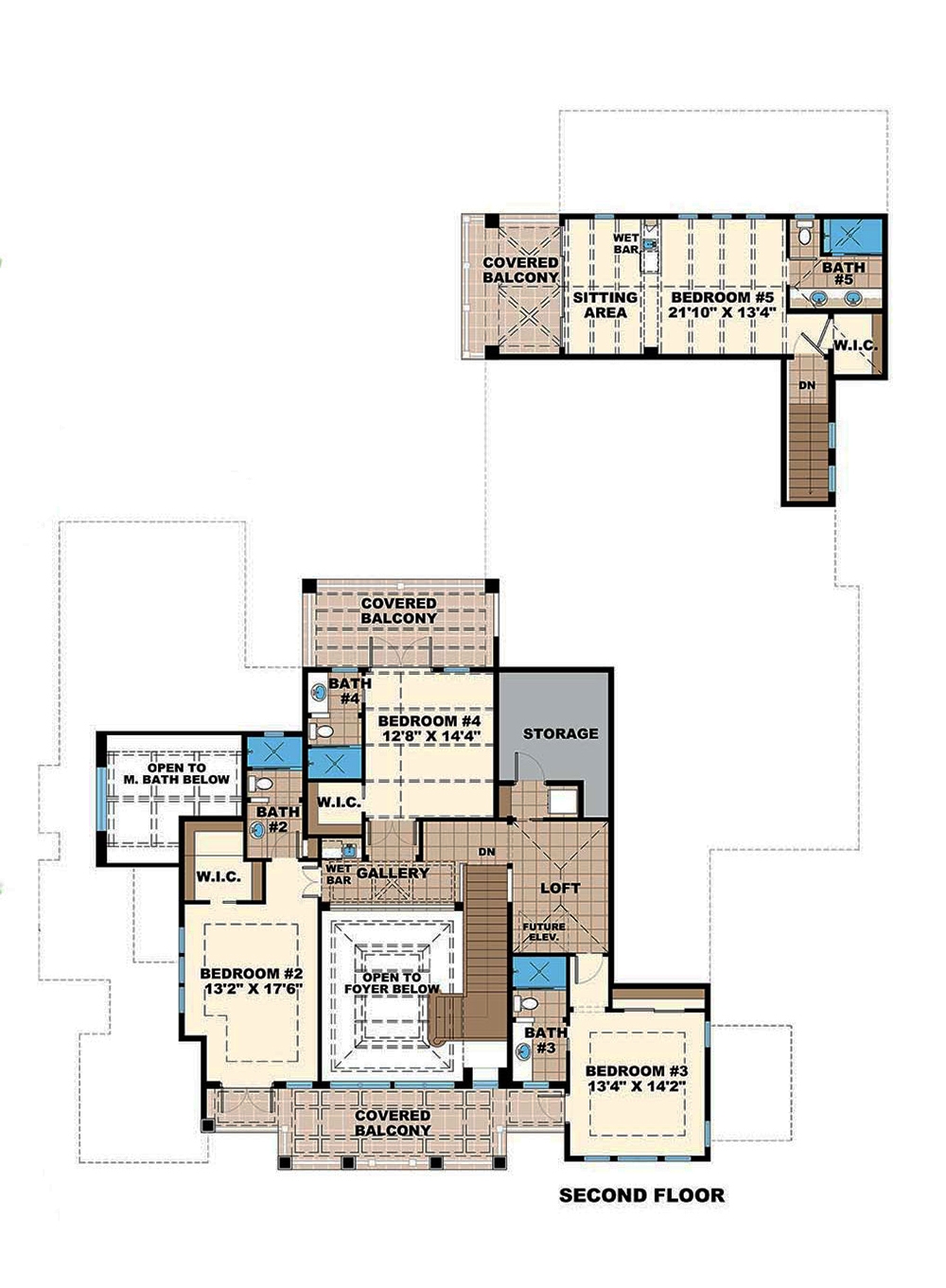

#175-1243 Floor Plan Second Story - upper level Floor Plan Second Story of Coastal Plan #175-1243
Home Plan: #175-1243 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #175-1243
#175-1243 Floor Plan Second Story - upper level Floor Plan Second Story of Coastal Plan #175-1243
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1243
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
2
Garage :
3

Square Footage

Heated Sq Feet:
5653
Main Floor:
3826
Upper Floor:
1827
Unfinished Sq Ft:
Garage :
928
Porch :
1742

Dimensions

Width:
83' 8"
Depth:
104' 4"
Ridge Height:
30' 0"

Architectural Styles

Breezeway
Coastal
Colonial
Concrete Block/ ICF Design
Contemporary
In-Law Suite
Luxury
Transitional

Exterior Wall Material

Fiber Cement Product

Roofing Type

Gable
Hip

Roofing Material

Metal

Roof Pitch

6/12
8/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling

Special Feature

Balcony
Family Room
Fireplace
Home Office
Library
Loft
Main Level Laundry
Mother in law apartment
Open Floor Plan
Split Bathroom
Storage
Swimming Pool
Vaulted Ceilings

Garage Type

Attached Garage
Rear Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6
Concrete

Building Lot Type

View Lot

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Lanai
Friend's Entry

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

This plan is not for sale for use in the following areas without the written consent of the designer:

Collier County,  Florida

Lee County,  Florida


PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
