5-Bedroom, 6495 Sq Ft Contemporary Plan with Walk In Closet

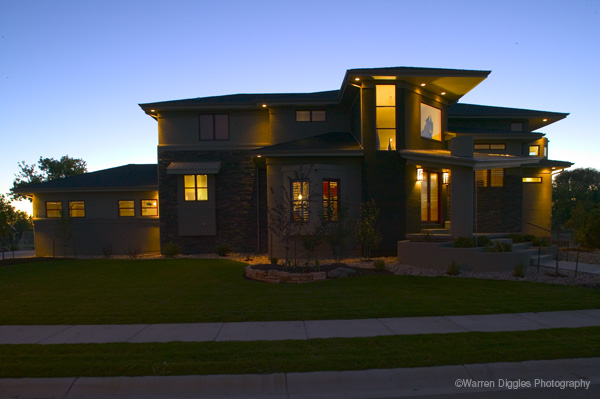

161-1048 house plan main photo

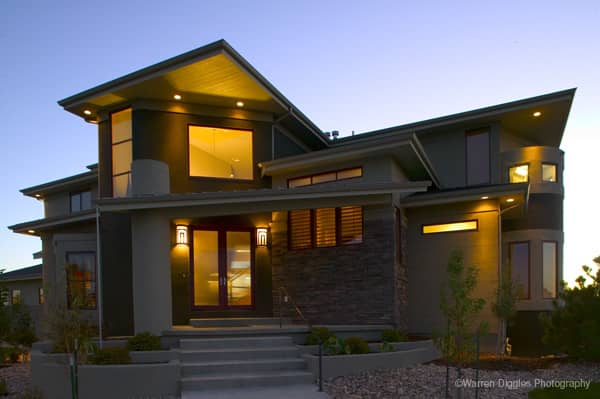

161-1048 house plan front photo

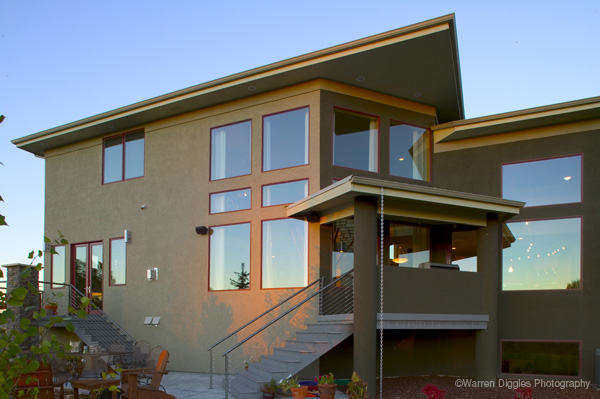

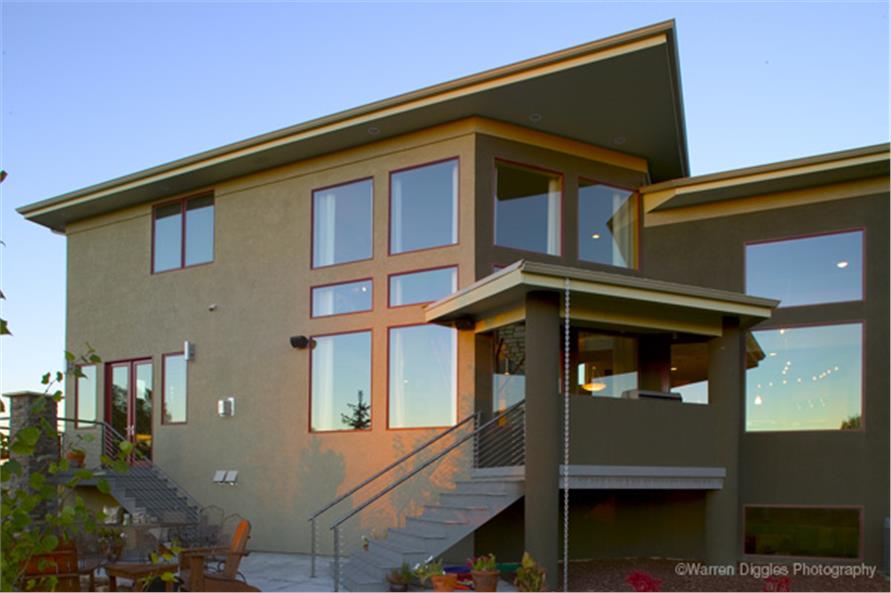

161-1048 house plan rear photo
161-1048 house plan kitchen

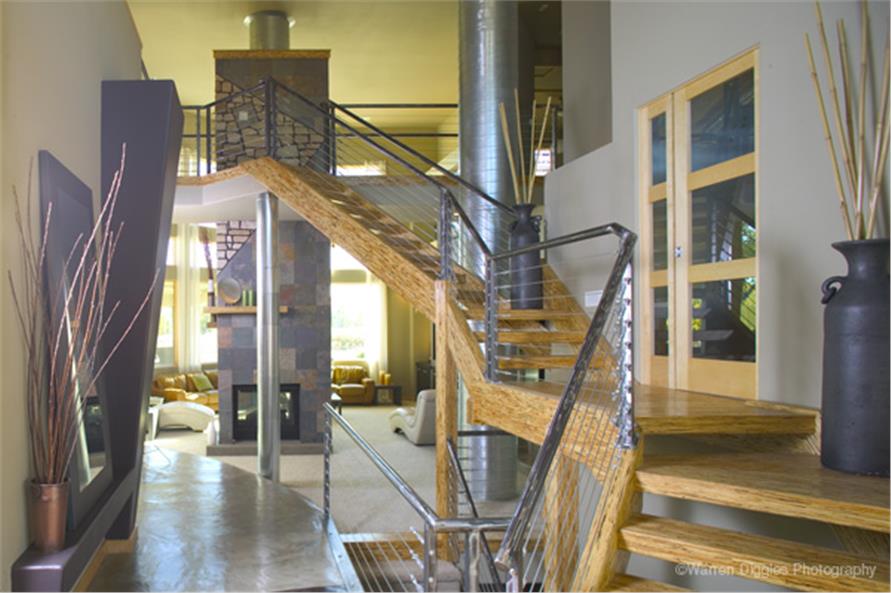

161-1048 house plan great room
161-1048 house plan balcony view

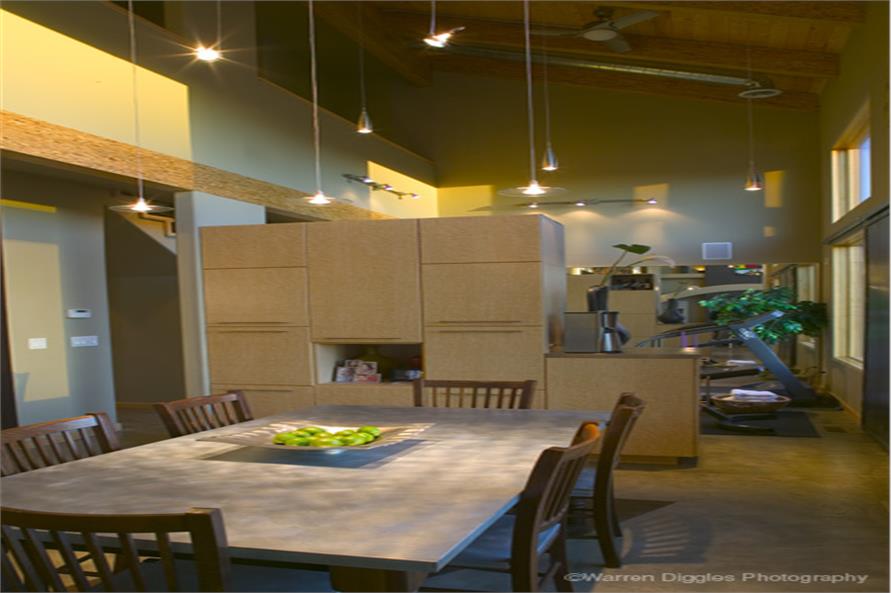

161-1048 house plan dining room

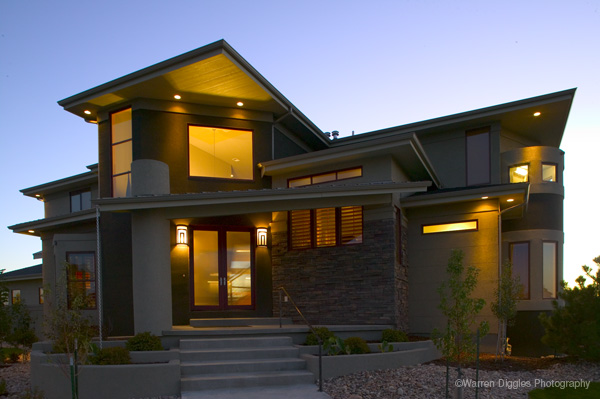

5-Bedroom, 6495 Sq Ft Contemporary Home Plan - 161-1048 - Main Exterior
161-1048 house plan front photo
161-1048 house plan rear photo
161-1048 house plan kitchen
161-1048 house plan great room
161-1048 house plan balcony view
161-1048 house plan dining room

About Plan # 161-1048

About Plan # 161-1048

6495 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 109' 0" WIDTH 84' 6" DEPTH 3 GARAGE BAY

This is a stunning modern house plan. The 3 car garage offers ample storage space and room for teenager's car or recreational vehicle. The split master suite has luxurious features. 10' ceiling on first floor and 9' on second floor. The basement has 10' ceiling.

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

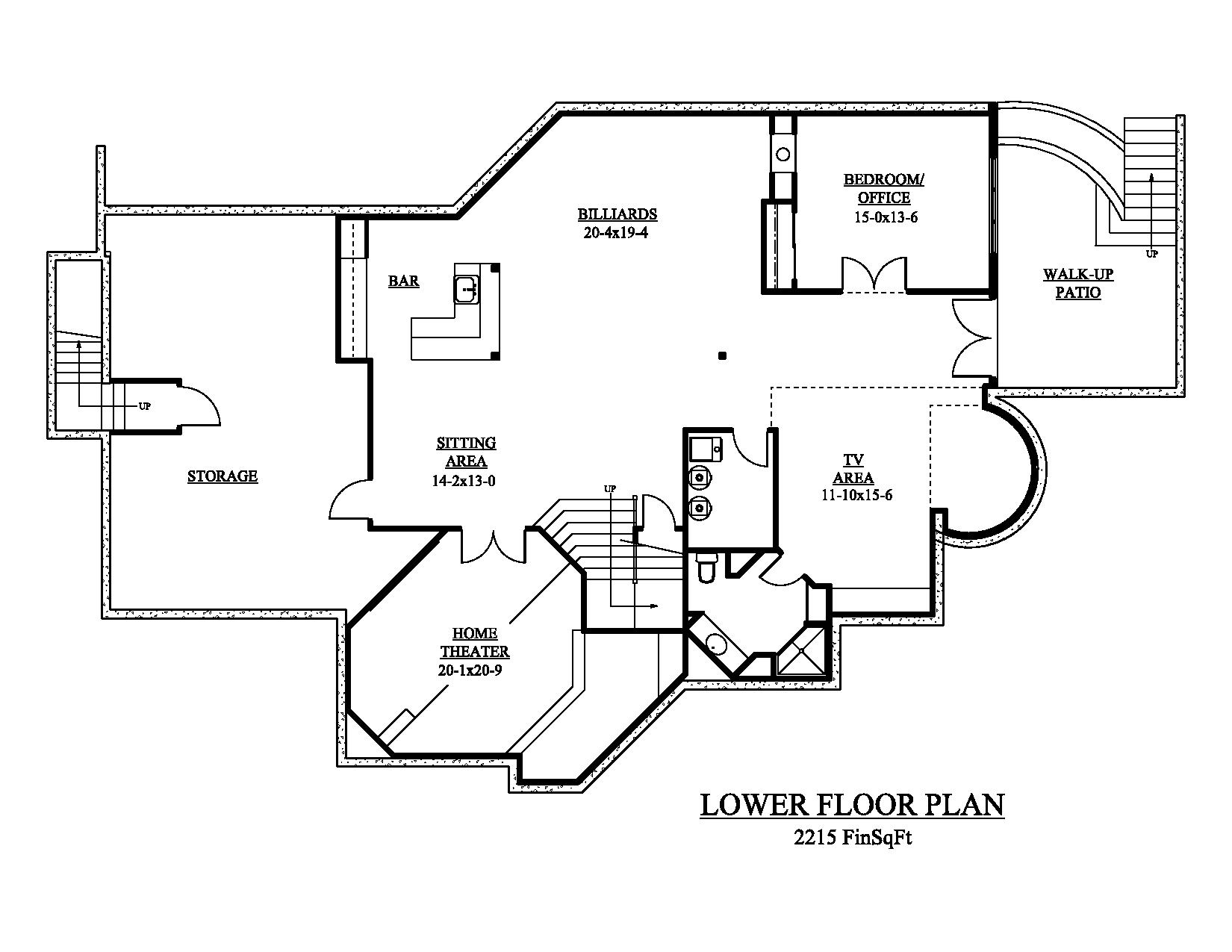

Home Plan: #161-1048 Floor Plan Basement - lower floor Floor Plan Basement of Contemporary Plan #161-1048

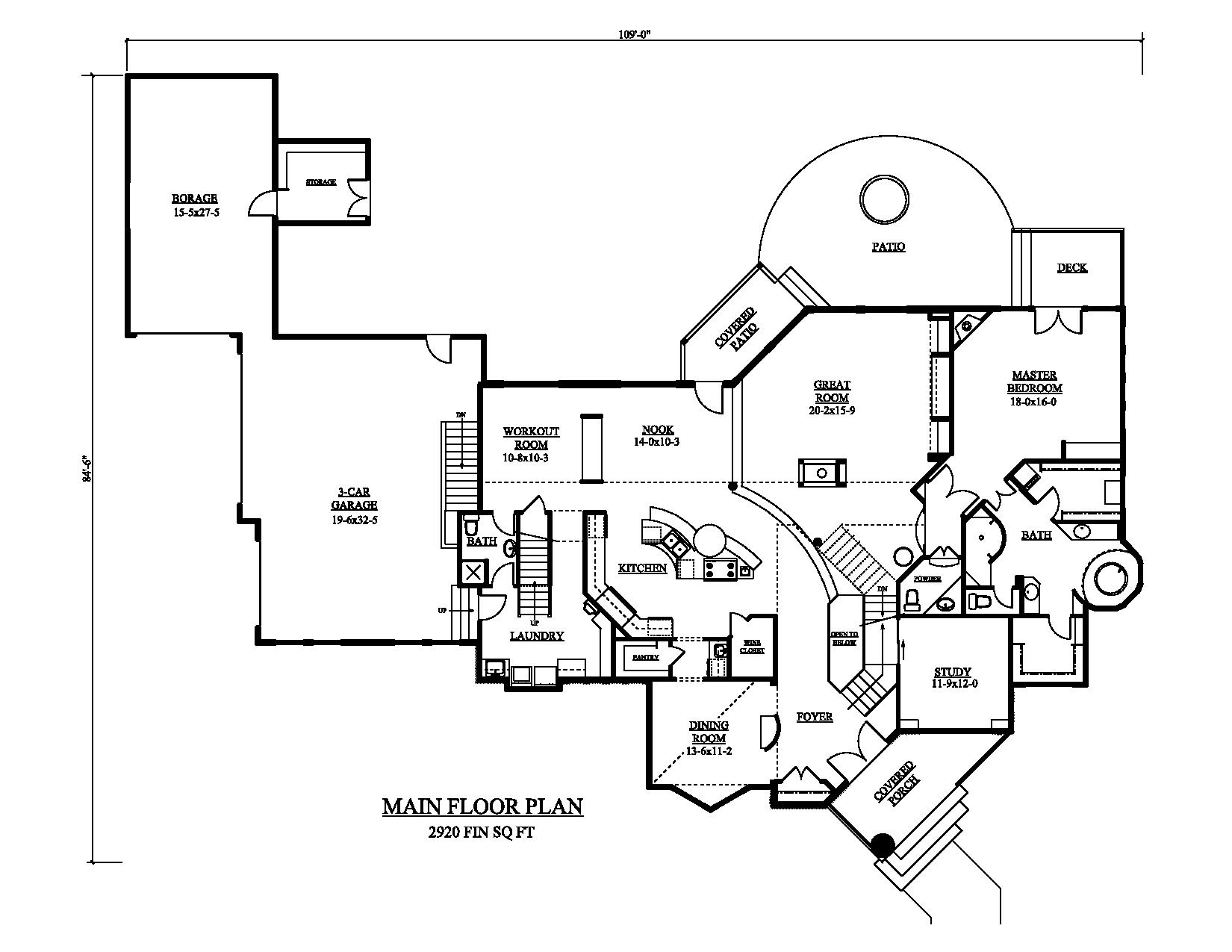

#161-1048 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #161-1048

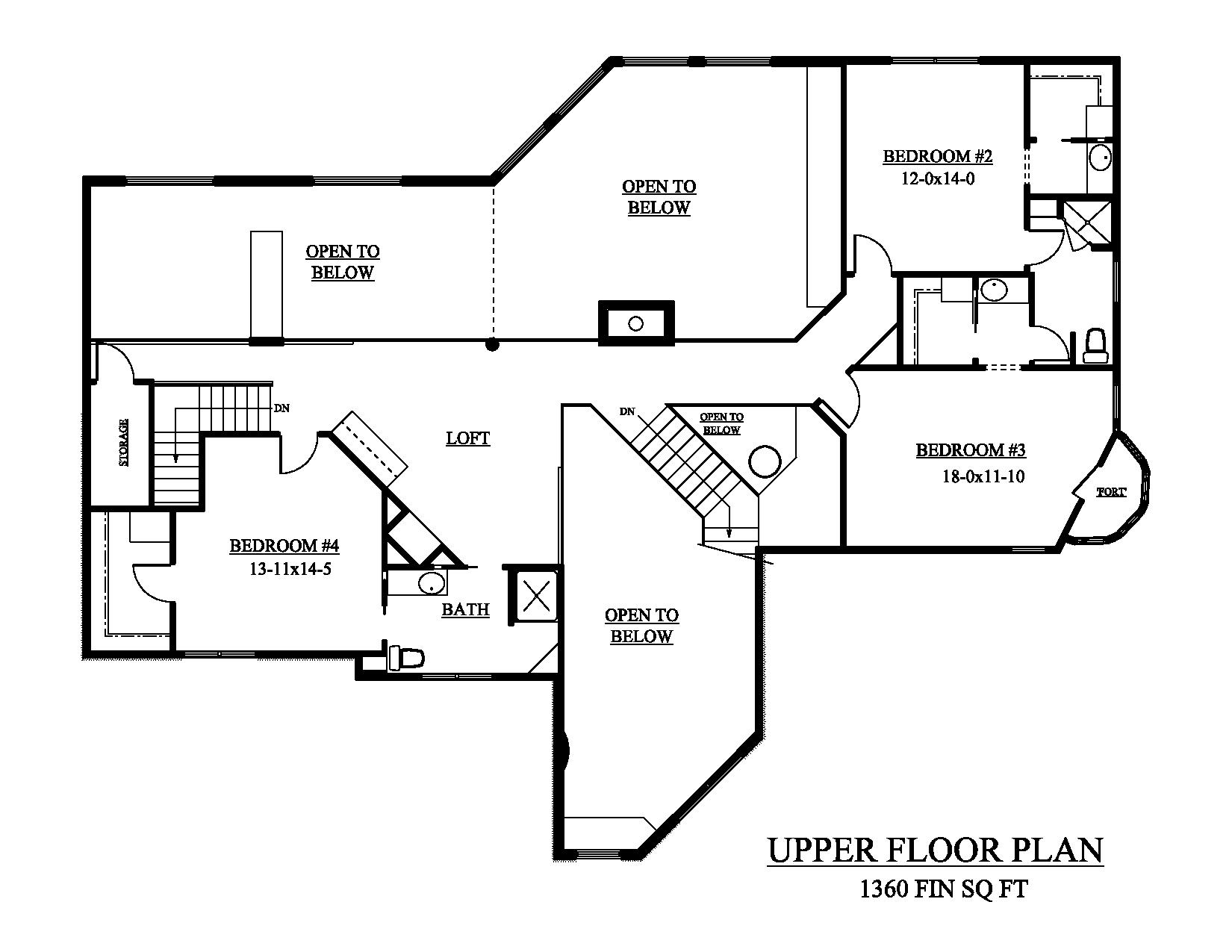

#161-1048 Floor Plan Second Story - second floor Floor Plan Second Story of Contemporary Plan #161-1048
Home Plan: #161-1048 Floor Plan Basement - lower floor Floor Plan Basement of Contemporary Plan #161-1048
#161-1048 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #161-1048
#161-1048 Floor Plan Second Story - second floor Floor Plan Second Story of Contemporary Plan #161-1048
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 161-1048
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
6495
Main Floor:
2920
Upper Floor:
1360
Lower Floor:
2215
Unfinished Sq Ft:
Lower Floor:
705
Garage :
1362
Porch :
622

Dimensions

Width:
109' 0"
Depth:
84' 6"
Ridge Height:
29' 6"

Architectural Styles

Contemporary
Luxury
Modern

Exterior Wall Material

Stucco

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

5/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Color Photos
Dining Room
Exercise Room
Family Room
Fireplace
Guest Room
Home Theater
Main Level Laundry
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

 Please note there is no smaller version of this home. The home can only be reduced by a maximum of 10%. If more square footage is needed to be taken off, it is advised that the CAD File be purchased to work with someone locally to make the changes.


PLEASE NOTE! This designer's plans do NOT come with framing!
