5-Bedroom, 7216 Sq Ft Luxury Plan with Peninsula/Eating Bar

Front elevation of Luxury home (ThePlanCollection: House Plan #175-1065)
5-Bedroom, 7216 Sq Ft Luxury Home Plan - 175-1065 - Main Exterior

About Plan # 175-1065

About Plan # 175-1065

7216 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 109' 10" WIDTH 153' 10" DEPTH 4 GARAGE BAY

Luxury House Plan 175-1065 are two story Mediterranean mansion home plans that will create a tremendous curiosity and curbside appeal from its secretly hidden motor court and four-car garage as well as the elegance of the luxurious massive entry system embellished with stone and rod iron. This Florida home plan is appointed with the finest of details ranging from its massive rooms with spectacular ceiling designs to its built-in bookshelves, archways, niches and entertainment systems. The formal living and dining rooms are adorned with detail and grace, such as the beautifully appointed walk-in wet bar. The master suite has an awesome built-in at the bed wall with dual columns and archway, and a large sitting area with view of the pool. This suite also has very large walk-in closets and bath featuring garden tub, walk-in shower and separate vanities. The family room, dinette, and gourmet kitchen are perfect for family gatherings. Entering the lanai, you will find yourself in your own backyard paradise. The pool has an array of water features that are sure to put your mind at ease. The covered lanai also hosts a large sports bar and grill perfect for pampering your family and friends. Take either the elevator or the circular stair to the second floor. Upstairs you will find a fully automated theater room, 3 bedrooms 3 bathrooms and a loft with wet-bar overlooking the family room. A truly custom Luxury Mediterranean designed house plan to meet all your expectations!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

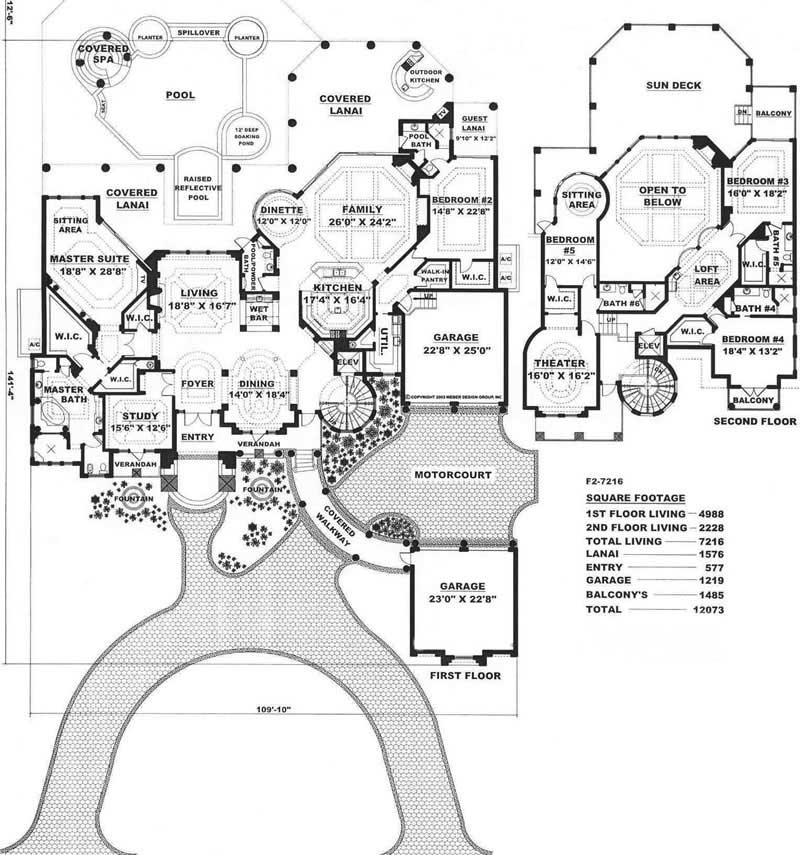

Home Plan: #175-1065 Floor Plan First Story - s Floor Plan First Story of Luxury Plan #175-1065
Home Plan: #175-1065 Floor Plan First Story - s Floor Plan First Story of Luxury Plan #175-1065
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1065
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
7216
Main Floor:
4988
Upper Floor:
2228
Unfinished Sq Ft:
Garage :
1219

Dimensions

Width:
109' 10"
Depth:
153' 10"
Ridge Height:
34-4' 0"

Architectural Styles

California Style
Florida Style
Luxury
Mediterranean
Southwest
Spanish
Wheelchair Accessible

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Elevator
Family Room
Home Office
Home Theater
Library
Loft
Media Room
Mother in law apartment
Storage
Vaulted Ceilings

Garage Type

Courtyard Entry
Detached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

View Lot

Kitchen Features

Butler's Pantry
Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Breezeway
Courtyard
Covered Lanai
Covered Rear Porch
Screened in Lanai
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
