5-Bedroom, 7559 Sq Ft Texas Style Plan with Kitchen Island

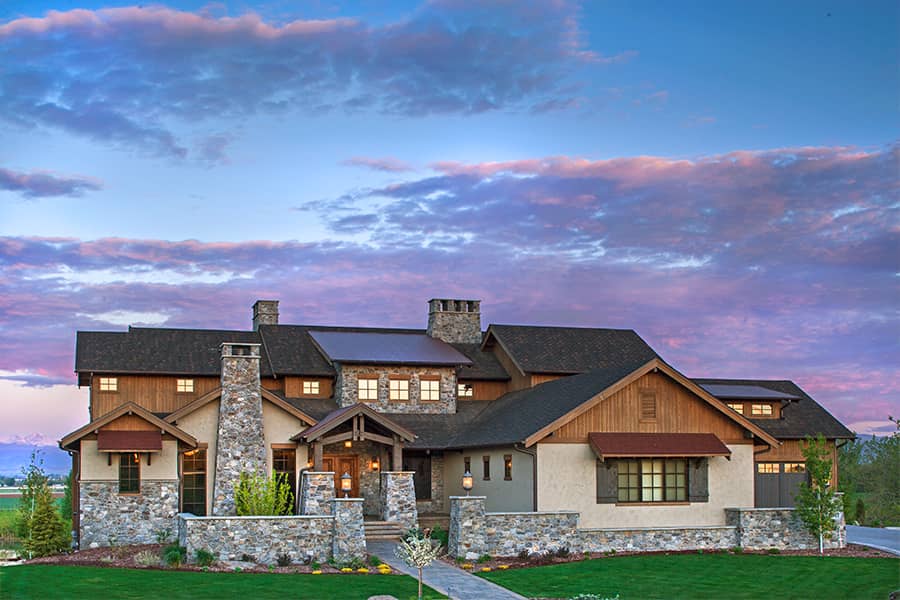

Color photograph of Texas Style home plan (ThePlanCollection: House Plan #161-1053)

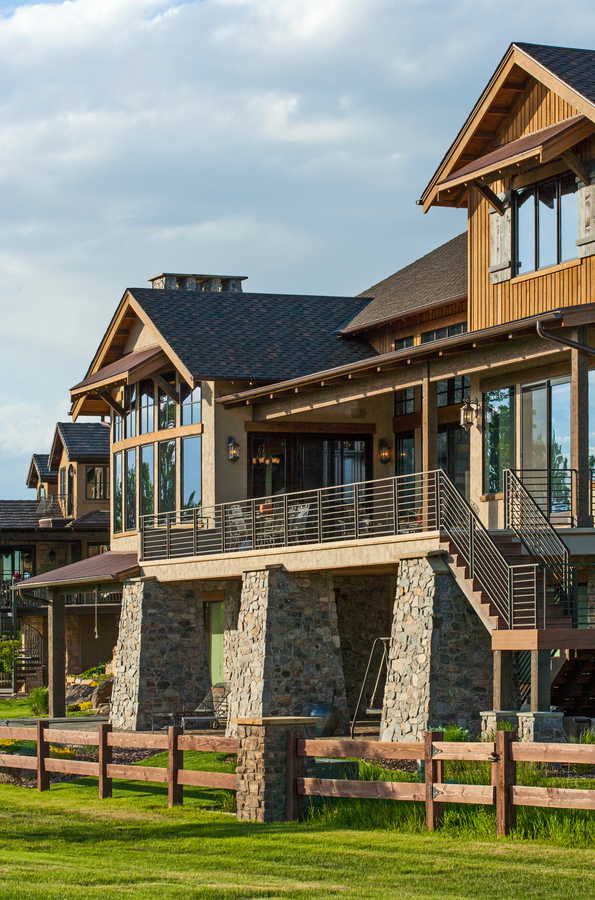

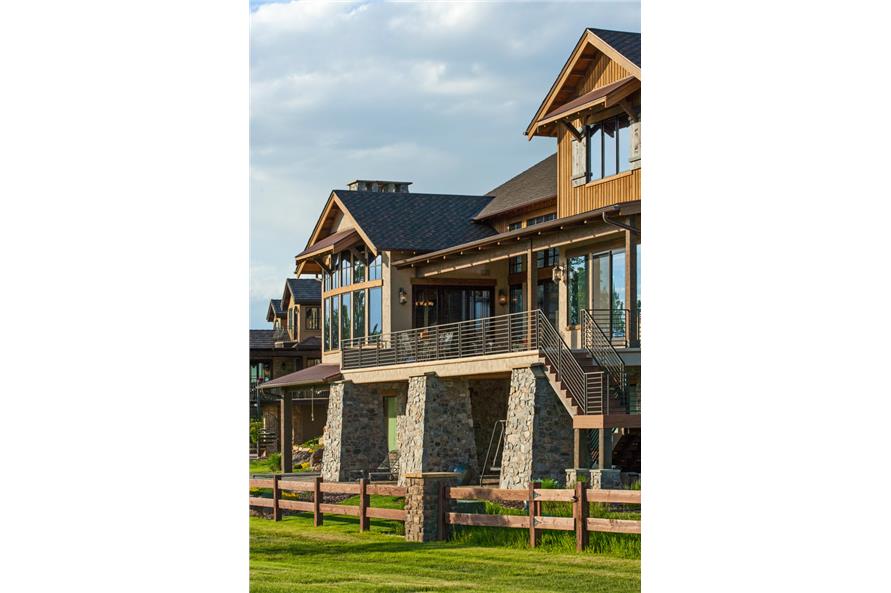

161-1053 rear view

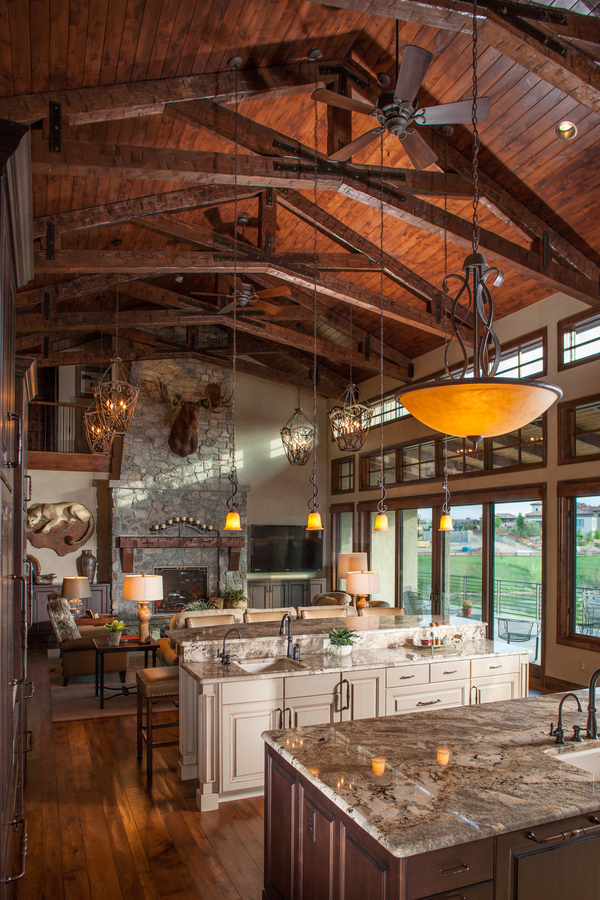

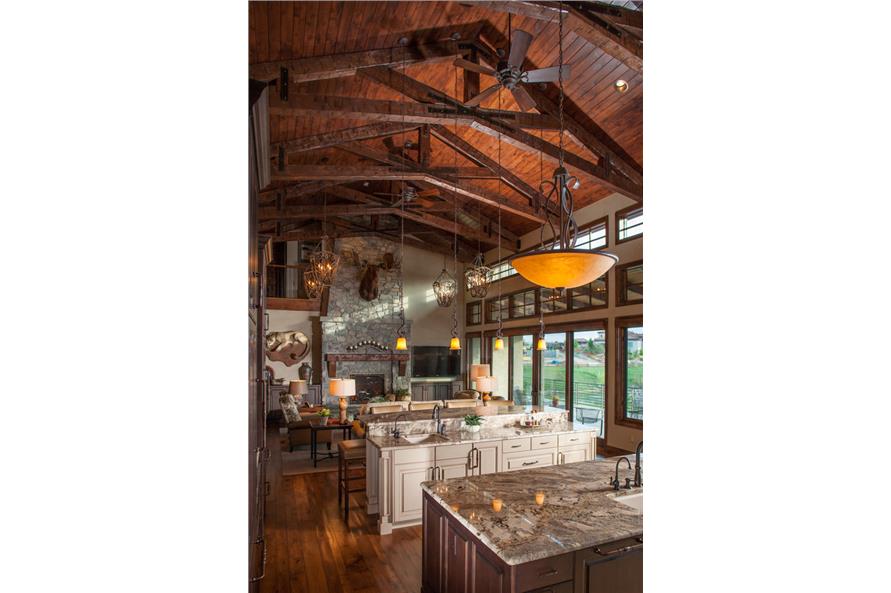

161-1053 Great Room

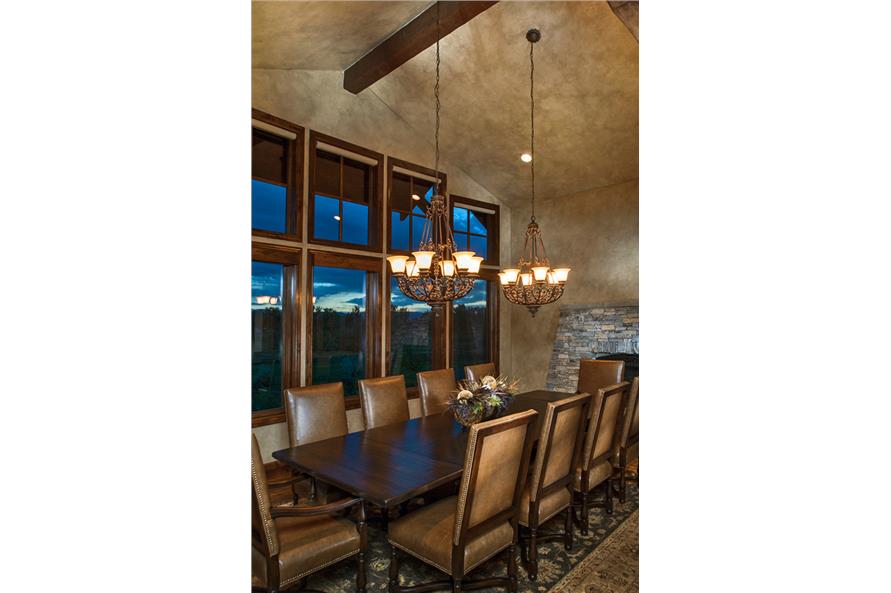

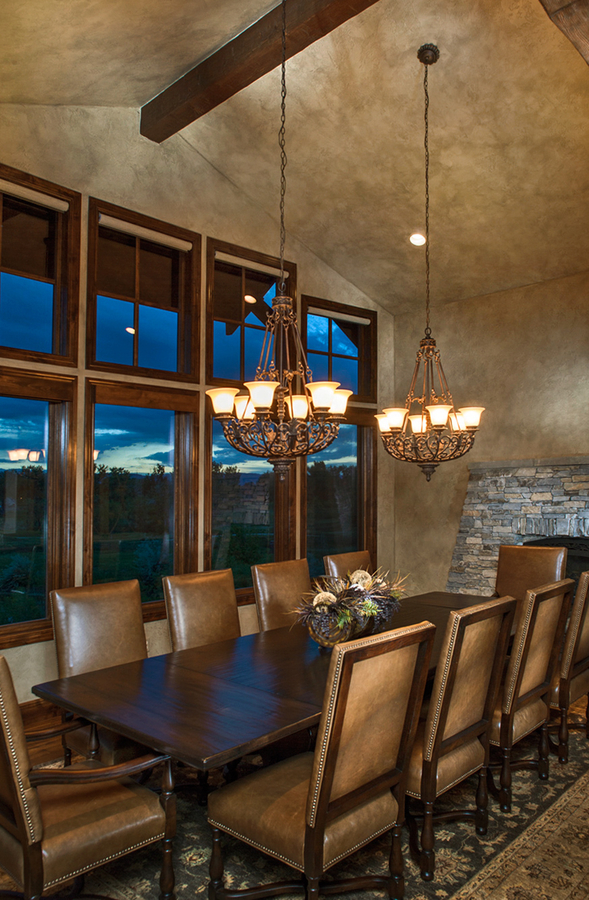

161-1053 Dining Room

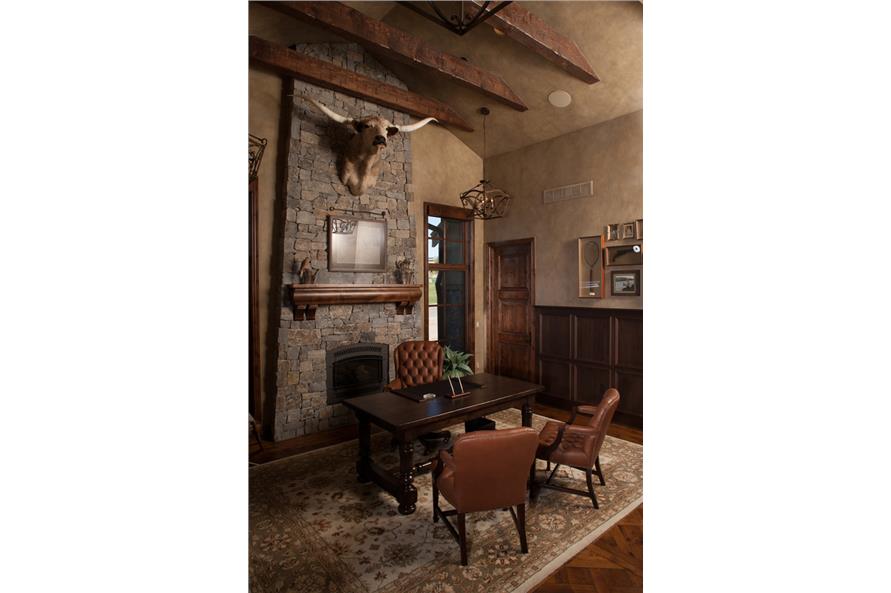

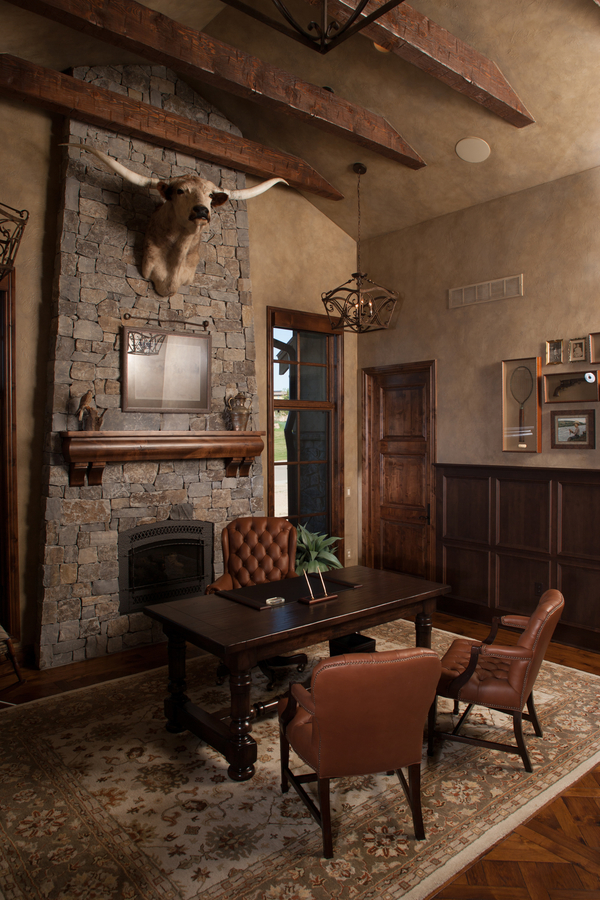

161-1053 home office

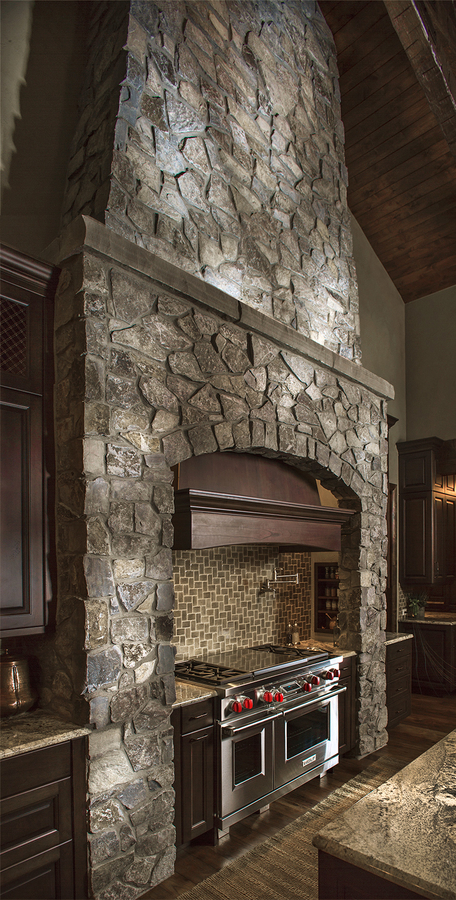

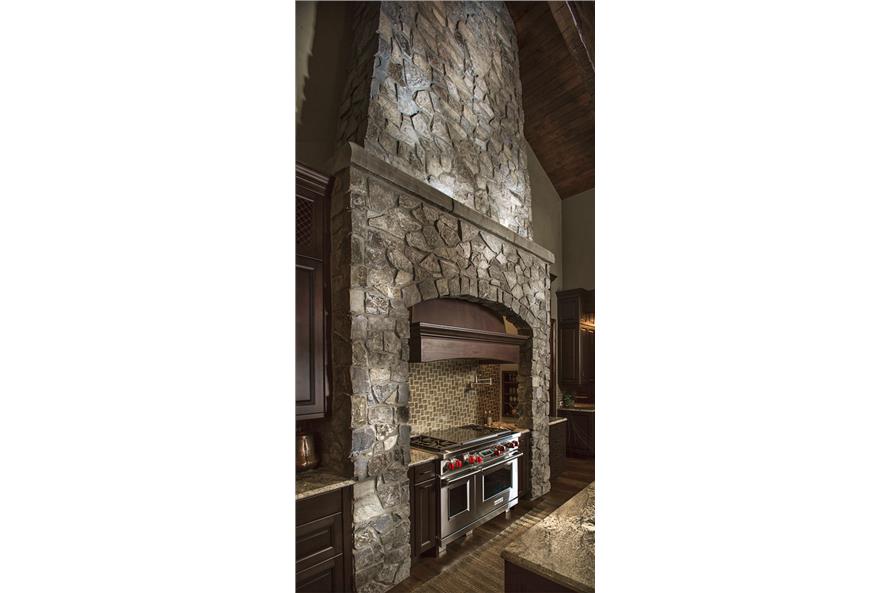

161-1053 kitchen hood
5-Bedroom, 7559 Sq Ft Texas Style Home Plan - 161-1053 - Main Exterior
161-1053 rear view
161-1053 Great Room
161-1053 Dining Room
161-1053 home office
161-1053 kitchen hood

About Plan # 161-1053

About Plan # 161-1053

7559 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 107' 0" WIDTH 97' 9" DEPTH 4 GARAGE BAY

This well-designed Texas style home plan with rustic influences (House Plan #161-1053) has 7559 square feet of living space. The 2 story floor plan includes 5 bedrooms. 5 full bathrooms, and 1 half bath.

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • TYPICAL WALL SECTION & DETAILS: Explain certain special conditions more appropriately. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

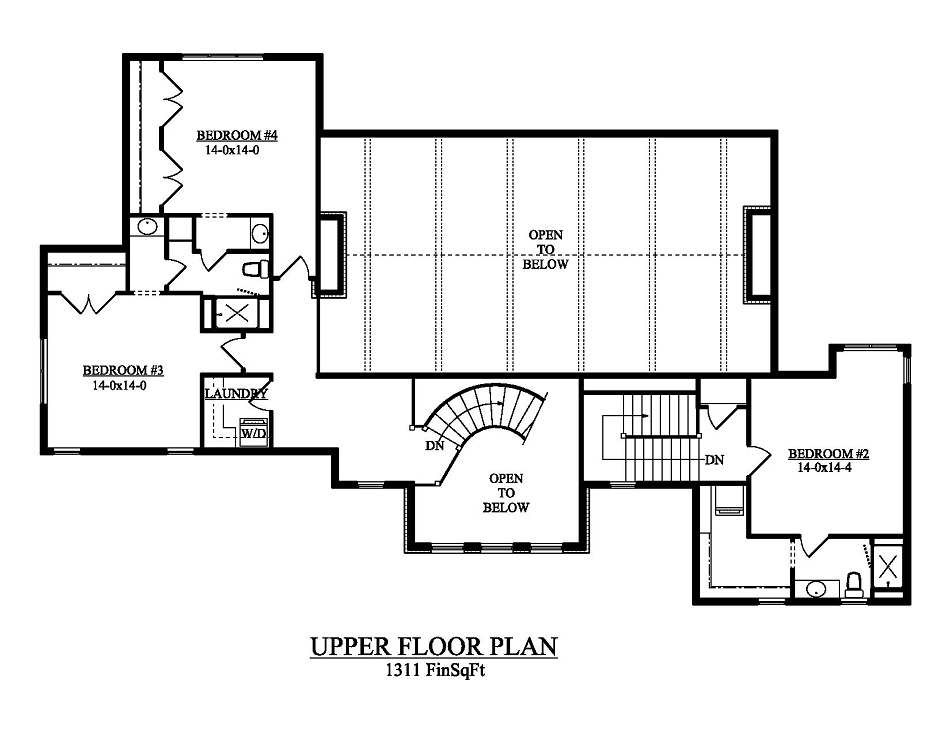

Home Plan: #161-1053 Floor Plan Second Story - upper floor Floor Plan Second Story of Texas Style Plan #161-1053

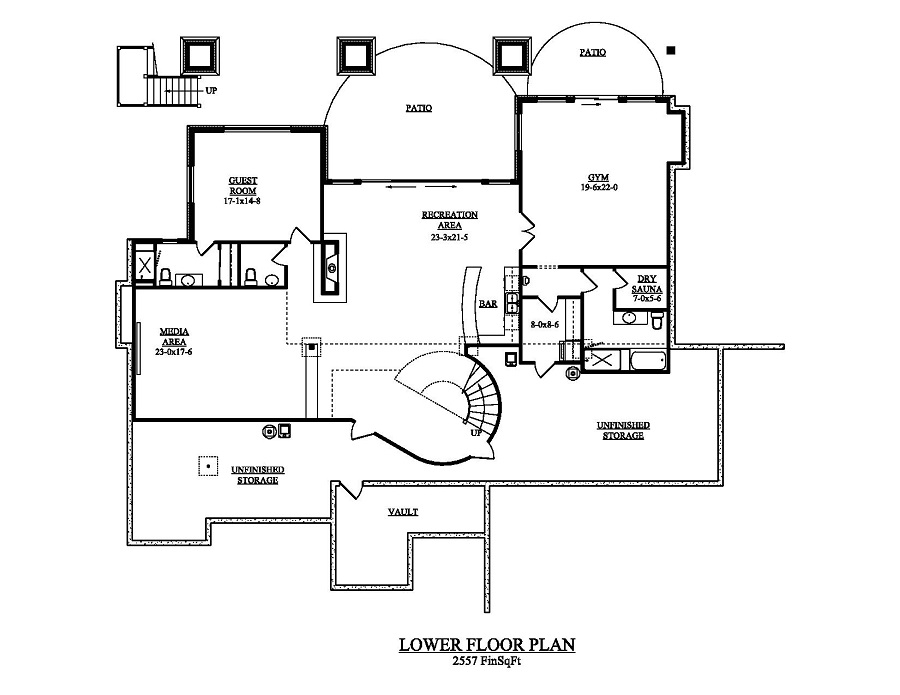

#161-1053 Floor Plan Basement - lower level Floor Plan Basement of Texas Style Plan #161-1053

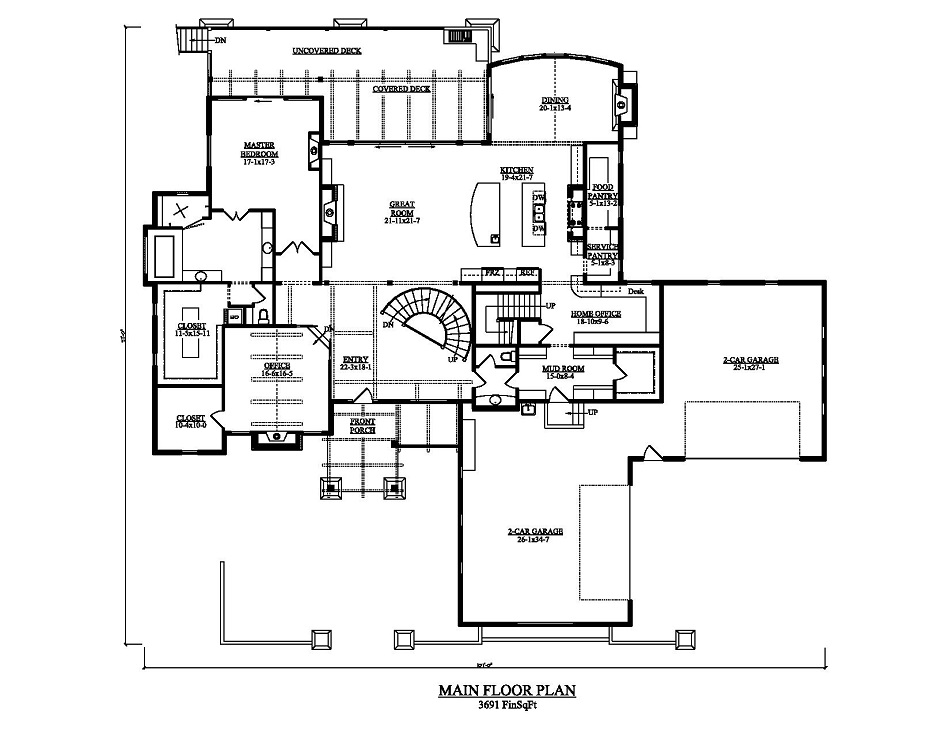

#161-1053 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #161-1053
Home Plan: #161-1053 Floor Plan Second Story - upper floor Floor Plan Second Story of Texas Style Plan #161-1053
#161-1053 Floor Plan Basement - lower level Floor Plan Basement of Texas Style Plan #161-1053
#161-1053 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #161-1053
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 161-1053
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
7559
Main Floor:
3690
Upper Floor:
1312
Lower Floor:
2557
Unfinished Sq Ft:
Lower Floor:
1133
Garage :
1697
Porch :
1692

Dimensions

Width:
107' 0"
Depth:
97' 9"
Ridge Height:
30' 0"

Architectural Styles

Country
Craftsman
Luxury
Rustic
Southern
Southwest
Texas Style
Traditional

Exterior Wall Material

Rock/Stone
Stucco
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Fireplace
Guest Room
Home Office
Main Level Laundry
Mud Room
Storage

Garage Type

Attached Garage
Front Entry
Side Entry

Fireplaces

Three Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site
Flat Site

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Fireplace in Master
Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! This designer's plans do NOT come with framing!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
