Home > Search Results > Plan Detail for 115-1112

5-Bedroom, 6590 Sq Ft Country Plan with Eat-In Kitchen

Front elevation of Country home (ThePlanCollection: House Plan #115-1112)

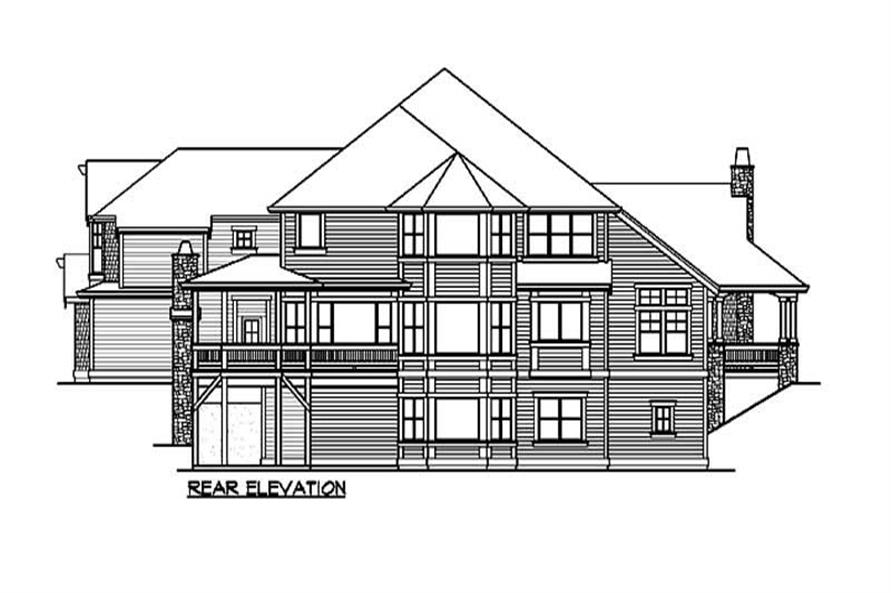

Rear Elevation
5-Bedroom, 6590 Sq Ft Country Home Plan - 115-1112 - Main Exterior

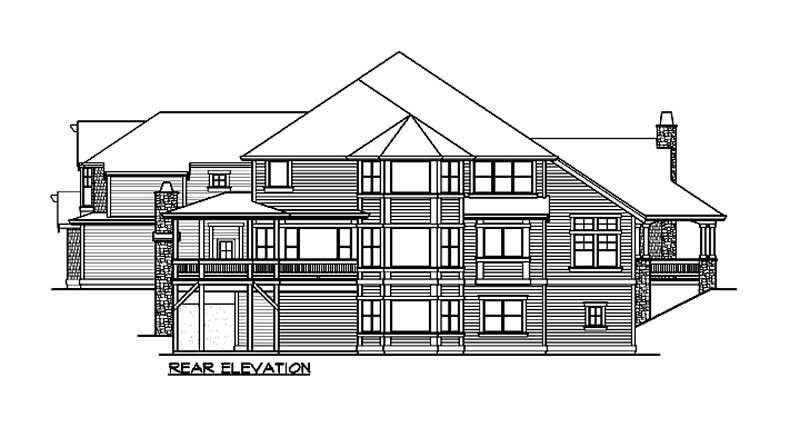

Rear Elevation

About Plan # 115-1112

About Plan # 115-1112

6590 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 98' 0" WIDTH 74' 0" DEPTH 3 GARAGE BAY

House Plans #115-1112 is a Country/Craftsman home plan that dedicates itself to the most important spaces. This smart and luxurious design gives ample room to the formal living and dining room, but really gives homage to the more friendly family room/dining nook/kitchen combination, with an impressive nearby rear covered porch. This combination indoor/outdoor eating/socializing space is perfect for family gatherings or parties with friends. The main floor also features a den/home office with a fireplace, and a guest/in-law suite. The upper floor holds four bedrooms, three bedrooms, the utility room, and a bonus area. A walk-out basement has a kitchenette, rec room, and media room that could easily be turned into a mother in-law apartment. There is also access to a covered patio with an outdoor fireplace.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

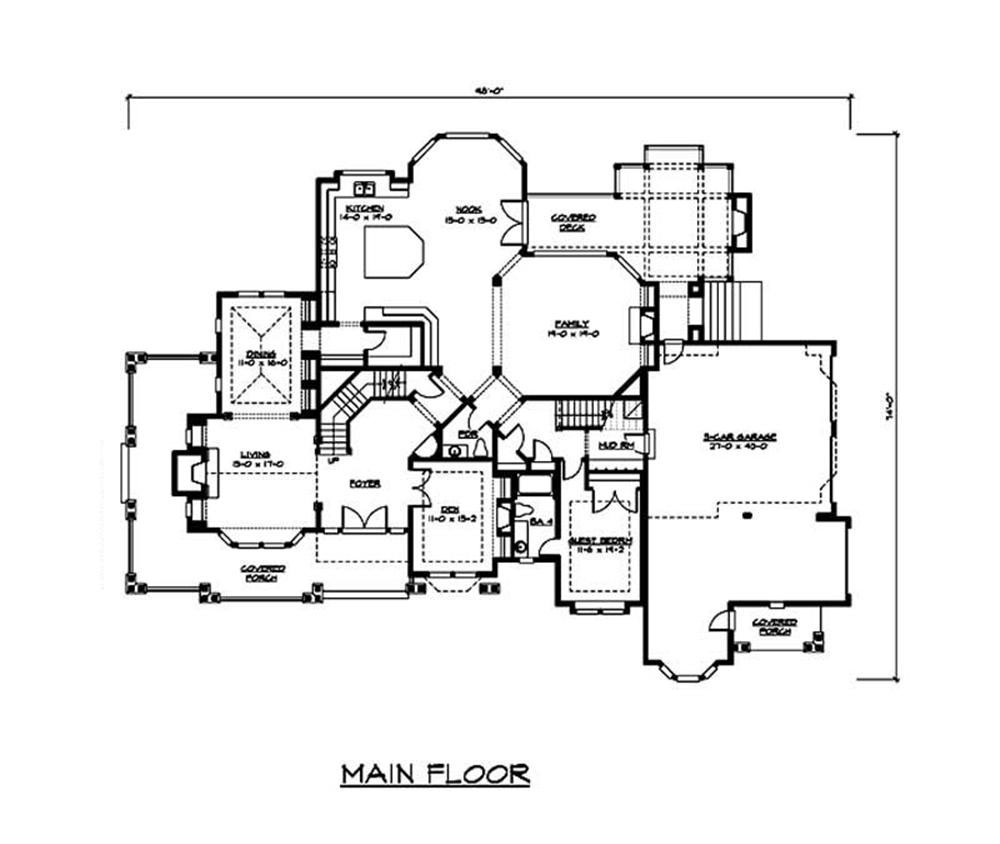

Home Plan: #115-1112 Floor Plan First Story - first story Floor Plan First Story of Country Plan #115-1112

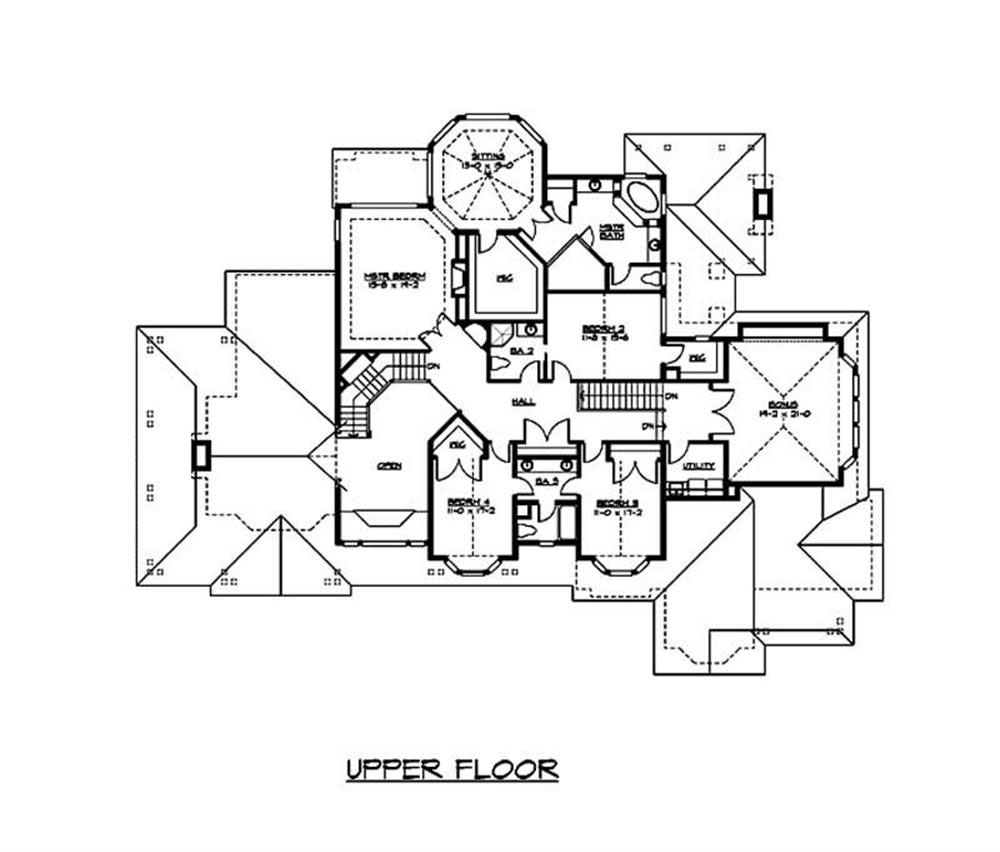

#115-1112 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #115-1112

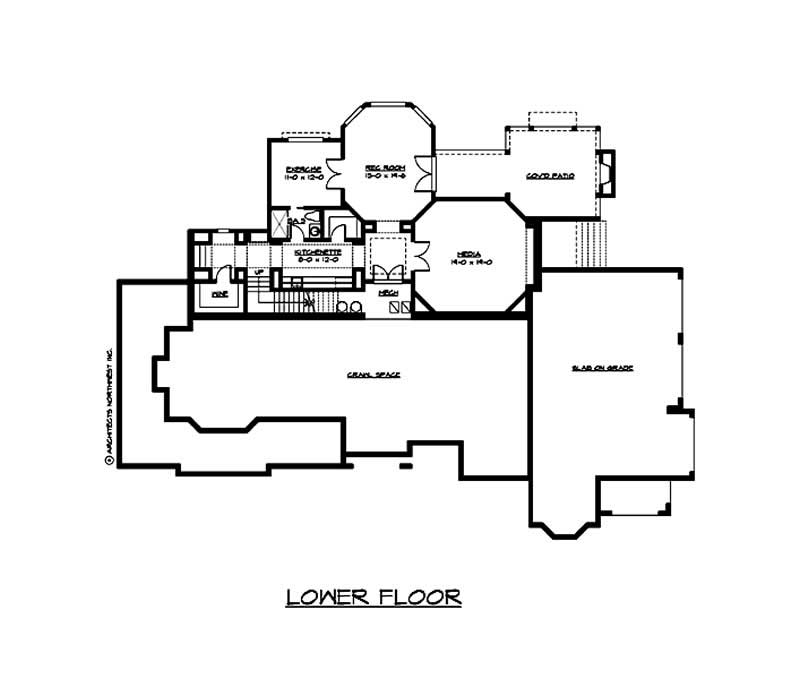

#115-1112 Floor Plan Basement - basement Floor Plan Basement of Country Plan #115-1112
Home Plan: #115-1112 Floor Plan First Story - first story Floor Plan First Story of Country Plan #115-1112
#115-1112 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #115-1112
#115-1112 Floor Plan Basement - basement Floor Plan Basement of Country Plan #115-1112
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1112
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
6590
Main Floor:
2750
Upper Floor:
2500
Unfinished Sq Ft:
Lower Floor:
1340

Dimensions

Width:
98' 0"
Depth:
74' 0"

Architectural Styles

Country
Craftsman
In-Law Suite
Luxury

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gambrel
Hip

Roofing Material

Asphalt Shingles

Special Feature

Balcony
Bonus Room
Den
Dining Room
Family Room
Fireplace
Game Room
Guest Room
Home Office
Home Theater
In Home Gym
Media Room
Mud Room
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

Four Fireplaces

Building Lot Type

Down Site

Kitchen Features

Butler's Pantry
Kitchen Island
Nook/Breakfast Area
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Lanai
Covered Rear Porch
Wrap Around Porch

Master Suite Features

Fireplace in Master
Master Bathroom
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
