5-Bedroom, 5300 Sq Ft Prairie Plan with Walk0in Kitchen Pantry

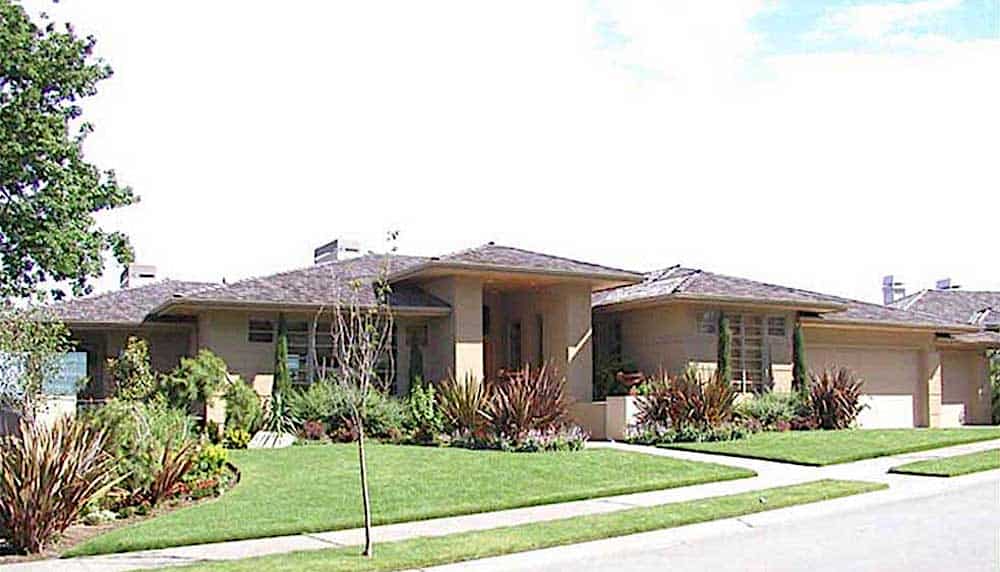

Prairie style home (ThePlanCollection: Plan #115-1206)

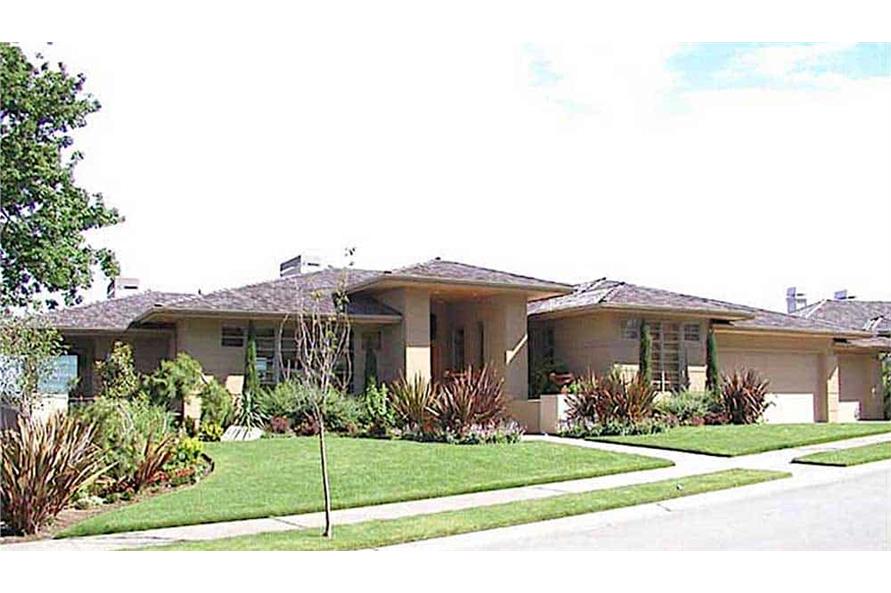

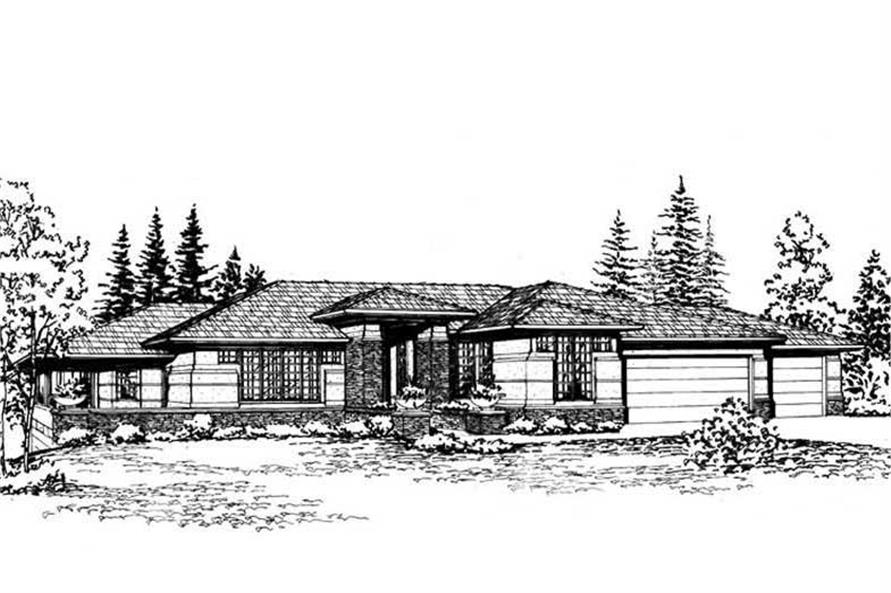

115-1206: Home Plan Front Elevation
5-Bedroom, 5300 Sq Ft Prairie Home - Plan #115-1206 - Main Exterior
115-1206: Home Plan Front Elevation

About Plan # 115-1206

About Plan # 115-1206

5300 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 97' 0" WIDTH 70' 0" DEPTH 3 GARAGE BAY

This unassuming Prairie home opens up to an immaculate interior that features excellent line and a slightly retro-modern floor plan.

The Prairie exterior is an elusive façade that does not portray the depth of the interior. Passing through the front door, youre met with and elegantly informal floor plan, with a large kitchen to the left, the great room beyond, and the dining room ahead and to the right. The gallery is the centerpiece to this design, giving curvature of line and creating a barrier between the public and the private. The main floor is surrounded at the rear by plenty of deck space for additional entertaining grounds, and a lovely view. The master suite enjoys its own private deck, as well as a large bath and closet.

The lower floor houses three more bedrooms, a den, rec room, media room, and a large shop under the garage. Thoughtful layout makes this space an amazing extension of the floor above. Open to the rear, this walk-out basement enjoys plenty of light and a world of amenities. The theater/media room, as well as the enormous shop, add value that youll enjoy while living there, and when you sale. The rec room and den are no different, and the patio and deck space is icing on the cake.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

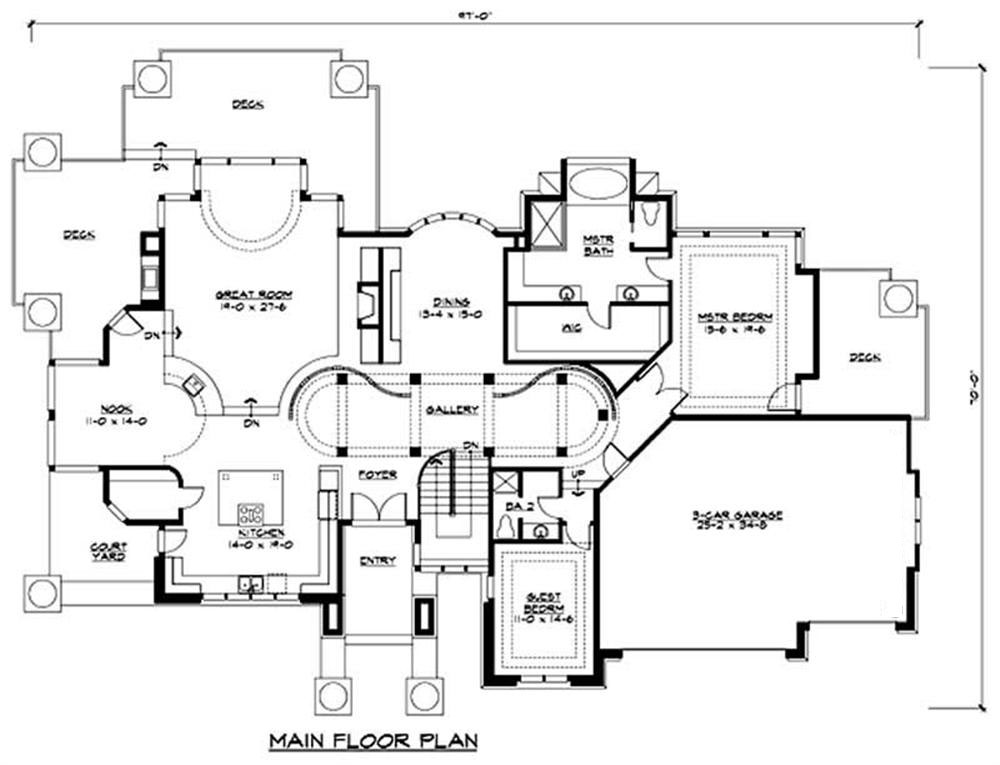

Home Plan: #115-1206 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #115-1206

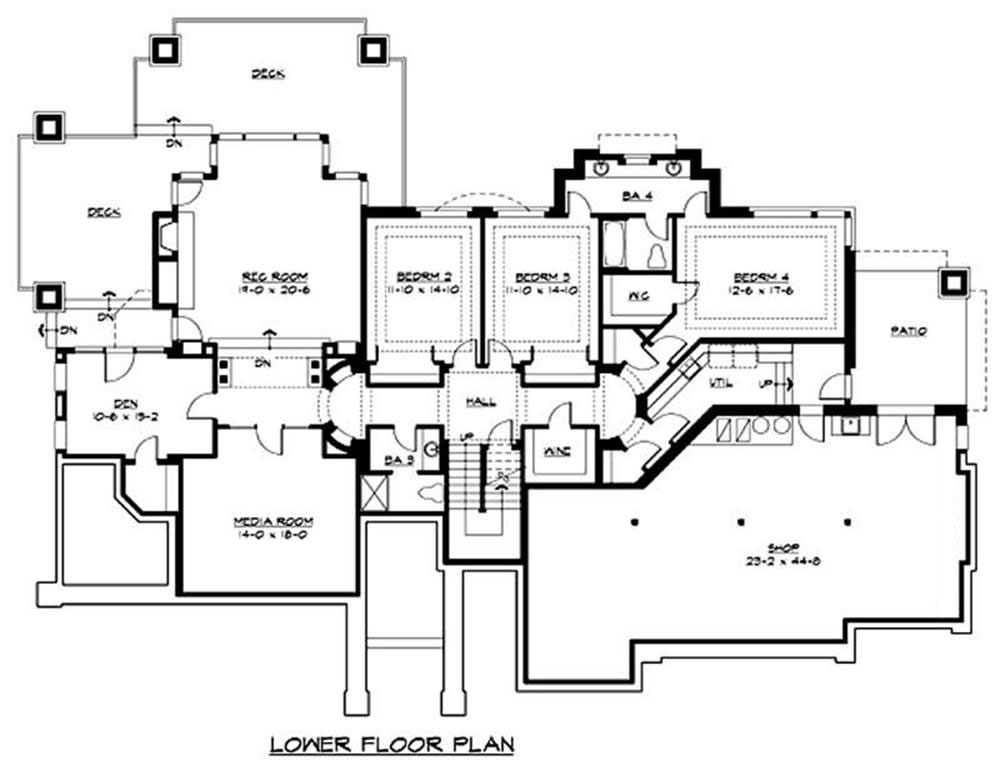

#115-1206 Floor Plan Basement - lower level Floor Plan Basement of Luxury Plan #115-1206
Home Plan: #115-1206 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #115-1206
#115-1206 Floor Plan Basement - lower level Floor Plan Basement of Luxury Plan #115-1206
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1206
Floors:
1
Bedrooms:
5
Full Baths:
4
Garage :
3

Square Footage

Heated Sq Feet:
5300
Main Floor:
2850
Unfinished Sq Ft:
Lower Floor:
2450

Dimensions

Width:
97' 0"
Depth:
70' 0"

Architectural Styles

Contemporary
Luxury
Prairie
Ranch

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Special Feature

Den
Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Guest Room
Main Level Laundry
Media Room
Open Floor Plan
Split Bathroom
Storage
Workshop

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Rear Porch
Patio
Portico
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
