4-Bedroom, 2754 Sq Ft Modern Plan with Main Floor Master

Front elevation of Modern home (ThePlanCollection: House Plan #116-1121)
116-1121: Home Plan Rendering
4-Bedroom, 2754 Sq Ft Modern Home Plan - 116-1121 - Main Exterior
116-1121: Home Plan Rendering

About Plan # 116-1121

About Plan # 116-1121

2754 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 67' 0" WIDTH 42' 0" DEPTH 2 GARAGE BAY

This lovely Modern style home with Contemporary influences (House Plan #116-1121) has 2754 square feet of living space. The 2 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

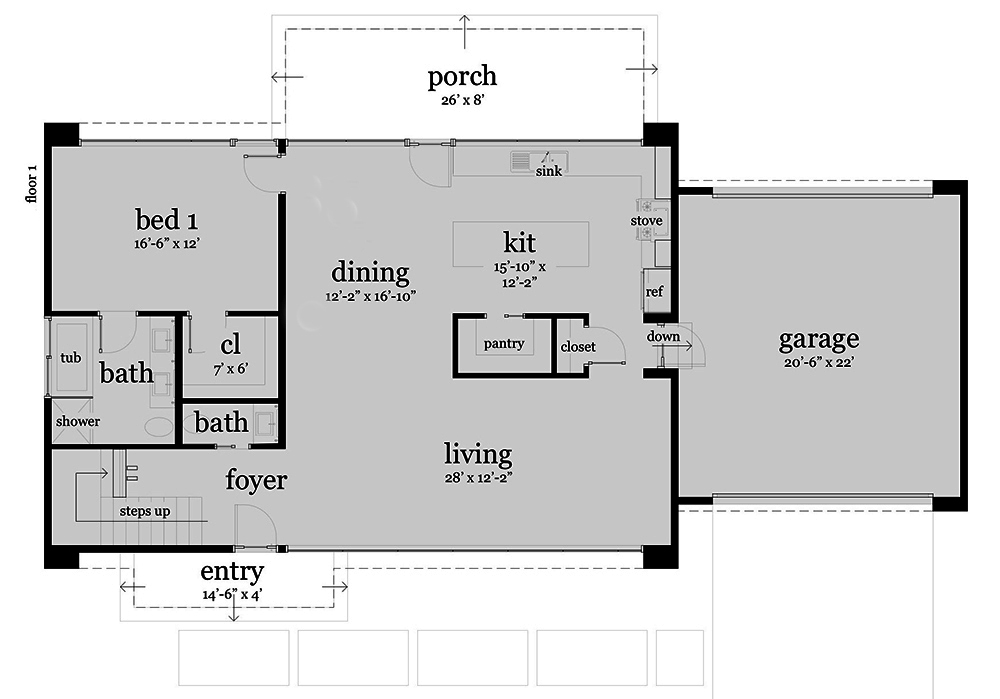

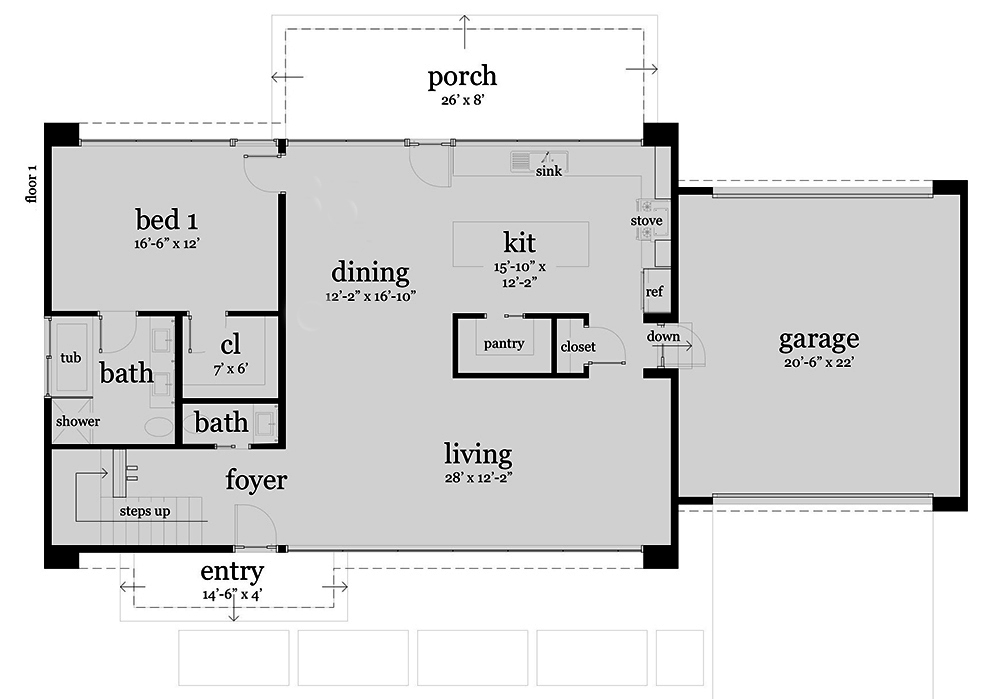

Home Plan: #116-1121 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1121

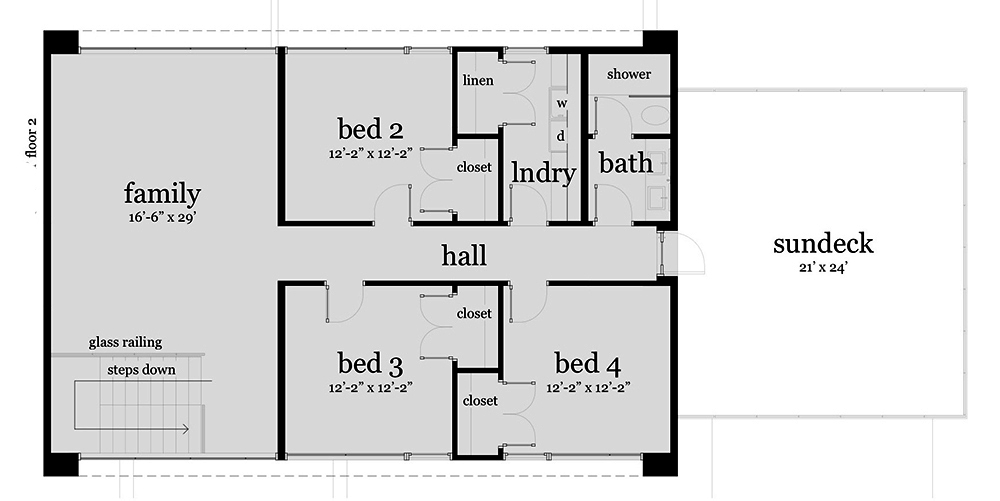

#116-1121 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1121
Home Plan: #116-1121 Floor Plan First Story - main level Floor Plan First Story of Modern Plan #116-1121
#116-1121 Floor Plan Second Story - upper level Floor Plan Second Story of Modern Plan #116-1121
