4-Bedroom, 2373 Sq Ft Country Plan with Split Layout

This is an artist's rendering of Craftsman Home Plan #153-1020.

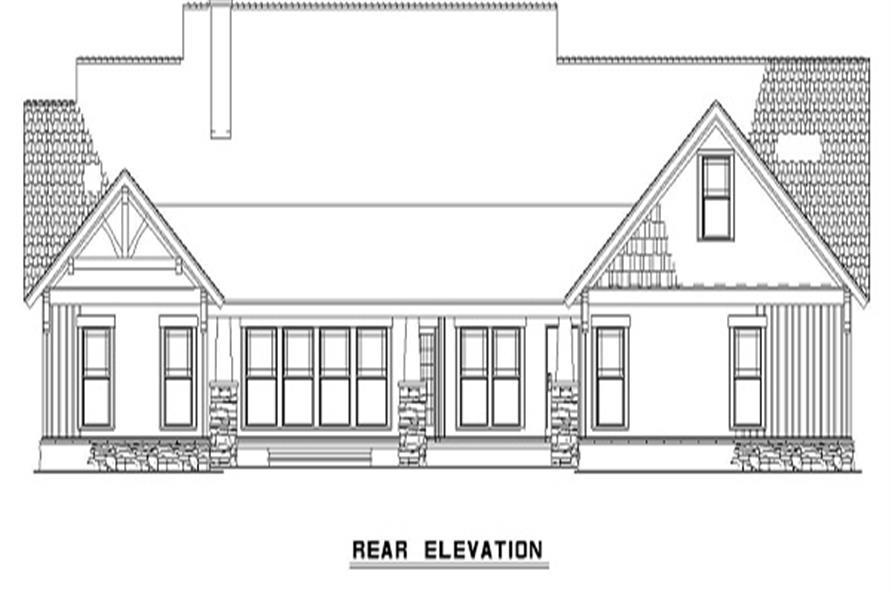

153-1020 house plan rear elevation

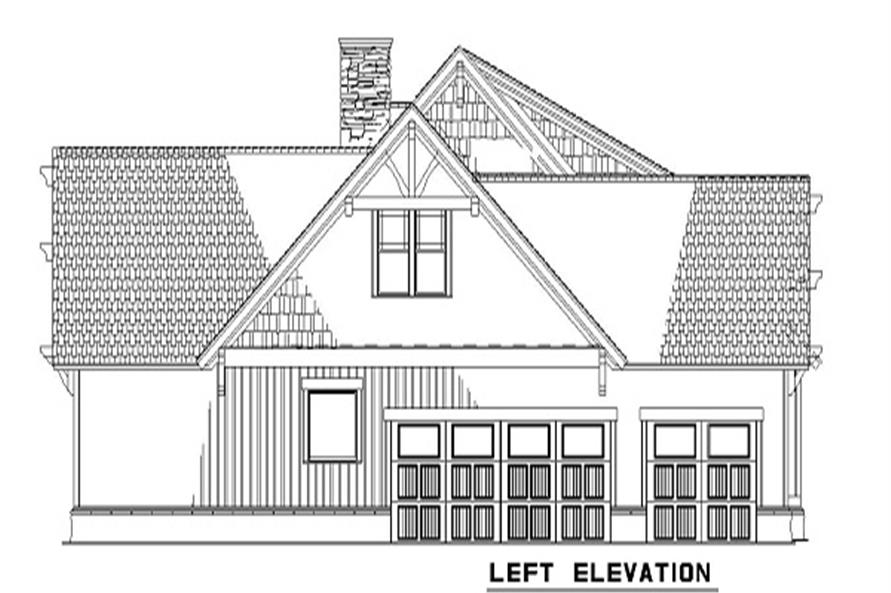

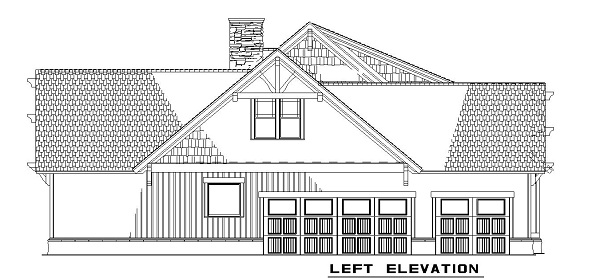

153-1020 house plan left elevation
4-Bedroom, 2373 Sq Ft Country House Plan - 153-1020 - Front Exterior
153-1020 house plan rear elevation
153-1020 house plan left elevation

About Plan # 153-1020

About Plan # 153-1020

2373 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 76' 10" WIDTH 59' 2" DEPTH 3 GARAGE BAY

Inspired by the iconic Prairie House designed by architect Frank Lloyd Wright, this Craftsman-style house plan stands tall in every aspect of home design. A sight for sore eyes, this wonderful home greets you with a stylish covered porch area leading into a generous foyer.

From the foyer, you enter the great room, with the dining room and a dual-access bedroom flanking it on either side; the latter can be converted to a warm and elegant study, complete with your personal library, oak desk, and favorite armchair. The great room is the center of the home and comes with a glorious fireplace. It weaves the various shared spaces, including the partitioned fully fitted kitchen and breakfast area, into a bustling social core that fluidly flows out onto the grilling porch beyond.

The master suite occupies a silent end of this clever house plan, tucked away for privacy. Accompanied by a luxurious separate bathroom with a his-and-her vanity unit and spacious walk-in closet, it caters to every need of its occupants. The remaining three bedrooms are combined into a consolidated sleeping quarters at the other end of the house, sharing two bathrooms among them.

The three-car garage, with its dedicated storage room, and the laundry room ensure that this design is just as functionally efficient as it is visually striking.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

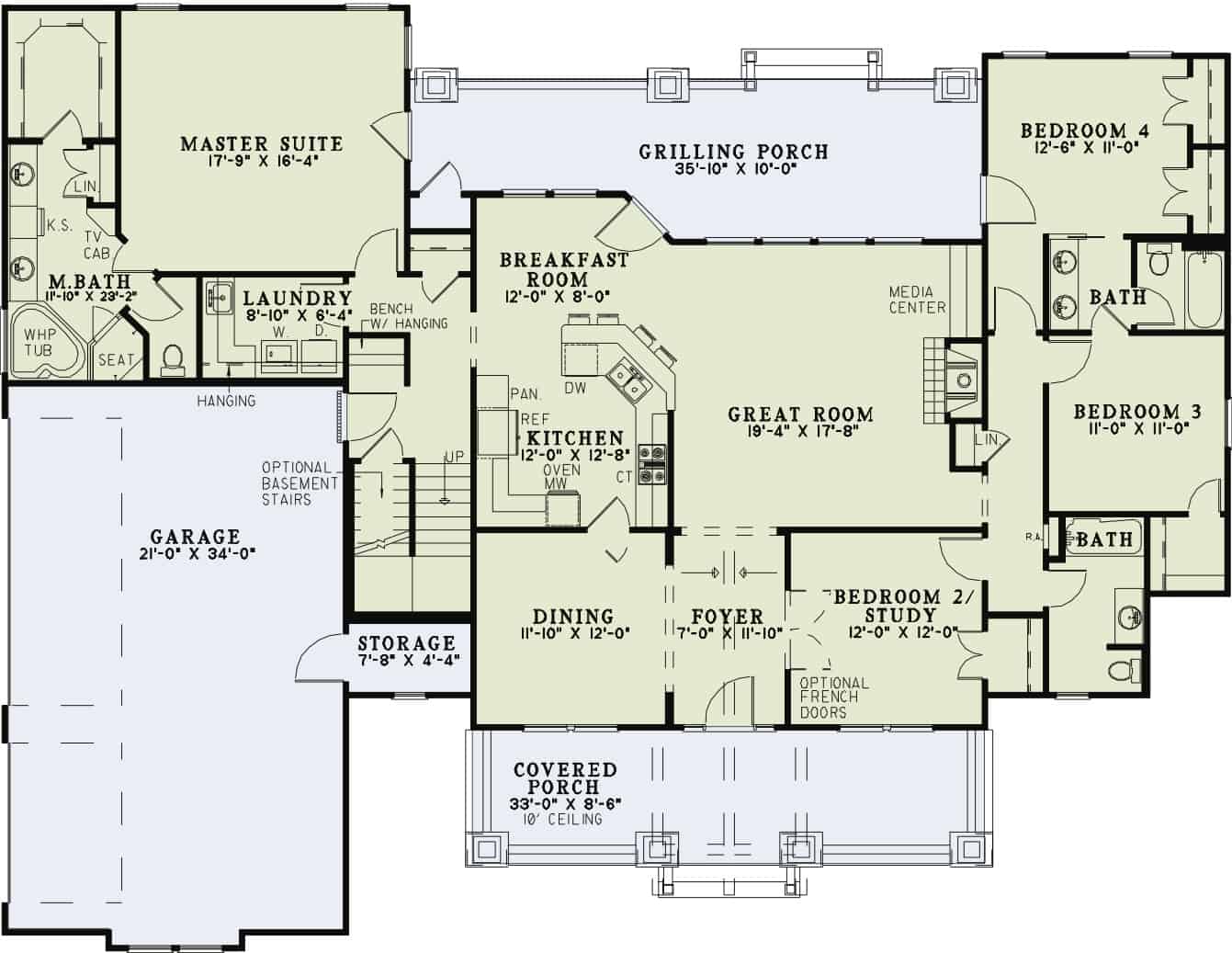

Home Plan: #153-1020 Floor Plan First Story - first story Floor Plan Main Level of Country Plan #153-1020

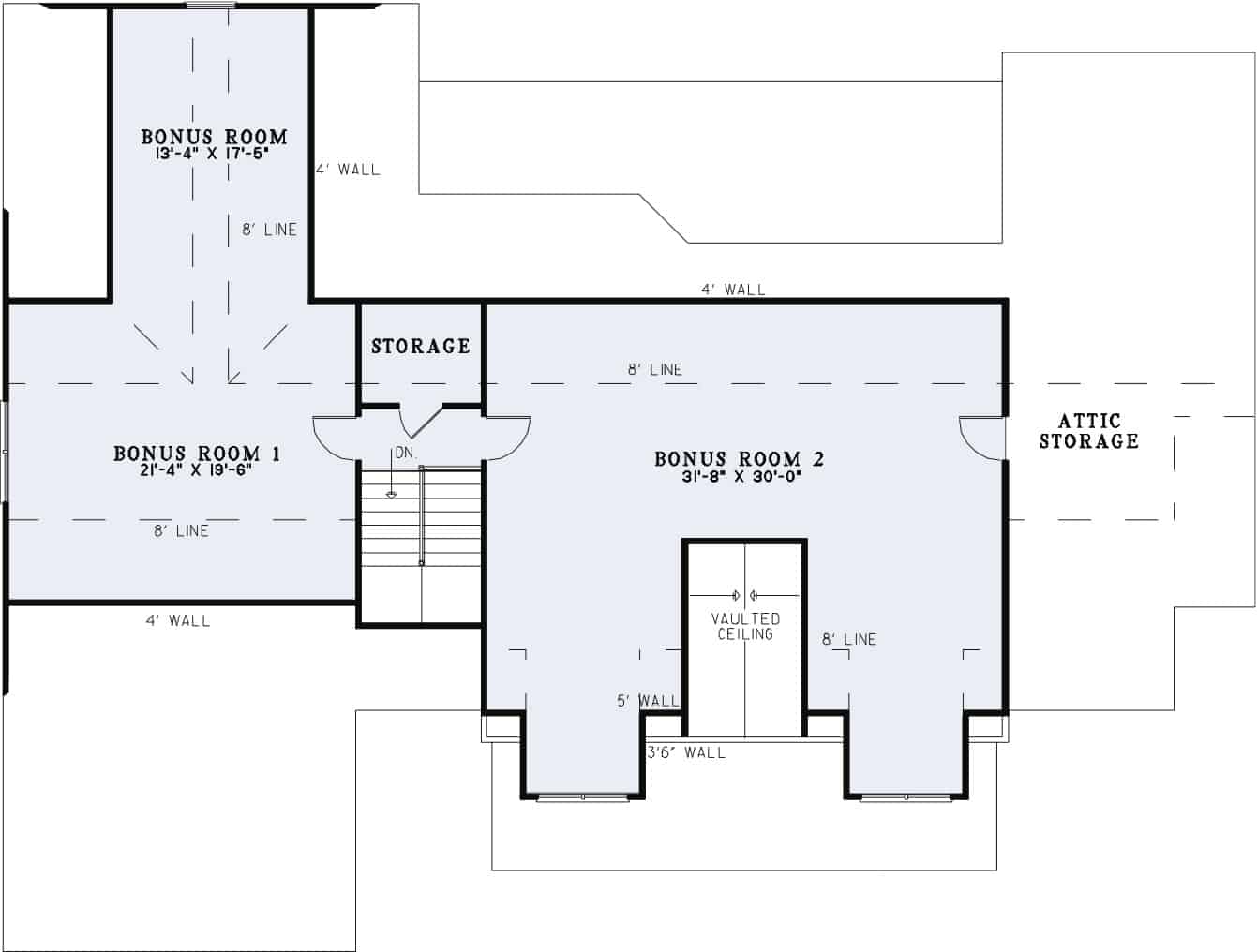

#153-1020 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #153-1020
Home Plan: #153-1020 Floor Plan First Story - first story Floor Plan Main Level of Country Plan #153-1020
#153-1020 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #153-1020
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1020
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2373
Main Floor:
2373
Unfinished Sq Ft:
Bonus Room:
1542
Garage :
783
Porch :
597

Dimensions

Width:
76' 10"
Depth:
59' 2"
Ridge Height:
26' 2"

Architectural Styles

1 1/2 Story
Arts and Crafts
Country
Craftsman
Luxury
Prairie
Rustic

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable/Shed Dormer

Roofing Material

Wood Shakes

Roof Pitch

10/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Den
Dining Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
