4-Bedroom, 2609 Sq Ft Contemporary Plan with Covered Rear Porch

Photo of charming Craftsman Home Plan #168-1099.

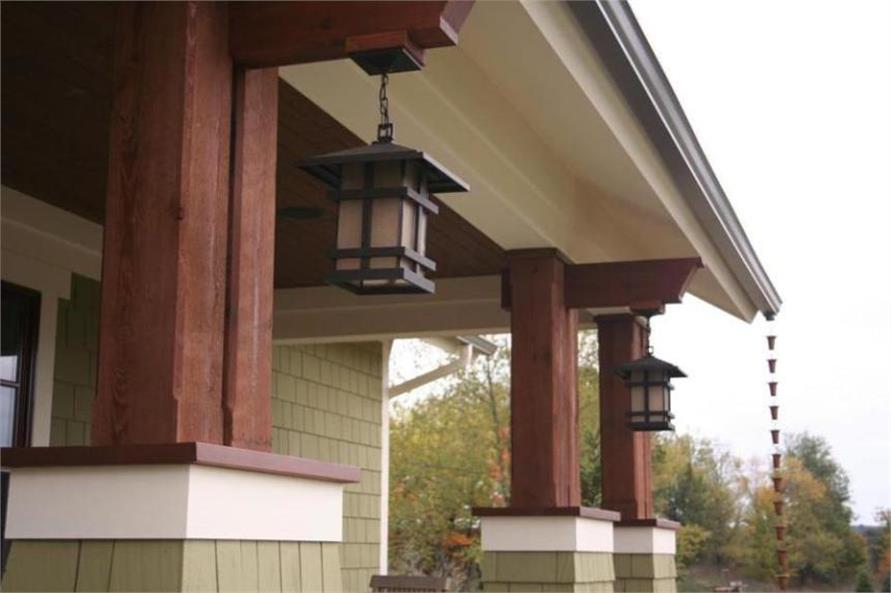

168-1099 house plan porch details

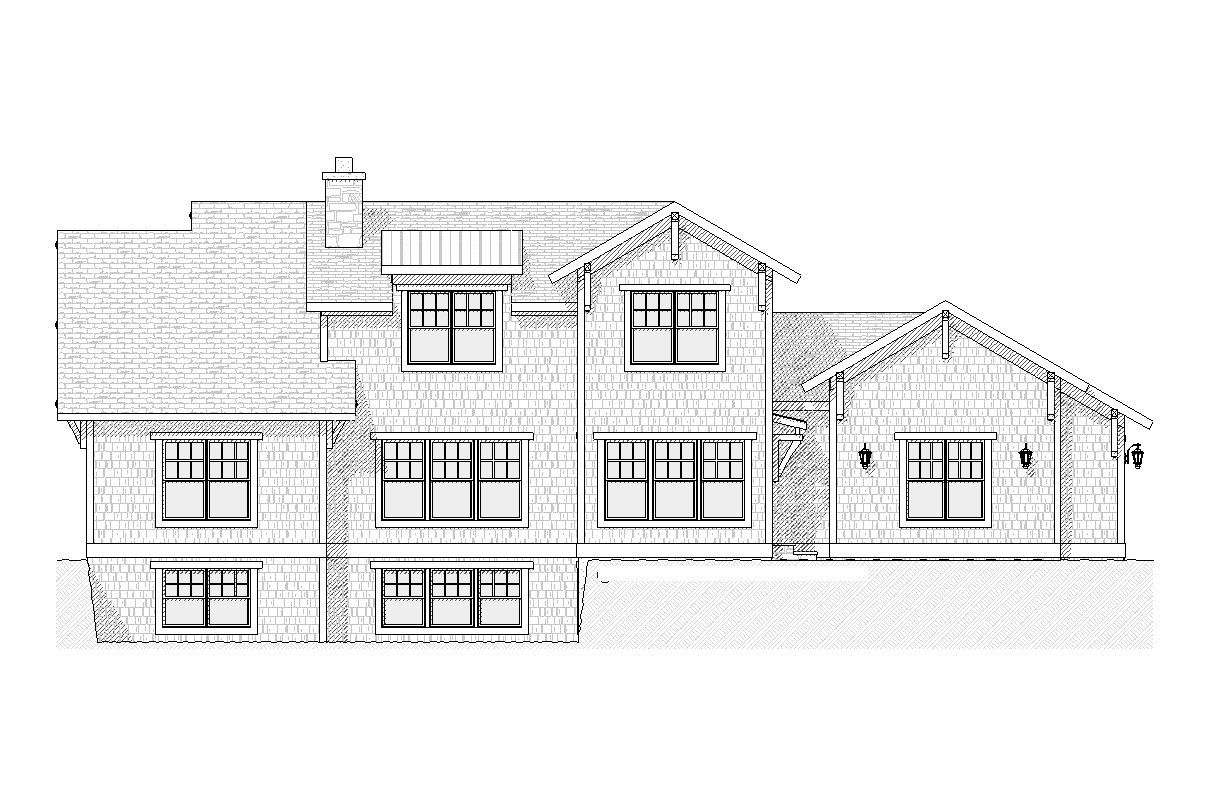

168-1099 house plan rear elevation

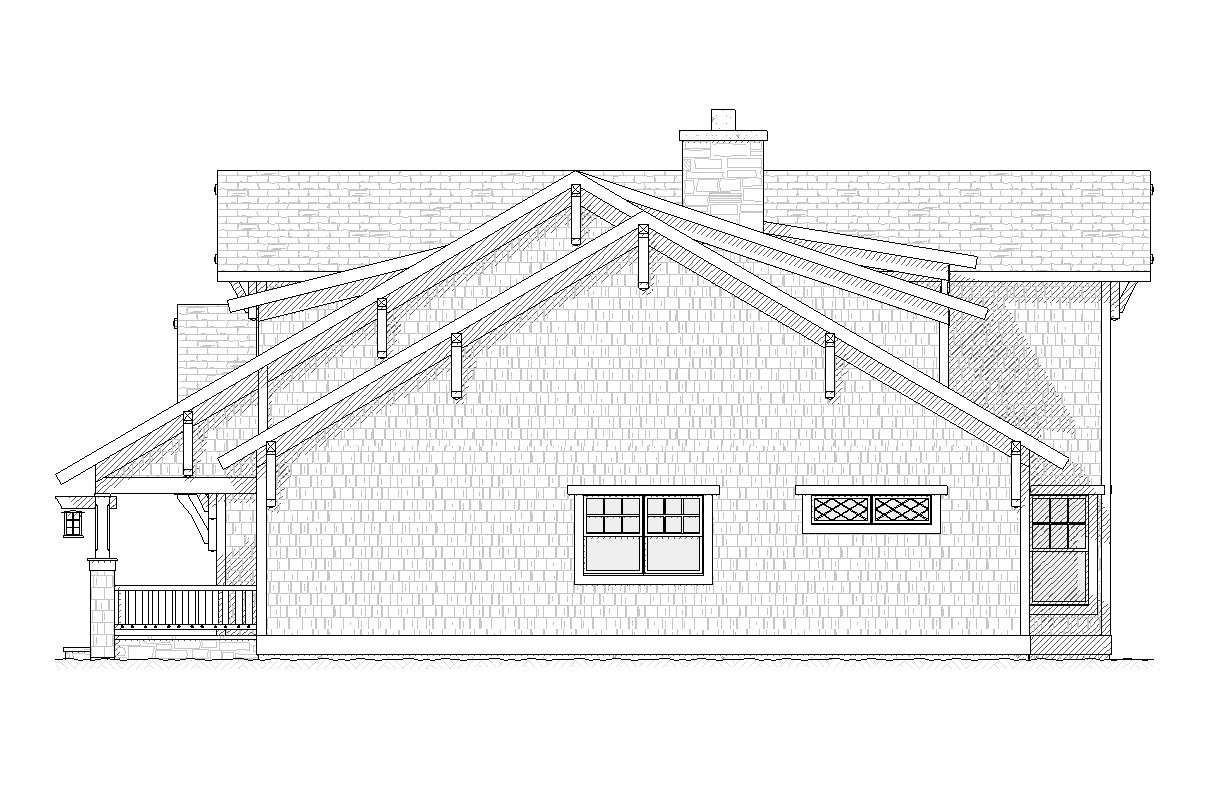

168-1099 house plan right elevation
168-1099 house plan left elevation

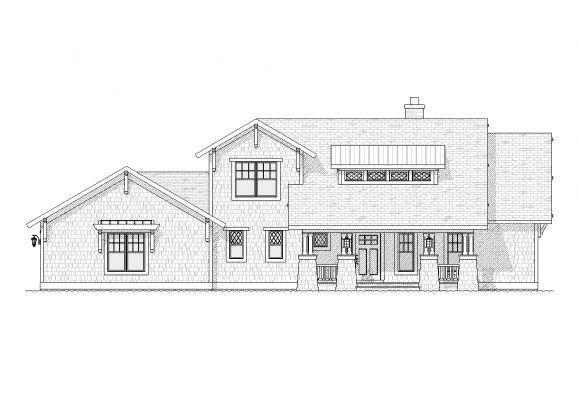

168-1099: Home Plan Front Elevation
168-1099: Home Plan Rendering - Front Elevation

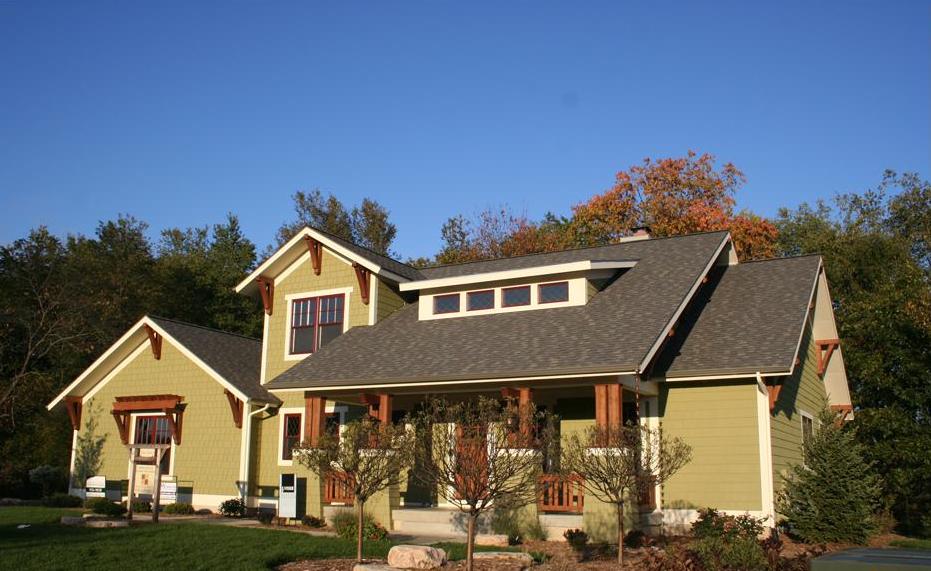

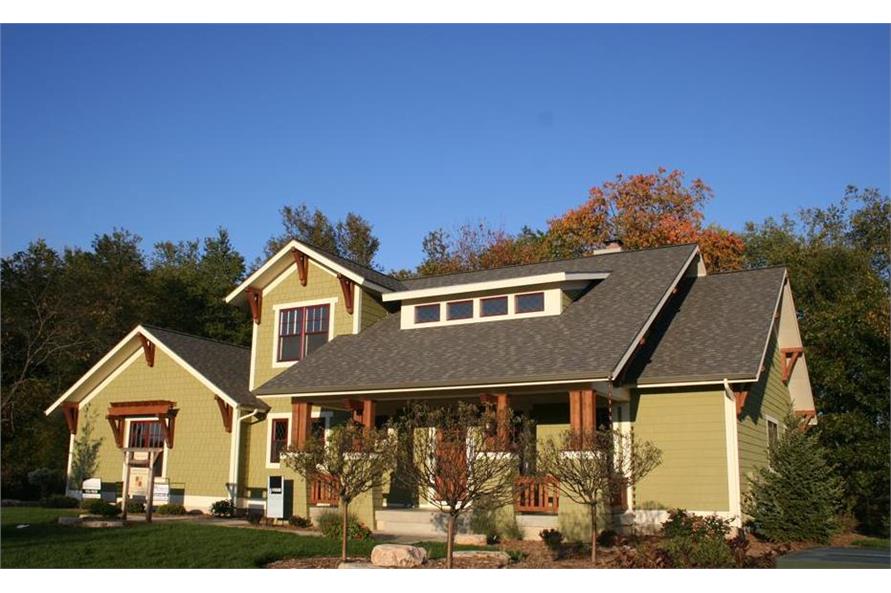

4-Bedroom, 2609 Sq Ft Contemporary Home Plan - 168-1099 - Main Exterior
168-1099 house plan porch details
168-1099 house plan rear elevation
168-1099 house plan right elevation
168-1099 house plan left elevation
168-1099: Home Plan Front Elevation
168-1099: Home Plan Rendering - Front Elevation

About Plan # 168-1099

About Plan # 168-1099

2609 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 70' 0" WIDTH 50' 0" DEPTH 3 GARAGE BAY

This home design combines the best of both Craftsman style and modern living (Plan #168-1099). The front dormer shines light into the foyer and den, while the open floor plan design makes this 4 bedroom home feel far more spacious than its 2600 sq ft would suggest. It also has a smartly-designed mudroom! There is a luxurious main floor master while upstairs are 3 bedrooms and 2 baths giving everyone their own space. -more-

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

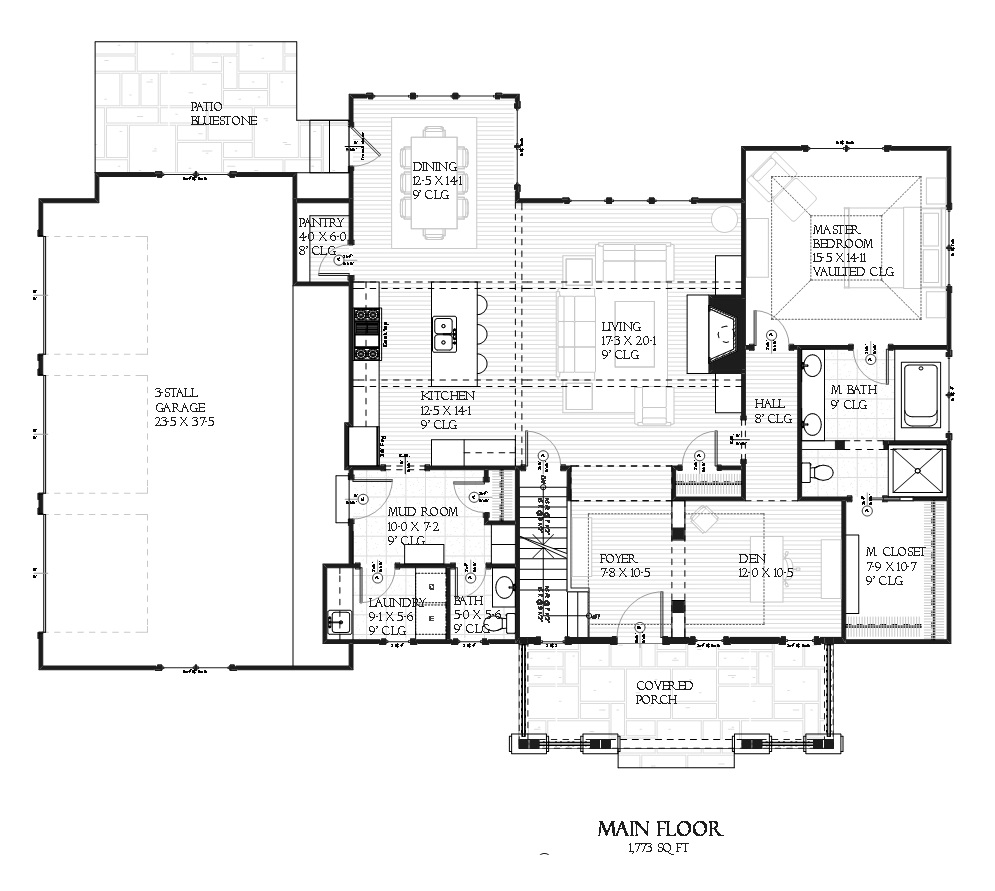

Home Plan: #168-1099 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #168-1099

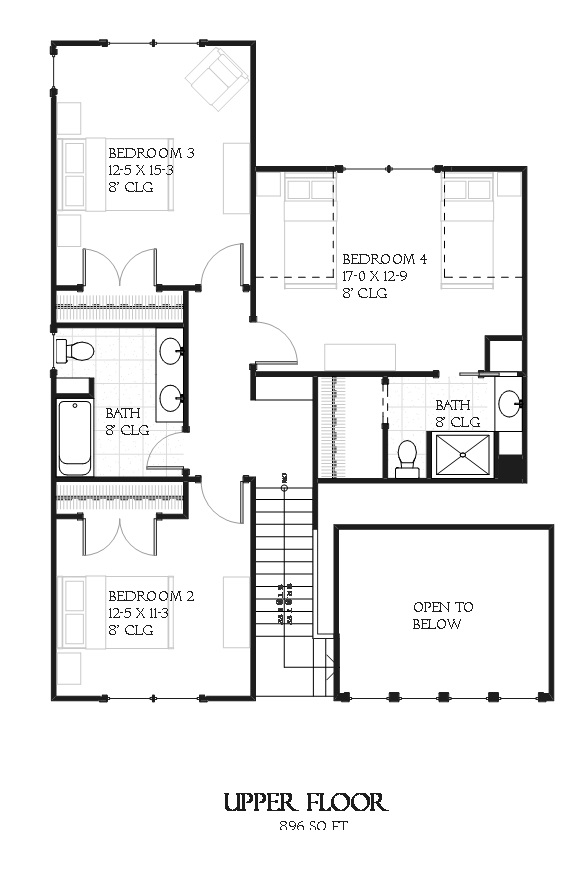

#168-1099 Floor Plan Second Story - upper floor Floor Plan Second Story of Contemporary Plan #168-1099
