4-Bedroom, 2909 Sq Ft Craftsman Plan with Walk-In Closet

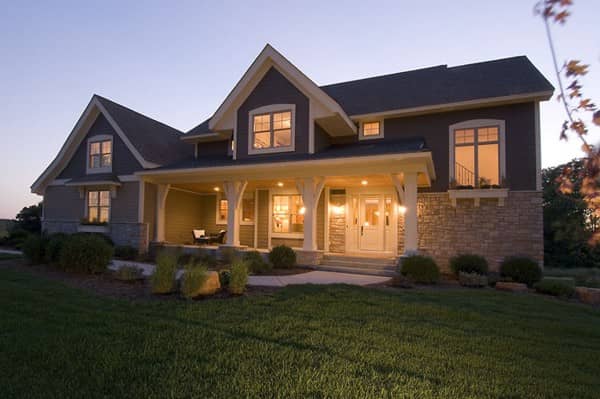

Front elevation of Craftsman home (ThePlanCollection: House Plan #109-1191)

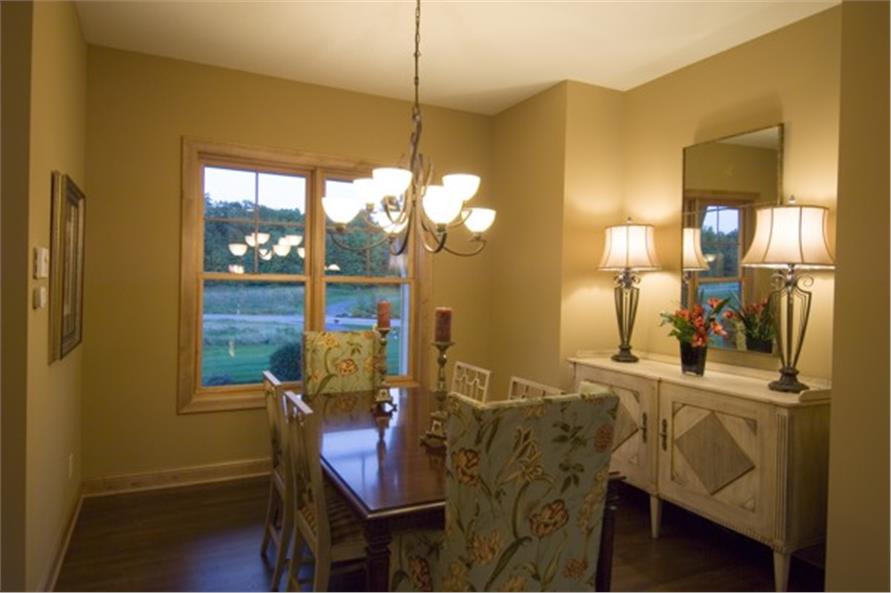

109-1191 house plan dining room

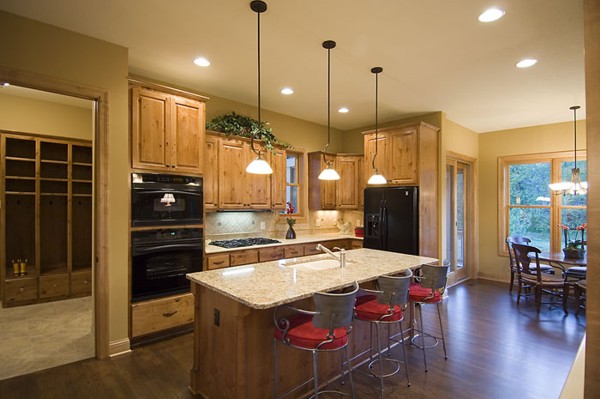

109-1191 house plan kitchen

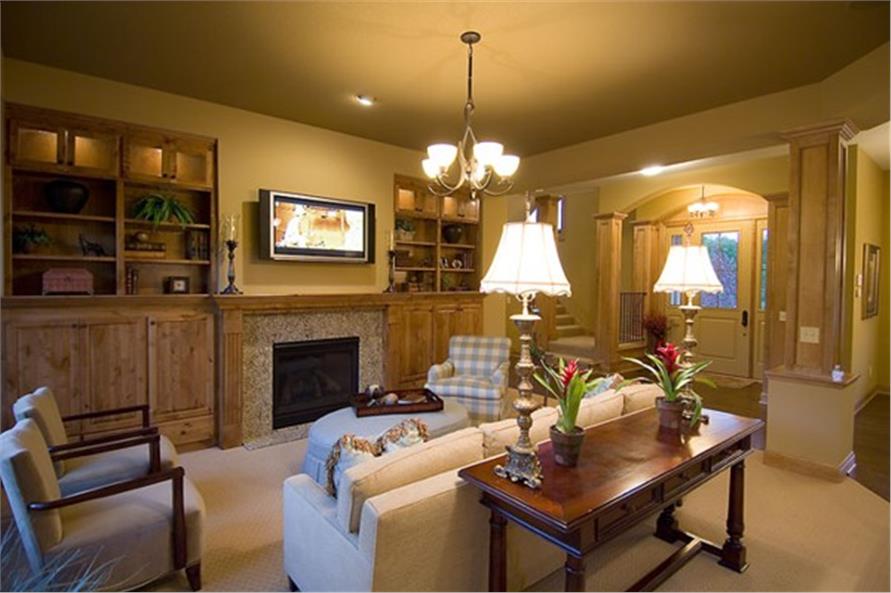

109-1191 home plan great room

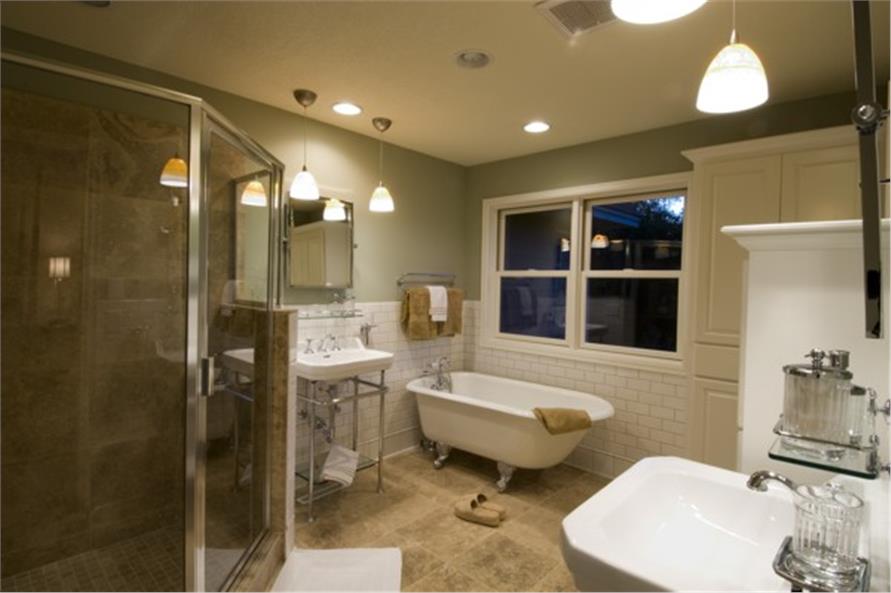

109-1191 home plan master bath
109-1191 house plan master bedroom
109-1191 house plan screened porch
4-Bedroom, 2909 Sq Ft Craftsman House Plan - 109-1191 - Front Exterior
109-1191 house plan dining room
109-1191 house plan kitchen
109-1191 home plan great room
109-1191 home plan master bath
109-1191 house plan master bedroom
109-1191 house plan screened porch

About Plan # 109-1191

About Plan # 109-1191

2909 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 74' 0" WIDTH 52' 6" DEPTH 0 GARAGE BAY

A remarkable design with impressive attention to detail makes this Craftsman 4-bedroom house plan perhaps just the home for you and your family. As you approach along the walkway, the wide, front porch with eye-catching columns welcomes you. Step inside the foyer, leave your jacket in the coat closet and take in the beauty of this floor plan layout which has been designed to dazzle while entertaining yet feel comfortable for day-to-day living. The formal dining room as you enter has a nice touch with the furniture niche. The great room is spacious with its open design and windows to the rear. It is made comfortable with its fireplace and built-ins. Facing the great room is the kitchen which includes an island. Steps away, you will find the casual dining area and an optional screen porch for dining outside. Also steps away from the kitchen is an office space - great for managing tasks on-the-go. Leading to the 2-car garage is a large mudroom with cubbies and shelves as well as the laundry area and a walk-in closet. A private study and a powder room complete the first floor.

When its time to retire for the evening, head upstairs where you will find four bedrooms and three full baths. Bedroom #2 and #4 share a jack-and-jill bathroom. Head through the double doors and enter the master suite. The master bedroom has a tray ceiling. The master bathroom has separate his-and-her vanities. There is also a large walk-in closet.

Looking for more space? There is an optional bonus room.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

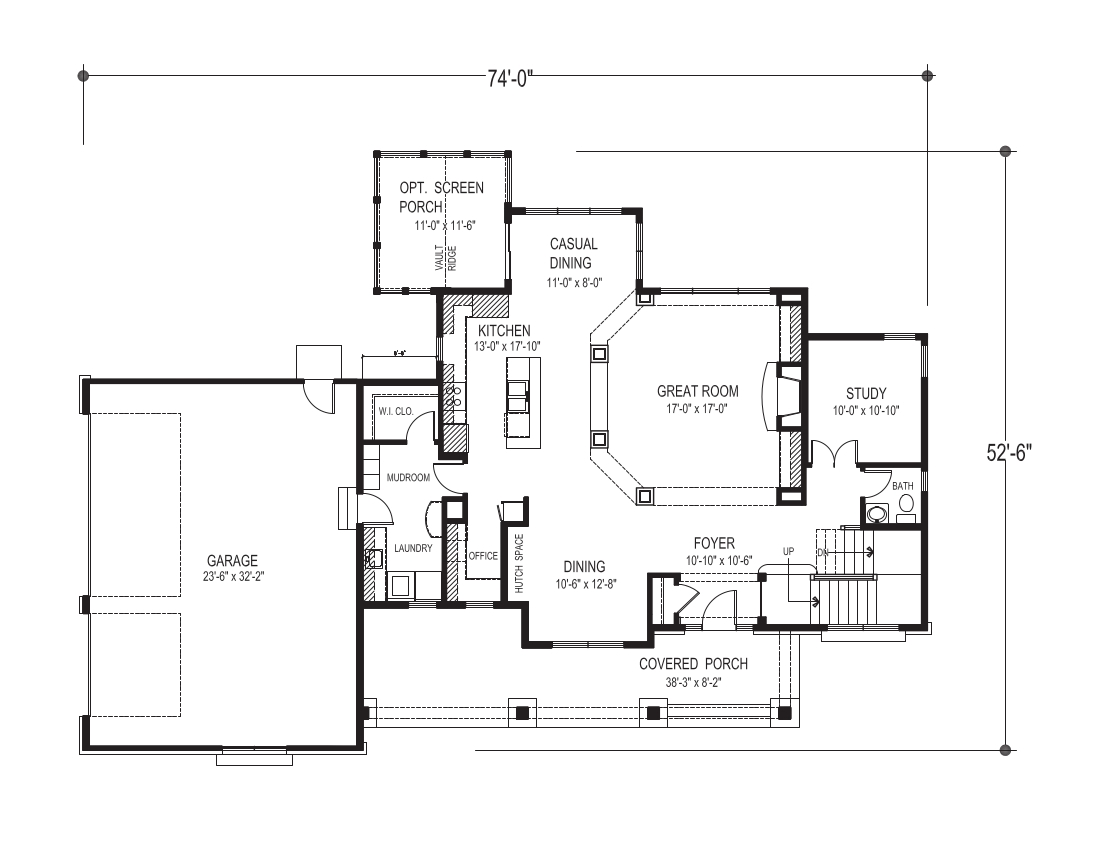

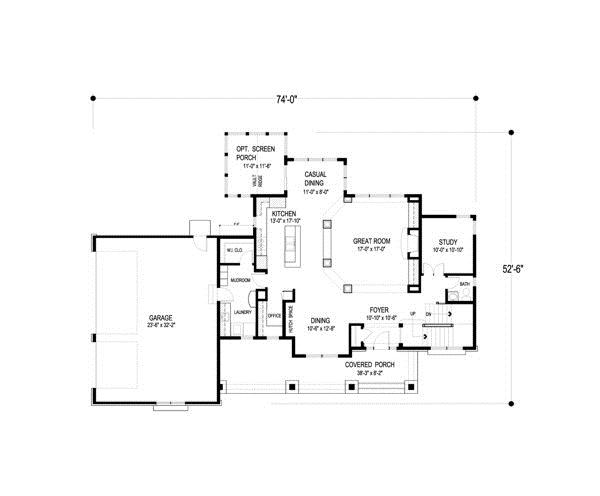

Home Plan: #109-1191 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1191

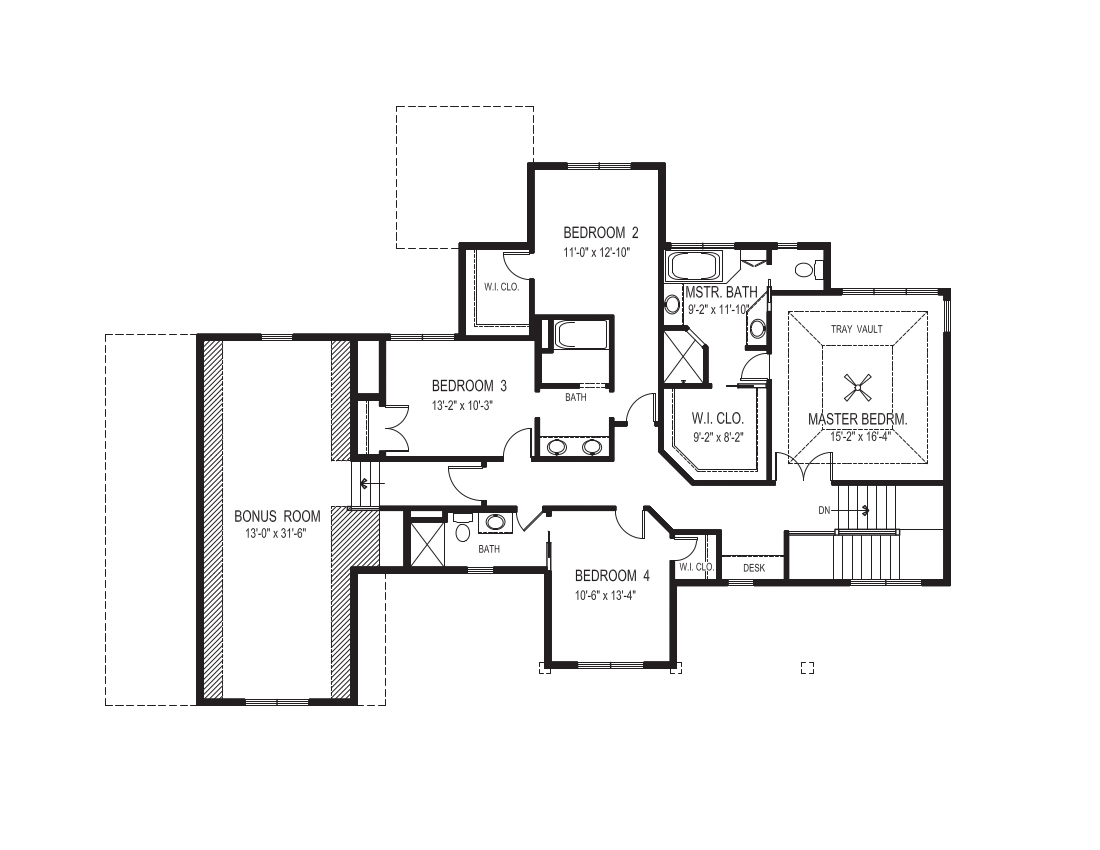

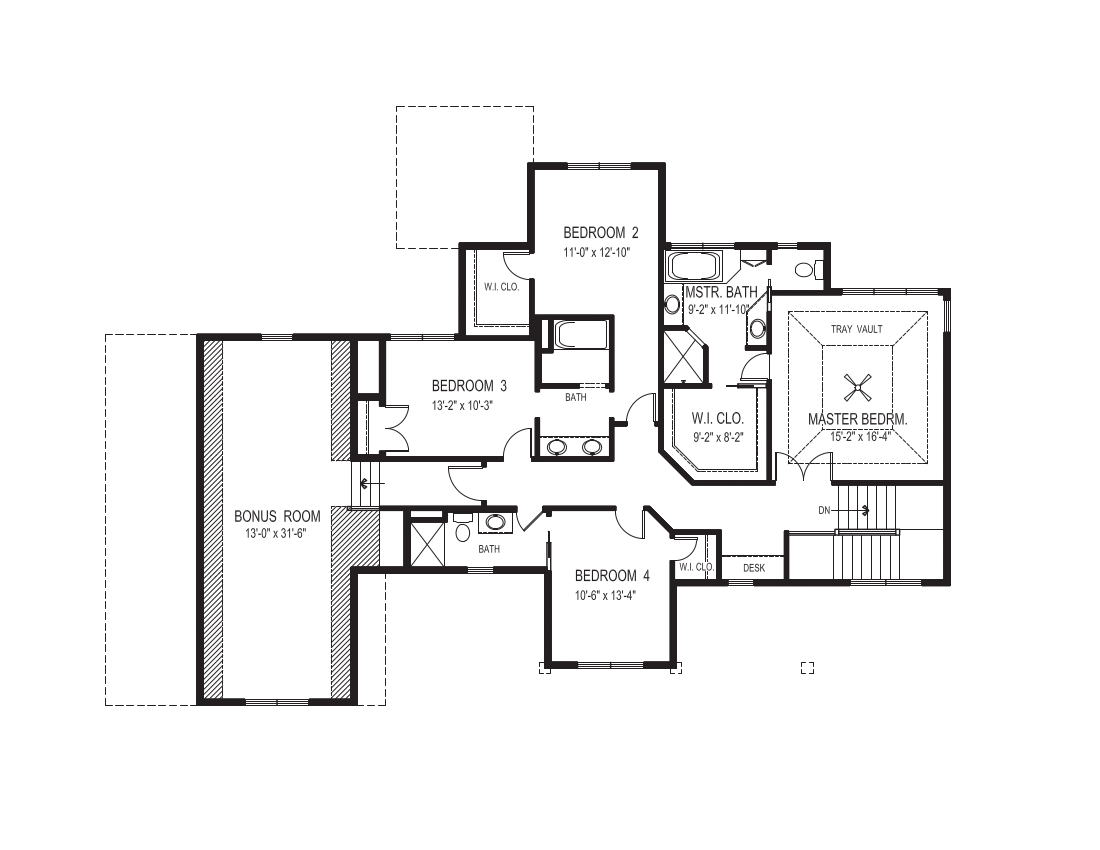

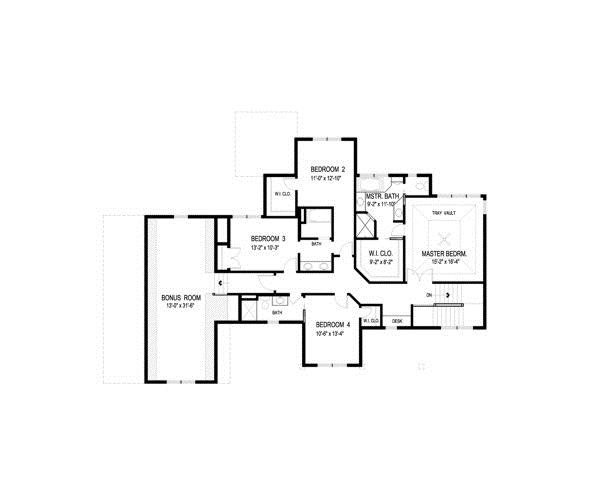

#109-1191 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1191
Home Plan: #109-1191 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1191
#109-1191 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #109-1191
