About Plan # 109-1047

About Plan # 109-1047

2000 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY

At 2,000 living square feet, this “mid-sized” country Craftsman ranch embraces the best of style and smart design. The exterior exudes warmth with its brick and stone facing, inviting front porch, Palladian window and dormers.

Inside, the combination of an open floor plan and vaulted or tray ceilings adorning the living area, family room, and cozy coffee corner create a much larger and welcoming feel than would be expected. To continue the spaciousness, the other rooms have 9-foot ceilings while a bay window brightens the casual dining room and kitchen.

The exquisite master suite boasts direct access to a deck, a sitting area, full master bath, and spacious walk-in closets. The secondary bedrooms both have walk-in closets and share a Jack-and-Jill bath. Another unique feature is the flexible office/living/4th bedroom. Need more space? The upper-level bonus room adds 495 square feet of functional living space with 5 ft. knee walls rising up to an 8 ft. ceiling.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

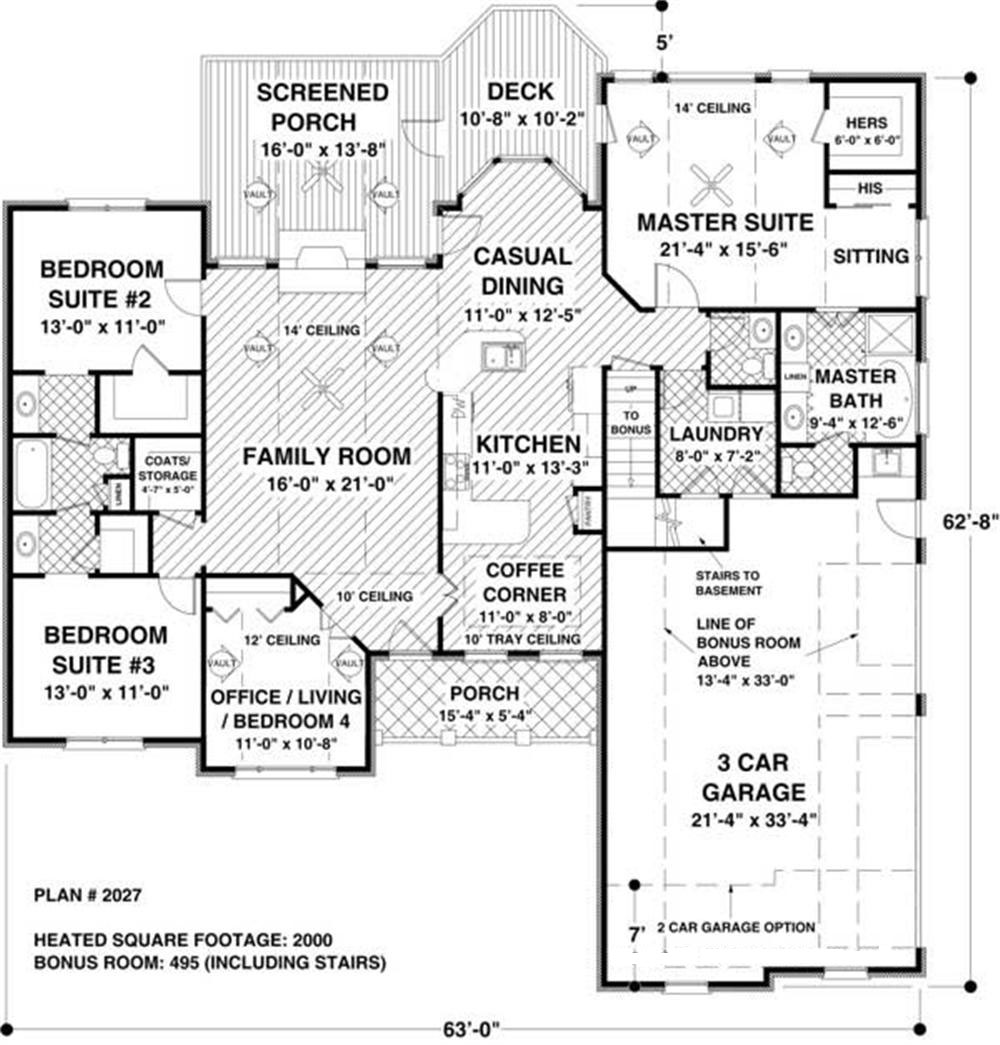

Home Plan: #109-1047 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1047
Home Plan: #109-1047 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1047
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2000
Main Floor:
2000
Unfinished Sq Ft:

Dimensions

Width:
63' 0"
Depth:
62' 8"
Ridge Height:
23' 6"

Architectural Styles

Country
Ranch
Arts and Crafts
Traditional
Craftsman

Exterior Wall Material

Brick
Rock/Stone
Shakes

Roofing Type

Hip
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
10/12

Special Feature

Fireplace
Dining Room
Home Office
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Sundeck
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Private Deck

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
