4-Bedroom, 1798 Sq Ft Ranch Plan with Plenty of Storage.

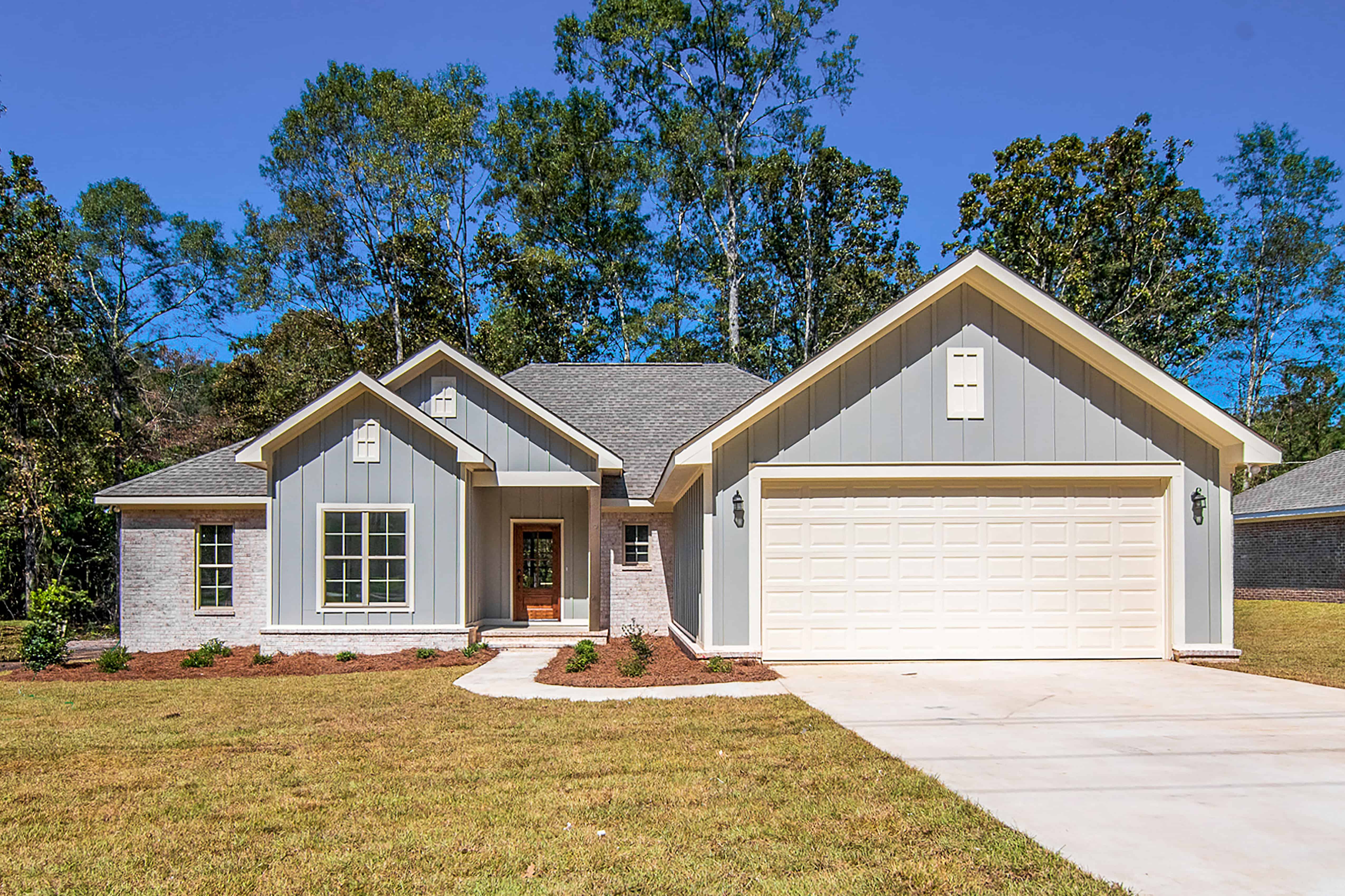

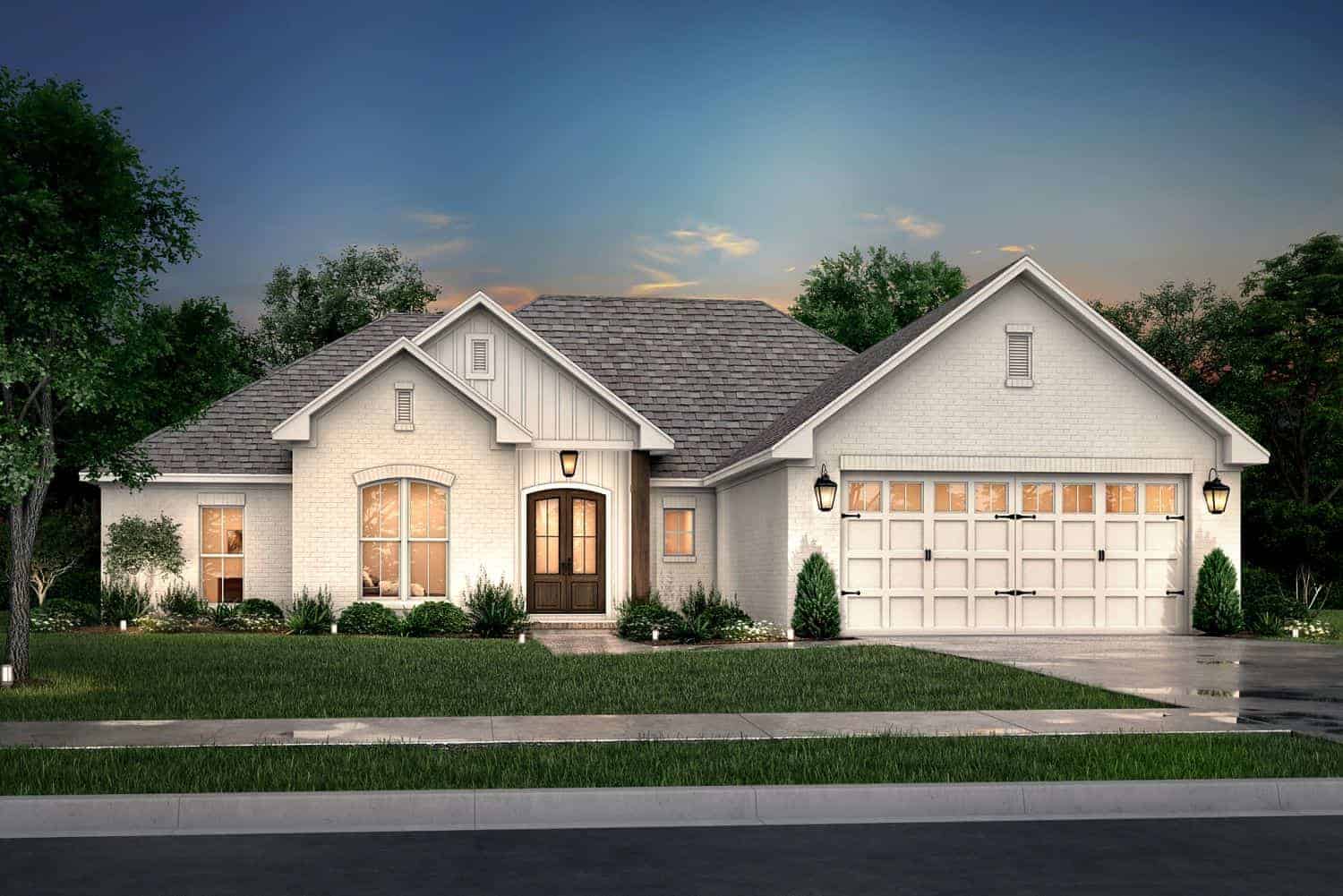

Front Elevation Photo of this Ranch Home (#142-1078) at The Plan Collection.

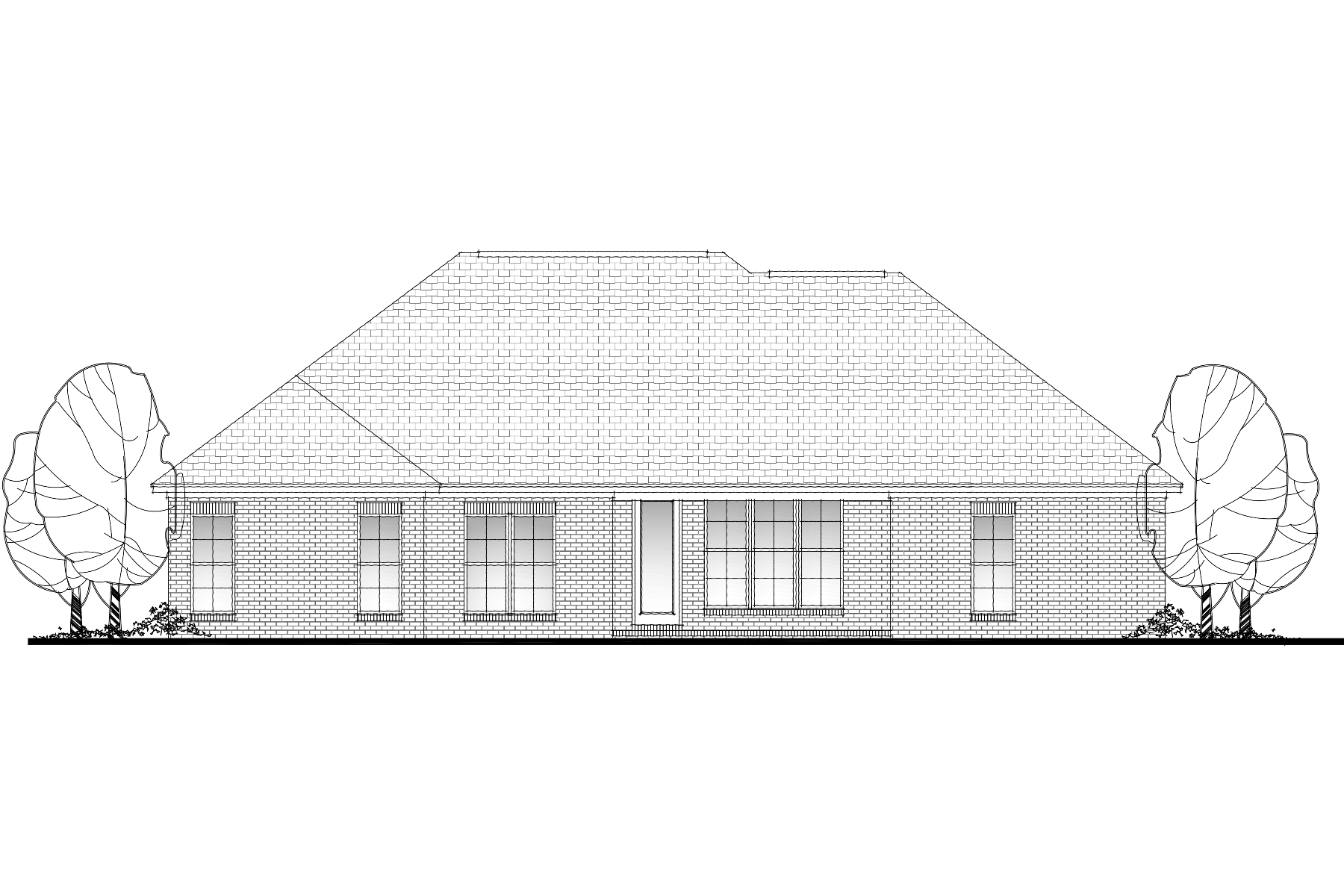

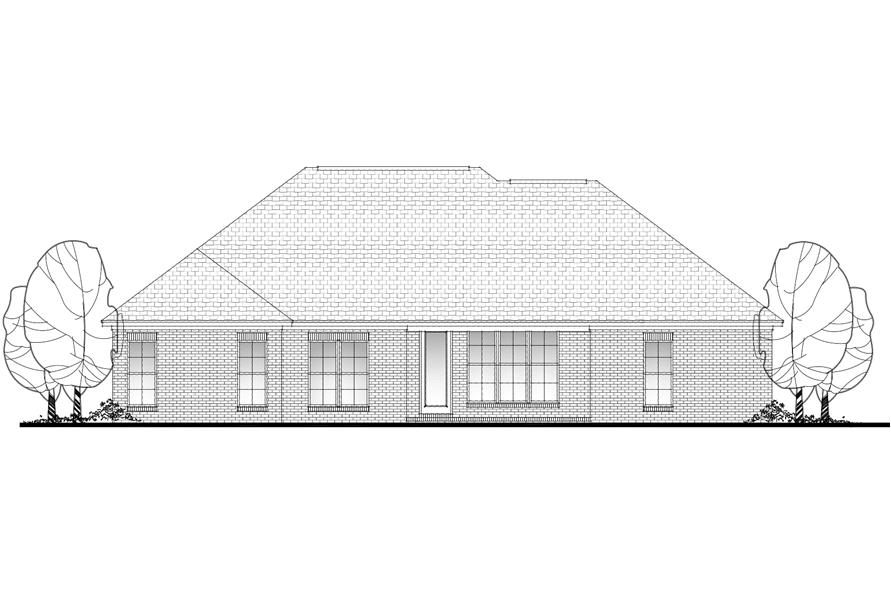

142-1078: Home Plan Rear Elevation

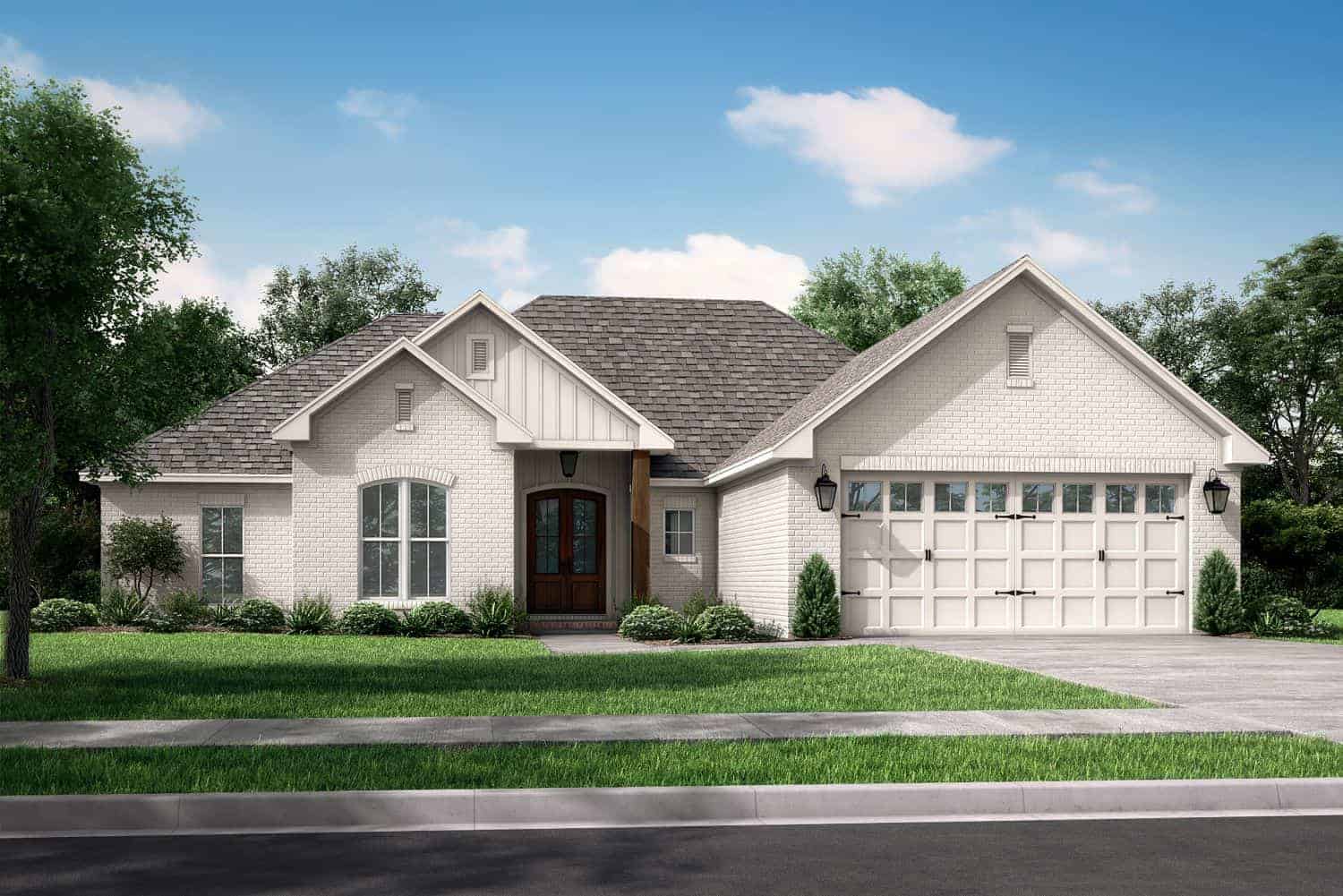

4-Bedroom, 1798 Sq Ft Ranch House Plan - 142-1078 - Front Exterior
142-1078: Home Plan Rear Elevation

About Plan # 142-1078

About Plan # 142-1078

1798 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 59' 2" WIDTH 56' 8" DEPTH 2 GARAGE BAY

As a true southern ranch, this 4-bedroom, 2-bath home is sure to be a delight to family and friends. The foyer leads into the expansive great room, gas fireplace and built-ins. High ceilings throughout the home and a very functional open floor plan ensure great home traffic perfect for entertaining. The views of the large rear porch fill the home with natural sunlight.

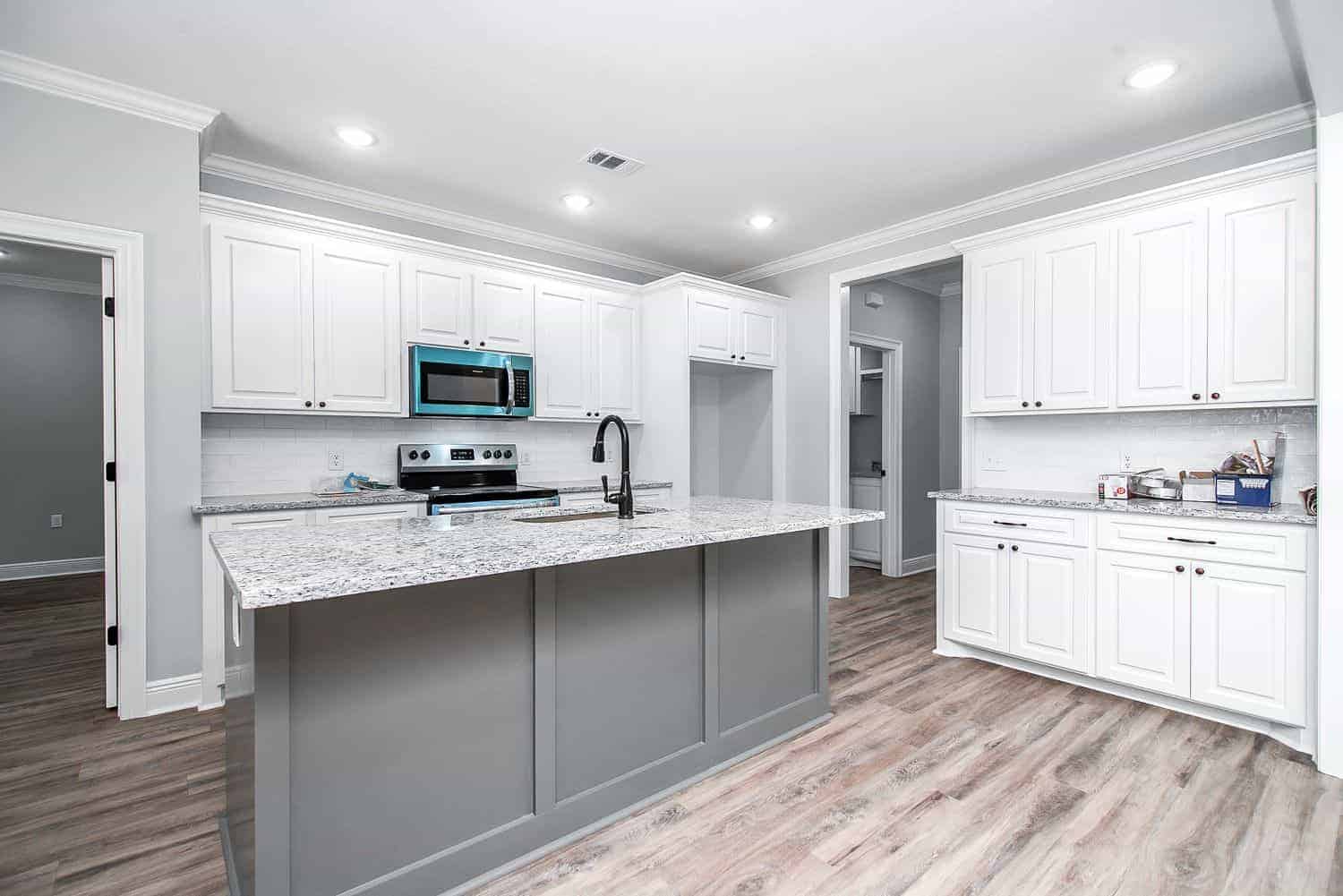

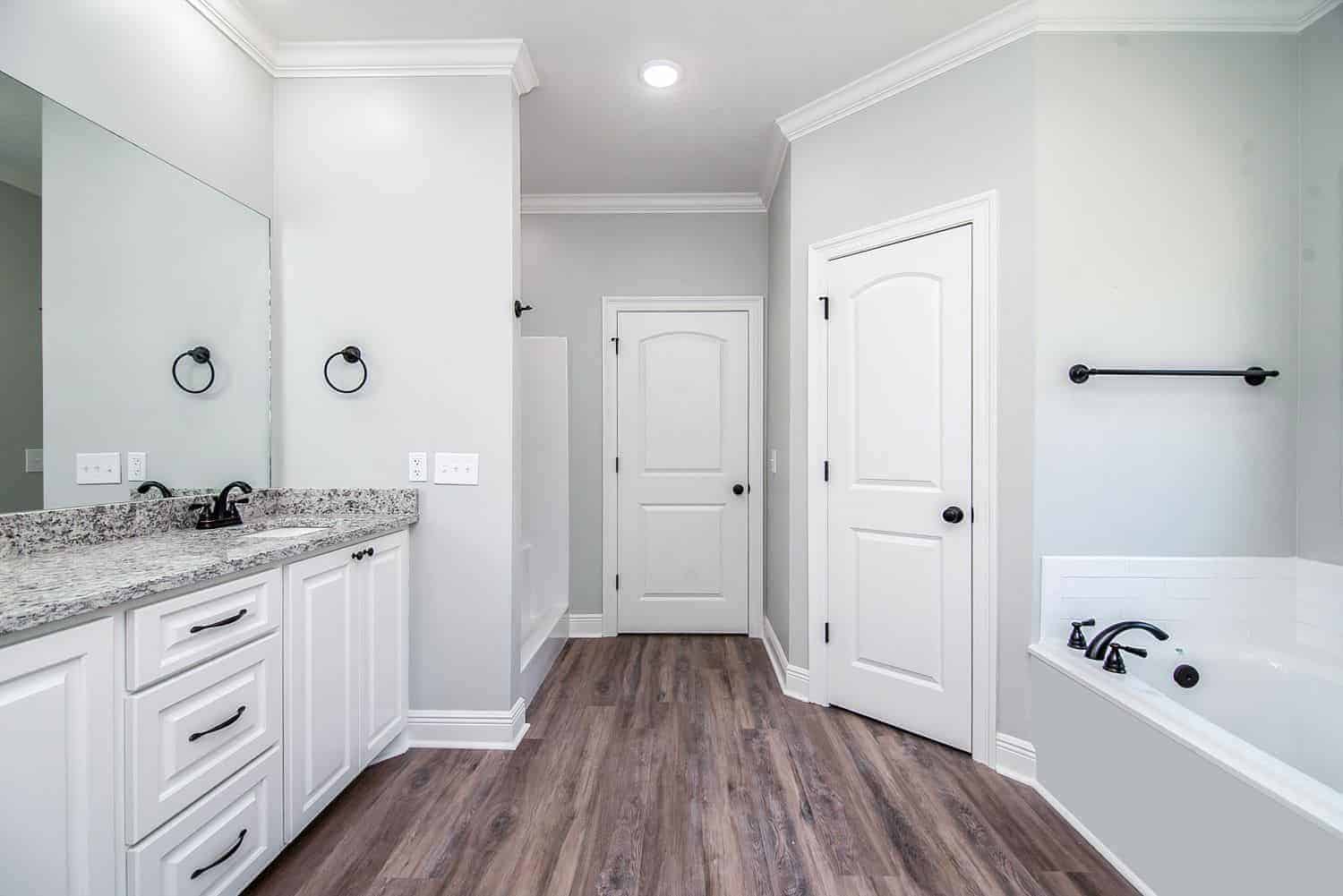

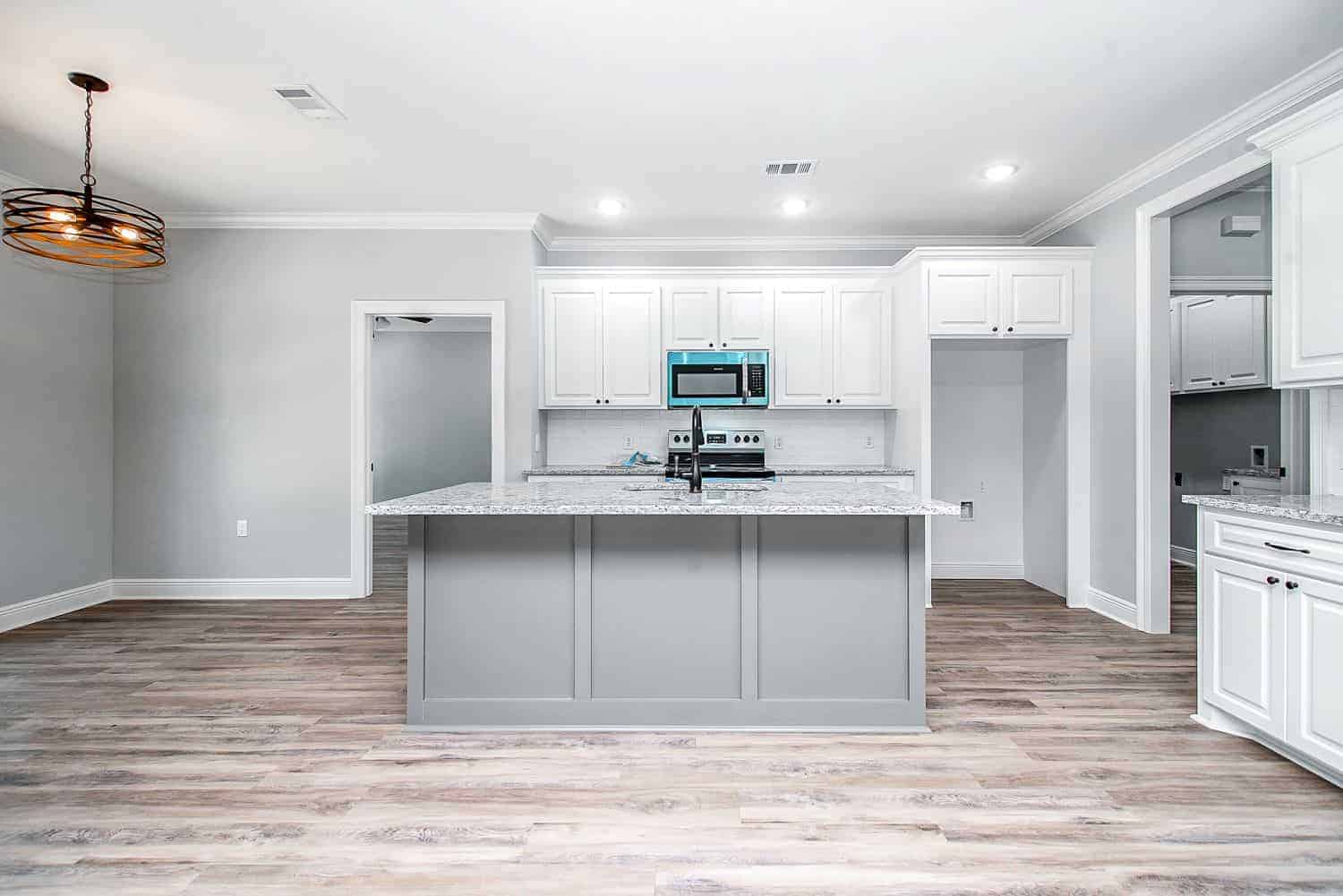

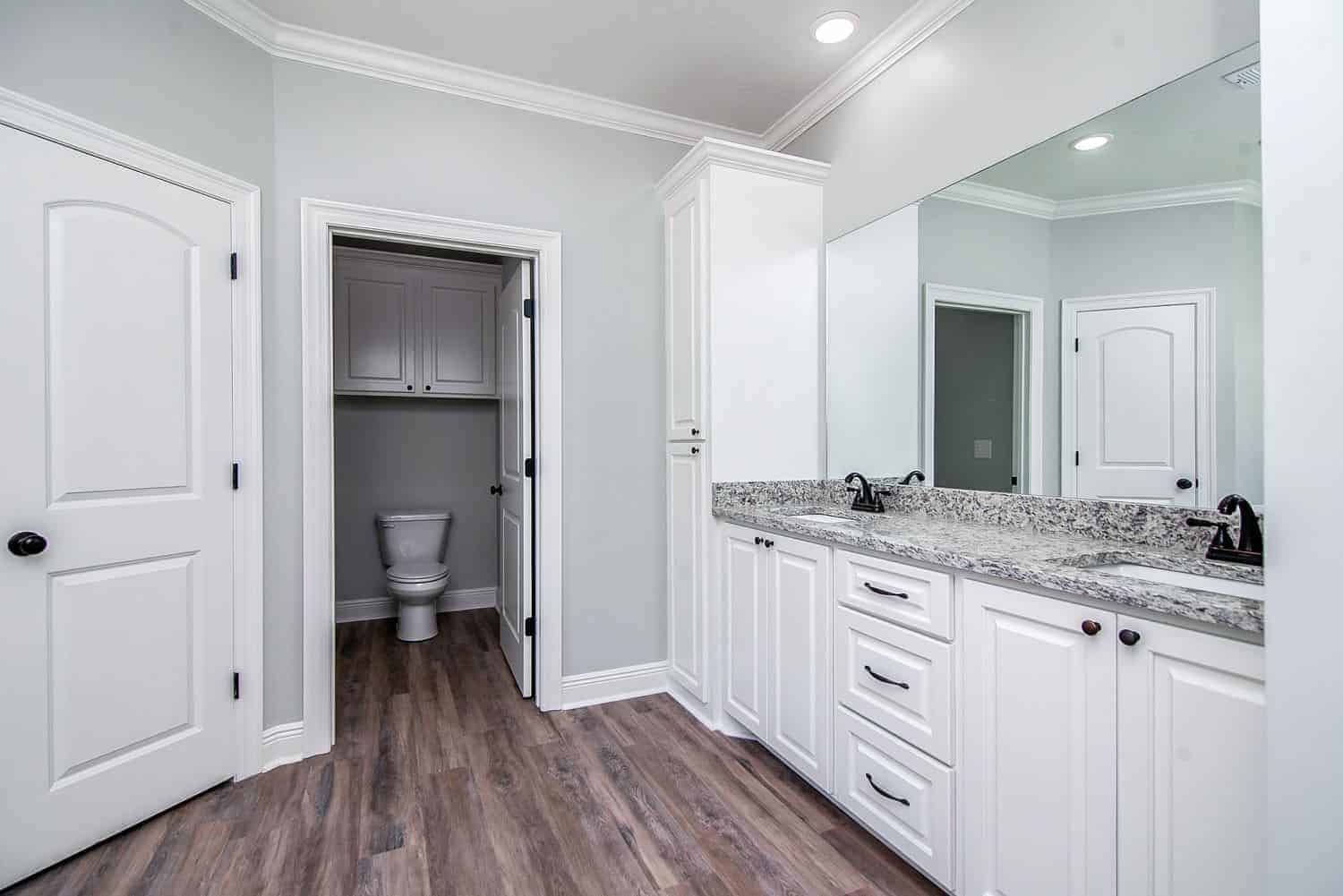

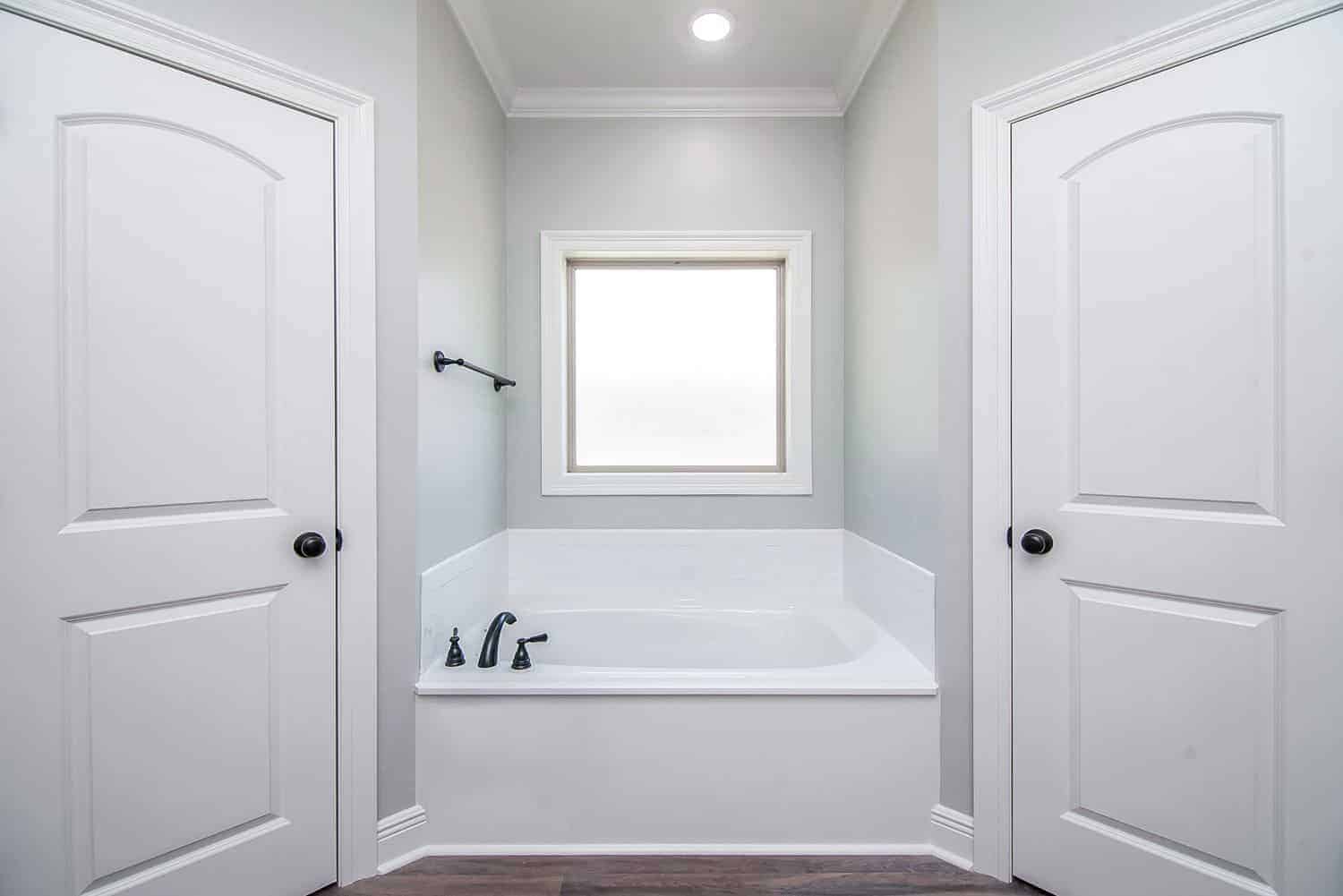

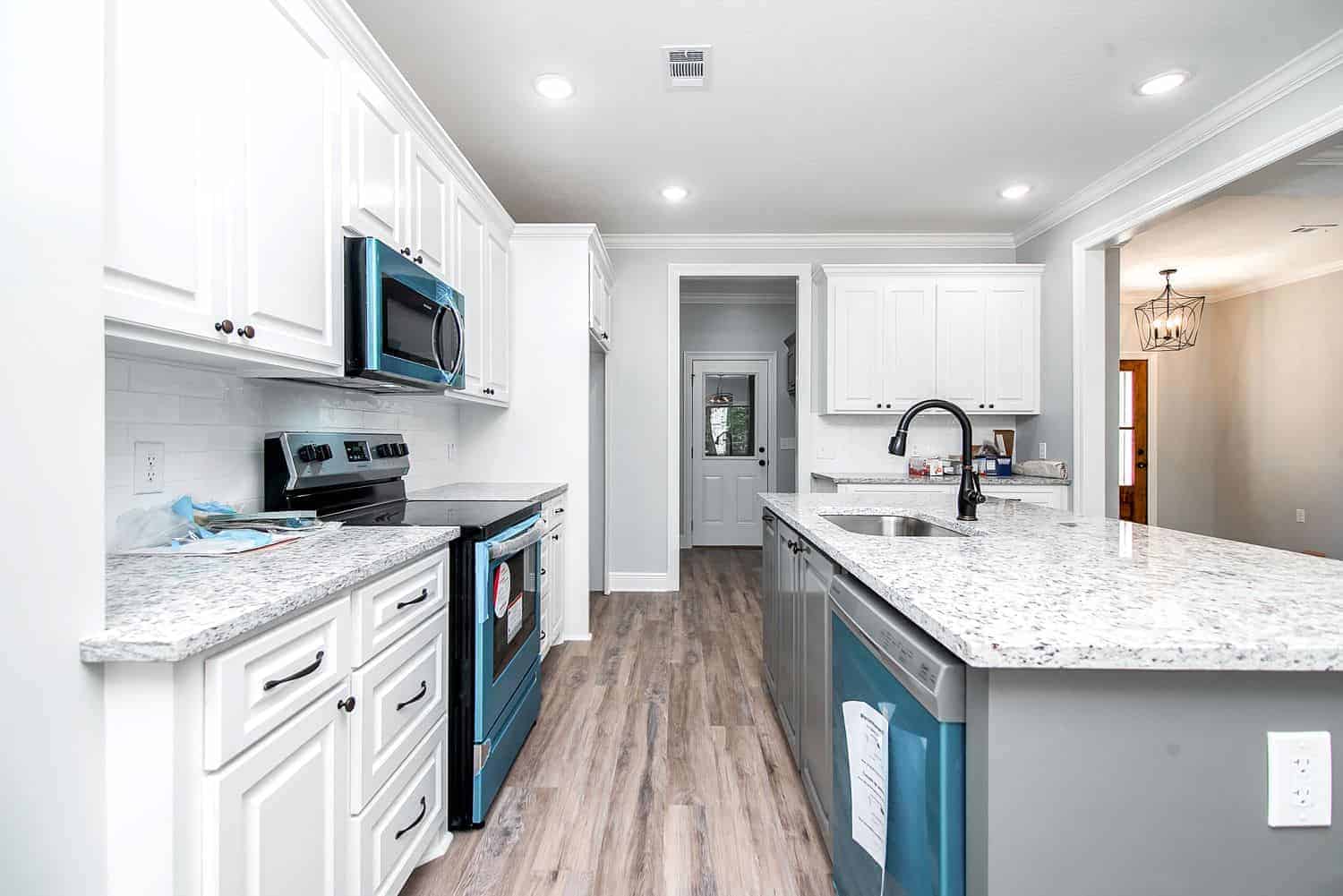

The kitchen opens to the sizable dining area. The master suite is steps away and split from the other bedrooms maximizing your privacy. The master bath has dual vanities, a water closet, two walk-in closet, separate tub, and shower.

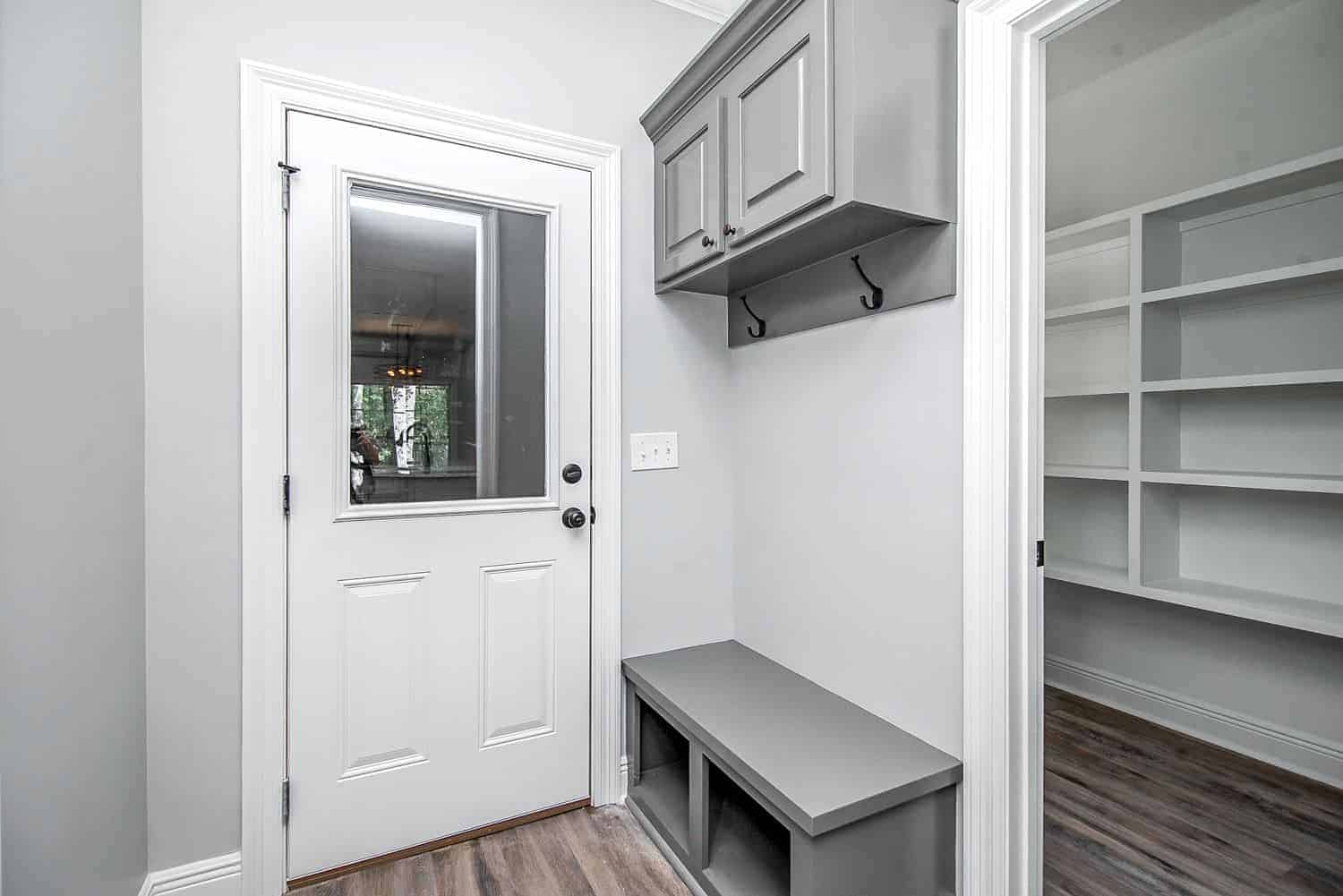

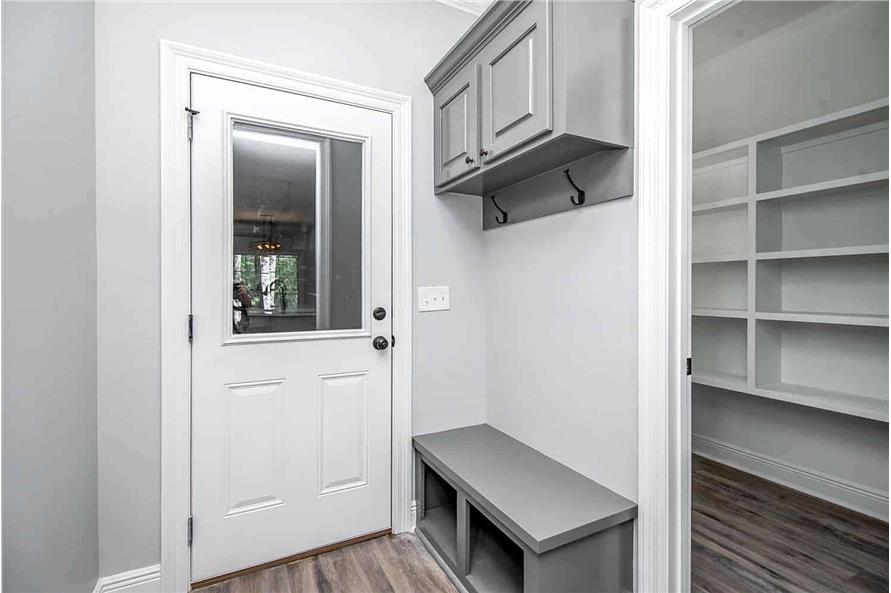

There are plenty of linen closets and storage areas. There are a laundry room, walk-in pantry, and a 2-bay garage.

Please Note: With the basement option, the house depth is 61 feet.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

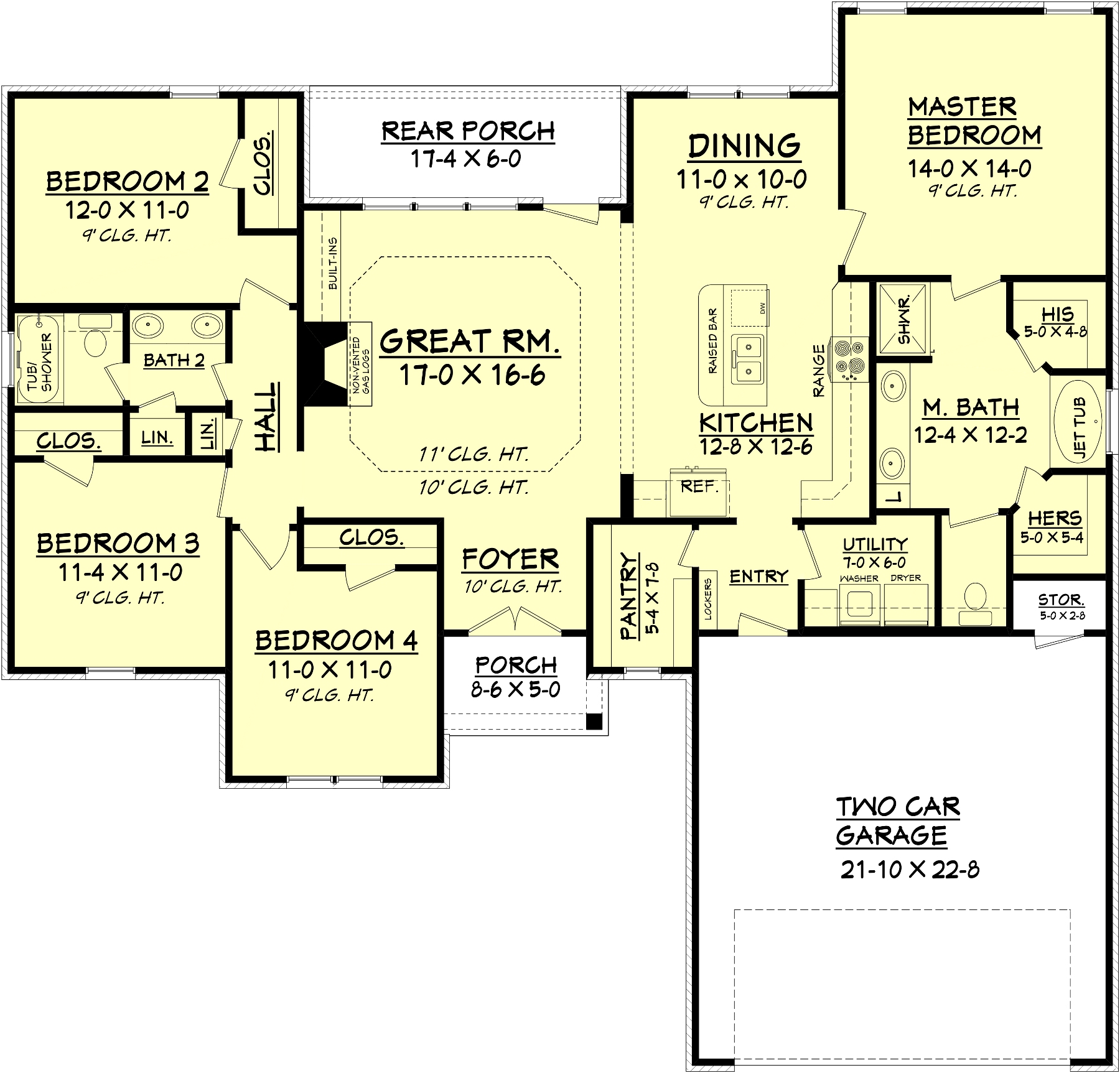

Home Plan: #142-1078 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #142-1078

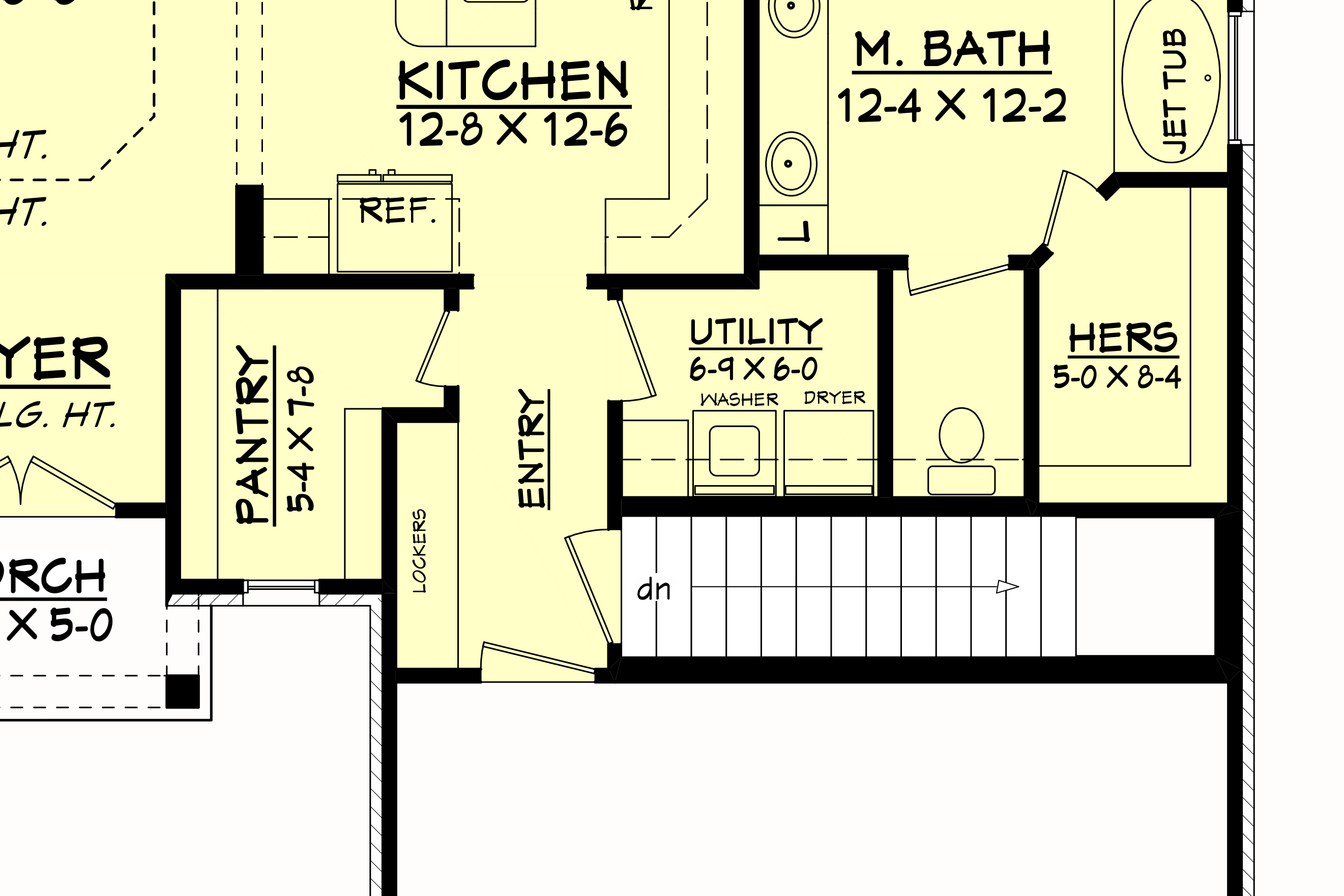

#142-1078 Floor Plan First Story - basement option stair location Floor Plan Main Level of Ranch Plan #142-1078
Home Plan: #142-1078 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #142-1078
#142-1078 Floor Plan First Story - basement option stair location Floor Plan Main Level of Ranch Plan #142-1078
