3-Bedroom, 1831 Sq Ft Craftsman Plan Featured on HGTV

Craftsman influenced home (ThePlanCollection: Plan #109-1013)
Home Plan Rear Elevation

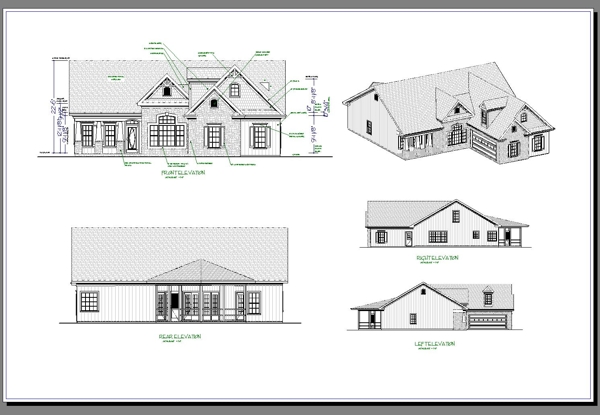

109-1013 alternate elevations
109-1013: Home Exterior Photograph Front Door
3-Bedroom, 1831 Sq Ft Craftsman House - Plan #109-1013 - Front Exterior
Home Plan Rear Elevation
109-1013 alternate elevations
109-1013: Home Exterior Photograph Front Door

About Plan # 109-1013

About Plan # 109-1013

1831 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 50' 0" WIDTH 74' 3" DEPTH 2 GARAGE BAY

As featured in HGTV's Front Door: This exquisite Craftsman style home with Country influences (Plan #109-1013) has 1831 square feet of living space. The 1-story floor plan includes 3 bedrooms, 2 full bathrooms, and 1 half bath.

The covered front porch invites you to enter the spacious dining and family room areas. Raised ceilings, an arch-top window unit, and a fireplace add drama to this space. Accessible from the family room, a screened porch offers the perfect spot for sheltered socializing. The roomy kitchen features a breakfast nook, pantry, and access to the laundry room through a pocket door. Located near the kitchen, the master suite sets a dreamy tone with its tray ceiling and sitting area which accesses the screened porch. Separate his and her closets provide ample hanging space for clothing. The spacious master bath has a separate shower and corner garden tub. A powder room for guests is just outside the master suite. On the opposite side of this floor plan, two generous bedrooms share a bathroom. The real surprise of this design is located through a door off the breakfast room. Steps lead up to two bonus rooms offering limitless possibilities for home office space, a craft room, guest room, playroom, etc. Together they offer nearly 800 sq. ft. of additional living space.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

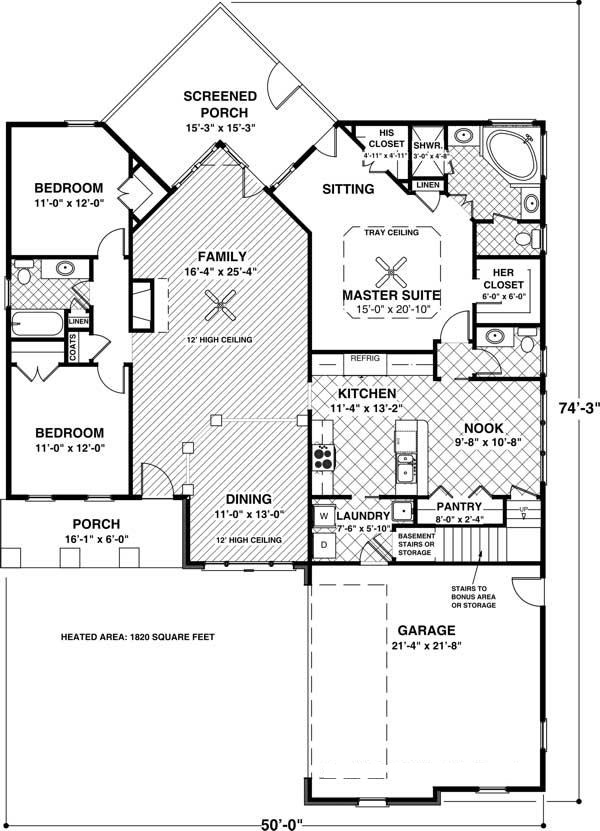

Home Plan: #109-1013 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #109-1013

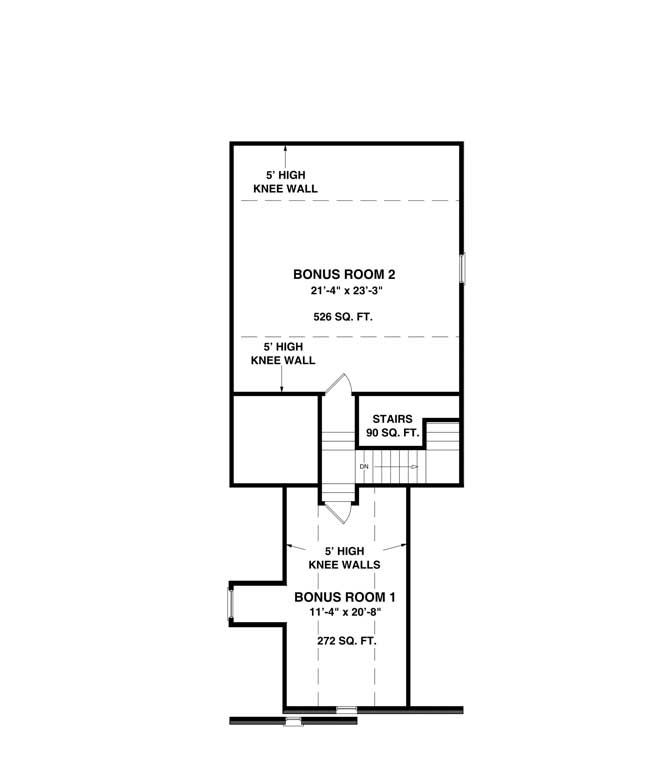

#109-1013 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #109-1013
