3-Bedroom, 2-Bathroom Ranch Home Plan with Craftsman Detail

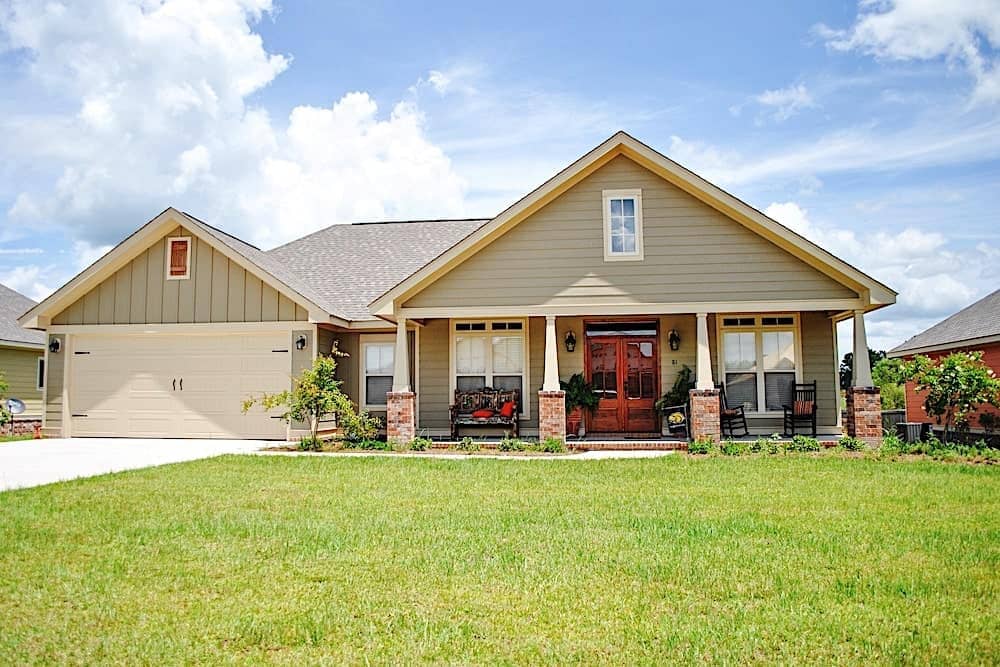

Ranch Style House (#142-1082) at The Plan Collection.

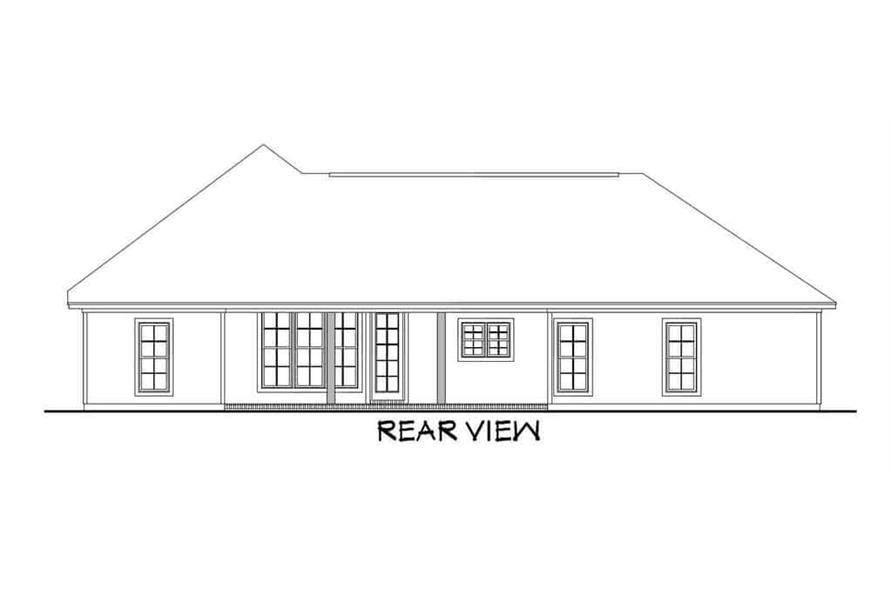

142-1082: Home Plan Rear Elevation

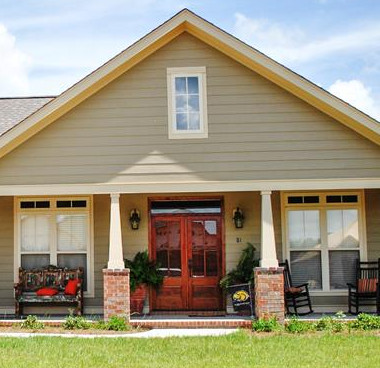

142-1082: Home Exterior Photograph-Front Door
142-1082: Home Plan Rendering-Front View
3-Bedroom, 1834 Sq Ft Ranch House - Plan #142-1082 - Front Exterior

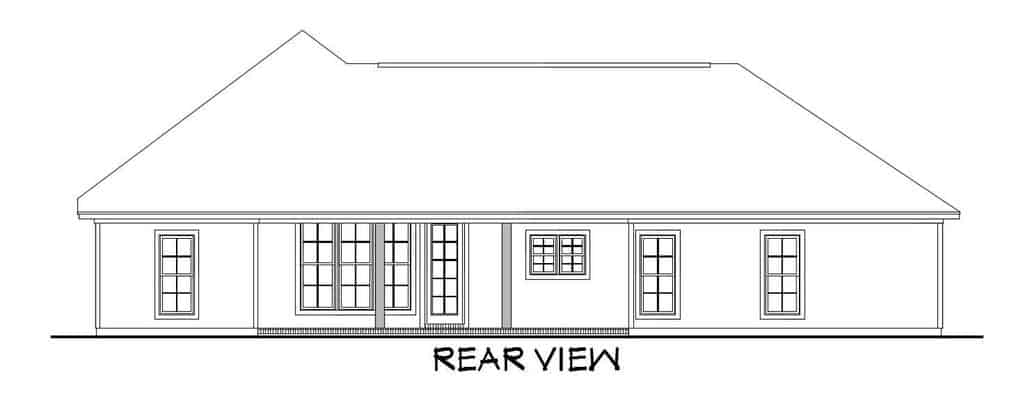

142-1082: Home Plan Rear Elevation
142-1082: Home Exterior Photograph-Front Door
142-1082: Home Plan Rendering-Front View

About Plan # 142-1082

About Plan # 142-1082

1834 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 63' 6" WIDTH 50' 0" DEPTH 2 GARAGE BAY

A relaxed, easy vibe and attention to detail make this Ranch Style house plan with Craftsman detailing an absolute pleasure to dwell in. From its gentle, shaded front porch to the spaces inside, this three-bedroom floor plan stands as a testament to fluid design and living. The front entrance leads to an open-plan space weaving together the foyer, dining area, great room, and kitchen. These come together to create dramatic visual statements, aided by the gas log fireplace in the great room, a comfortable breakfast area, and the elaborate kitchen, with its island bar. Further, the social core spills out into a shaded rear porch, which comes with an optional patio.

The kitchen leads to a vestibule that offers access to the two-car garage, laundry room, and the master suite tucked away in a quiet corner of this house plan. Equipped with a generous walk-in closet and a separate bathroom with jetted tub and his and hers vanity units, the master suite is steeped in comfort. The other two bedrooms are reached via a hall on the opposite end of the great room. They share a three-piece bathroom and boast ample built-in storage.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

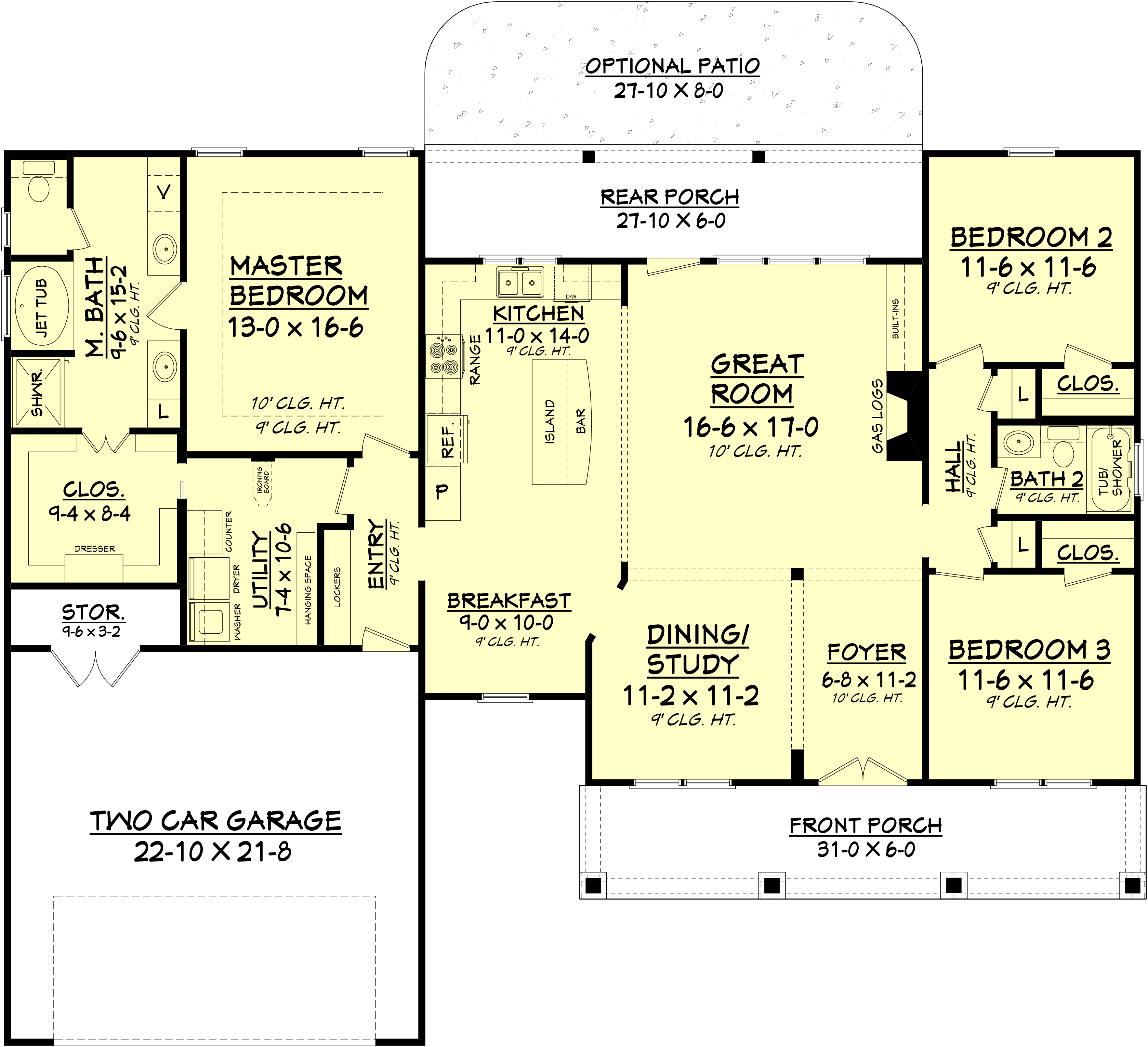

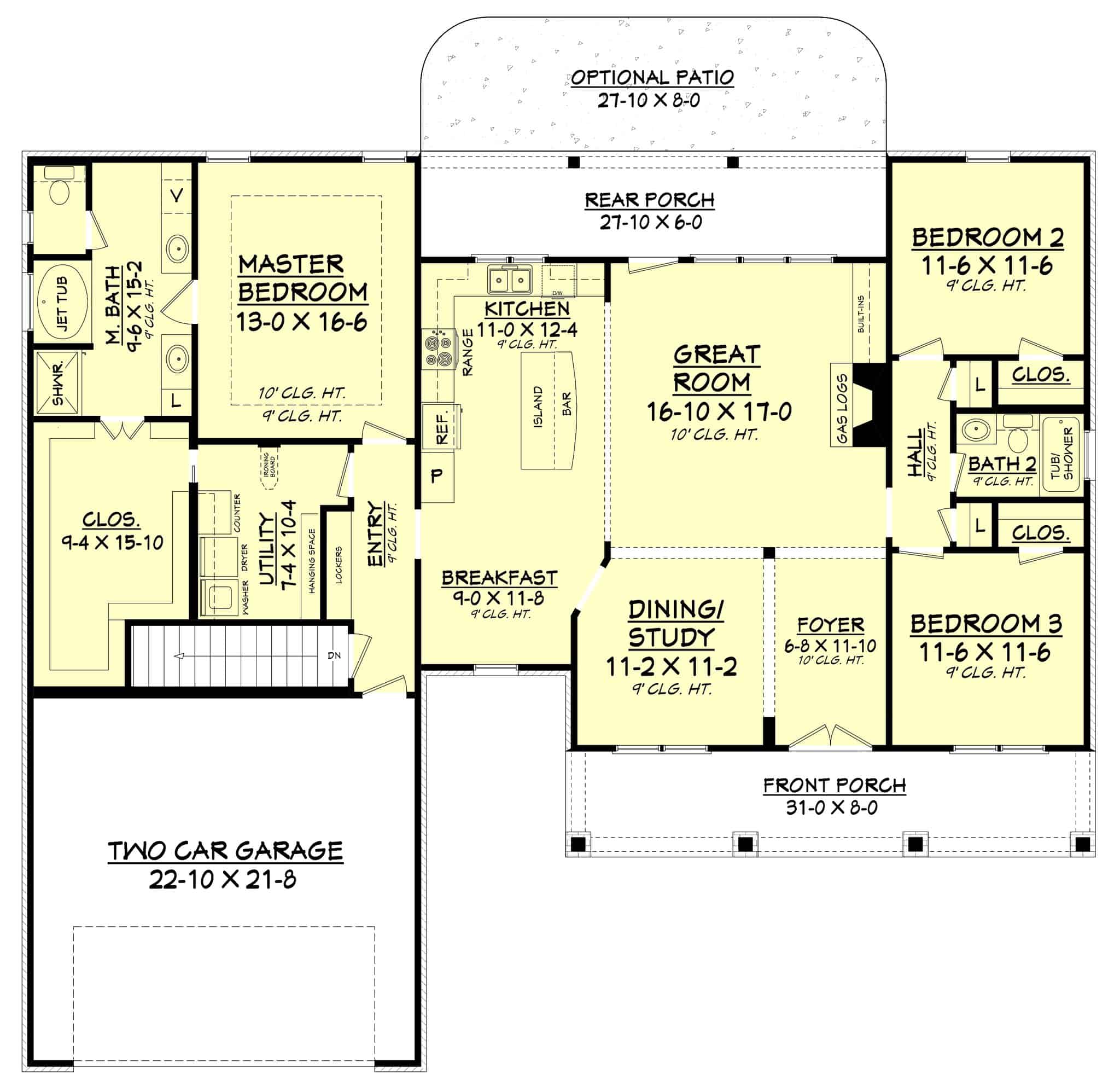

Home Plan: #142-1082 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #142-1082

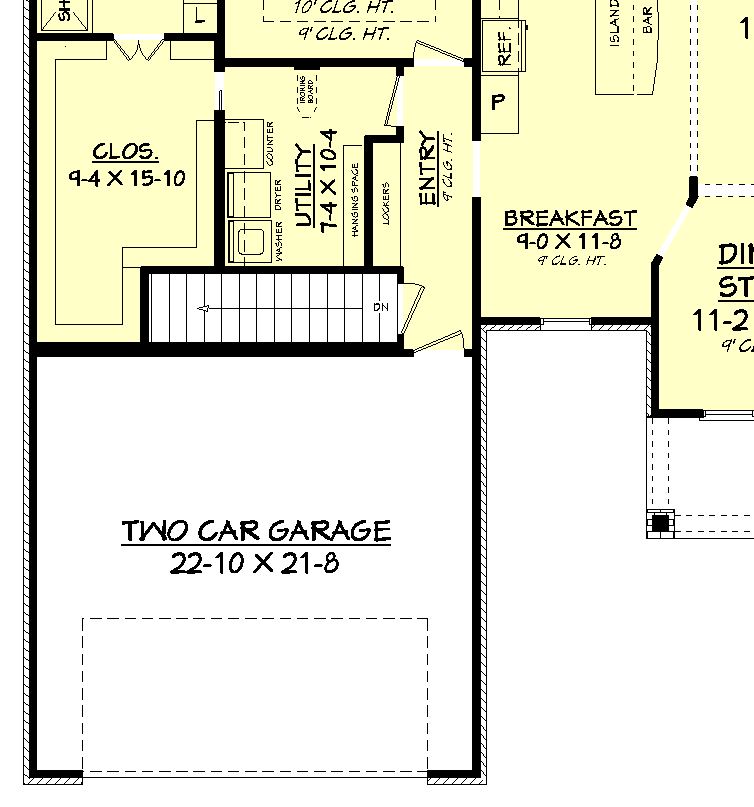

#142-1082 Floor Plan First Story - basement option stair location Floor Plan First Story of Craftsman Plan #142-1082
#142-1082 Floor Plan First Story - basement option stair location Floor Plan Main Level of Craftsman Plan #142-1082
Home Plan: #142-1082 Floor Plan First Story - main level Floor Plan Main Level of Craftsman Plan #142-1082
#142-1082 Floor Plan First Story - basement option stair location Floor Plan First Story of Craftsman Plan #142-1082
#142-1082 Floor Plan First Story - basement option stair location Floor Plan Main Level of Craftsman Plan #142-1082
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1082
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1834
Main Floor:
1834
Unfinished Sq Ft:
Main Floor:
34
Garage :
516
Porch :
353

Dimensions

Width:
63' 6"
Depth:
50' 0"
Ridge Height:
22' 0"

Architectural Styles

Country
Craftsman
Ranch
Southern
Texas Style
Traditional
Transitional

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Fireplace
Main Level Laundry
Mud Room
Open Floor Plan
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please Note: Ordering 2x6 Exterior Wall Framing option will require an additional 5 business days before plan can be shipped.


PLEASE NOTE! On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
