1412 Sq Ft, 3-Bedroom Country Plan with Walk-In Closet

Ranch style plan #176-1012
176-1012: Home Plan Rendering-Front View
176-1012 house plan rear elevation
176-1012 house plan kitchen
176-1012 house plan master bath room
176-1012 house plan living room
176-1012 house plan master bedroom
3-Bedroom, 1412 Sq Ft Country Home Plan - 176-1012 - Main Exterior
176-1012: Home Plan Rendering-Front View
176-1012 house plan rear elevation
176-1012 house plan kitchen
176-1012 house plan master bath room
176-1012 house plan living room
176-1012 house plan master bedroom

About Plan # 176-1012

About Plan # 176-1012

1412 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 6" WIDTH 35' 0" DEPTH 0 GARAGE BAY

From the shaded verandah up front to the sunny patio out beyond, this lovely Country-style Ranch house plan promises ideas and moments – big and small – that enthrall. The semi-open verandah steps up and into the great room – with its vaulted ceiling creating lofty impressions and gas fireplace embracing you warmly. The kitchen and dining room are united into a cozy, bustling, open-plan space, weaving itself with the great room across the partitions that define it. Together they offer a rich aesthetic and experience that spills out onto the patio behind.

The social core is flanked by storage and utilities that keep it working like clockwork; the floor plan offers a coat cupboard and laundry room, while stairs lead down to the basement below.

Access to two of the three bedrooms is a little further down the hallway, where they share access to the common bathroom; the smaller of the bedrooms is equipped with a walk-in closet to maximize efficient use of available space. The master suite is laid out along the opposite end of the house plan, where it enjoys utter privacy, a spacious walk-in closet, bathroom with jetted tub and separate shower, and a private verandah.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

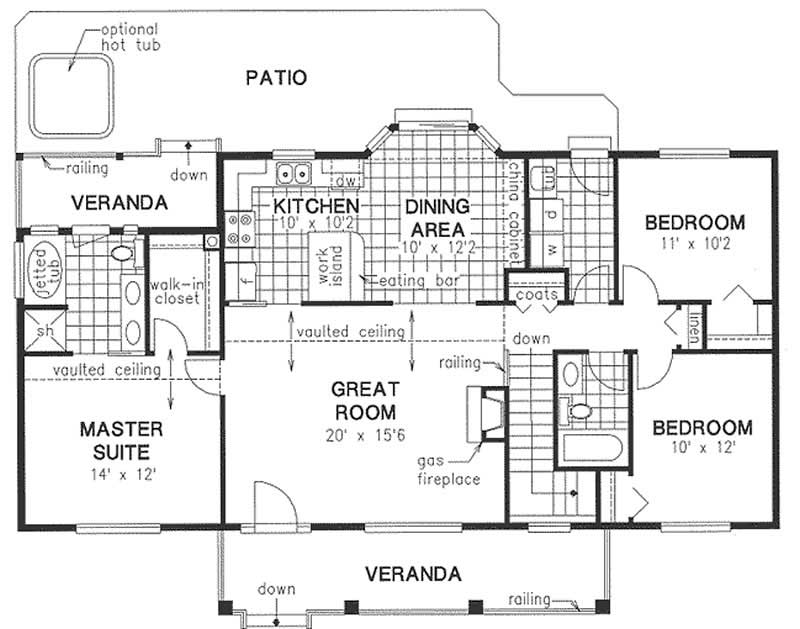

Home Plan: #176-1012 Floor Plan First Story - main elevation Floor Plan First Story of Country Plan #176-1012
Home Plan: #176-1012 Floor Plan First Story - main elevation Floor Plan First Story of Country Plan #176-1012
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 176-1012
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1412
Main Floor:
1412
Unfinished Sq Ft:
Lower Floor:
1396

Dimensions

Width:
54' 6"
Depth:
35' 0"
Ridge Height:
22' 0"

Architectural Styles

Country
Ranch
Small House Plans
Traditional

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Fireplace
Interior Photos
Main Level Laundry
Mud Room
Open Floor Plan
Vaulted Ceilings

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Walk In Closet

Additional Notes from Designer

Please note the dimension sizes

Back Veranda: 14'4" X 5'4"

Front Veranda: 27' X 6'

Master closet  5' x 8'6"

Master Bathroom 9'4" X 8'6"

Laundry room 10'10" X 6'4"

Second bathroom 7' X 8'4"

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
