2091 Sq Ft, 3-Bedroom Ranch Home Plan with Eat-In Kitchen

3D color rendering of Ranch home plan (ThePlanCollection: House Plan #117-1092)
117-1092 house plan right elevation
117-1092 house plan rear elevation
117-1092 house plan left elevation

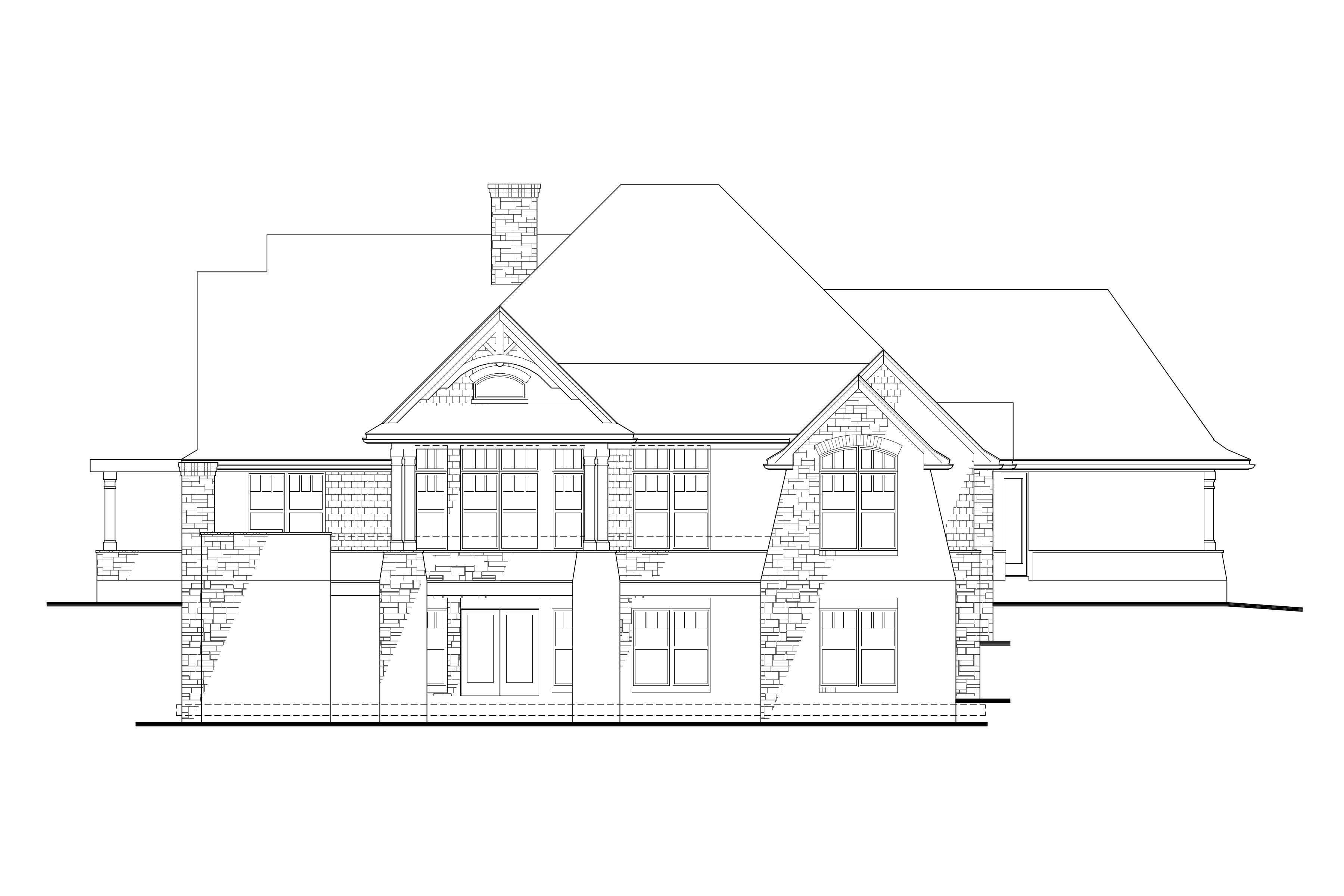

117-1092: Home Plan Rear Elevation
117-1092: Home Plan Rendering
117-1092: Home Plan Rendering-Living Room
117-1092: Home Plan Rendering-Living Room
117-1092: Home Plan Rendering-Kitchen: Breakfast Nook
117-1092: Home Plan Rendering-Dining Room
117-1092: Home Plan Rendering-Kitchen
117-1092: Home Plan Rendering-Kitchen
3-Bedroom, 2091 Sq Ft Ranch House Plan - 117-1092 - Front Exterior
117-1092 house plan right elevation

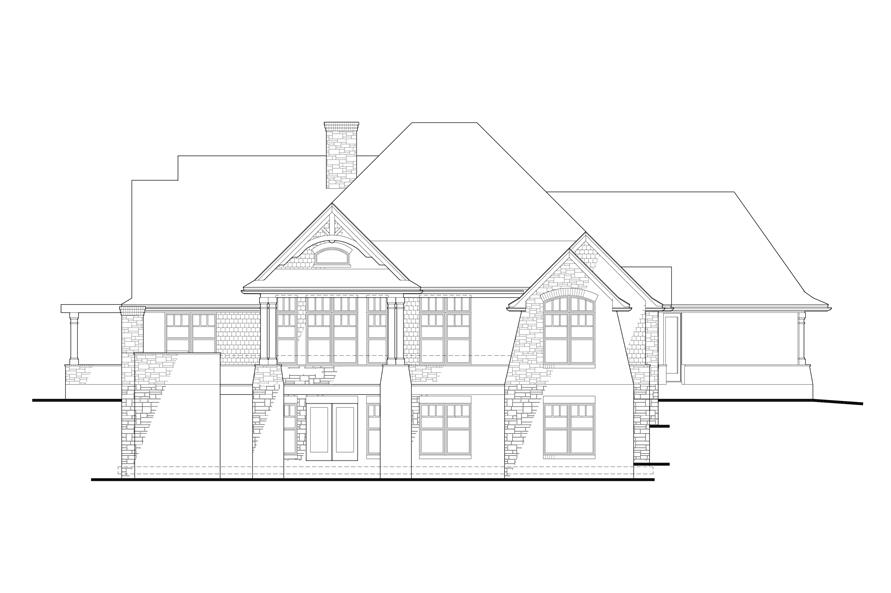

117-1092 house plan rear elevation
117-1092 house plan left elevation
117-1092: Home Plan Rear Elevation
117-1092: Home Plan Rendering
117-1092: Home Plan Rendering-Living Room
117-1092: Home Plan Rendering-Living Room
117-1092: Home Plan Rendering-Kitchen: Breakfast Nook
117-1092: Home Plan Rendering-Dining Room
117-1092: Home Plan Rendering-Kitchen
117-1092: Home Plan Rendering-Kitchen

About Plan # 117-1092

About Plan # 117-1092

2091 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 78' 9" WIDTH 71' 5" DEPTH 2 GARAGE BAY

This is a smaller version of a design featured in the April 5, 2013, edition of The Wall Street Journal.

Enter the Texas ranch-style home floor plan from the large front porch, and you will be welcomed by a great foyer that leads to the open kitchen. The kitchen features a massive peninsula with a built-in sink and breakfast bar. A large walk-in pantry and sizable breakfast nook are also features of this impressive kitchen. The kitchen is open to the family, so preparing meals becomes a great social situation. The breakfast nook has access outside to a wonderful lanai and large BBQ porch with an outdoor fireplace.

On the adjacent side of the breakfast nook is the luxurious split master suite, including a large sitting area and impressive master bath. The master bath features a split bathroom, great tub, his and her sinks, and his and her walk-in closets.

Off to the side of the foyer, you will find either the private media/study room or formal dining room, which shares a fireplace with the family room, creating a wonderful flow throughout the home plan. Next to the dining room are the two other bedrooms with spacious closets and a split bathroom. Down the hall from the media/study room, you will find a small powder room and the spacious two-bay garage.

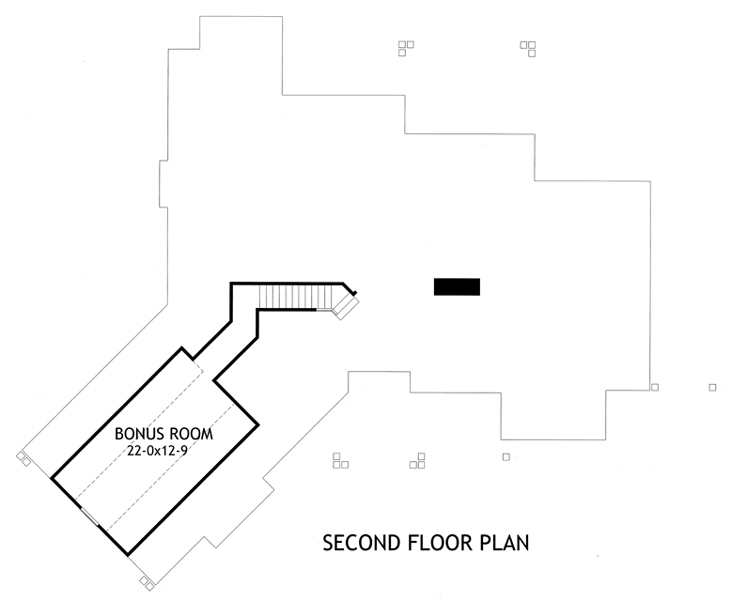

The floor plan comes with many different customizable add-on options, such as changes to the basement stairs and an additional bonus room on the second story.

Please Note: The larger version of this home plan can be viewed at House Plan #117-1103. The smaller version of this home design can be viewed at Plan #117-1107.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

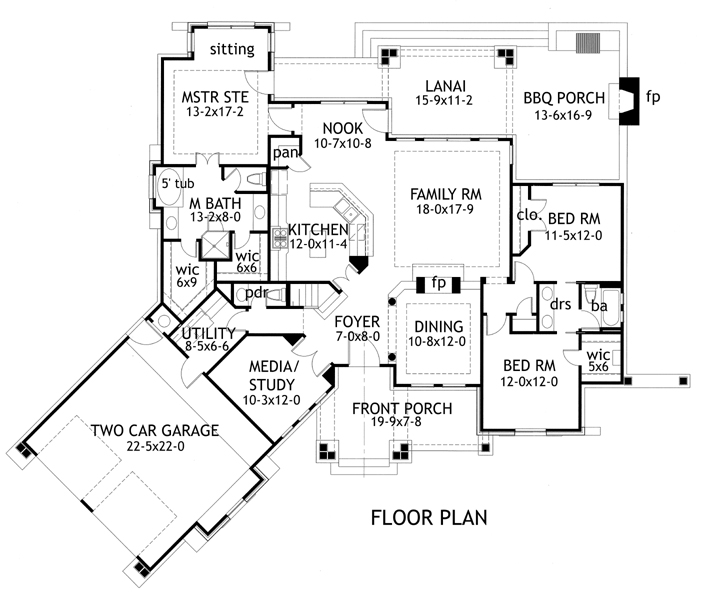

Home Plan: #117-1092 Floor Plan First Story - first floor Floor Plan First Story of Ranch Plan #117-1092

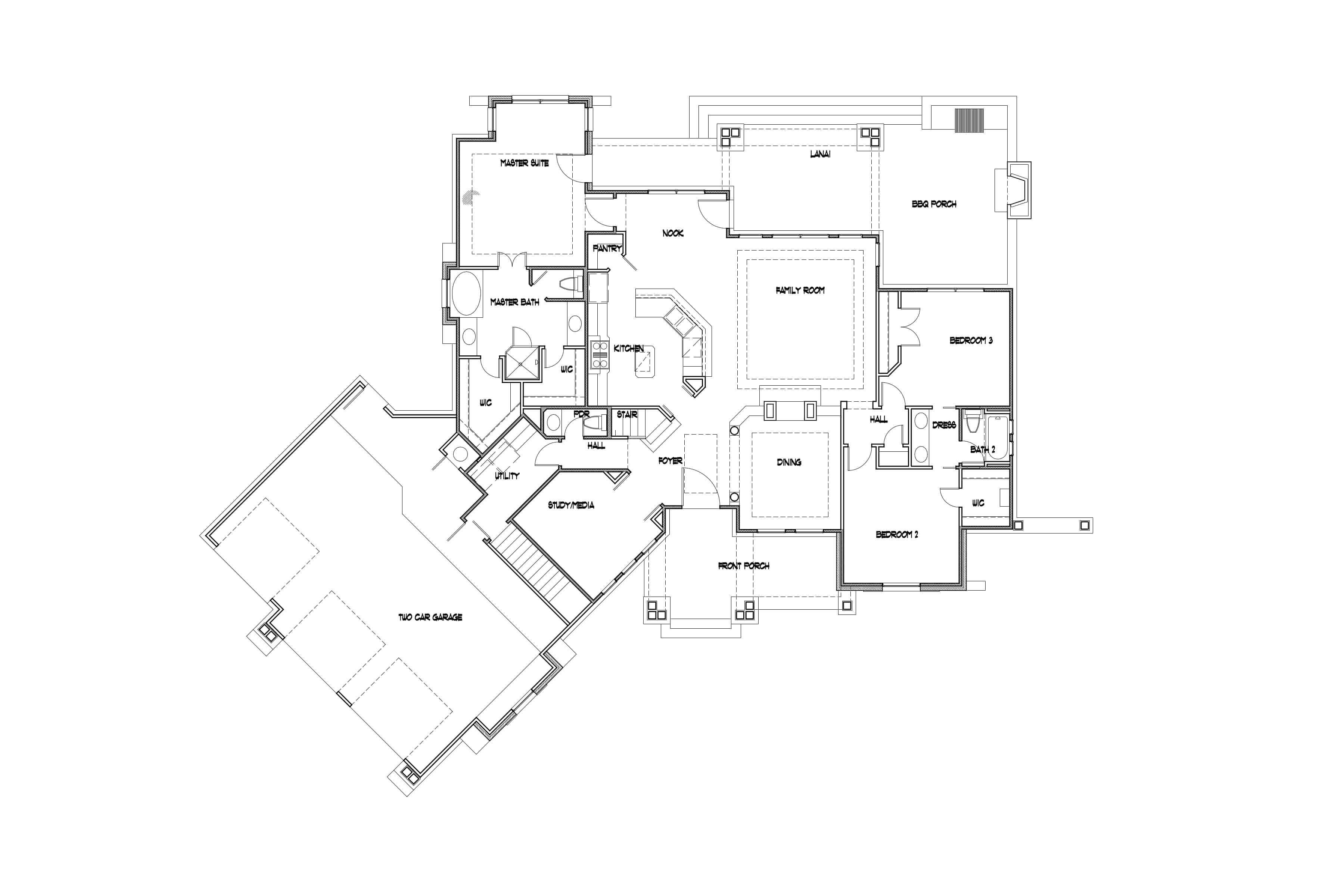

#117-1092 Floor Plan First Story - 3-car garage option layout Floor Plan Main Level of Ranch Plan #117-1092
#117-1092 Floor Plan Second Story - second story Floor Plan Second Story of Ranch Plan #117-1092

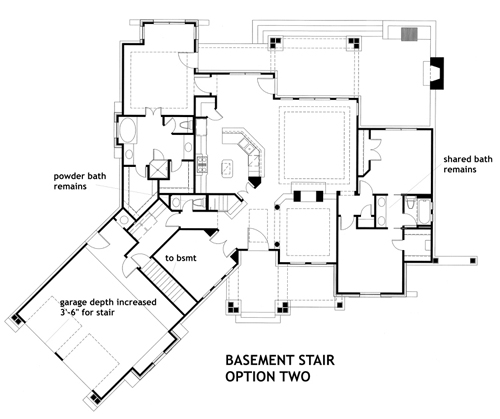

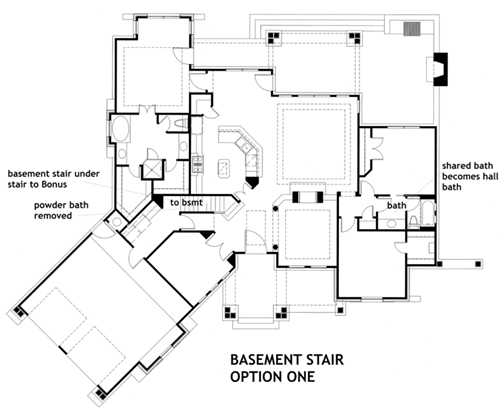

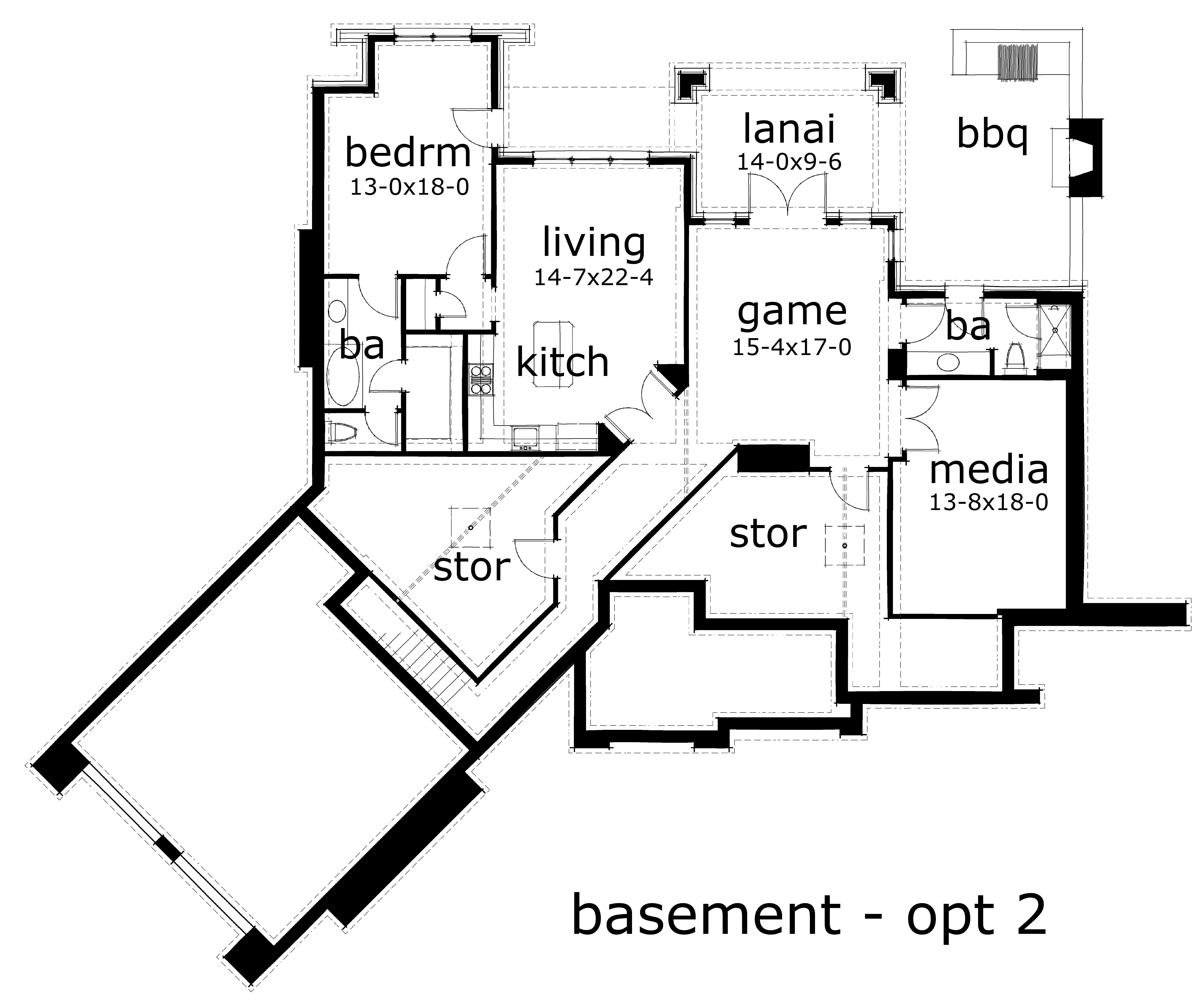

#117-1092 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #117-1092
