3-Bedroom, 1848 Sq Ft Ranch Plan with Bonus Room

Color rendering of Ranch home plan (ThePlanCollection: House Plan #117-1107)

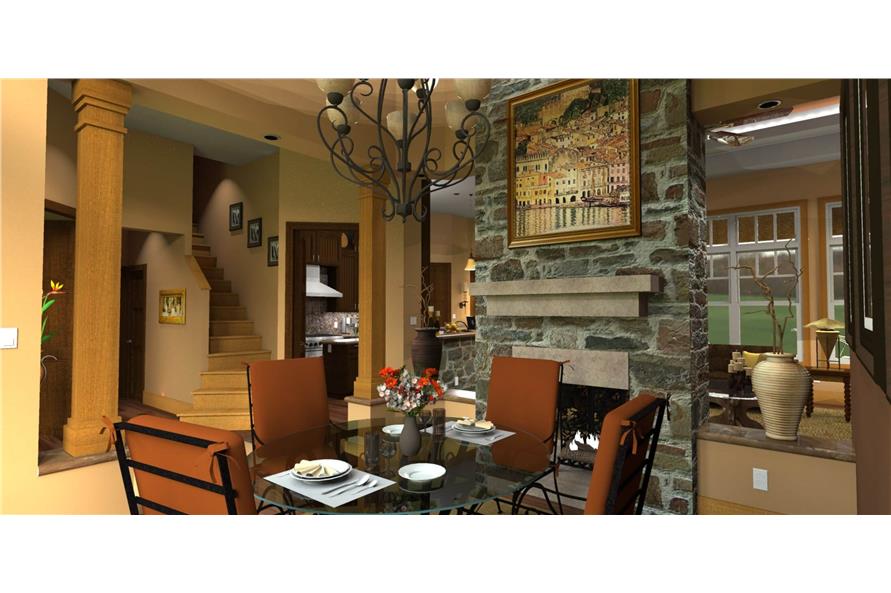

117-1107: Home Plan Other Image-Dining Room
117-1107: Home Plan Other Image-Dining Room
117-1107: Home Plan Other Image-Great Room

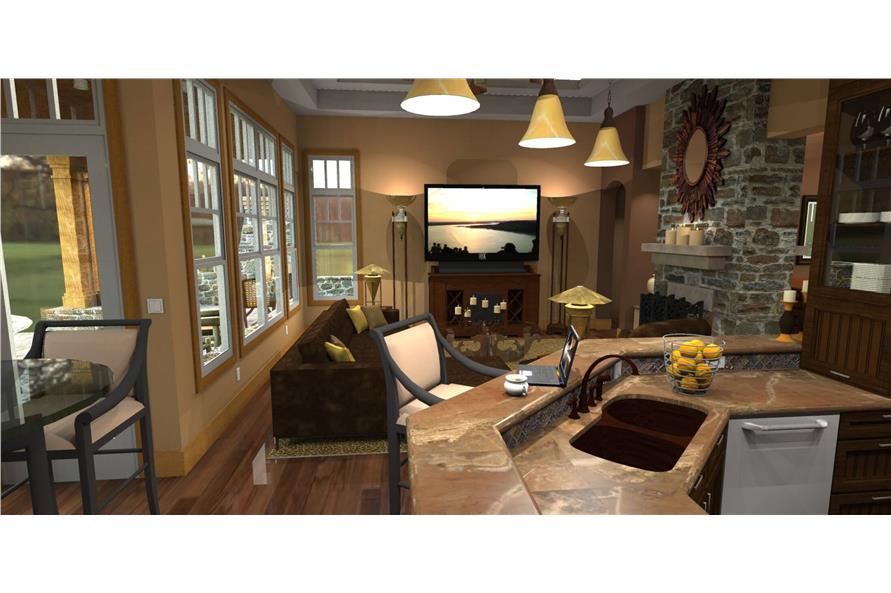

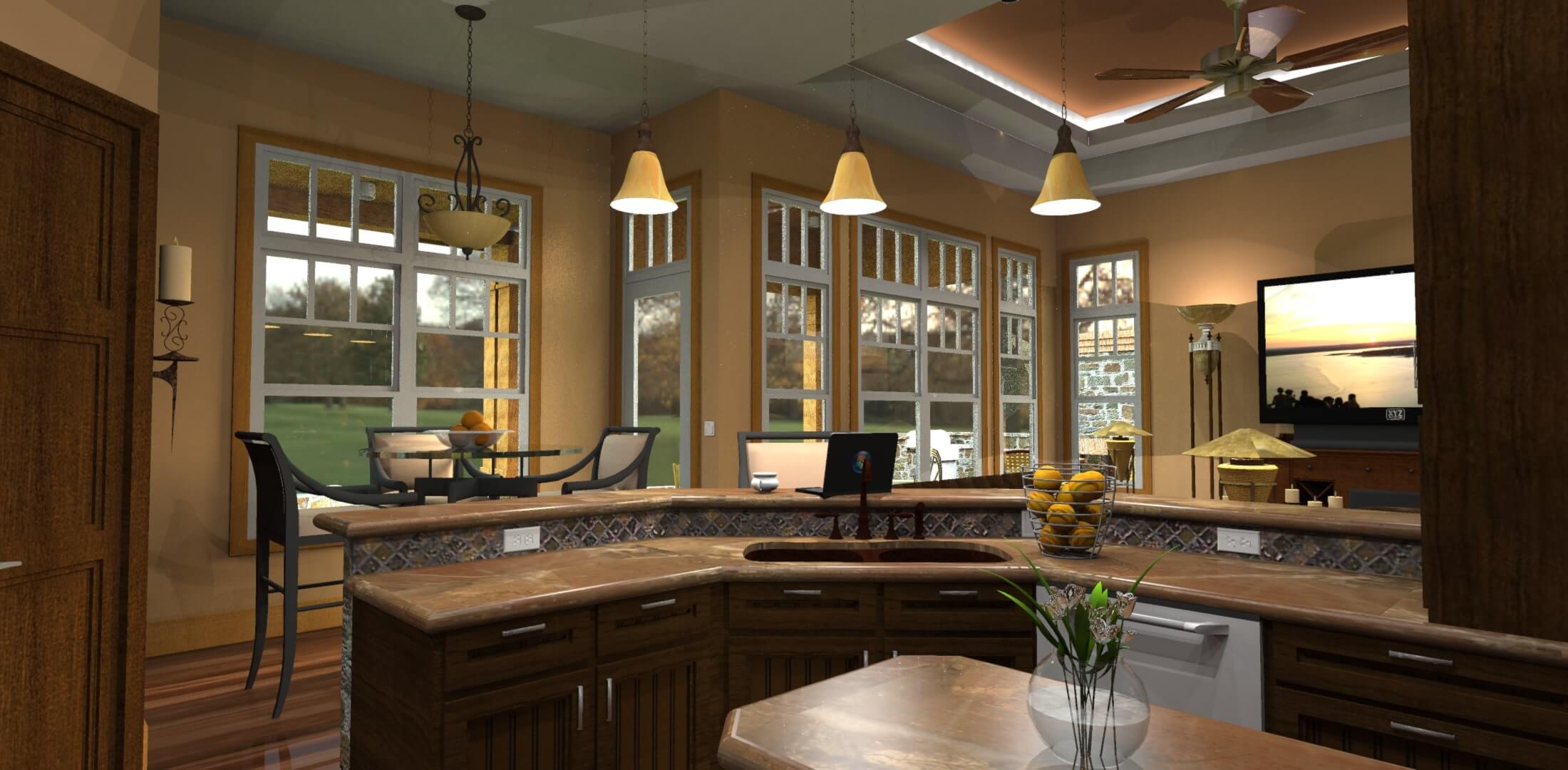

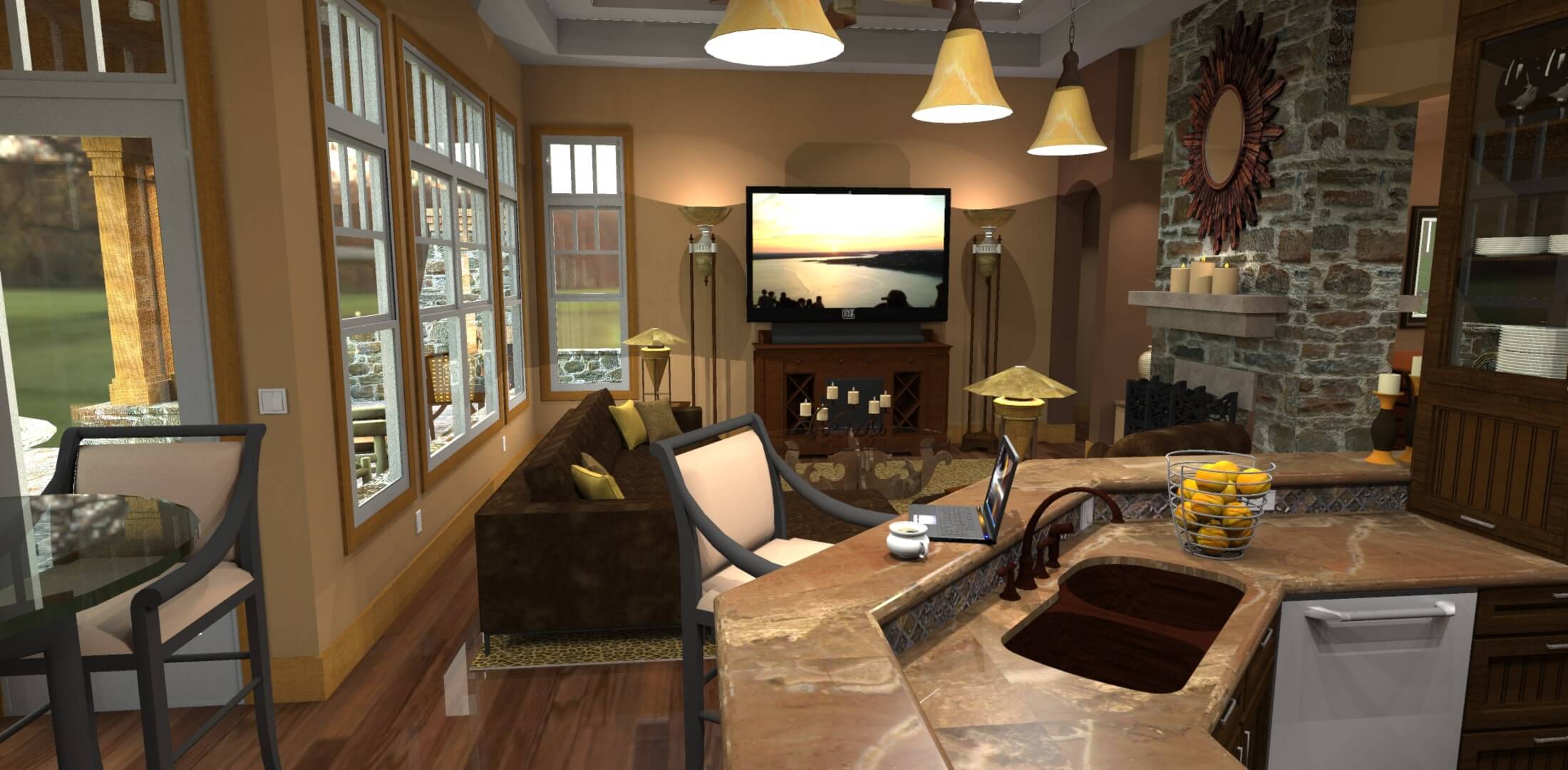

117-1107: Home Plan Other Image-Kitchen
117-1107: Home Plan Other Image-Great Room
117-1107: Home Plan Other Image-Kitchen: Breakfast Nook
117-1107: Home Plan Other Image-Great Room
117-1107: Home Plan Other Image-Kitchen

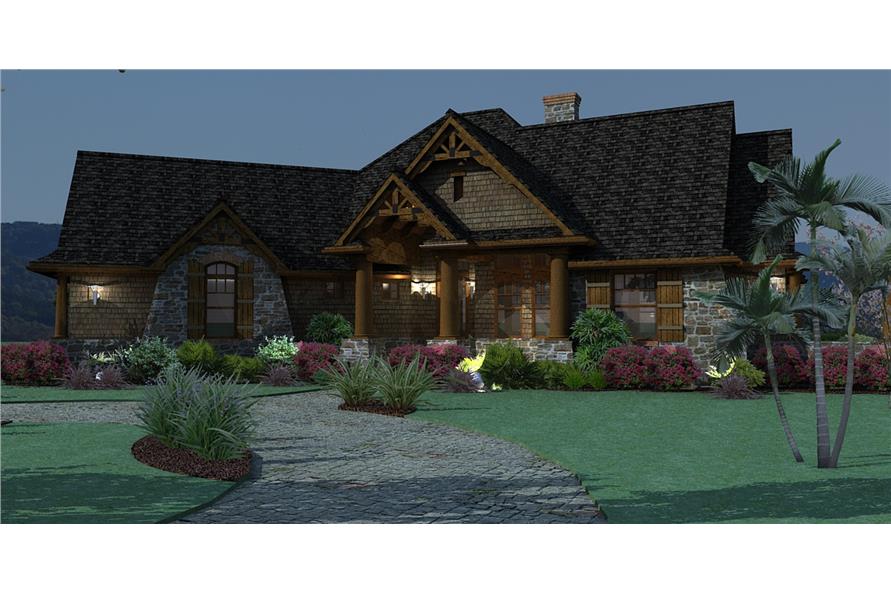

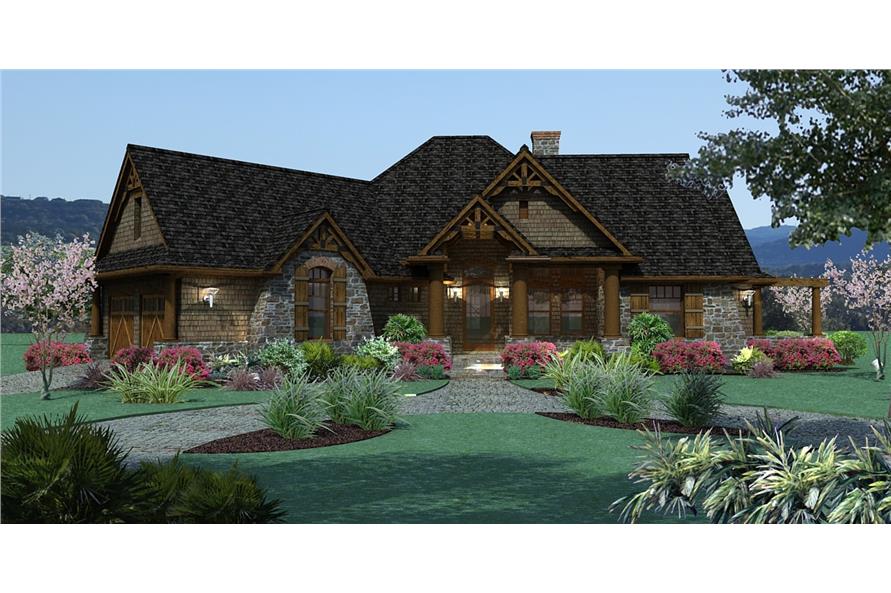

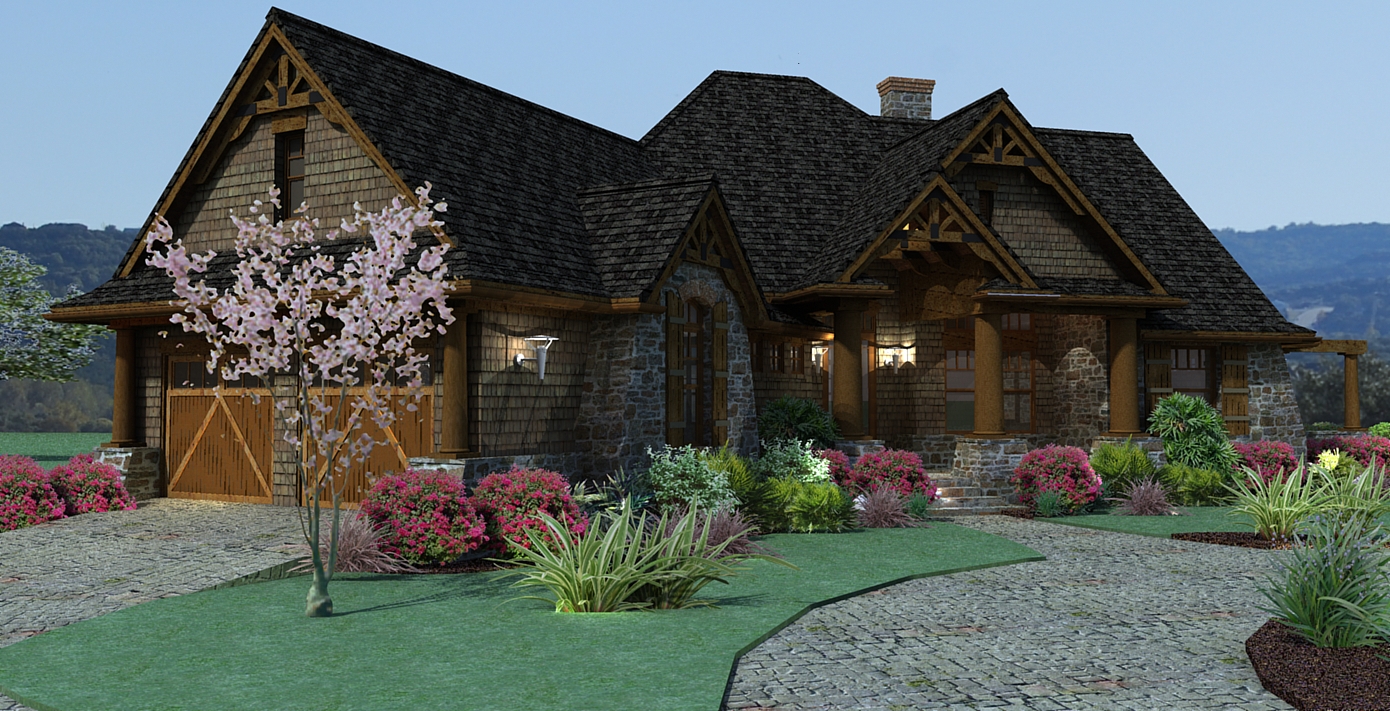

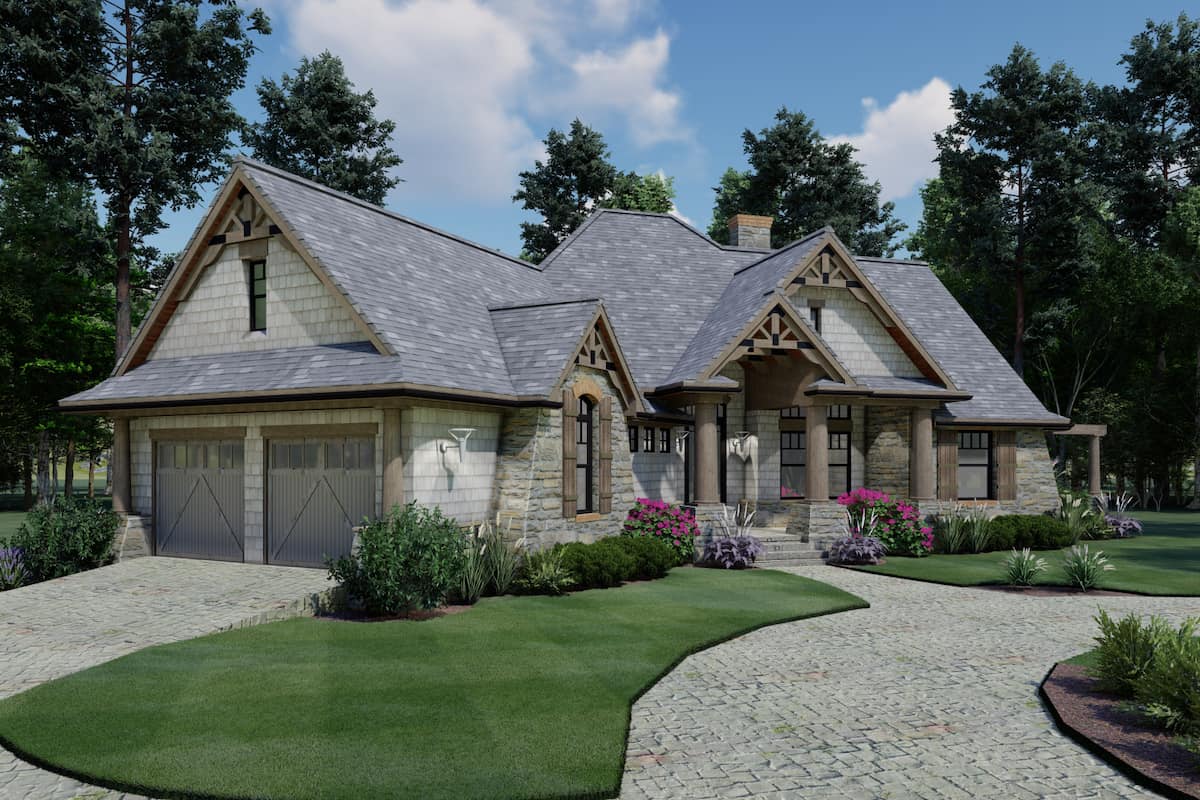

117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Garage

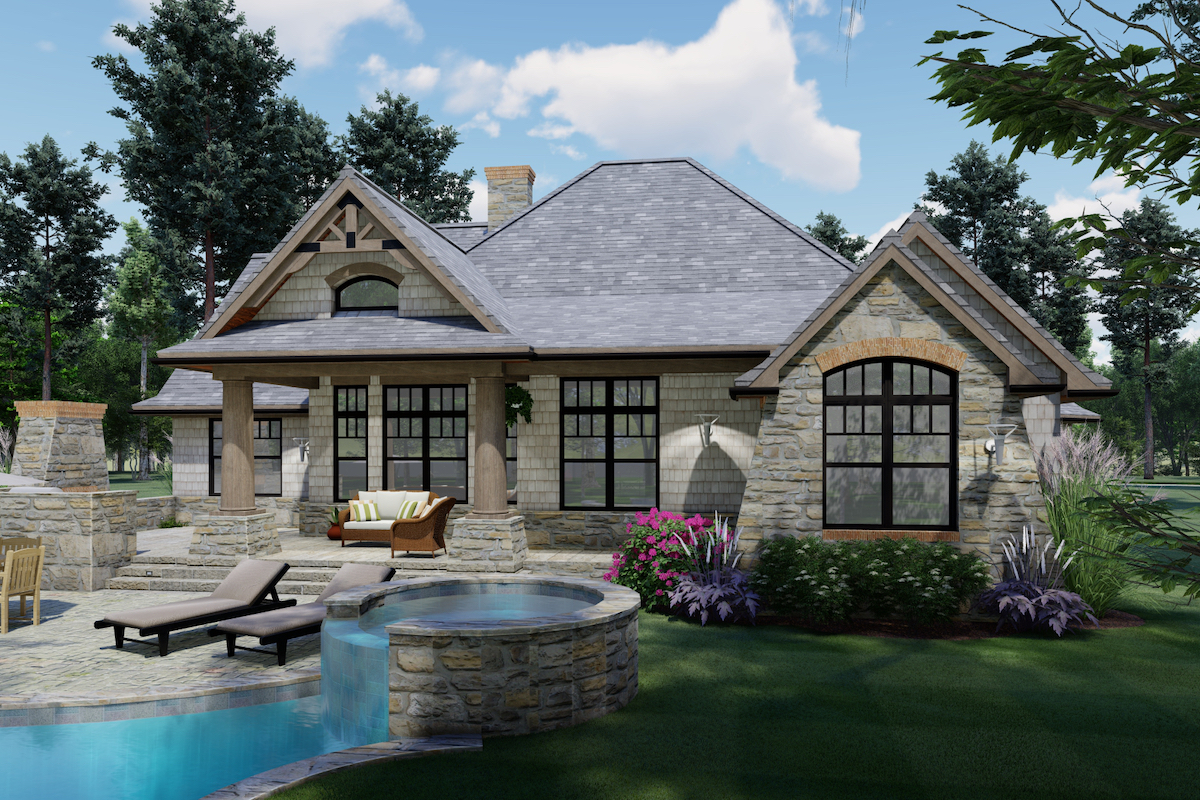

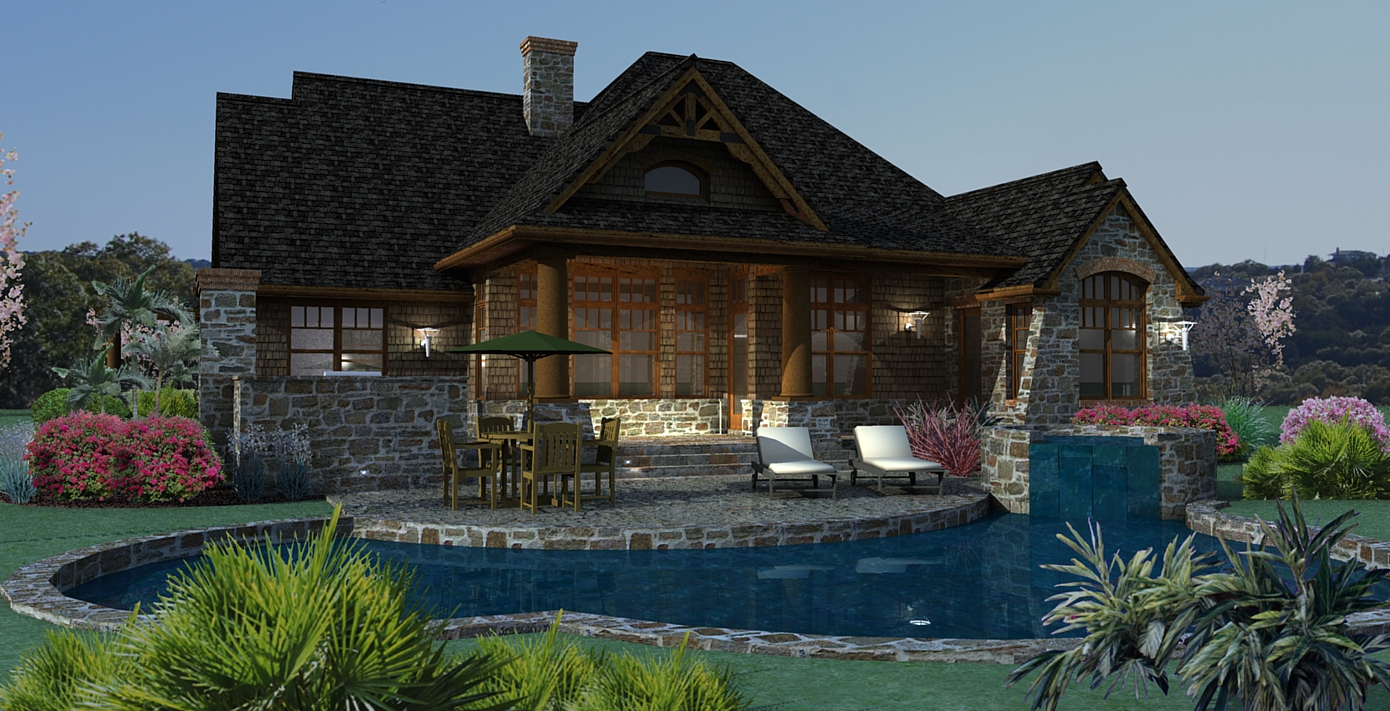

117-1107: Home Plan Rendering-Pool

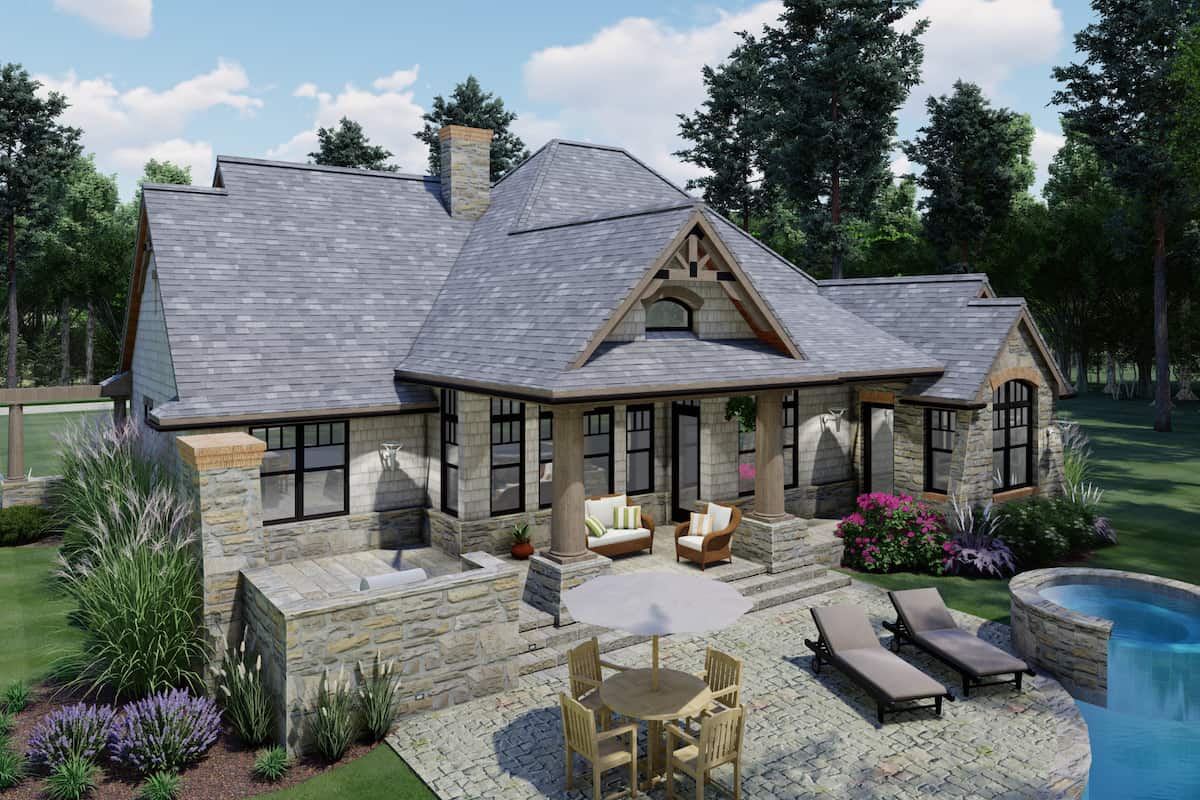

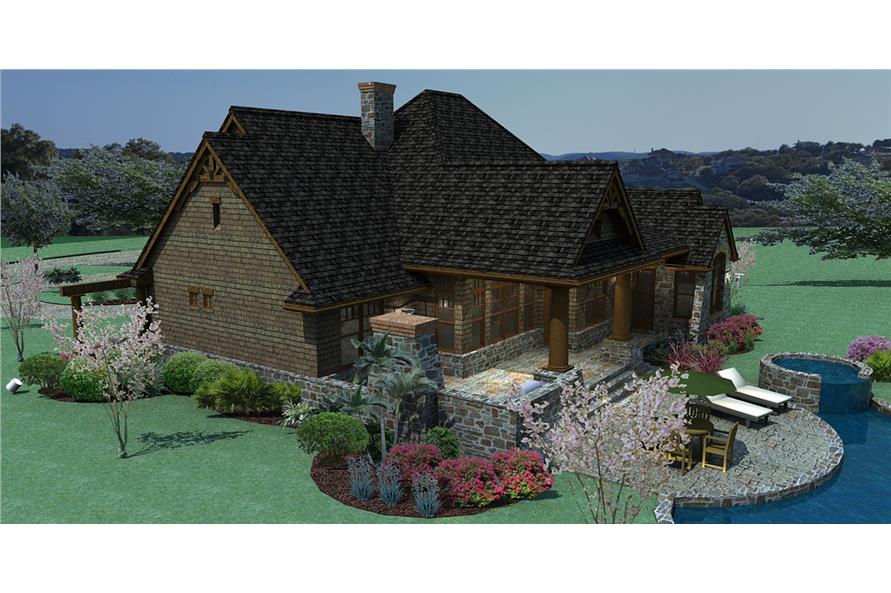

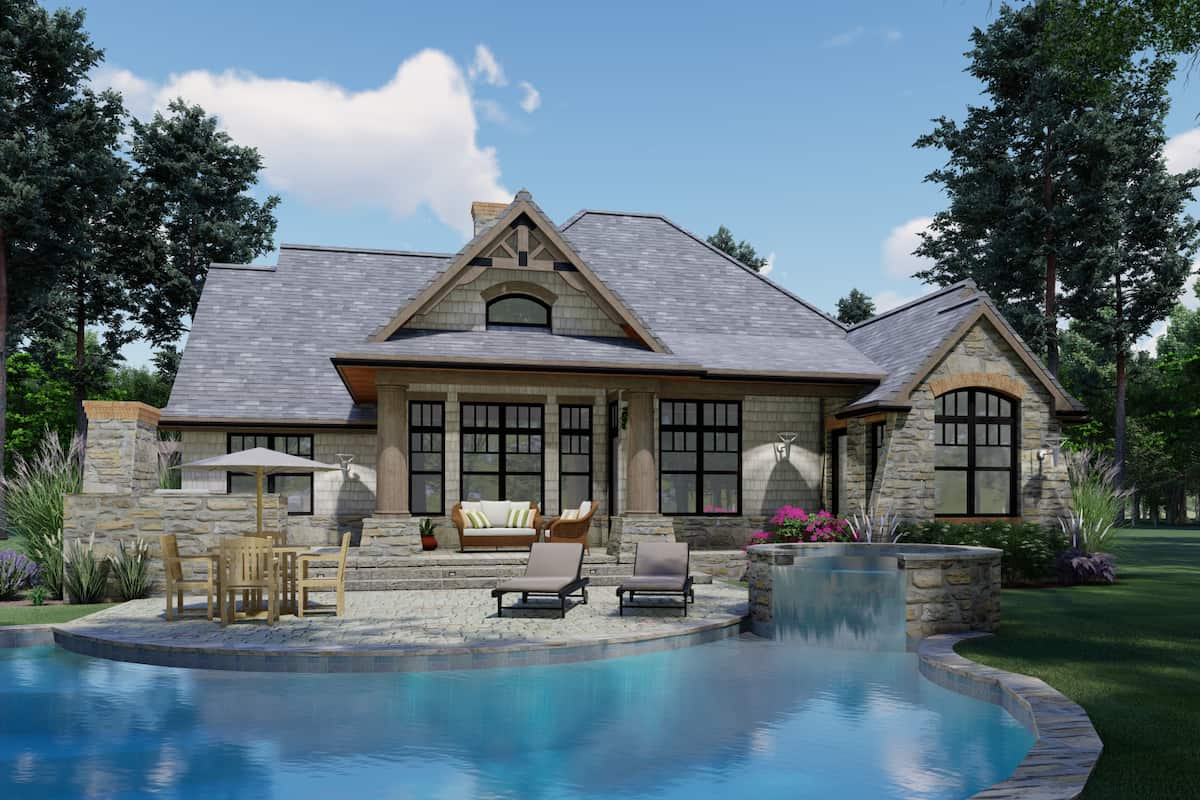

117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Left View
117-1107: Home Plan Rendering-Side View
117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Right View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Right View
117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Left View
117-1107: Home Plan Rendering-Pool
117-1107: Home Plan Rendering-Right View

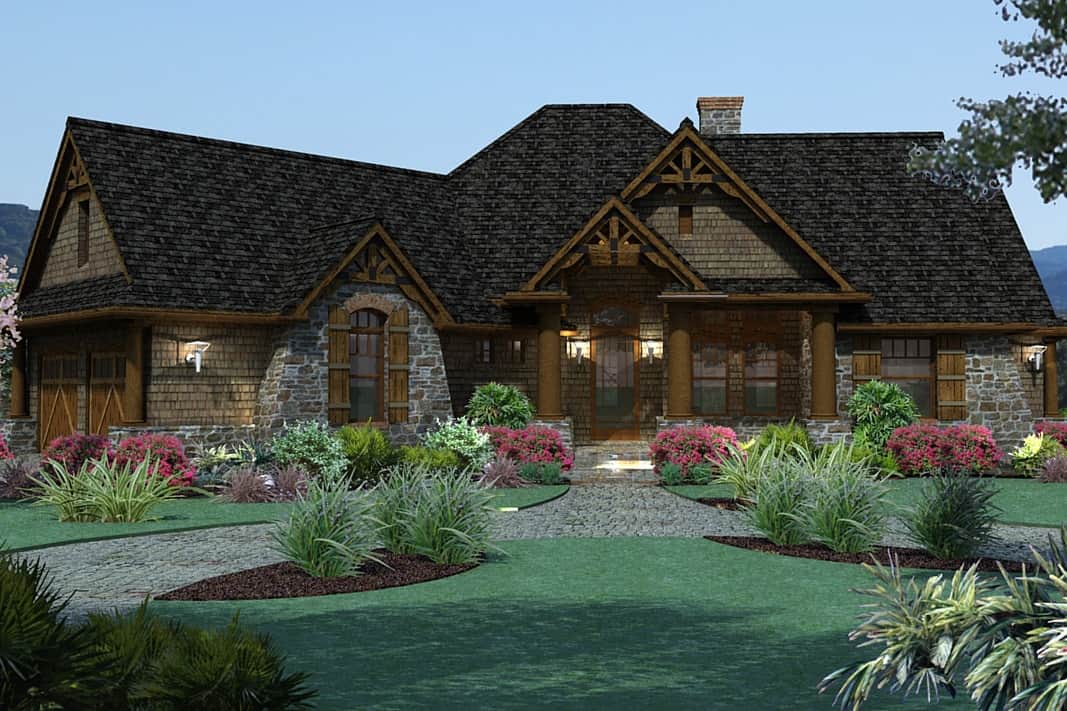

3-Bedroom, 1848 Sq Ft Ranch Home Plan - 117-1107 - Main Exterior
117-1107: Home Plan Other Image-Dining Room
117-1107: Home Plan Other Image-Dining Room
117-1107: Home Plan Other Image-Great Room
117-1107: Home Plan Other Image-Kitchen
117-1107: Home Plan Other Image-Great Room
117-1107: Home Plan Other Image-Kitchen: Breakfast Nook
117-1107: Home Plan Other Image-Great Room
117-1107: Home Plan Other Image-Kitchen
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Garage
117-1107: Home Plan Rendering-Pool
117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Left View
117-1107: Home Plan Rendering-Side View
117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Right View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Front View
117-1107: Home Plan Rendering-Right View
117-1107: Home Plan Rendering-Rear View
117-1107: Home Plan Rendering-Left View
117-1107: Home Plan Rendering-Pool
117-1107: Home Plan Rendering-Right View

About Plan # 117-1107

About Plan # 117-1107

1848 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 78' 9" WIDTH 71' 5" DEPTH 2 GARAGE BAY

This is the smallest version of this home (1848 living sq ft) as featured in the Wall Street Journal.

This enchanting ranch style home with Craftsman detailing shows just what great design can accomplish in an under 2,000 heated square-foot space. The exterior immediately catches your eye with its gable rooflines, circular columns, and vaulted porch over the main entrance. Inside, the foyer opens up to the dining room and the spacious family room. An impressive fireplace separates the two rooms. The family room enjoys a wall of windows looking out to the lanai and the BBQ porch, perfect for outdoor entertaining. The open-concept kitchen has a peninsula and raised eating bar separating the cooking areas from the breakfast nook and family room. There is also a walk-in pantry to tuck away appliances and supplies.

With a split-bedroom layout, there is plenty of privacy for the master suite. The master bedroom has access to the rear porch. There is also a lovely sitting area which is ideal for reading a book and enjoying the view of the backyard. The master bathroom is luxurious and includes his-and-her sink vanities, a large tub, a shower, and a water closet. There are also his-and-her master walk-in-closets. On the other side of the floor plan are bedroom #2 and #3 which share a split-designed hall bathroom.

In addition to the attached 2-car garage, there is a large workshop and a storage room. Looking for additional space? There is also a bonus room above the garage.

For larger versions of this plan design, please see:
3-bedroom, 2.5-bath, 2091 living square feet ranch (Plan #117-1092)
3-bedroom, 3-bath, plus study/guest room, 2847 living square feet ranch (Plan #117-1103)

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Bunnyhouse
Review For House Plan # 117-107 I really like the exterior look and the roofing. I would have appreciated a look at the interior. This is something I would definitely be able, and even want to, live in. -Bunnyhouse
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

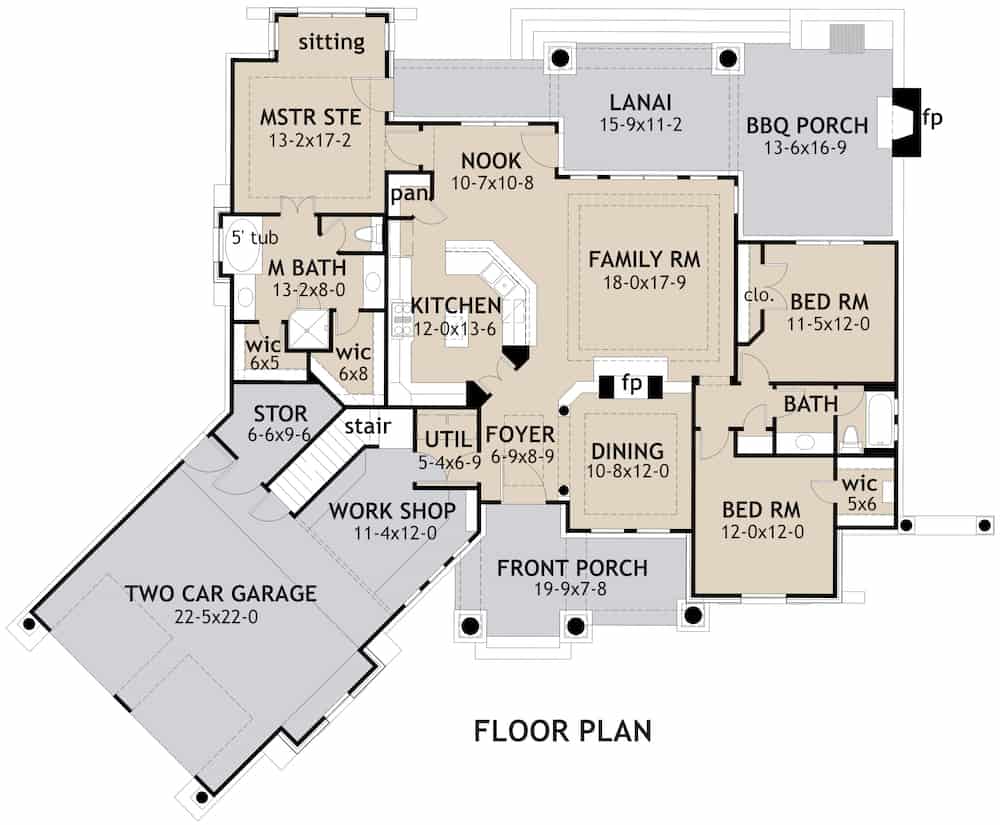

Home Plan: #117-1107 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #117-1107

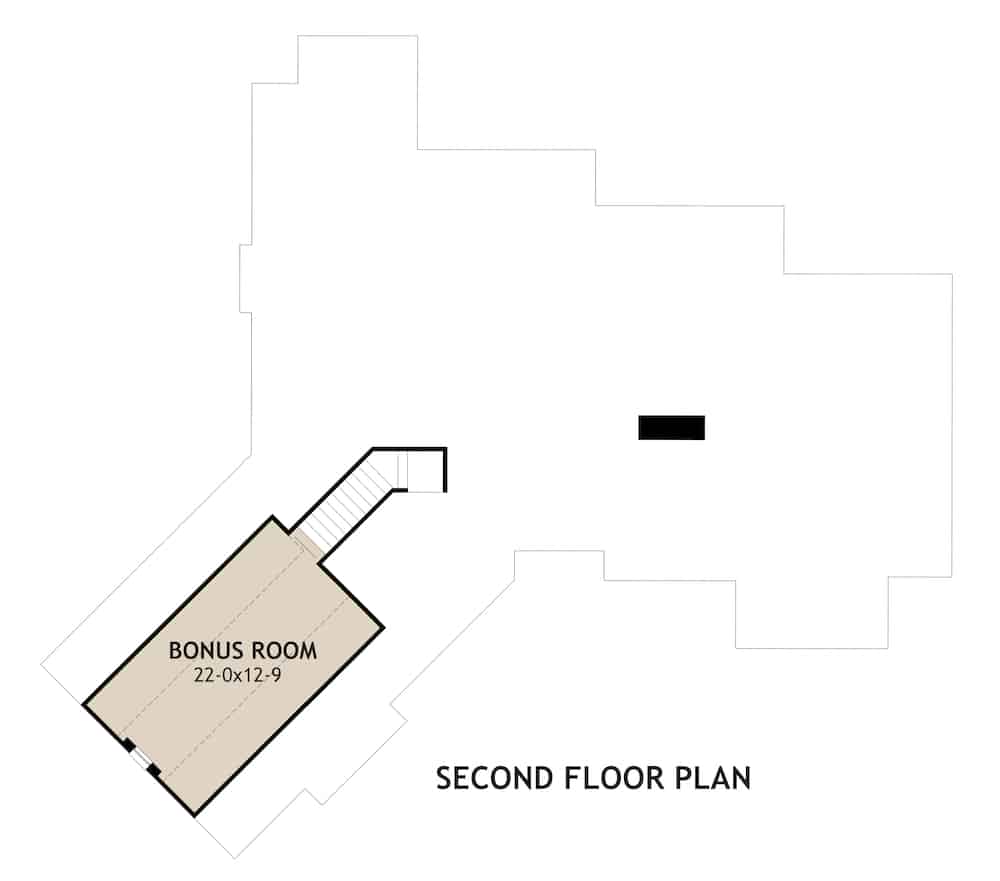

#117-1107 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #117-1107
Home Plan: #117-1107 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #117-1107
#117-1107 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #117-1107
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1107
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1848
Main Floor:
1848
Unfinished Sq Ft:
Bonus Room:
302
Garage :
549
Porch :
729

Dimensions

Width:
78' 9"
Depth:
71' 5"
Ridge Height:
30' 0"

Architectural Styles

Country
Ranch
Southern
Arts and Crafts
Craftsman
Transitional
1 1/2 Story
Texas Style
Cottage
Rustic

Exterior Wall Material

Brick
Rock/Stone
Shakes

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Workshop
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom
