4-Bedroom, 3077 Sq Ft Ranch Plan with Vaulted Ceiling

Ranch home (ThePlanCollection: Plan #117-1142)
117-1142: Home Plan Rendering-Front View
117-1142: Home Plan Rendering-Right View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Side View
4-Bedroom, 3077 Sq Ft Ranch House - Plan #117-1142 - Front Exterior
117-1142: Home Plan Rendering-Front View
117-1142: Home Plan Rendering-Right View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Rear View
117-1142: Home Plan Rendering-Side View

About Plan # 117-1142

About Plan # 117-1142

3077 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 85' 6" WIDTH 62' 9" DEPTH 2 GARAGE BAY

Enjoy this well-designed Traditional style Ranch home that features innovative looks and is sure to catch your eye. The multiple levels of the roof, front-facing gables, multi-pane windows, and style-appropriate materials give the house design a very interesting curb appeal. The 1-story floor plan has 3077 square feet of heated and cooled finished living space and includes 4 bedrooms and bonus space over the garage.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

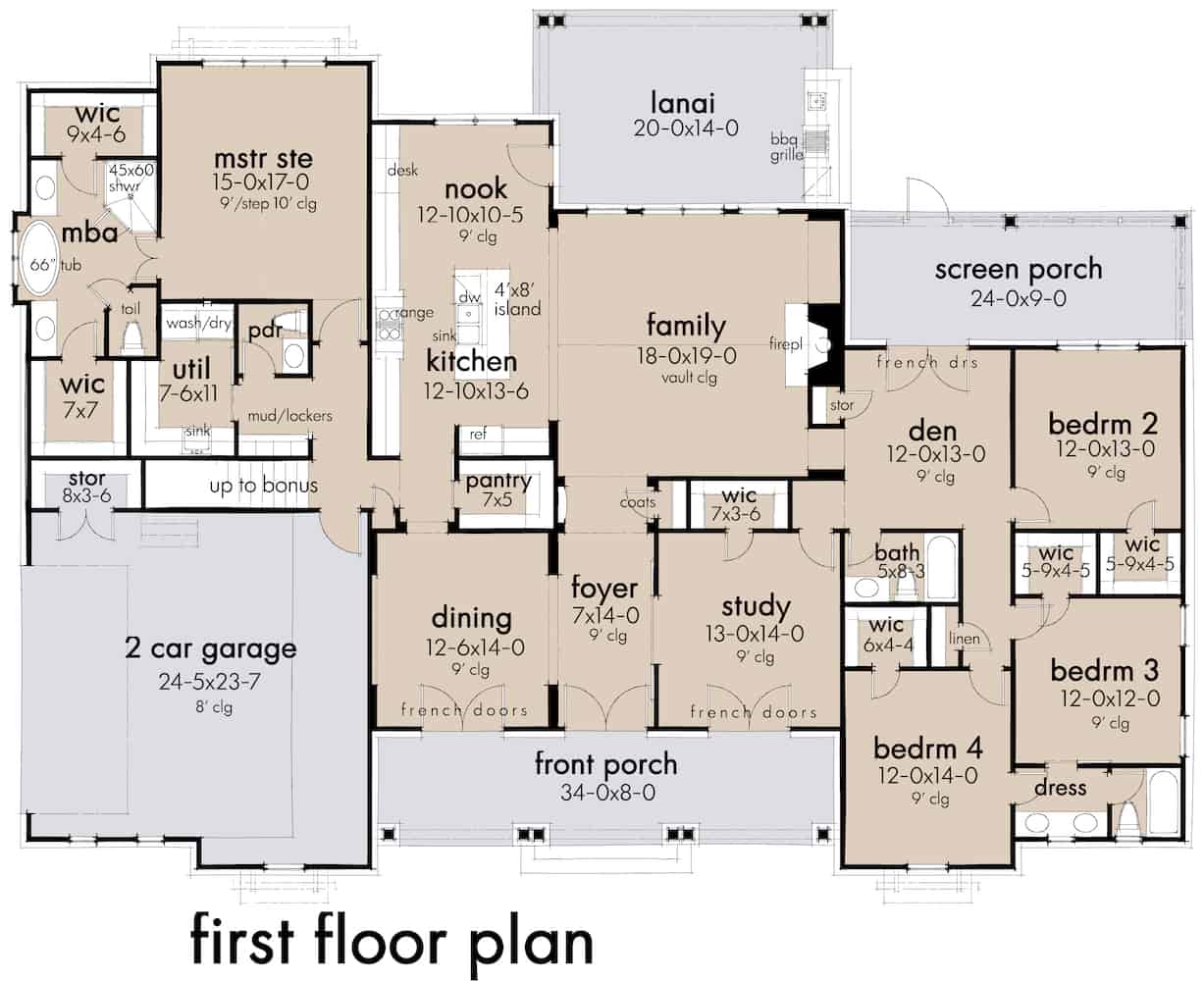

Home Plan: #117-1142 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #117-1142

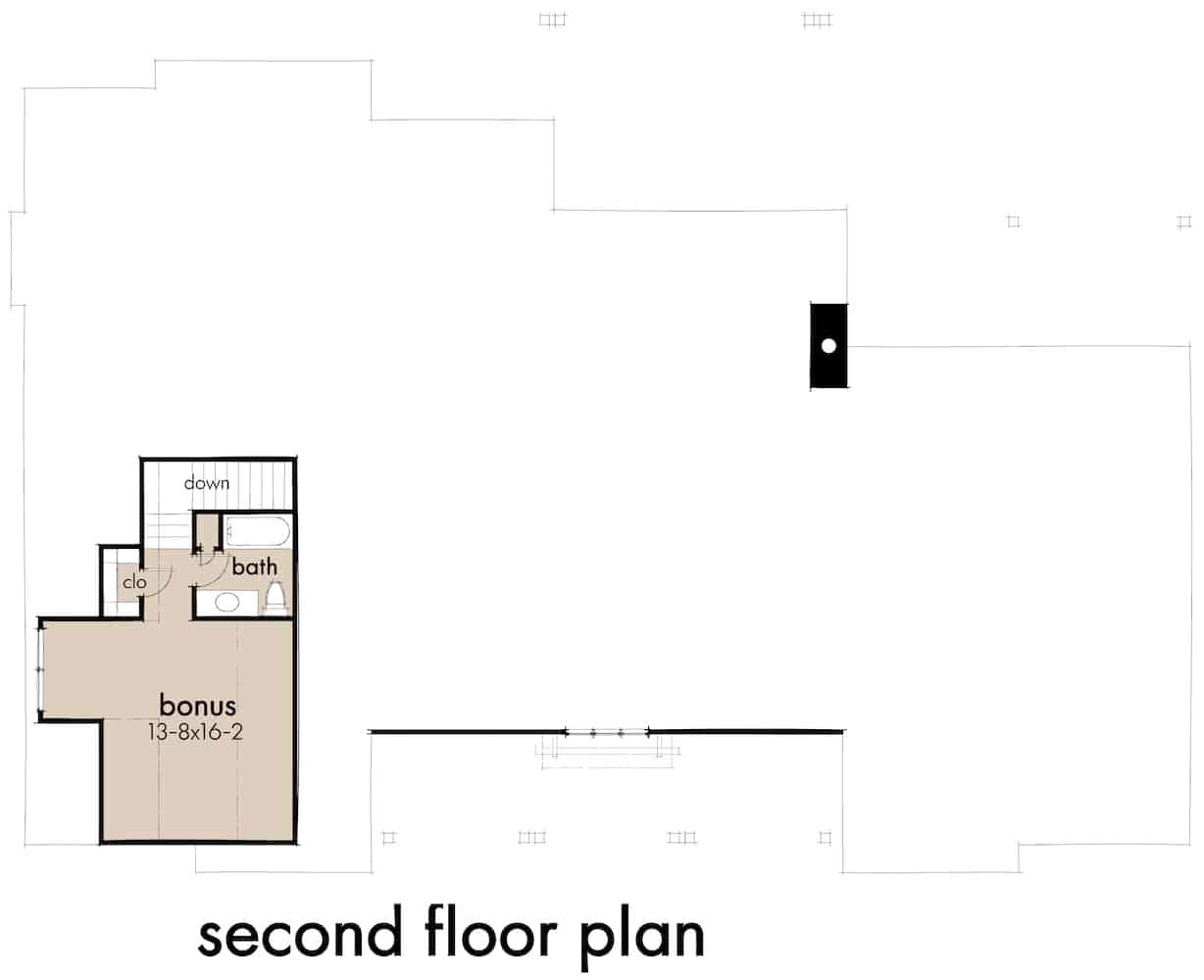

#117-1142 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #117-1142
