4-Bedroom, 2464 Sq Ft Country Plan with Main Floor Master

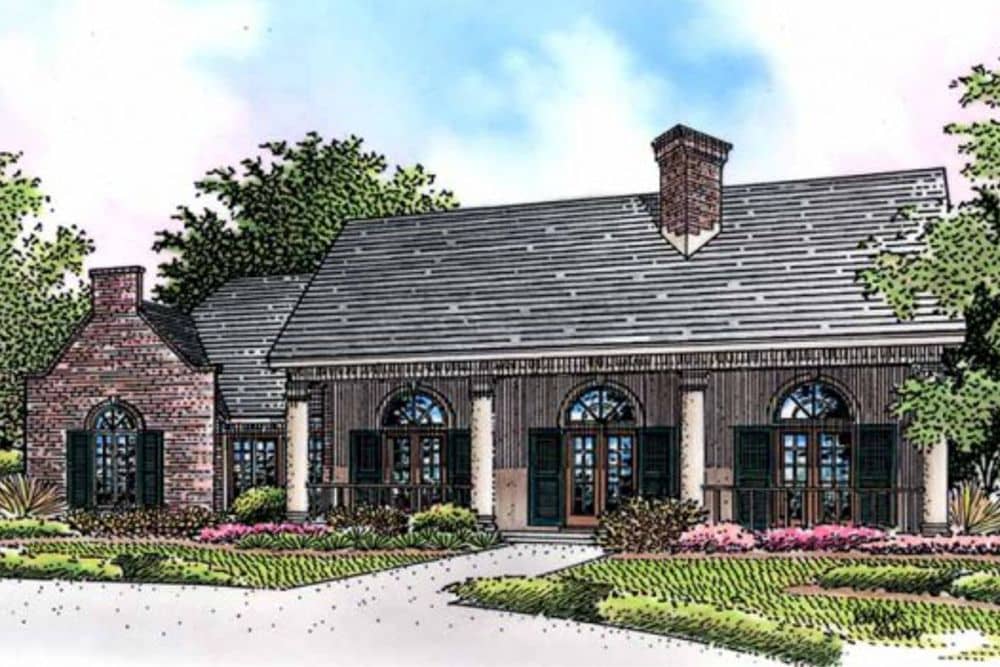

Front elevation of this Southern Country home. (ThePlanCollection: House Plan #146-2173)

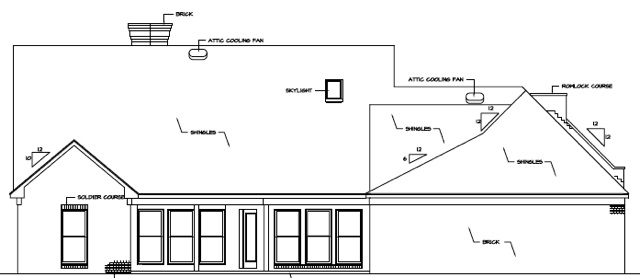

146-2173 rear

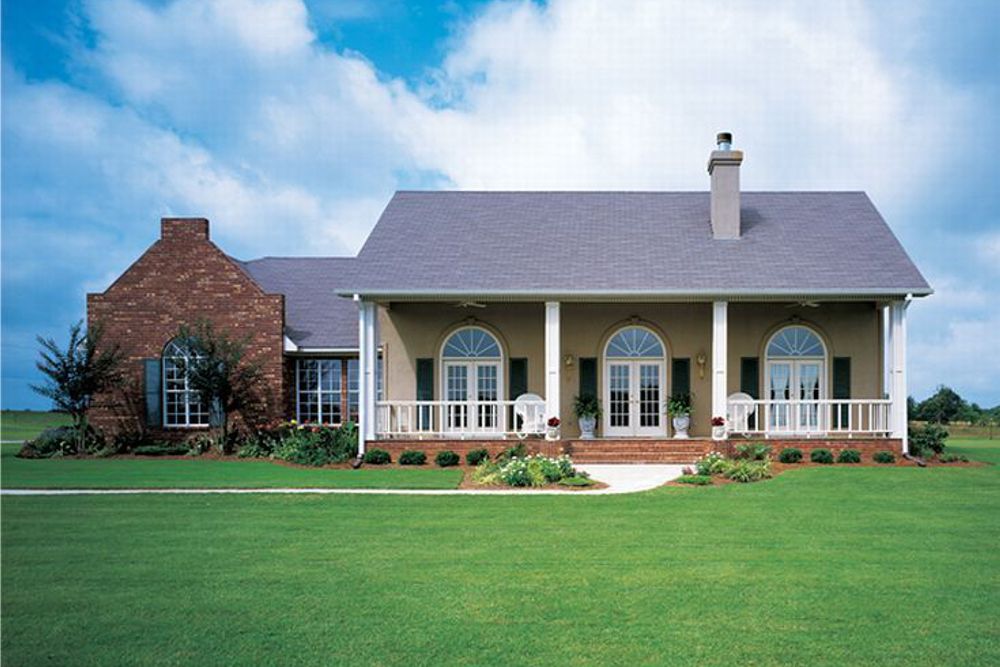

146-2173: Home Exterior Photograph

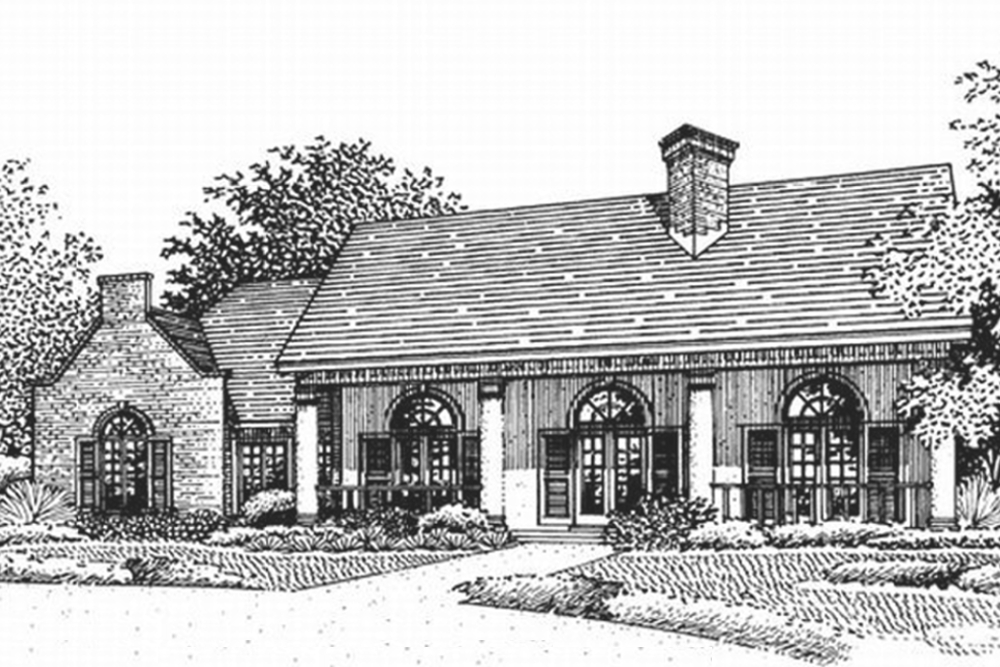

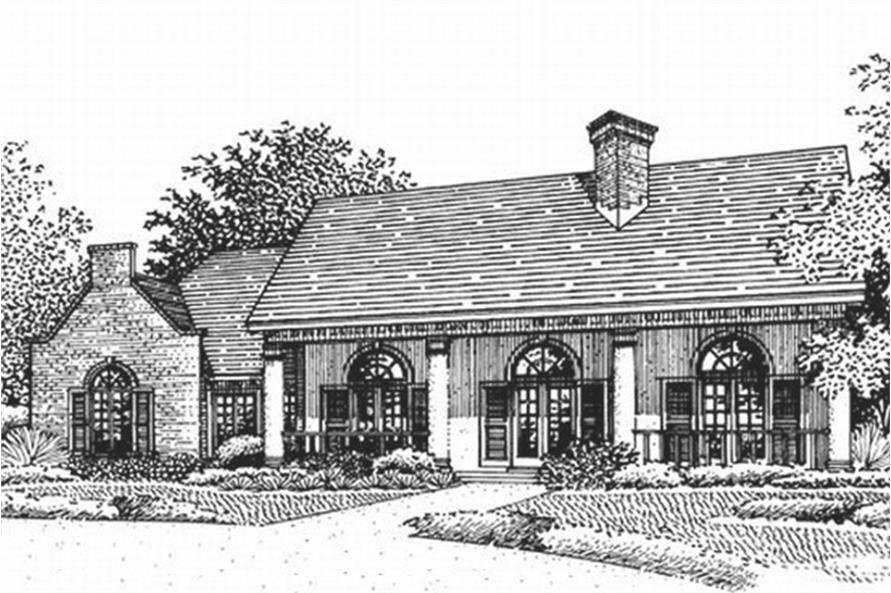

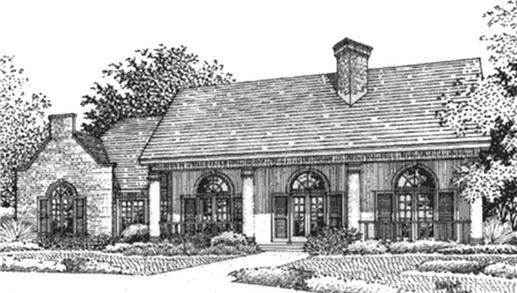

146-2173: Home Plan Front Elevation - Illustration of this Southern Country home.
4-Bedroom, 2464 Sq Ft Country Home Plan - 146-2173 - Main Exterior
146-2173 rear
146-2173: Home Exterior Photograph
146-2173: Home Plan Front Elevation - Illustration of this Southern Country home.

About Plan # 146-2173

About Plan # 146-2173

2464 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 68' 0" WIDTH 86' 0" DEPTH 3 GARAGE BAY

As each night falls, you'll find yourself drawn to this home. At the front of the home, a wide porch promises the prospect of calm; to the rear, another porch flows into two connected patios. The kids have their own space in the right-wing of the home. The master suite is situated far from the hubbub of daily living and includes a sumptuous bath with a large walk-in closet and a dual-sink vanity. At the rear of the home, a complete suite resides, intended to house a nanny or in-laws. It includes a living room, a dining area, a full kitchen, and a sleeping chamber with a full bath and walk-in closet. A garage stall is also provided. The private porch adds a touch of charm.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
rtimjacobs
This is a perfect home in todays world. Our kids are out of college and still live at home and our mother also lives with us. This house allows you to have any type of family and still give you your own space and privacy. The only question we have is regarding a full basement. Can we have a basement and what is the cost
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

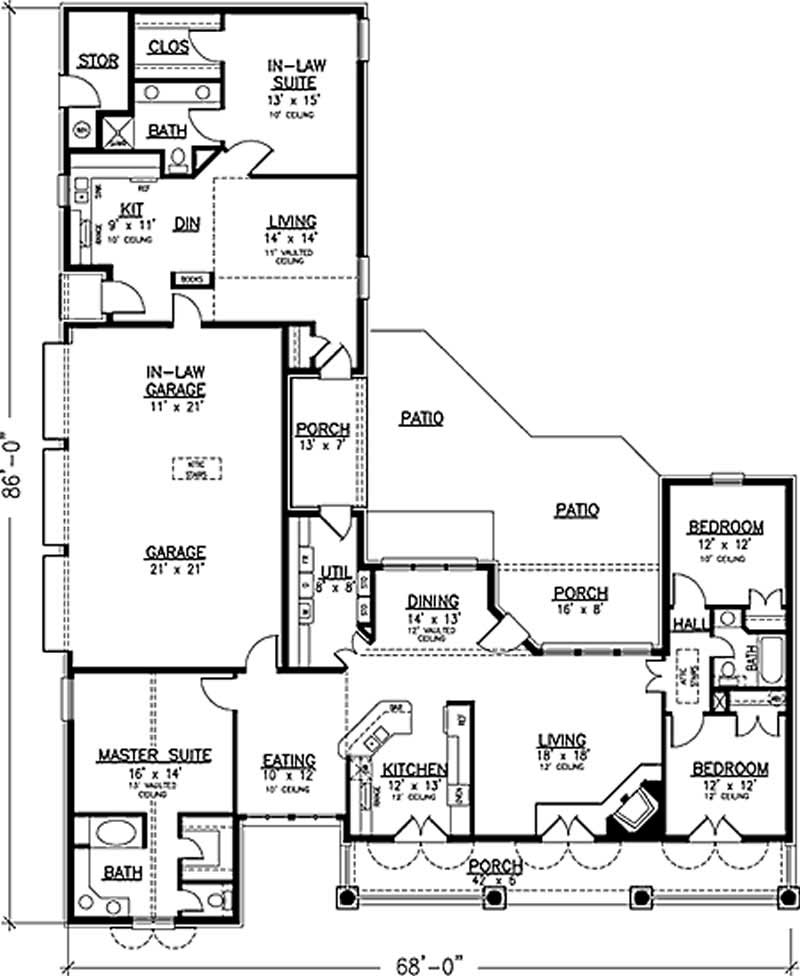

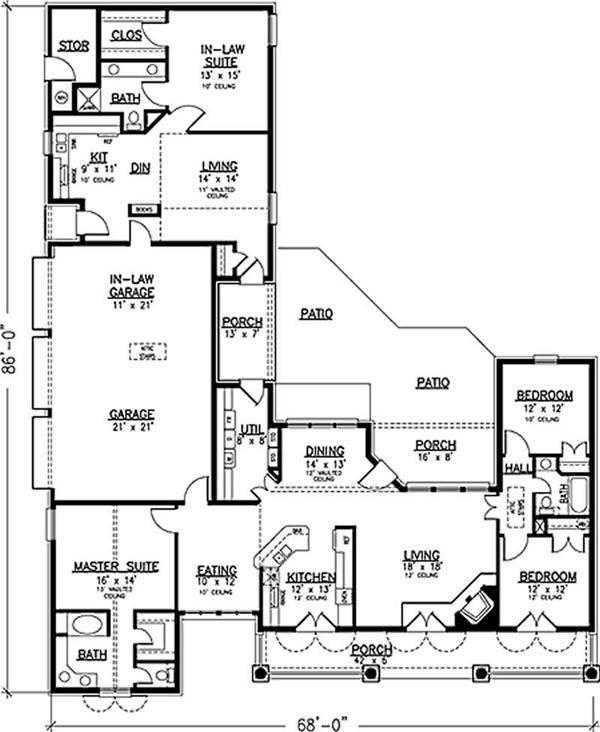

Home Plan: #146-2173 Floor Plan First Story - main level Floor Plan First Story of Country Plan #146-2173
Home Plan: #146-2173 Floor Plan First Story - main level Floor Plan First Story of Country Plan #146-2173
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2173
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2464
Main Floor:
2464
Unfinished Sq Ft:

Dimensions

Width:
68' 0"
Depth:
86' 0"
Ridge Height:
29' 0"

Architectural Styles

Country
Ranch
Southern
Texas Style
Traditional
Transitional

Exterior Wall Material

Brick
Stucco

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Color Photos
Dining Room
Fireplace
L-Shaped
Main Level Laundry
Mother in law apartment
Open Floor Plan
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
