Home > Search Results > Plan Detail for 153-1573

4-Bedroom, 2951 Sq Ft Contemporary Plan with Peninsula/Eating Bar

Front elevation of Contemporary home (ThePlanCollection: House Plan #153-1573)

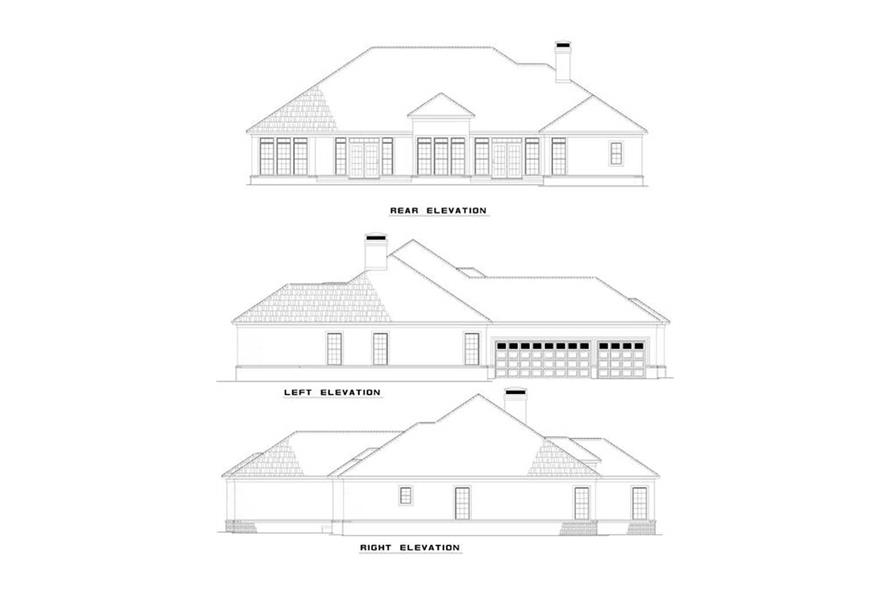

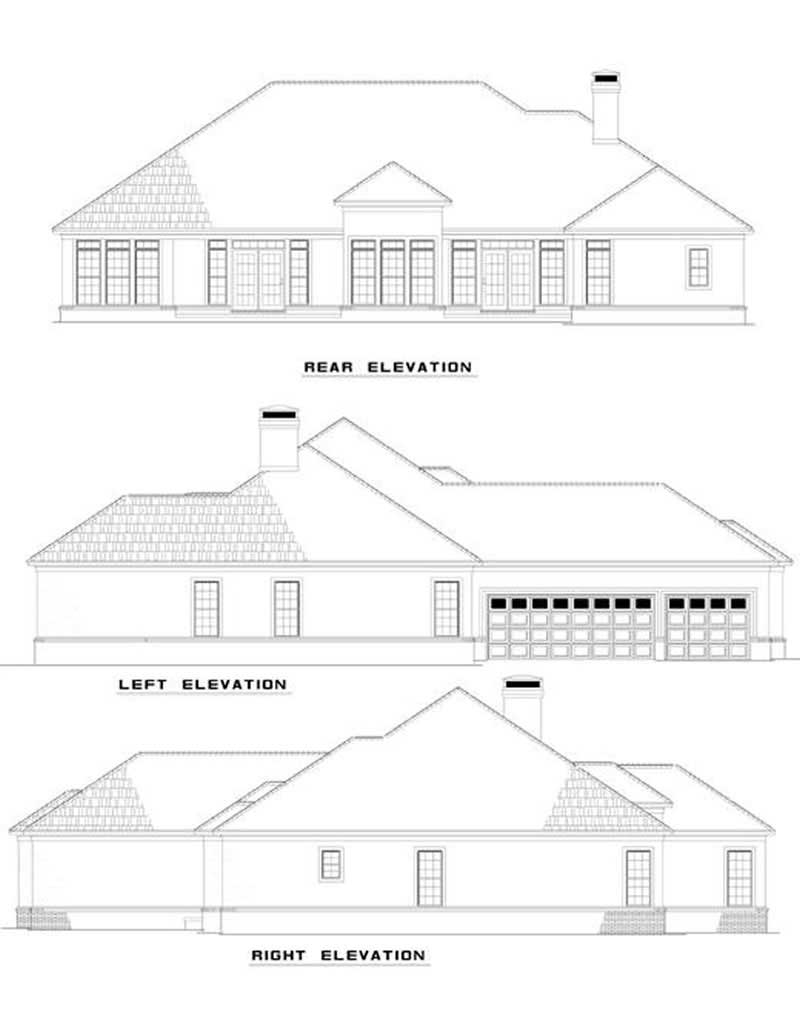

EXTERIOR ELEVATIONS

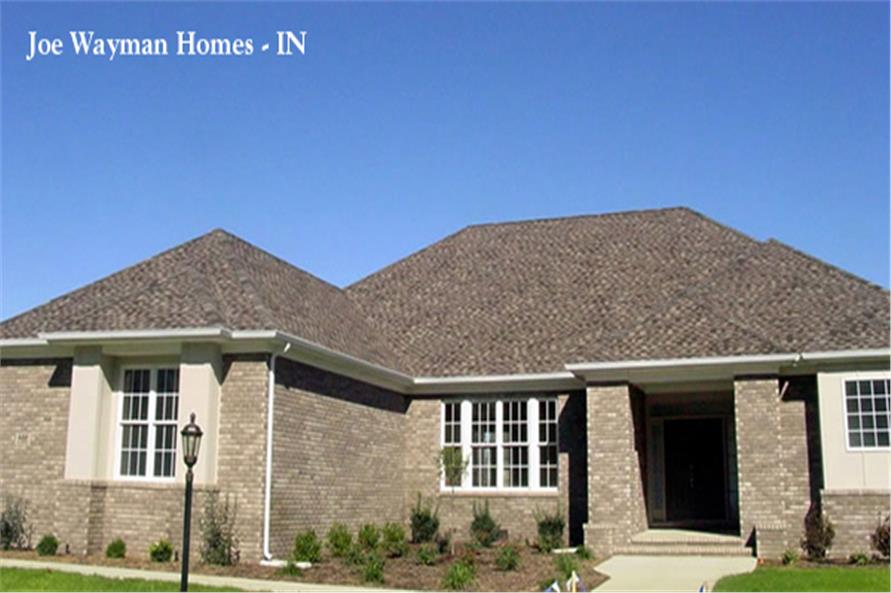

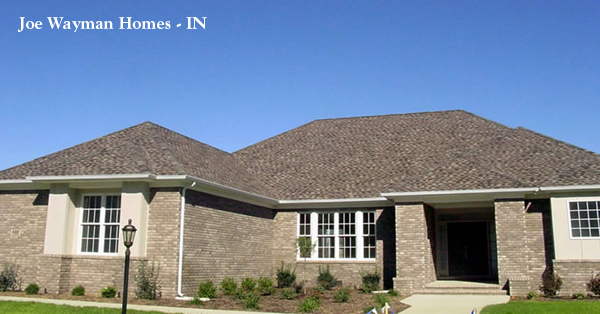

153-1573: Home Exterior Photograph-Front
153-1573: Home Interior Photograph-Entry Hall: Foyer

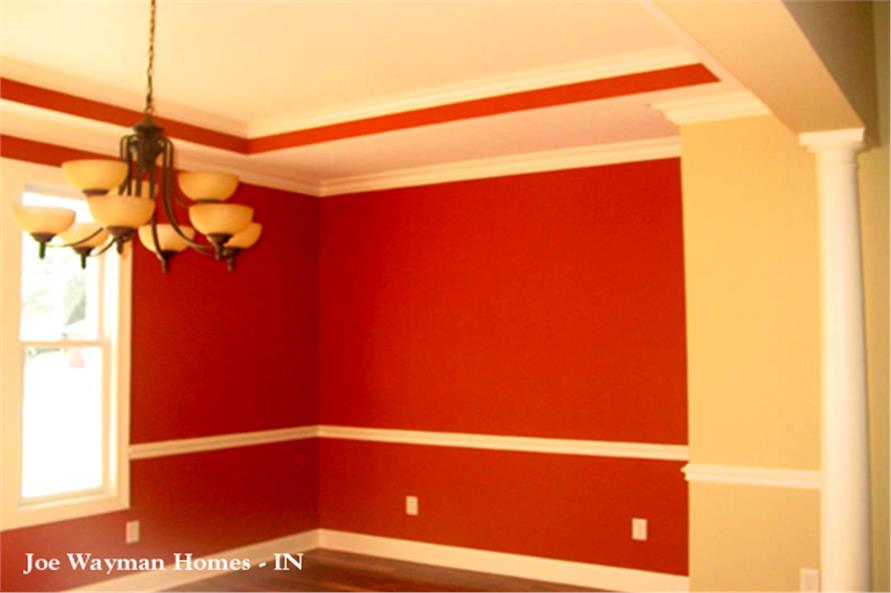

153-1573: Home Interior Photograph-Dining Room

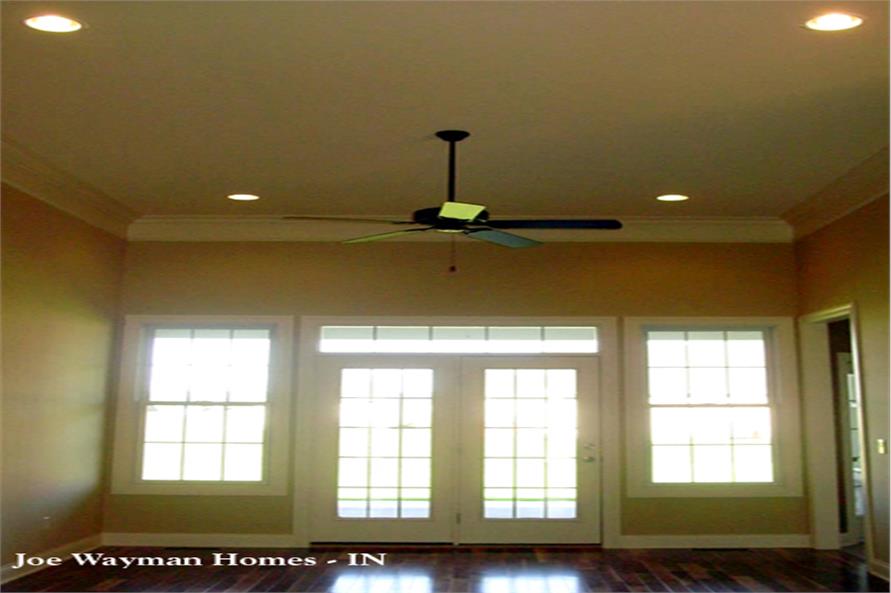

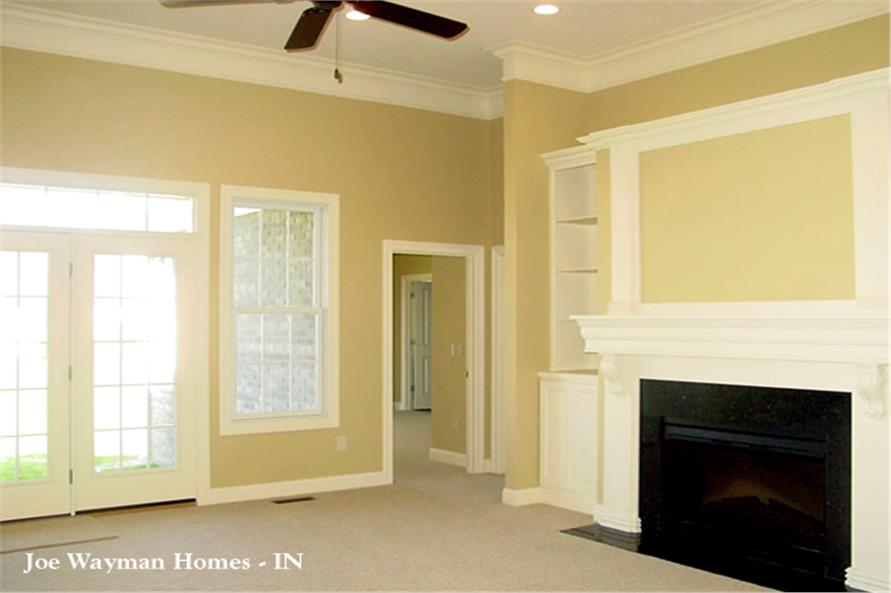

153-1573: Home Interior Photograph-Great Room

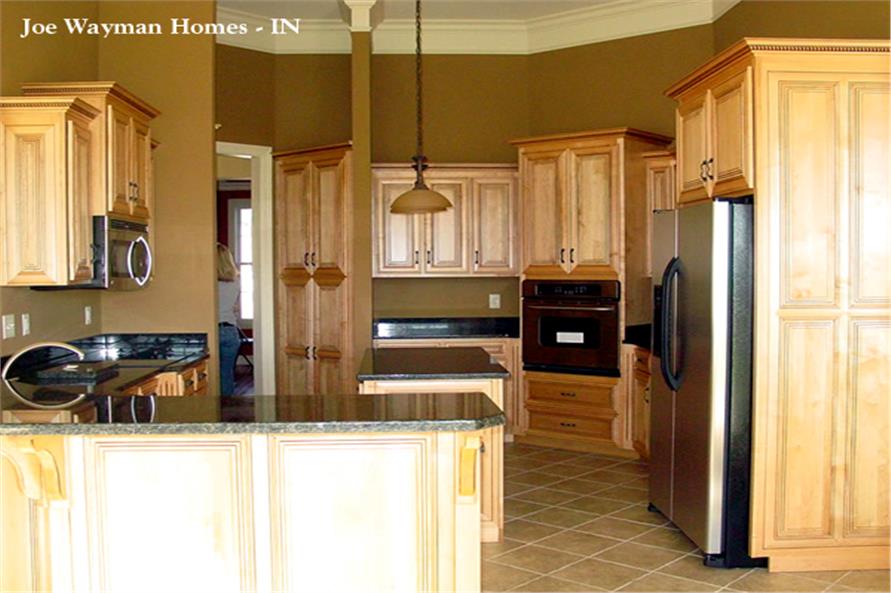

153-1573: Home Interior Photograph-Kitchen

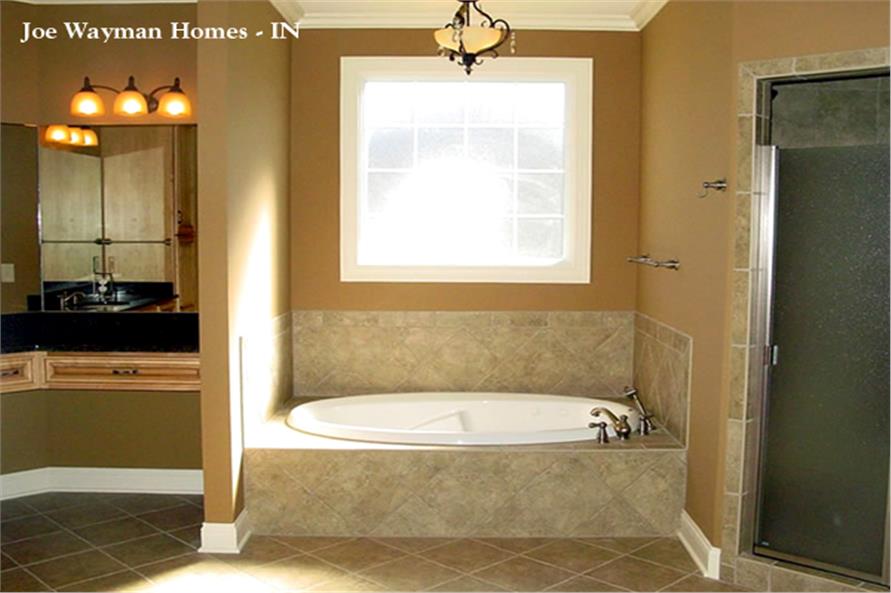

153-1573: Home Interior Photograph-Master Bathroom
4-Bedroom, 2951 Sq Ft Contemporary Home Plan - 153-1573 - Main Exterior
EXTERIOR ELEVATIONS
153-1573: Home Exterior Photograph-Front
153-1573: Home Interior Photograph-Entry Hall: Foyer
153-1573: Home Interior Photograph-Dining Room
153-1573: Home Interior Photograph-Great Room
153-1573: Home Interior Photograph-Kitchen
153-1573: Home Interior Photograph-Master Bathroom

About Plan # 153-1573

About Plan # 153-1573

2951 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 73' 6" WIDTH 80' 6" DEPTH 3 GARAGE BAY

This transitional-style ranch takes the best characteristics of a number of styles and design approaches to create a truly unique and wonderful home. From the curb, the exterior has a contemporary yet traditional vibe. Elements of the Praire style can be seen as well. The impressive roof lines and the boxed columns certainly grab one's attention.

From the front porch, enter through the double doors to the foyer and formal living room with its own fireplace and atrium doors to the rear lanai. The formal dining room has a boxed ceiling and is framed out by two eight-foot columns. Through the butler's pantry, enter the kitchen which would be any chef's dream. The center island is surrounded by counter space for prepping meals. On one side is a peninsula with an eating bar to enjoy time with family and friends in a more casual setting. It overlooks the breakfast area and the great room which boasts its own fireplace, wet bar, and built-ins.

Designed with a split-bedroom layout, the master suite is truly impressive. The master bedroom has a fireplace and a sitting room with access to the lanai. The master bathroom includes separate his-and-her sink vanities, a glass shower with a seat, a large tub, and a water closet. There are also two well-sized walk-in closets. On the other side of the house are bedrooms #2, #3 and #4 as well as two full bathrooms.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

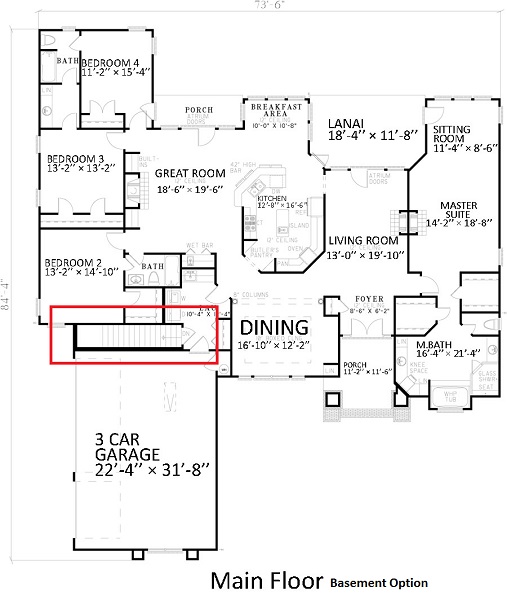

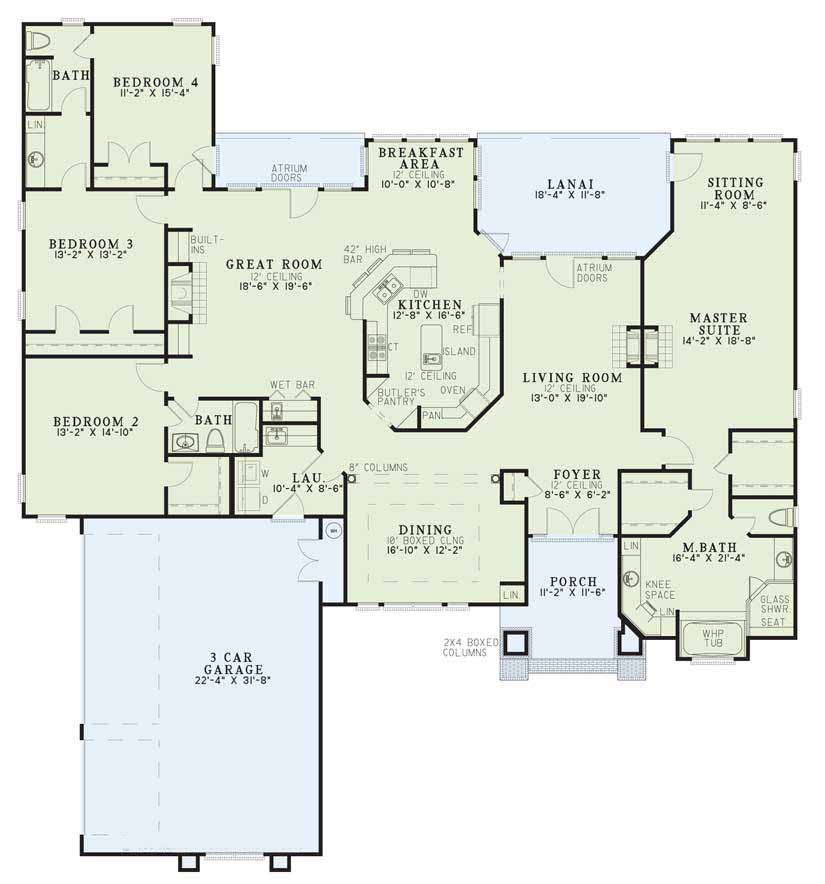

Home Plan: #153-1573 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #153-1573
#153-1573 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #153-1573
Home Plan: #153-1573 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #153-1573
#153-1573 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #153-1573
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1573
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2951
Main Floor:
2951
Unfinished Sq Ft:
Garage :
707
Porch :
444

Dimensions

Width:
73' 6"
Depth:
80' 6"
Ridge Height:
24' 4"

Architectural Styles

Contemporary
Country
Prairie
Ranch
Southern
Transitional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Fireplace
Interior Photos
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Fireplaces

Three Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Lanai
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
