Contemporary duplex home (ThePlanCollection: Plan #153-1591)

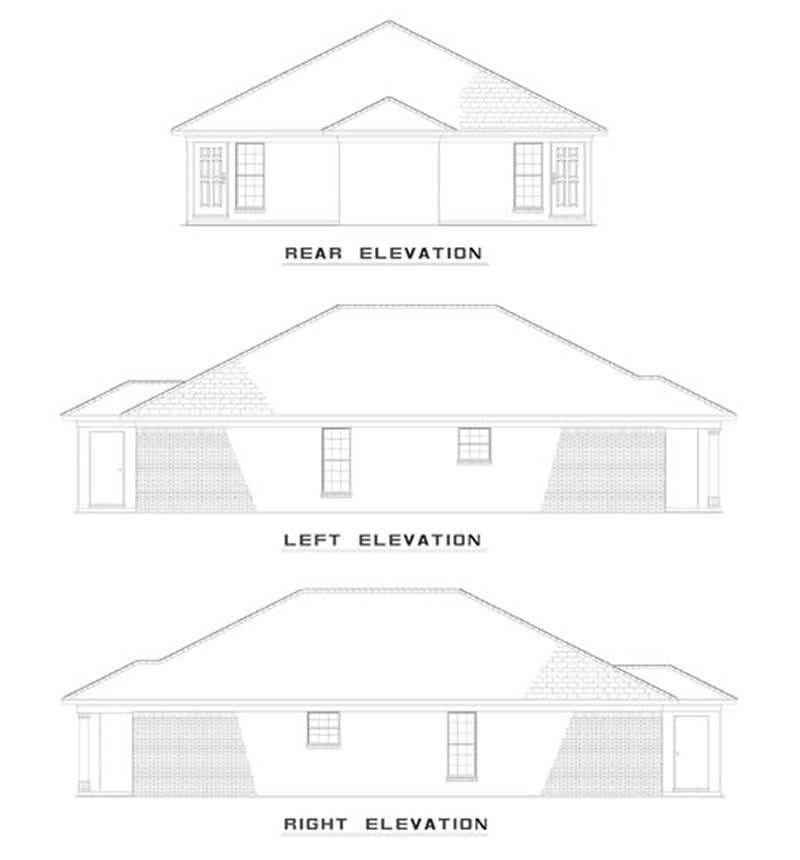

153-1591: Home Plan Elevations-
153-1591: Home Plan Other Image
4-Bedroom, 1854 Sq Ft Contemporary House - Plan #153-1591 - Front Exterior

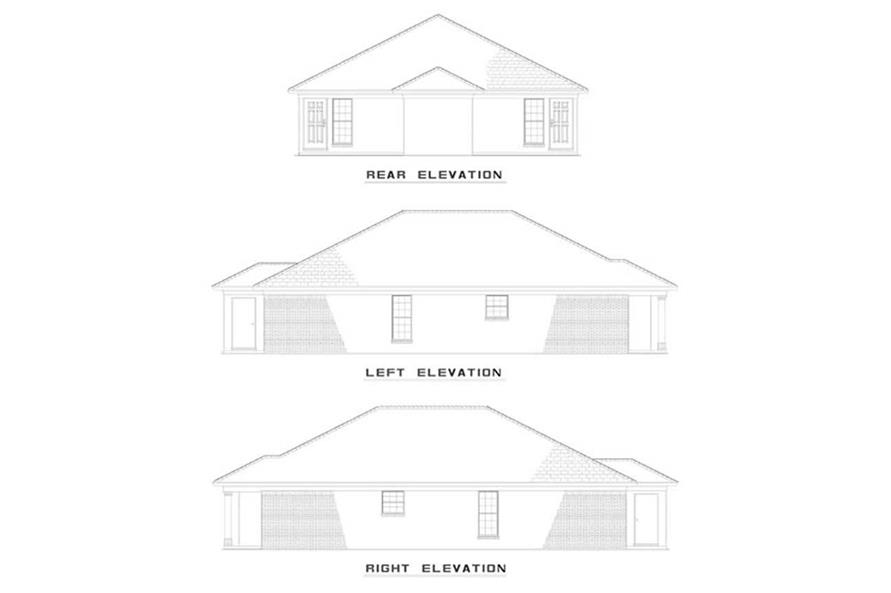

153-1591: Home Plan Elevations-
153-1591: Home Plan Other Image

About Plan # 153-1591

About Plan # 153-1591

1854 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 37' 0" WIDTH 56' 10" DEPTH 0 GARAGE BAY

This contemporary ranch duplex plan will add class to any neighborhood. Brick columns and a hip roof enhance this two-bedroom plan with a large kitchen and small laundry closet. The great room is spacious and has a small sitting area by the front window. On the rear patio, you'll be able to have a drink with friends and watch the sunset.

For a similar Multi-Unit House Plan, check out this Plan

For a similar Multi-Unit House Plan, check out this Plan

For a similar Multi-Unit House Plan, check out this Plan

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

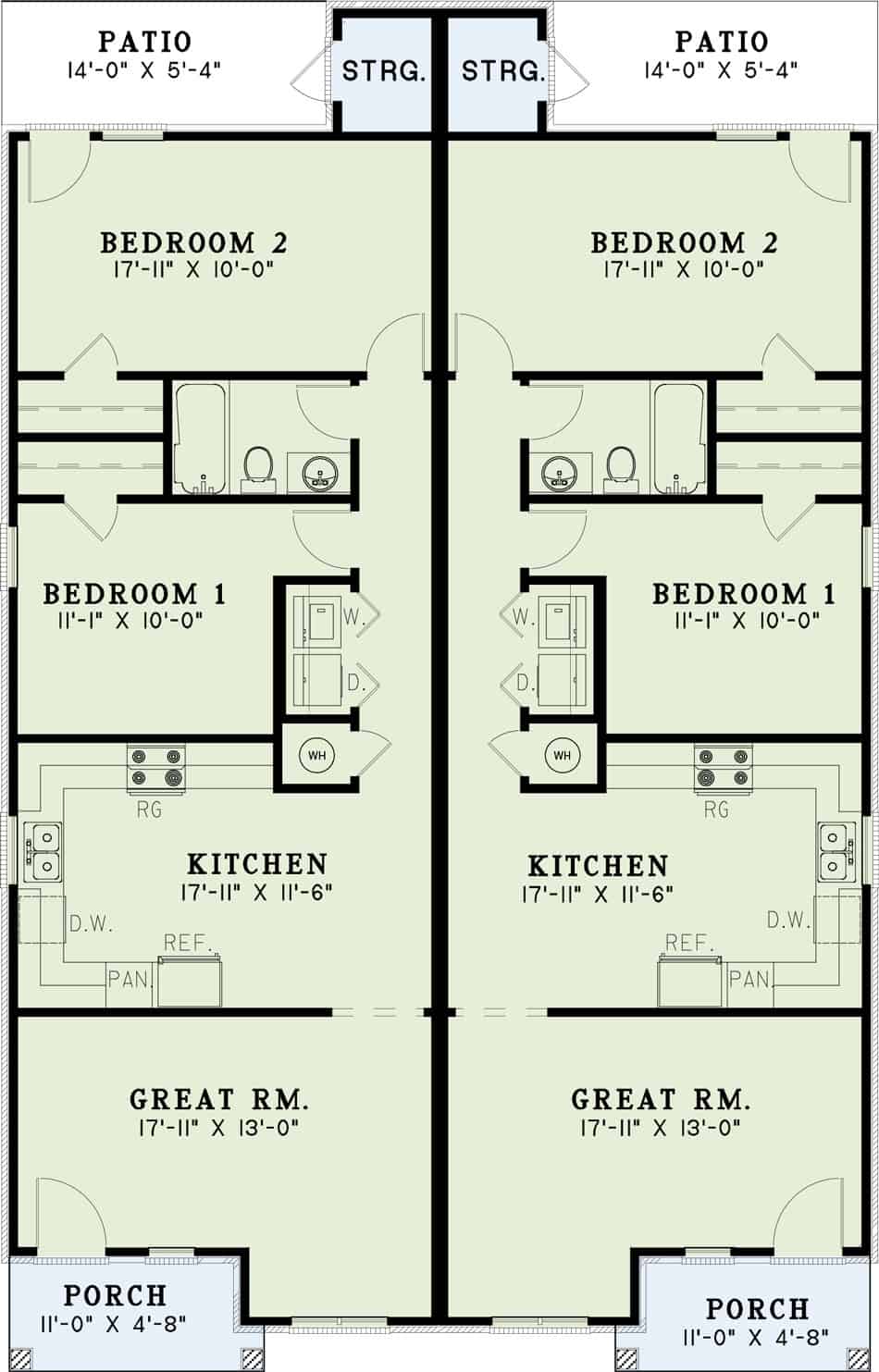

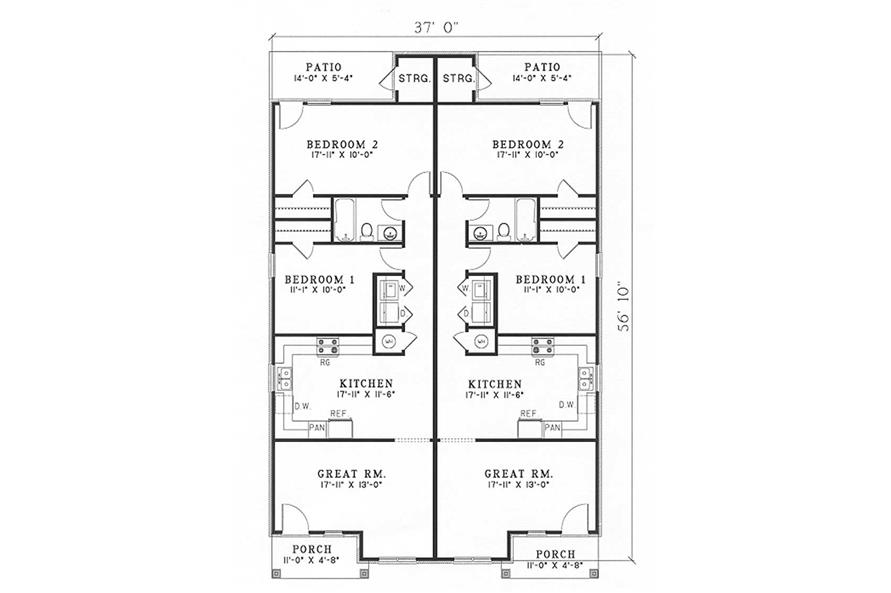

Home Plan: #153-1591 Floor Plan First Story - main level Main Level of Contemporary Duplex Plan #153-1591
Home Plan: #153-1591 Floor Plan First Story - main level Main Level of Contemporary Duplex Plan #153-1591
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1591
Floors:
1
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
1854
Main Floor:
927
Unfinished Sq Ft:

Dimensions

Width:
37' 0"
Depth:
56' 10"
Ridge Height:
18' 1"

Architectural Styles

Ranch
Duplex/Multi-Unit
Contemporary
Traditional

Roofing Type

Gable

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling

Special Feature

Main Level Laundry

Garage Type

Detached Garage

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Patio

Additional Notes from Designer

Note: 1854 total living square feet for the structure; 927 living square feet per unit. The porches total 152 sq ft. Total under the roof is 2006 square feet.


Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
