4-Bedroom, 3594 Sq Ft Transitional Craftsman Plan with Kitchen Island
| 3594 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 86' 0" WIDTH | 38' 0" DEPTH | 2 GARAGE BAY |

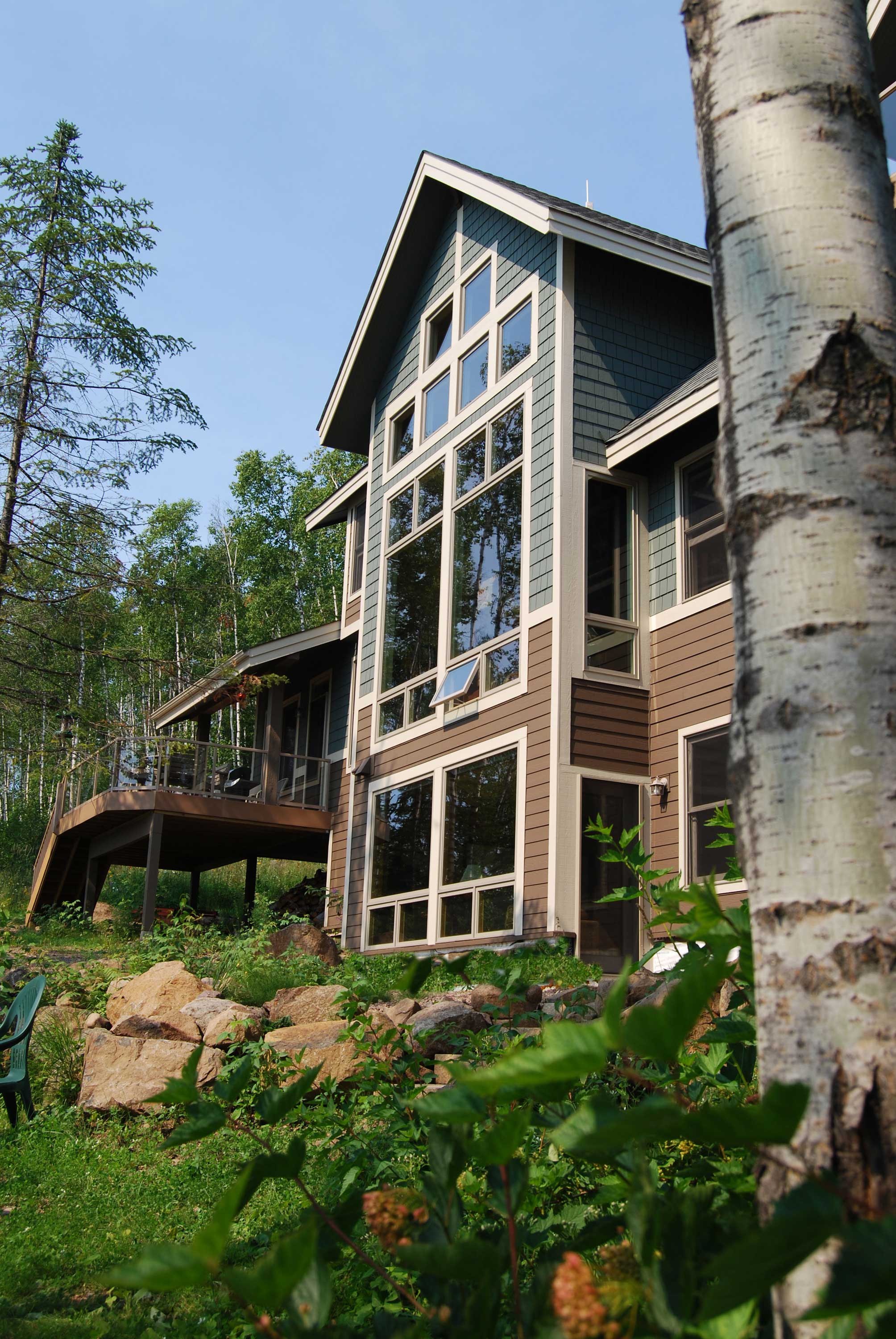

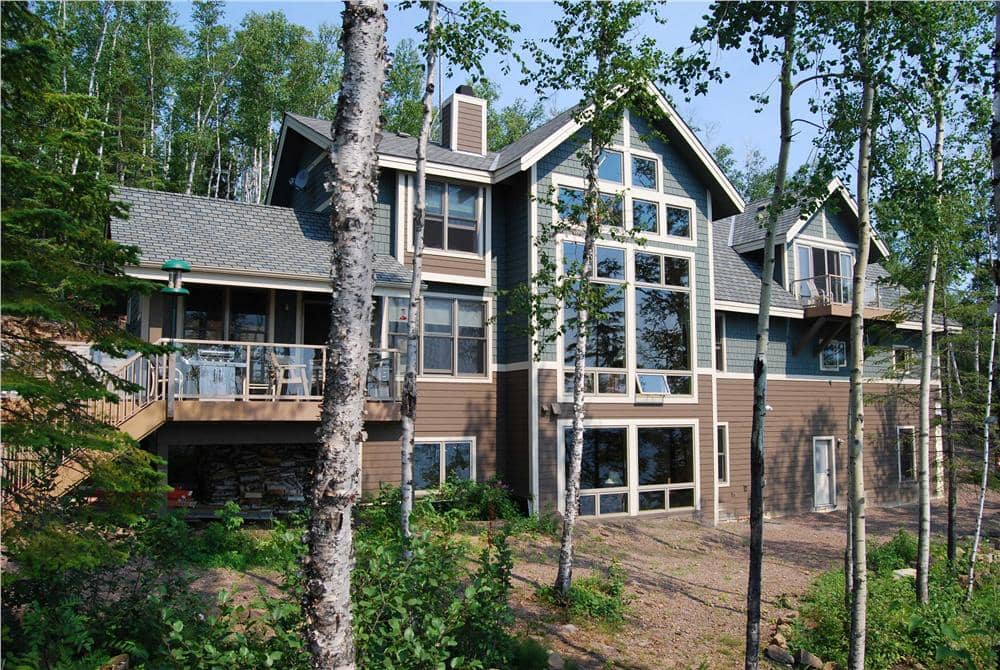

This handsome Transitional style home with Craftsman influences (Plan #146-2810) has 3594 square feet of living space. The 2 story floor plan includes 4 bedrooms, 3 full bathrooms, and 1 half bath.

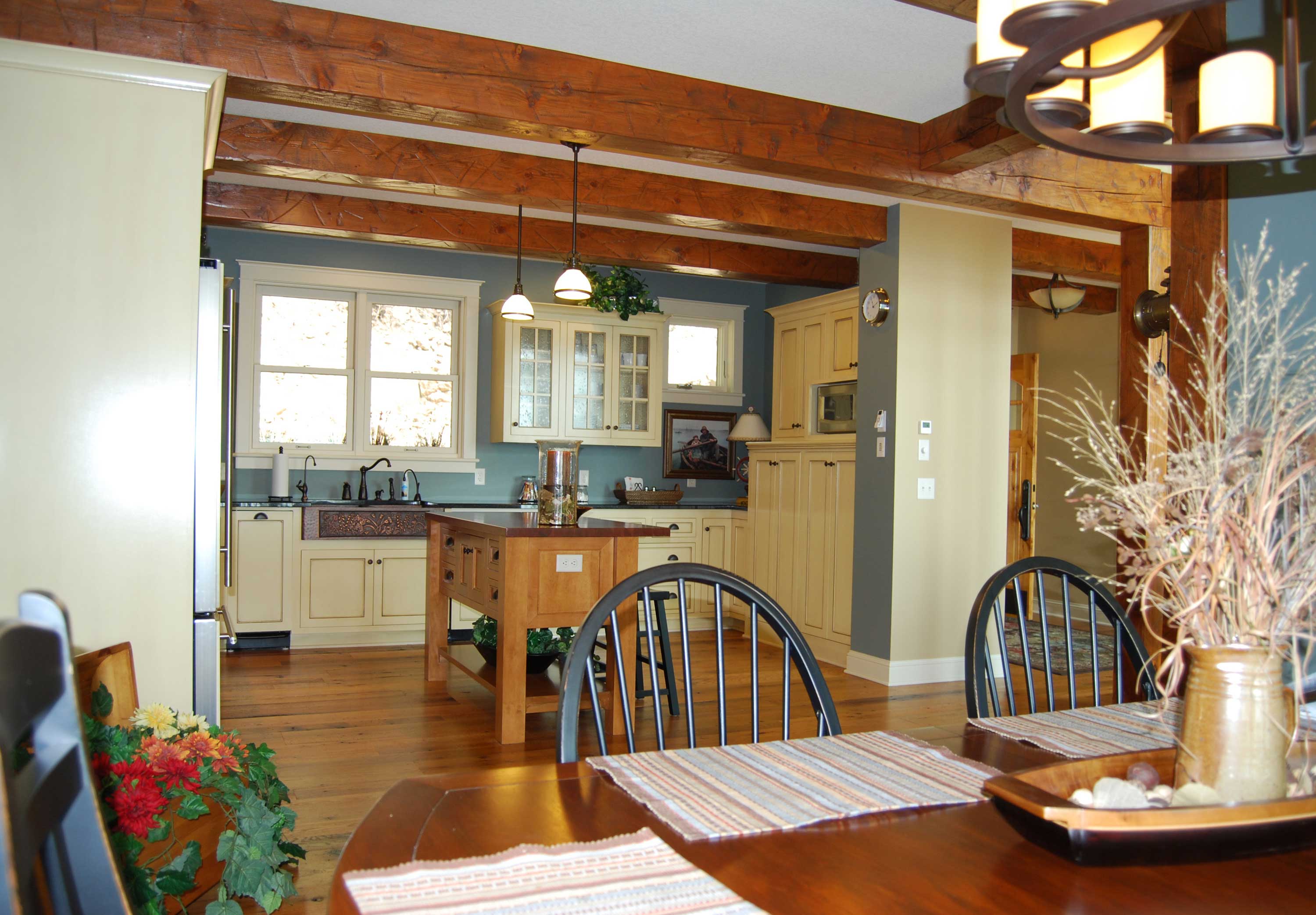

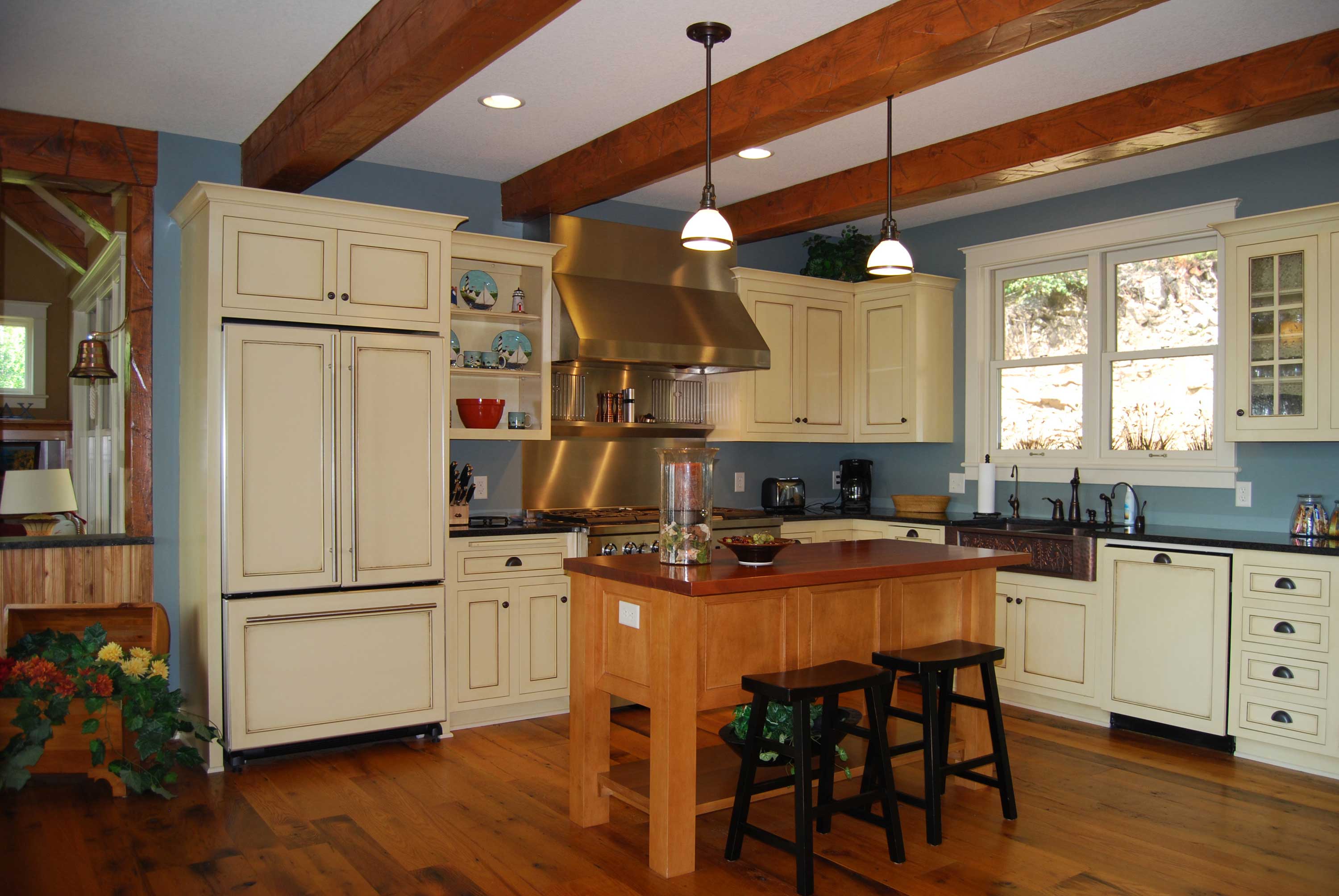

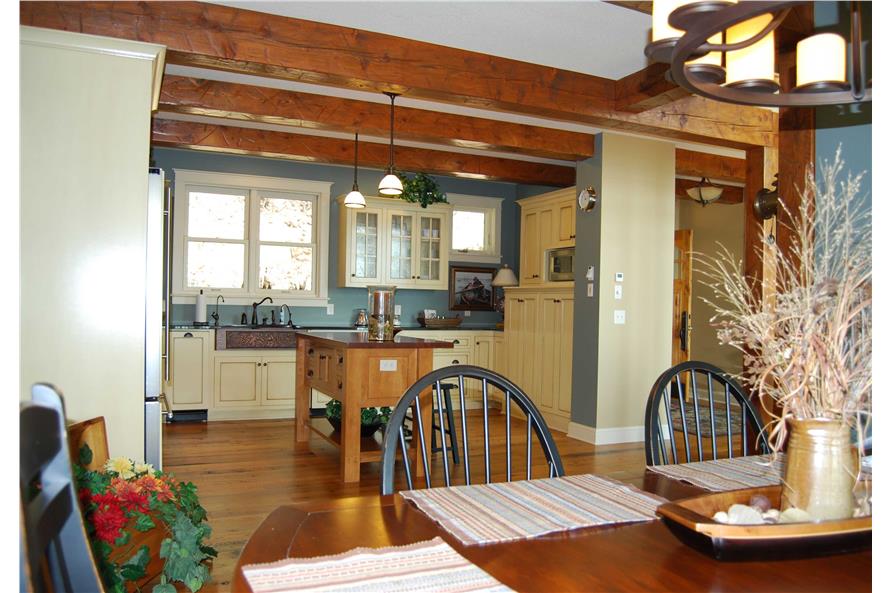

Love cooking and entertaining? You can do it all in the beautifully-designed and spacious eat-in kitchen of this quaint Craftsman home. Rustic beams, ceiling and hanging lights, windows in and around the area, make this kitchen a bright and airy gathering spot for family and friends.
Check out the modern built-in refrigerator, storage cabinets, open shelves, kitchen island, and adjoining breakfast nook. The pastel shades of the walls and cabinetry provide a charming contrast to the darker tones of the beams, hardwood floors, kitchen island and stools. Everything you dreamed of in a kitchen!
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

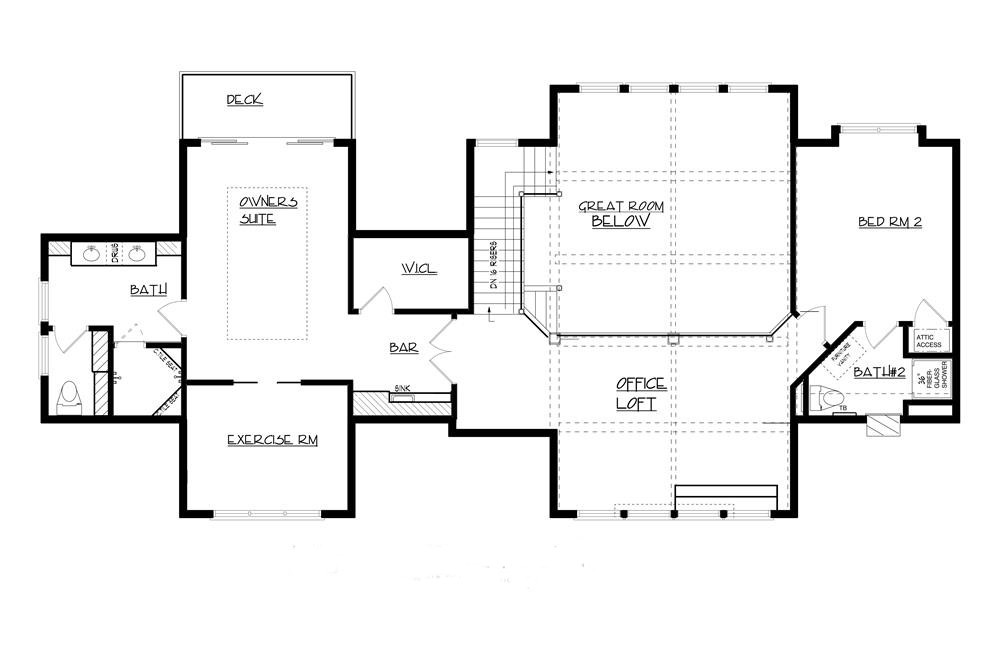

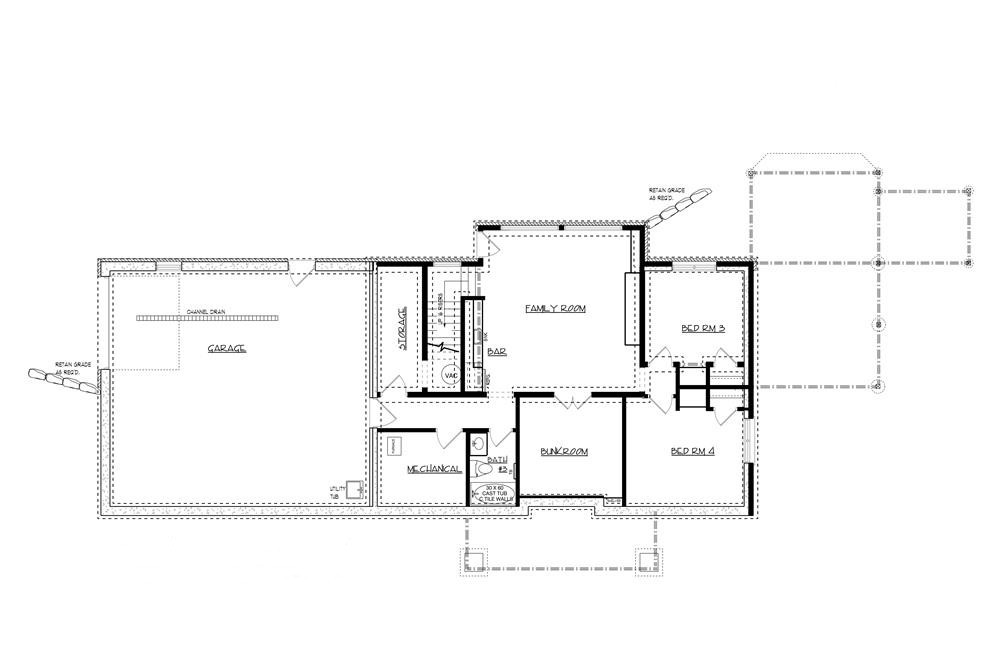

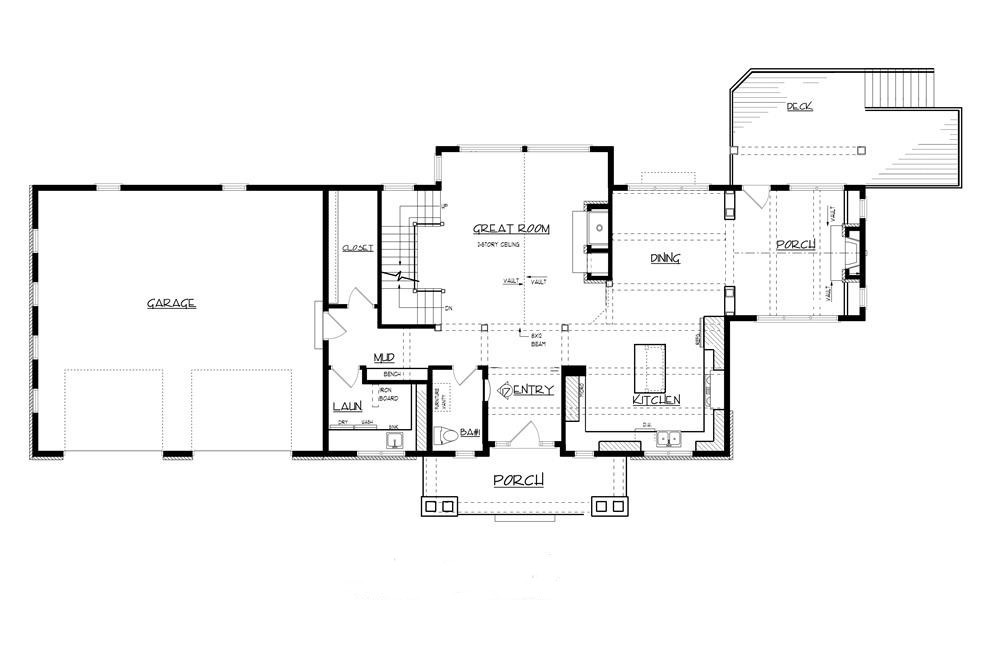

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
