4-Bedroom, 3469 Sq Ft Modern Plan with Family Room

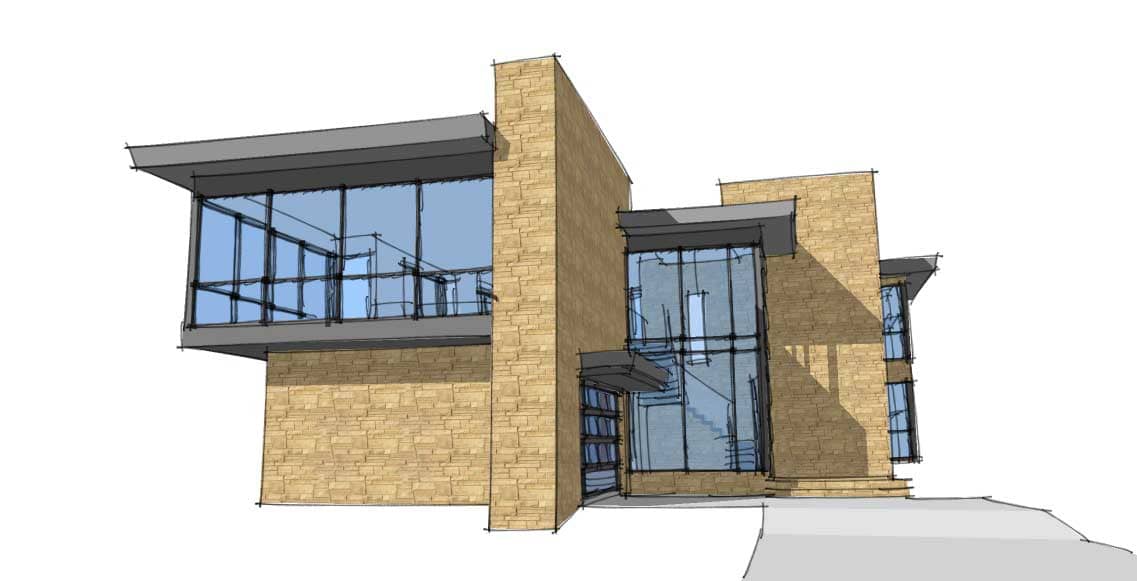

Modern style home (ThePlanCollection: Plan #116-1028)
Home Plan Rendering

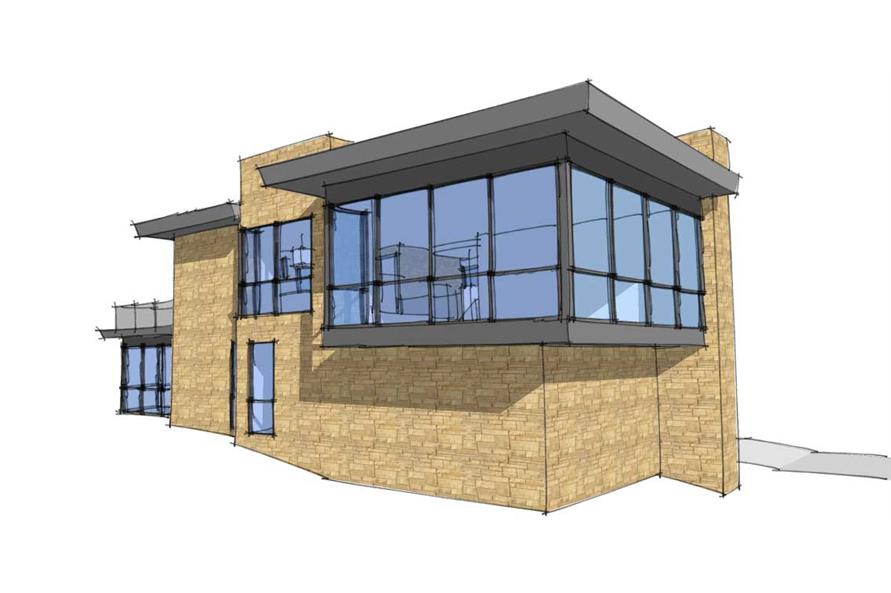

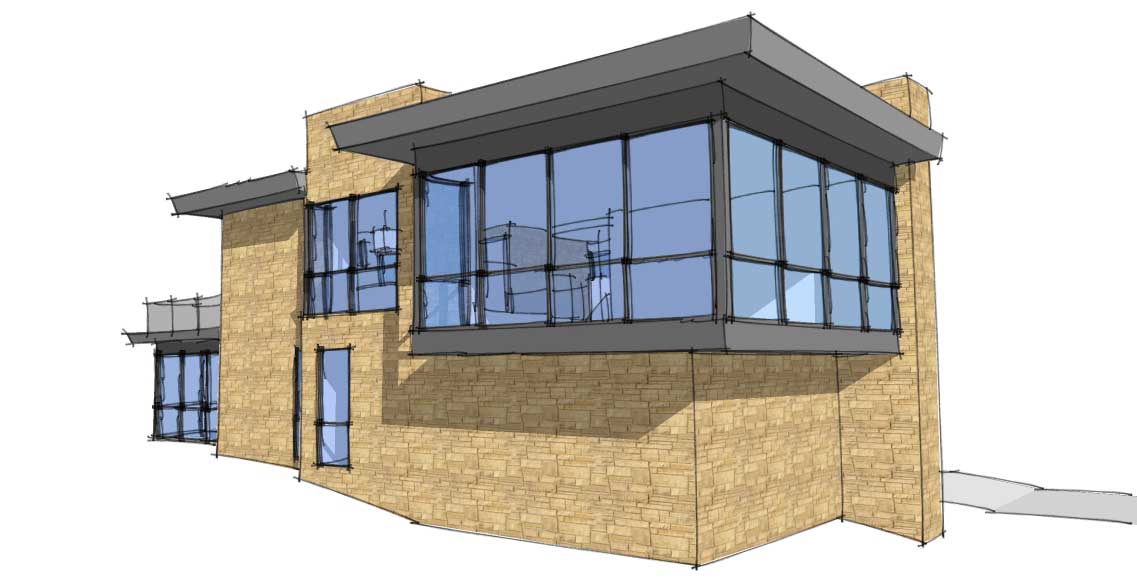

Home Plan 3D Image
Home Plan 3D Image

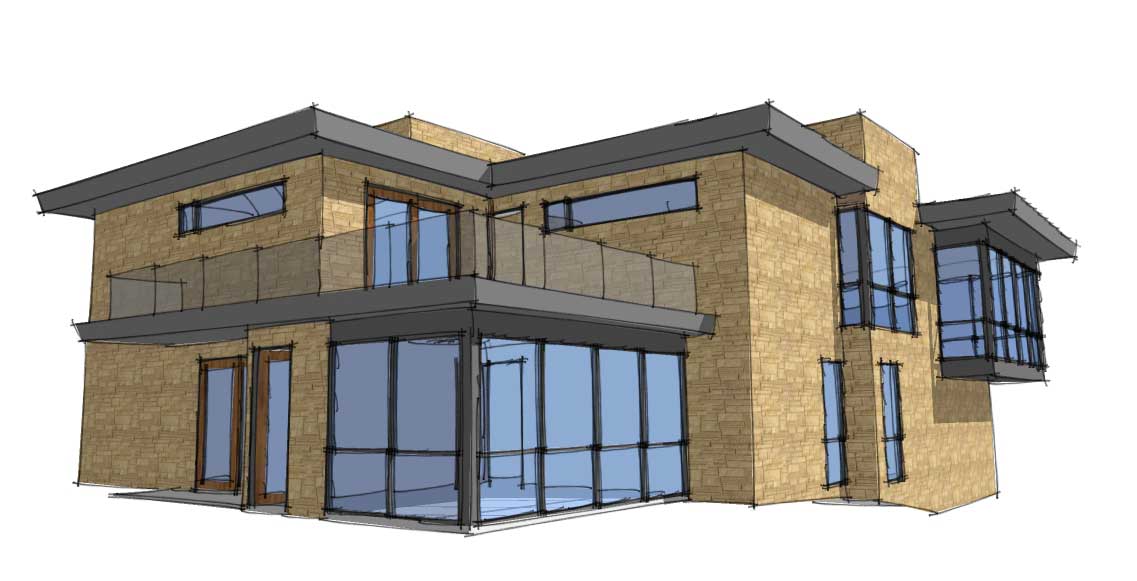

Home Plan Rear Elevation

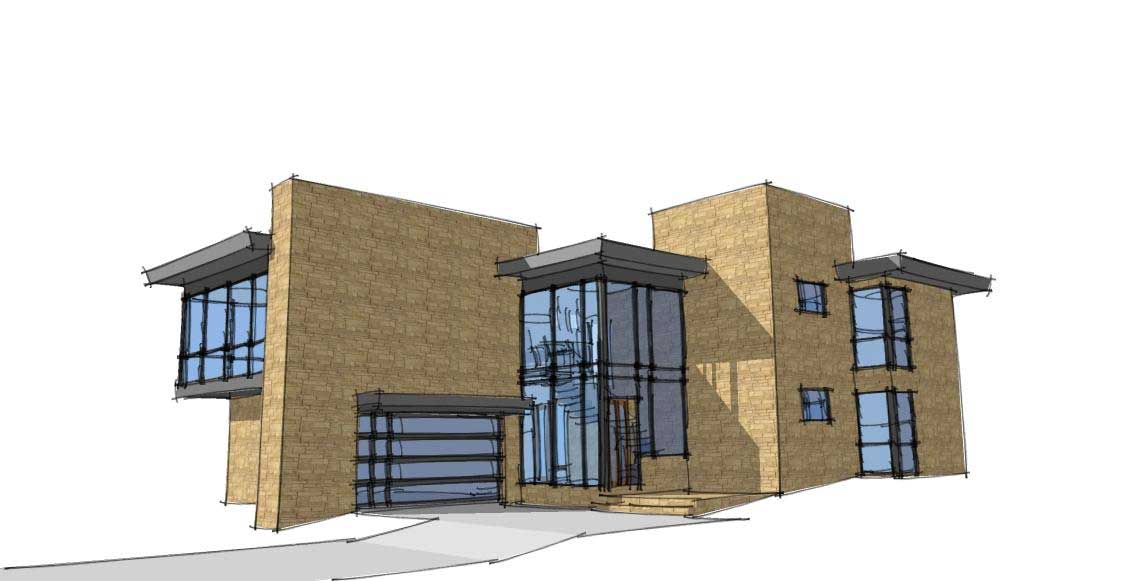

4-Bedroom, 3469 Sq Ft Contemporary Home - Plan #116-1028 - Main Exterior
Home Plan Rendering
Home Plan 3D Image
Home Plan 3D Image
Home Plan Rear Elevation

About Plan # 116-1028

About Plan # 116-1028

3469 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 52' 0" WIDTH 69' 0" DEPTH 2 GARAGE BAY

This unusual home is impressive from the very first moment that it comes into view, but it just keeps getting better. As a guest, you'd immediately notice the awesome two-story glass foyer greeting you as you approach the house, but you would also find that the Modern style house is unique in several ways. Unlike many homes, the first story of the house is devoted mostly to bedrooms; Bedroom 2, in particular, is very nice. At 17' ft. 6 in. x 13 ft. 6 in., it definitely won't have you feeling cramped; but you also get a monstrous walk-in clost, a private bath, and sliding doors leading out to a private porch.

There is a large family room on the main floor, but the thing that really sets the home apart is the fact that the hang-out areas are all located upstairs; because of this, older homeowners (and the occasional mother with her arms full of groceries) are sure to appreciate the elevator. All of thee rooms here have an open, glassy feel to them – especially the 25-ft. x 22-ft. living room, which even has an angled glass railing separating it from the dining room and kitchen area.

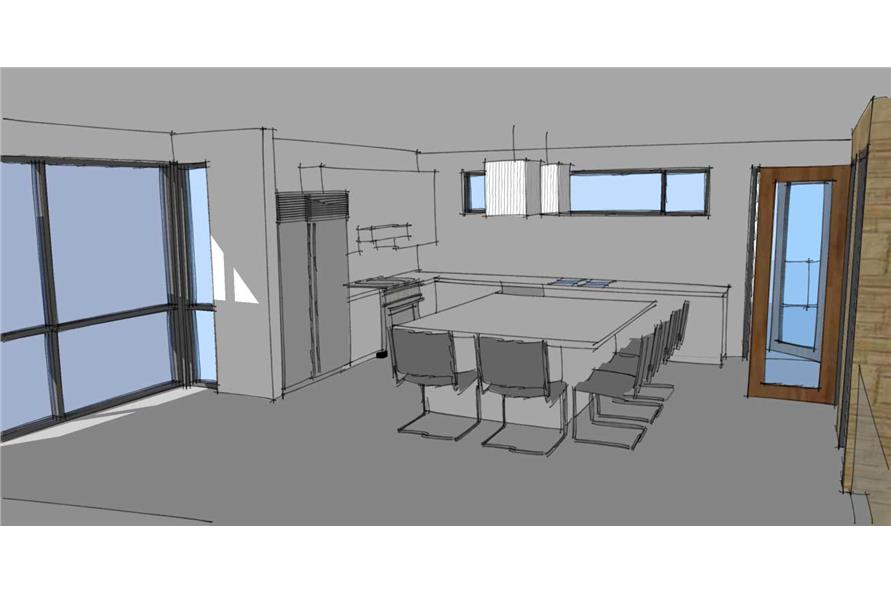

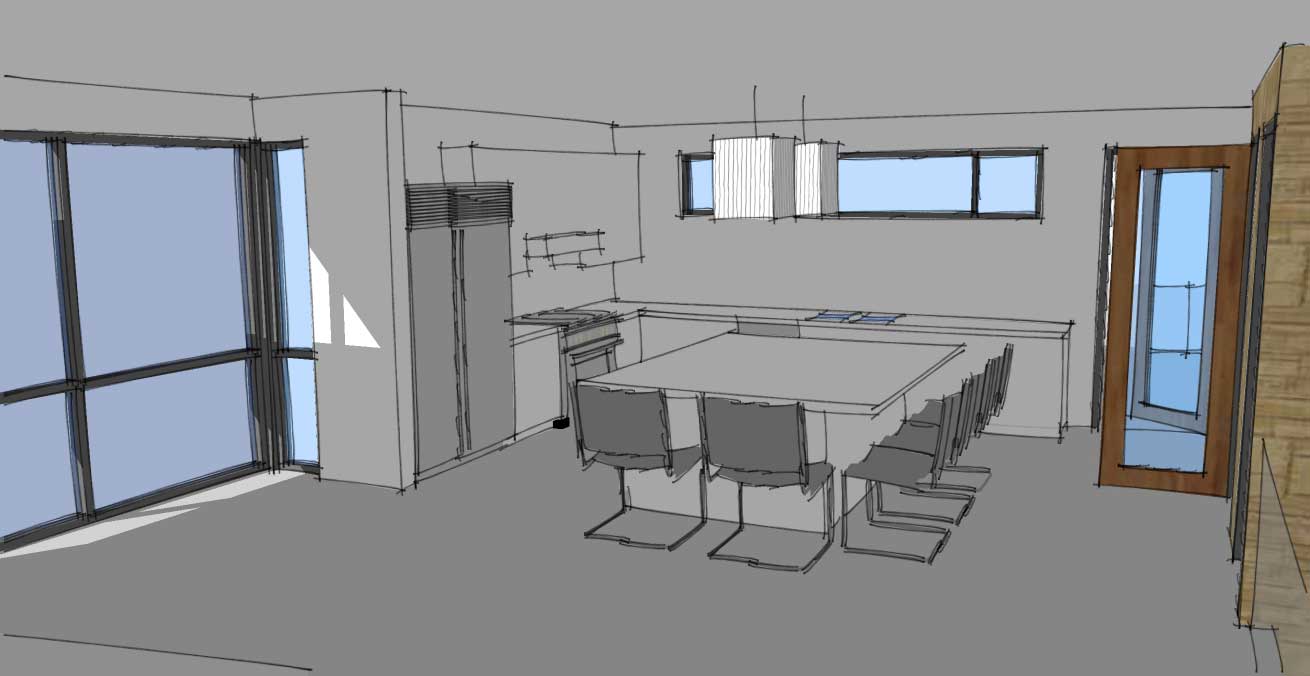

Speaking of the kitchen, it is also open and has a huge island – perfect for informal family meals. The house also has an amazing sundeck/balcony on the second level.

This home is one of the few floor plans that is able to successfully mingle great modern style with convenient modern living.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

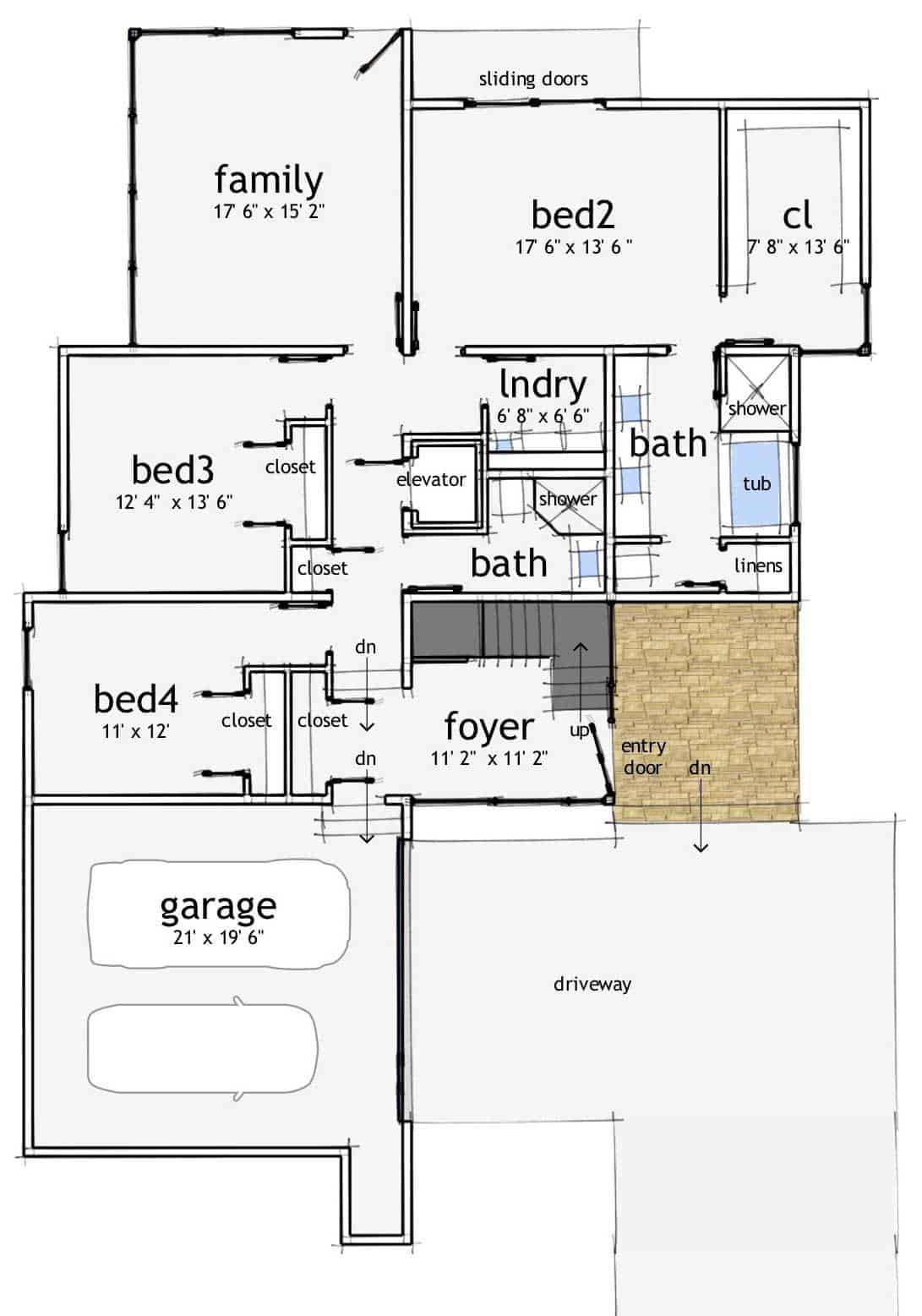

Home Plan: #116-1028 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #116-1028

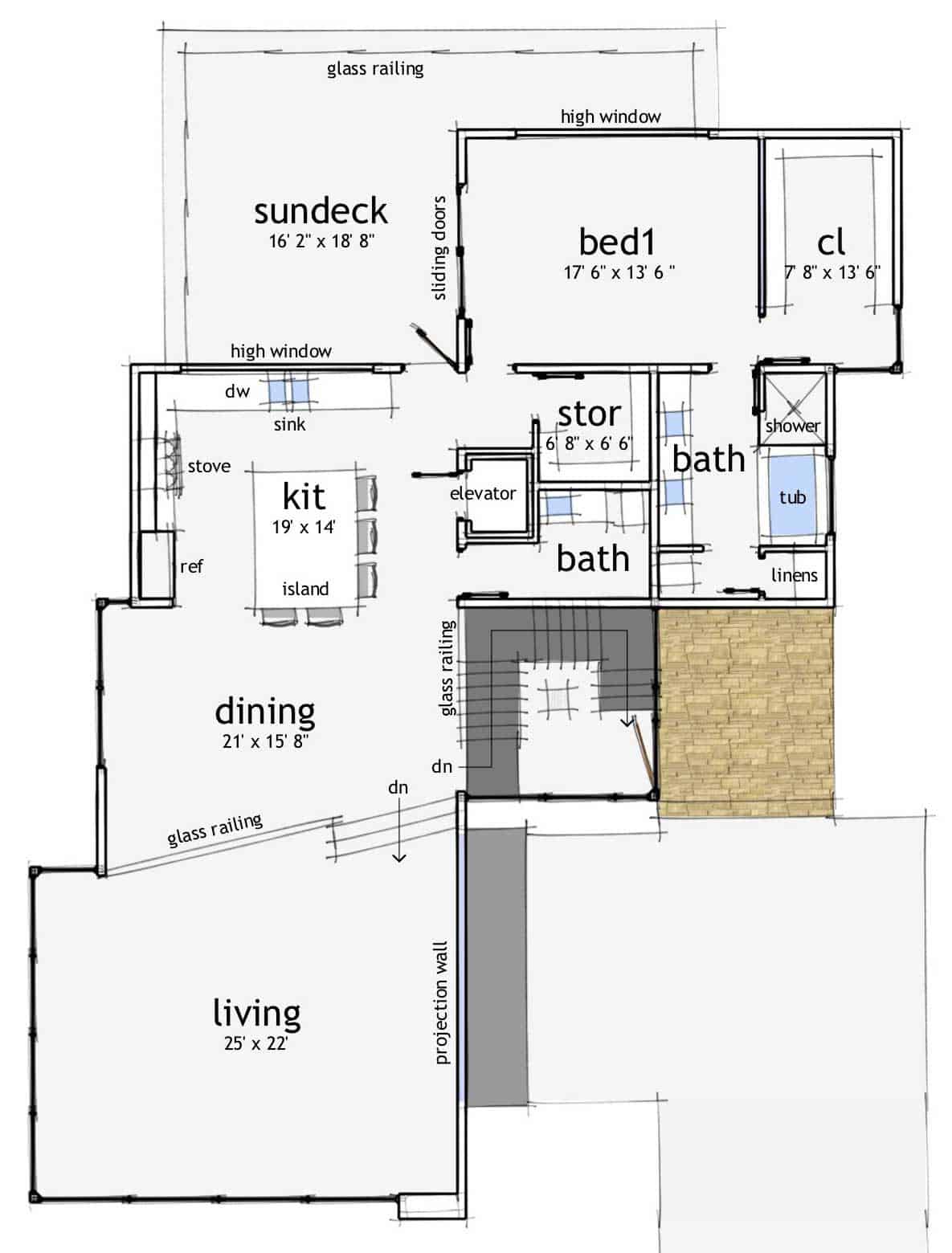

#116-1028 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #116-1028
Home Plan: #116-1028 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #116-1028
#116-1028 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #116-1028
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1028
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3469
Main Floor:
1626
Upper Floor:
1843
Unfinished Sq Ft:

Dimensions

Width:
52' 0"
Depth:
69' 0"
Ridge Height:
31' 0"

Architectural Styles

California Style
Contemporary
Luxury
Modern

Exterior Wall Material

Brick

Roofing Type

Flat

Roofing Material

Tar

Special Feature

Dining Room
Elevator
Family Room
L-Shaped
Main Level Laundry
Open Floor Plan
Split Bathroom

Garage Type

Attached Garage
Courtyard Entry

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Second Floor Master
Split Master Bedroom
Two or More Master Suites
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
