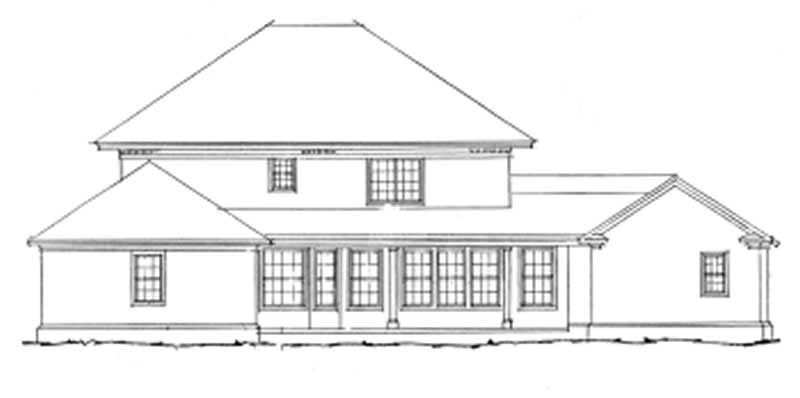

REAR ELEVATION

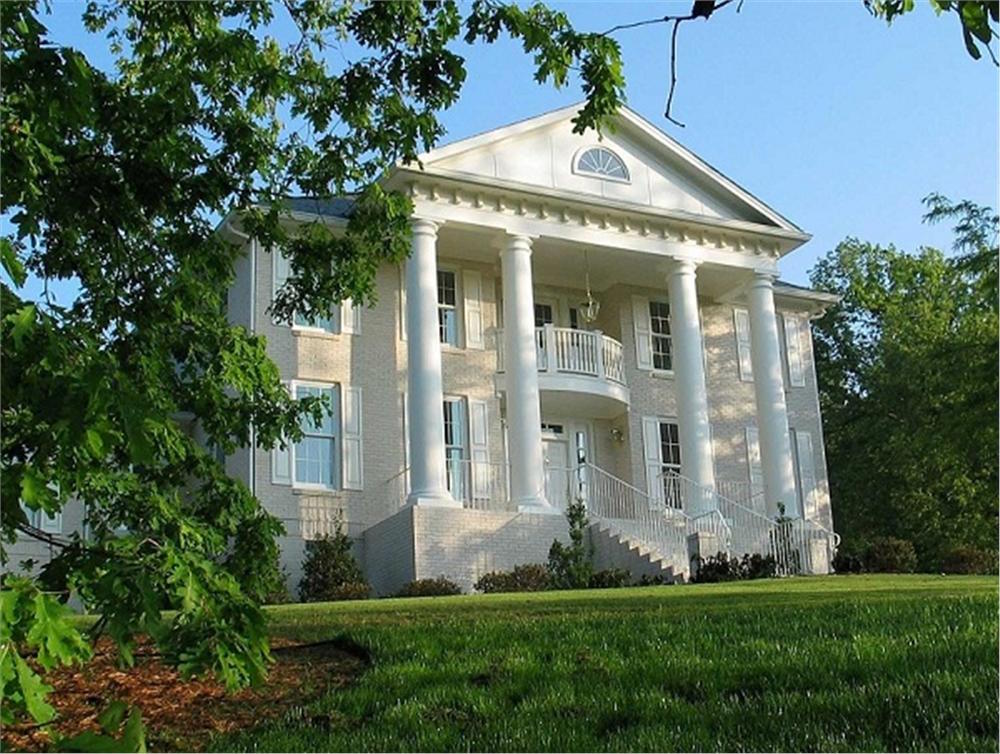

178-1034: Home Exterior Photograph

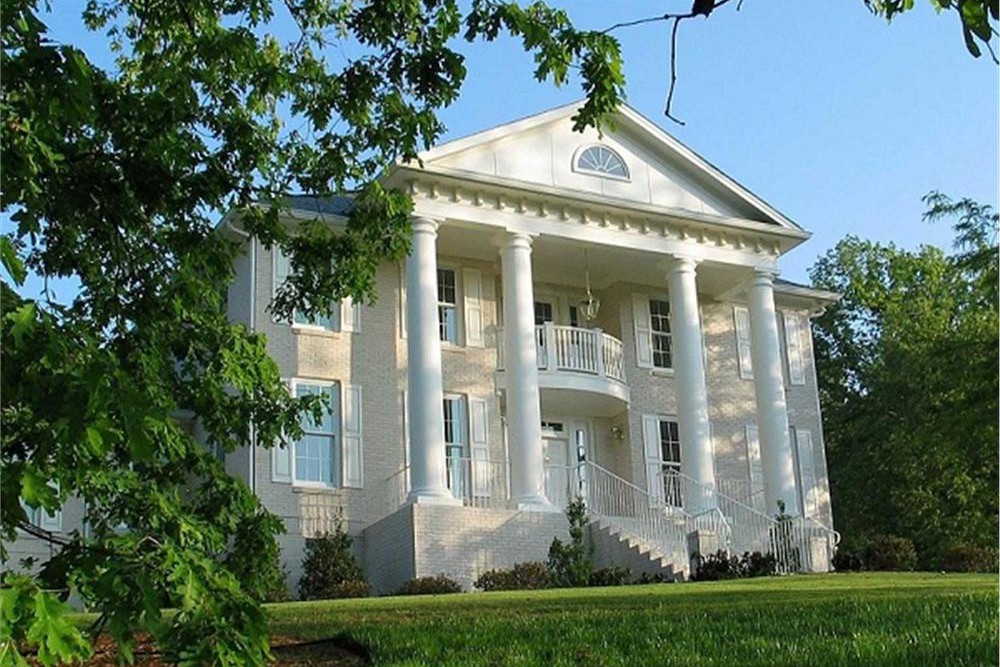

4-Bedroom, 3270 Sq Ft Colonial Home Plan - 178-1034 - Main Exterior
REAR ELEVATION

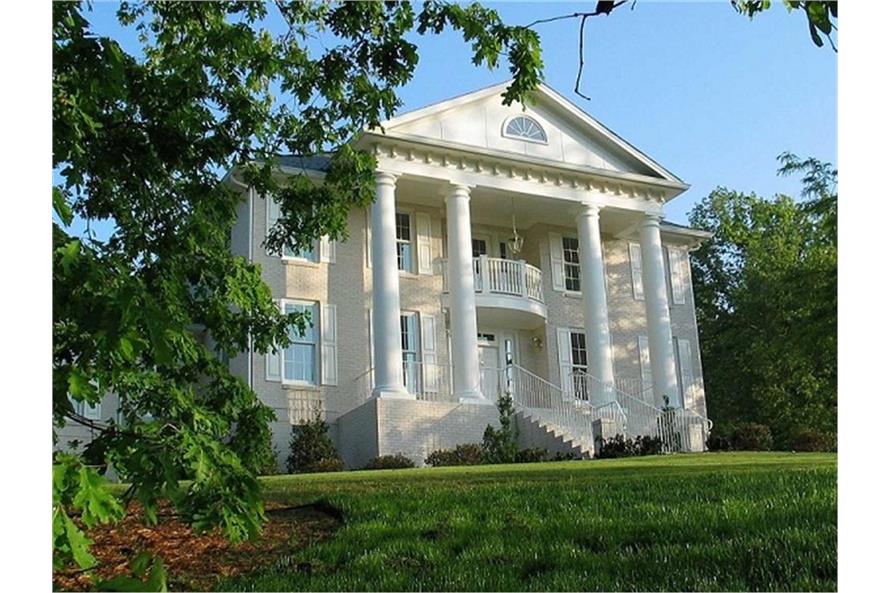

178-1034: Home Exterior Photograph

About Plan # 178-1034

About Plan # 178-1034

3270 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 73' 0" WIDTH 78' 0" DEPTH 3 GARAGE BAY

This lovely Colonial style home plan with Southern influences (House Plan #178-1034) has 3270 square feet of living space. The 2 story floor plan includes 4 bedrooms, 3 full bathrooms, and 1 half bath.

Take one look at the covered front porch, and it immediately feels like home. Meanwhile, everything else has the same home-like quality. The study, dining room, living room, and master bedroom all make the main floor into a comfortable family gathering place. The second floor also brings that feeling with a fun game room, TV area, and Juliet balcony.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

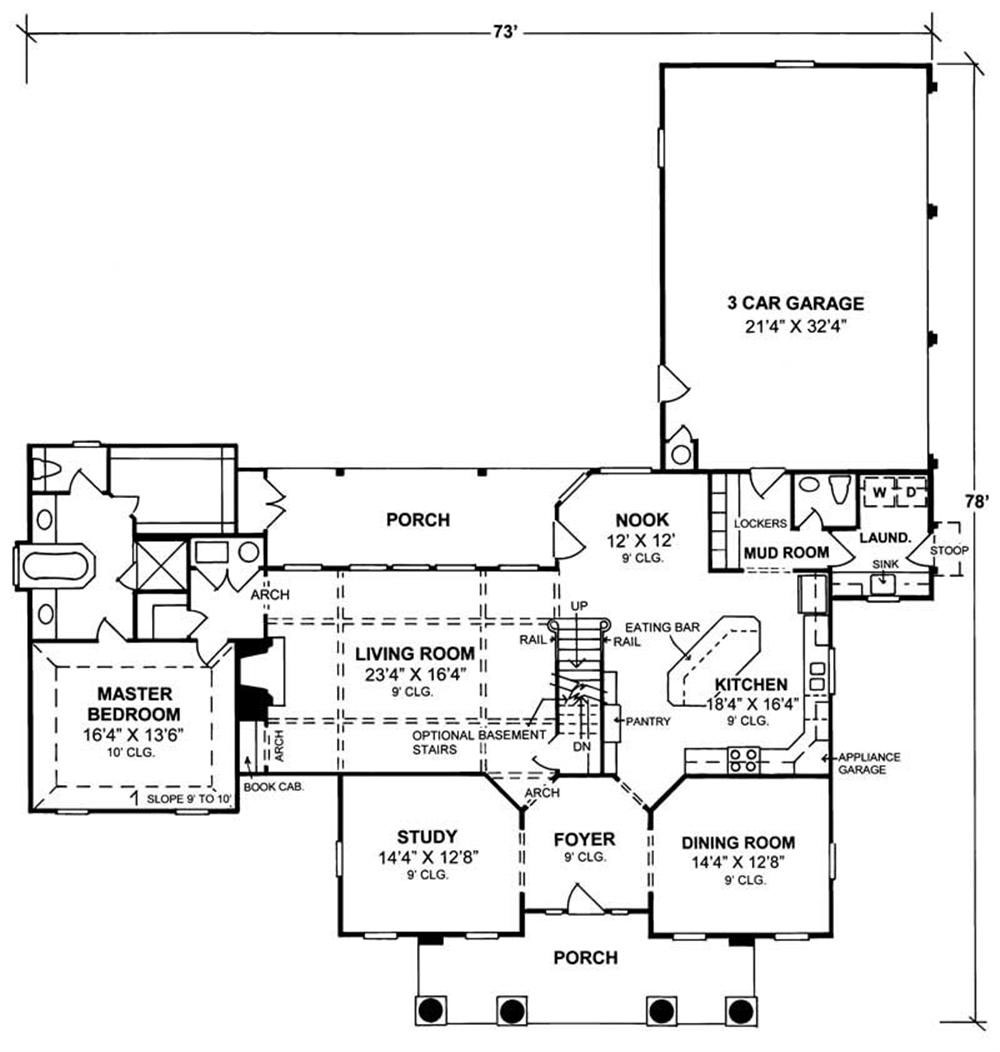

Home Plan: #178-1034 Floor Plan First Story - first story Floor Plan First Story of Colonial Plan #178-1034

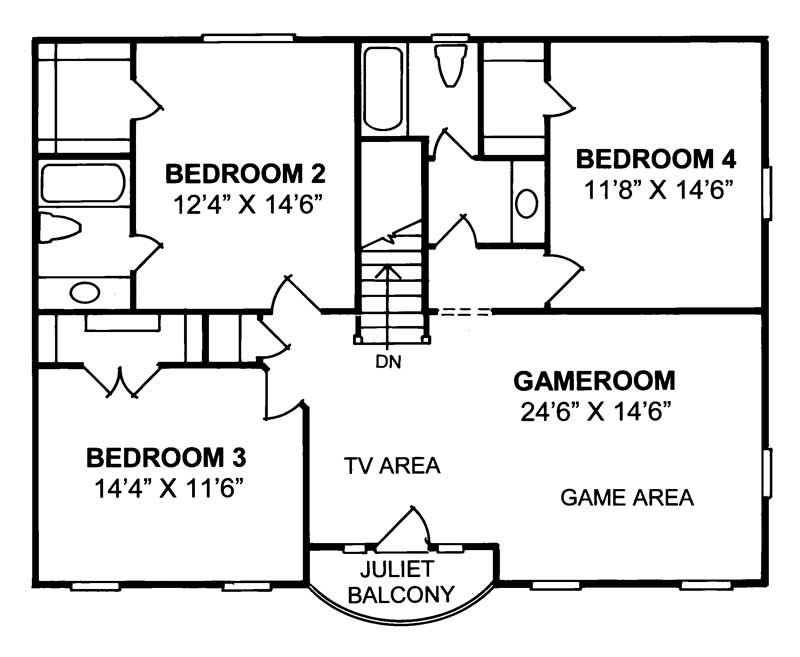

#178-1034 Floor Plan Second Story - upper level Floor Plan Second Story of Colonial Plan #178-1034
Home Plan: #178-1034 Floor Plan First Story - first story Floor Plan First Story of Colonial Plan #178-1034
#178-1034 Floor Plan Second Story - upper level Floor Plan Second Story of Colonial Plan #178-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1034
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
3270
Main Floor:
2070
Upper Floor:
1200
Unfinished Sq Ft:

Dimensions

Width:
73' 0"
Depth:
78' 0"
Ridge Height:
32' 0"

Architectural Styles

Colonial
Southern
Luxury
Traditional
Georgian
Historic

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Special Feature

Mother in law apartment
Fireplace
Dining Room
Home Office
Mud Room
Game Room
Main Level Laundry
Color Photos
Split Bathroom
Balcony
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
