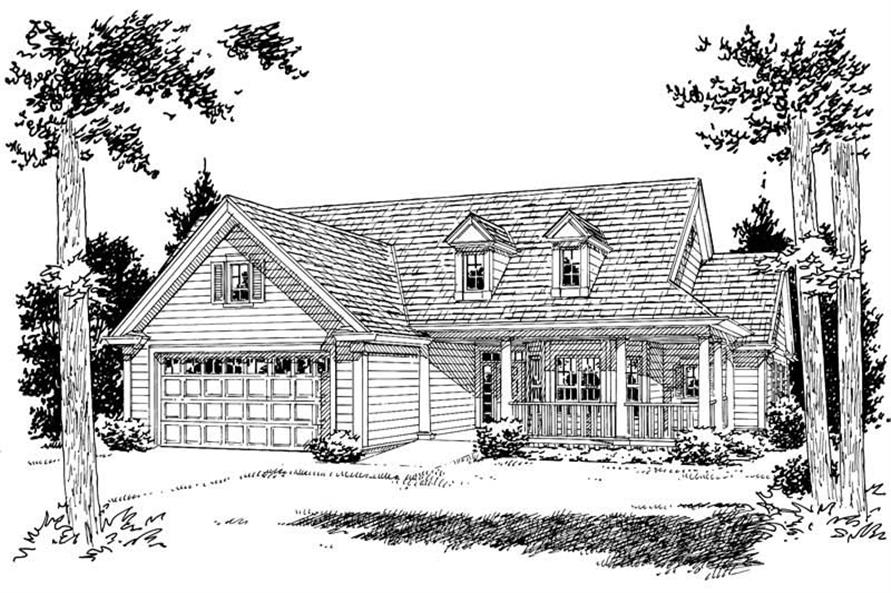

Front elevation of Country home (ThePlanCollection: House Plan #178-1073)

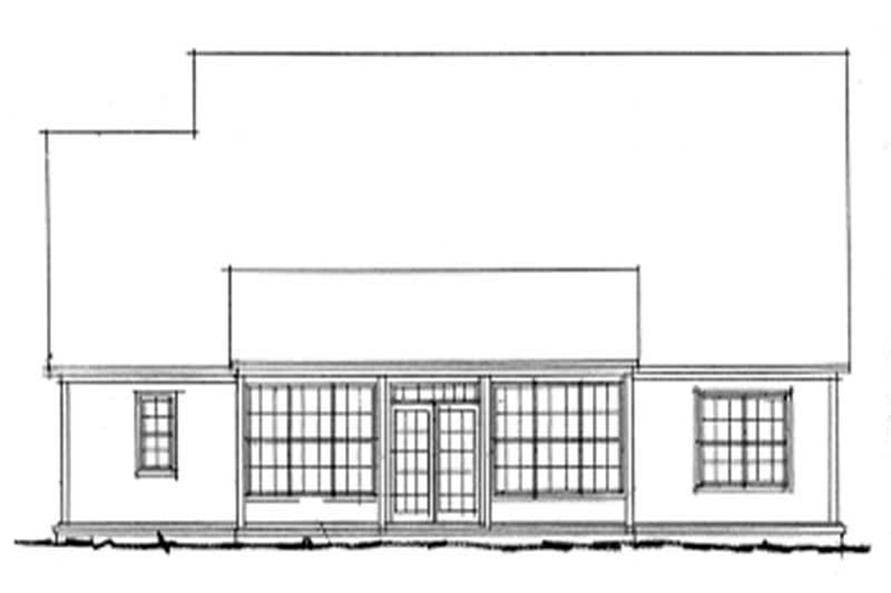

178-1073: Home Plan Rear Elevation

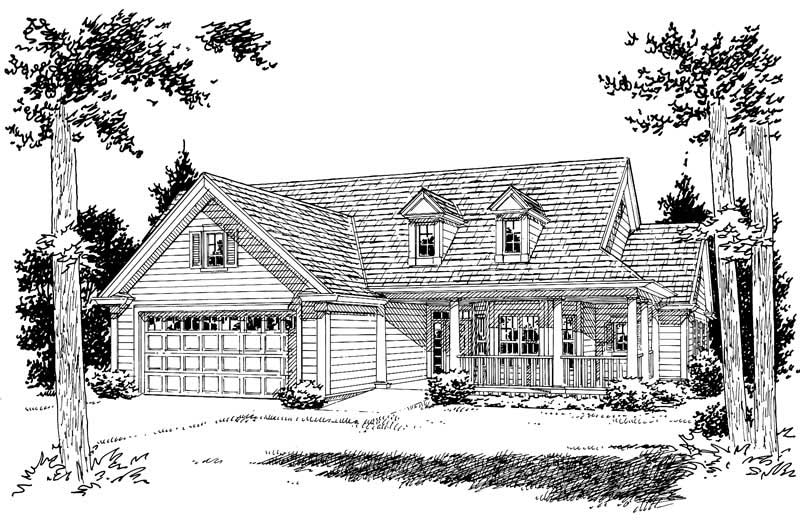

178-1073: Home Other Image-Front View

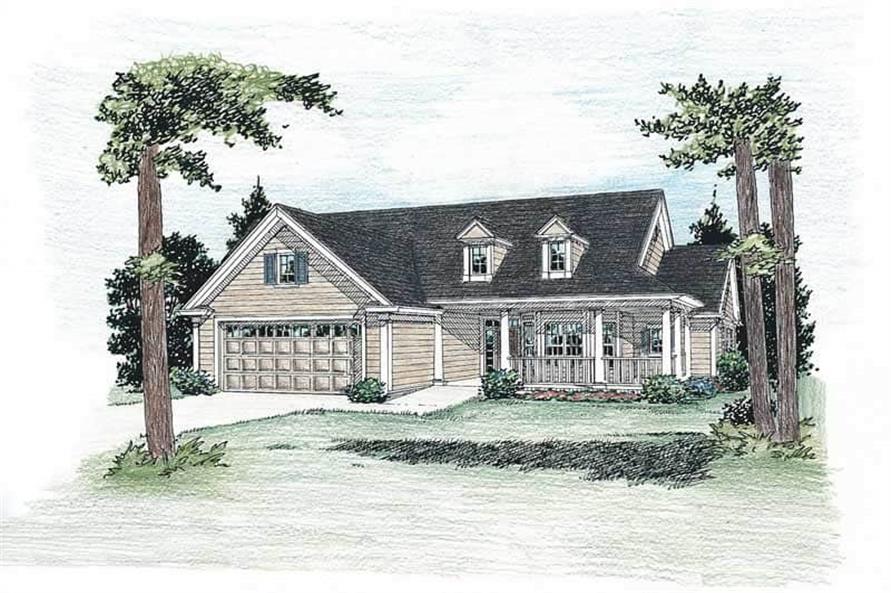

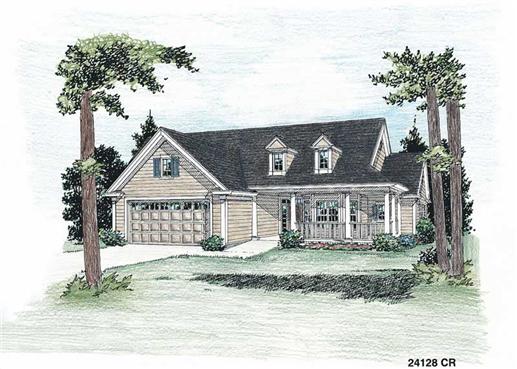

3-Bedroom, 1859 Sq Ft Country Home Plan - 178-1073 - Main Exterior
178-1073: Home Plan Rear Elevation
178-1073: Home Other Image-Front View

About Plan # 178-1073

About Plan # 178-1073

1859 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 53' 0" WIDTH 64' 0" DEPTH 2 GARAGE BAY

This country ranch home plan features a friendly atmosphere with an open layout. The dining room, upon entry, adds a touch of elegance, while the rest of the home is open and large. The kitchen is particularly generous in a smaller home. The living room is large, and the bedrooms remain secluded. This home features universal (wheelchair) access.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

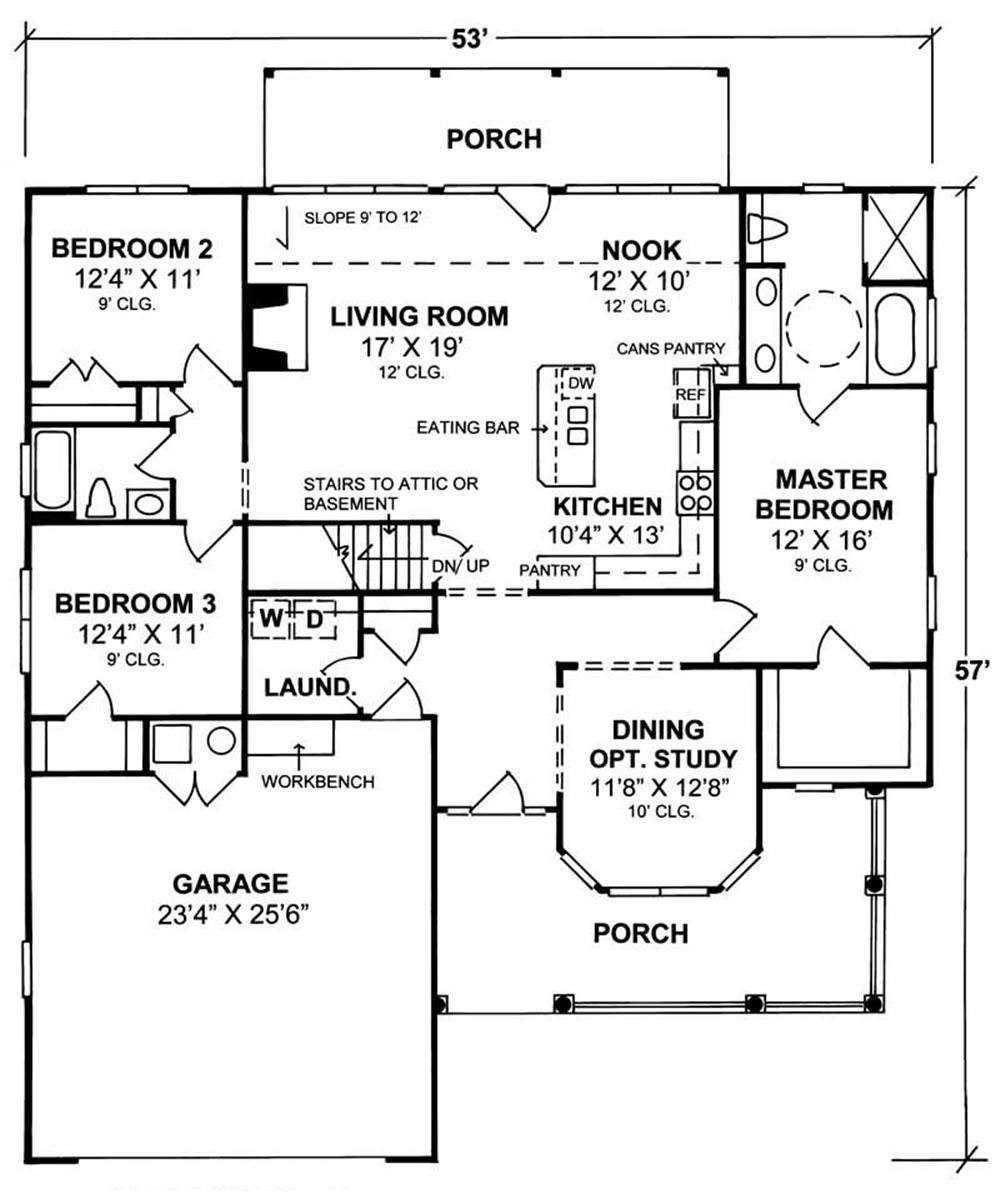

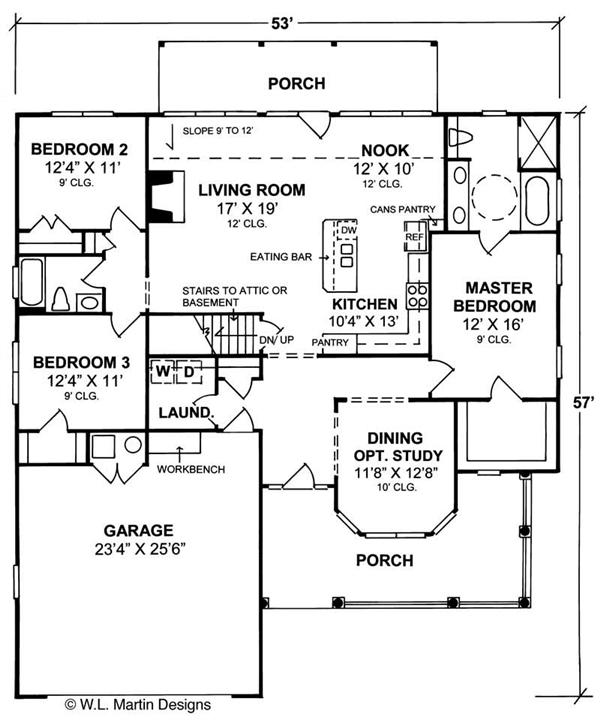

Home Plan: #178-1073 Floor Plan First Story - first story Floor Plan First Story of Country Plan #178-1073
Home Plan: #178-1073 Floor Plan First Story - first story Floor Plan First Story of Country Plan #178-1073
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1073
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1859
Main Floor:
1859
Unfinished Sq Ft:

Dimensions

Width:
53' 0"
Depth:
64' 0"

Architectural Styles

Country
Ranch
Traditional
Transitional
Handicap Accessible

Exterior Wall Material

Vinyl Siding

Roofing Type

Hip

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Dining Room
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
