3-Bedroom, 1800 Sq Ft Craftsman Ranch Plan with Bonus Room

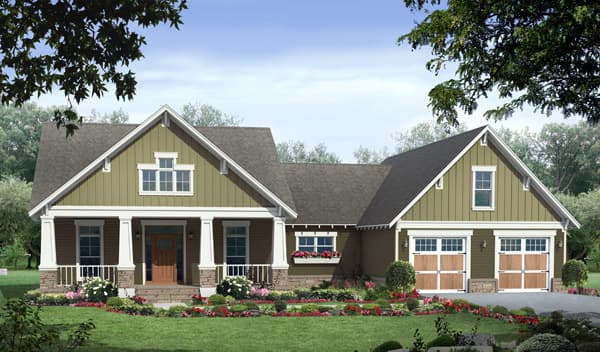

Color rendering of Ranch home plan (ThePlanCollection: House Plan #141-1239)

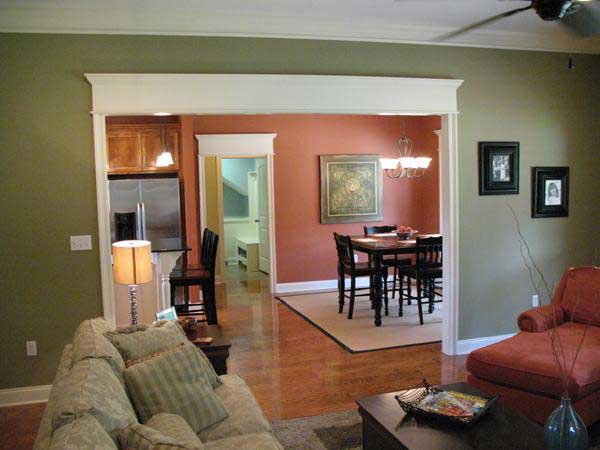

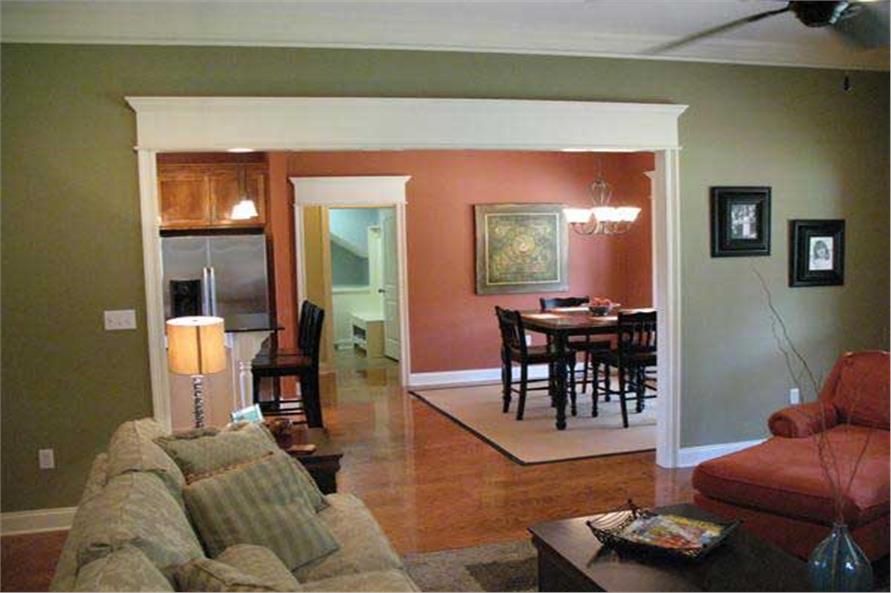

141-1239 house plan foyer into great room

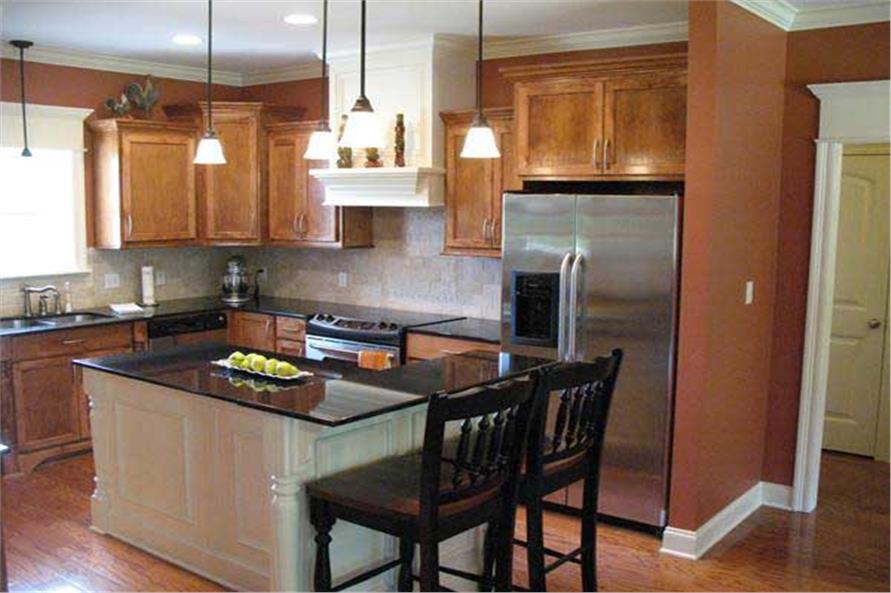

141-1239 house plan kitchen 1

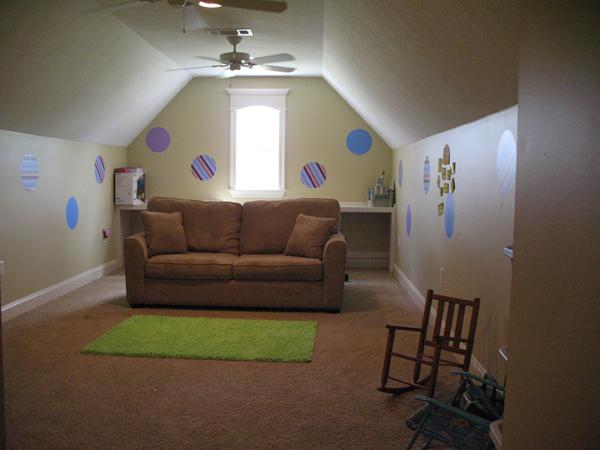

141-1239 house plan bonus room

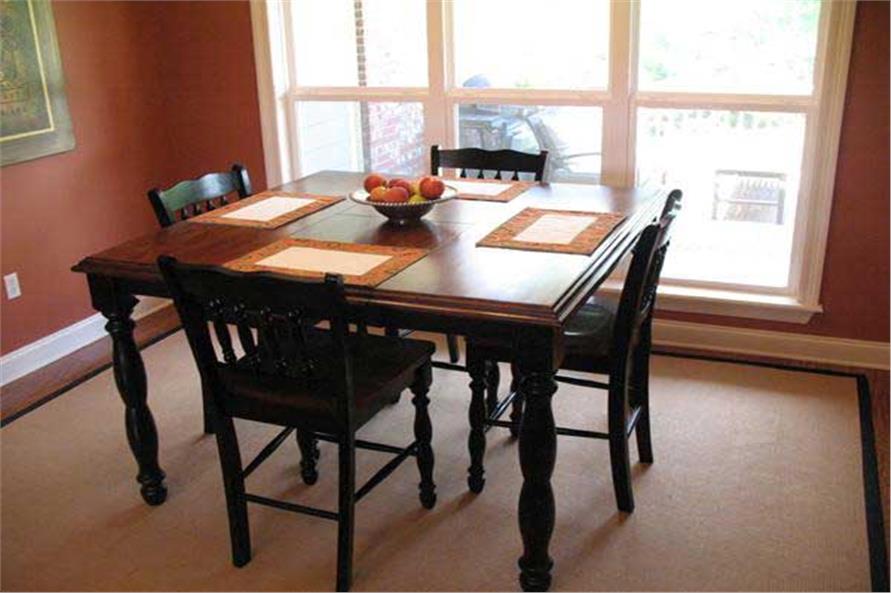

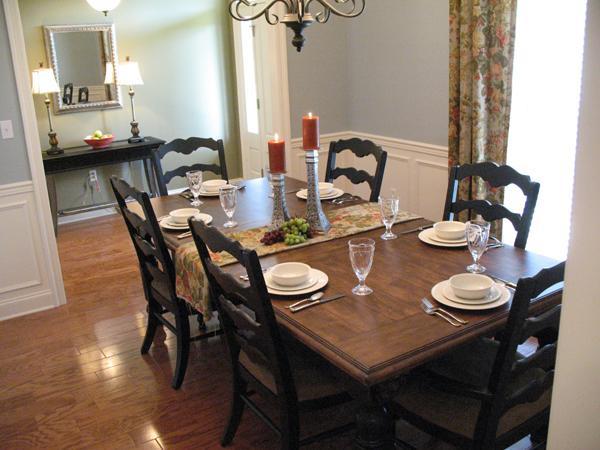

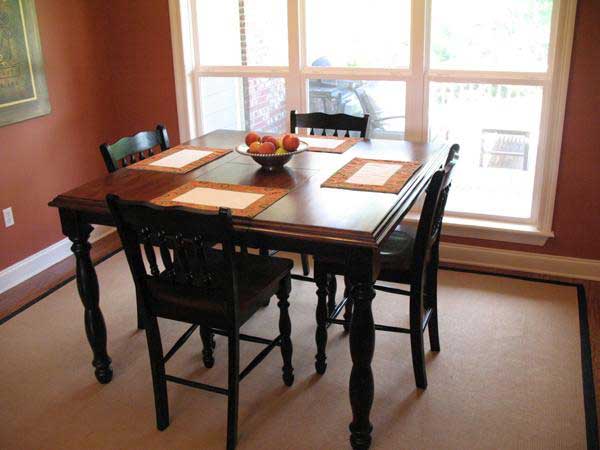

141-1239 dining room

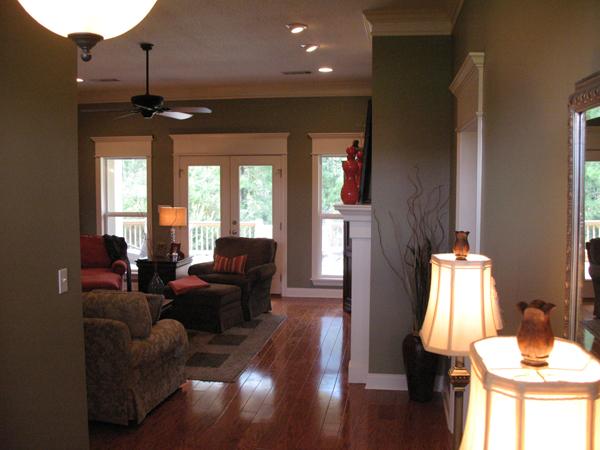

141-1239 great room

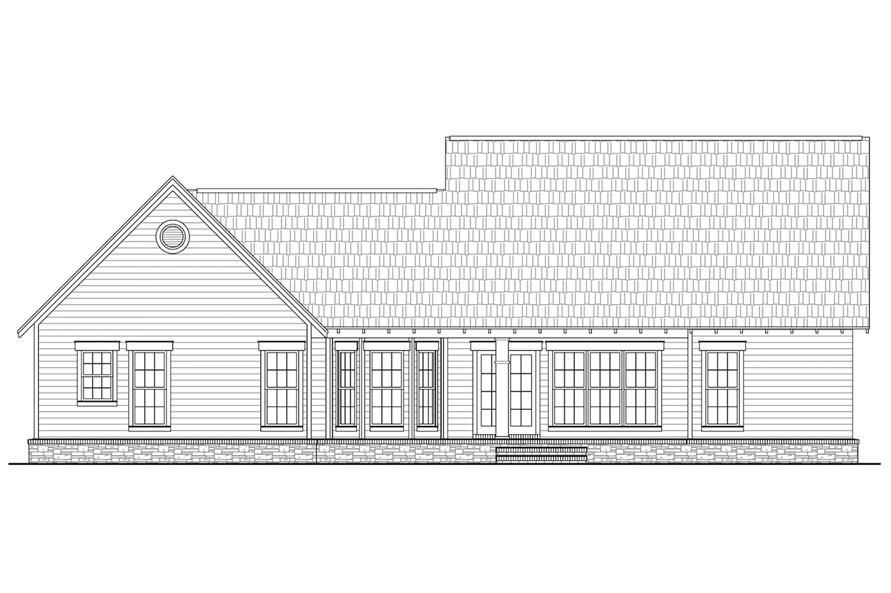

141-1239: Home Plan Rear Elevation

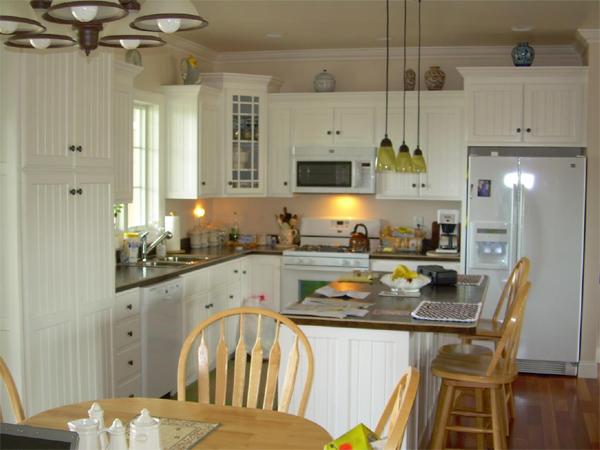

141-1239: Home Interior Photograph-Kitchen
141-1239: Home Interior Photograph-Kitchen: Breakfast Nook

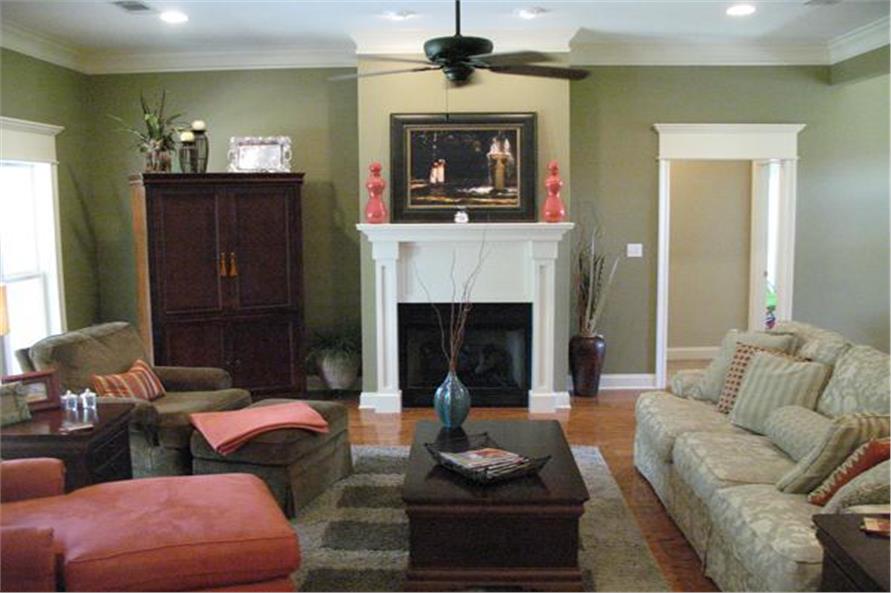

141-1239: Home Interior Photograph-Great Room
3-Bedroom, 1800 Sq Ft Ranch Home Plan - 141-1239 - Main Exterior
141-1239 house plan foyer into great room
141-1239 house plan kitchen 1
141-1239 house plan bonus room
141-1239 dining room
141-1239 great room

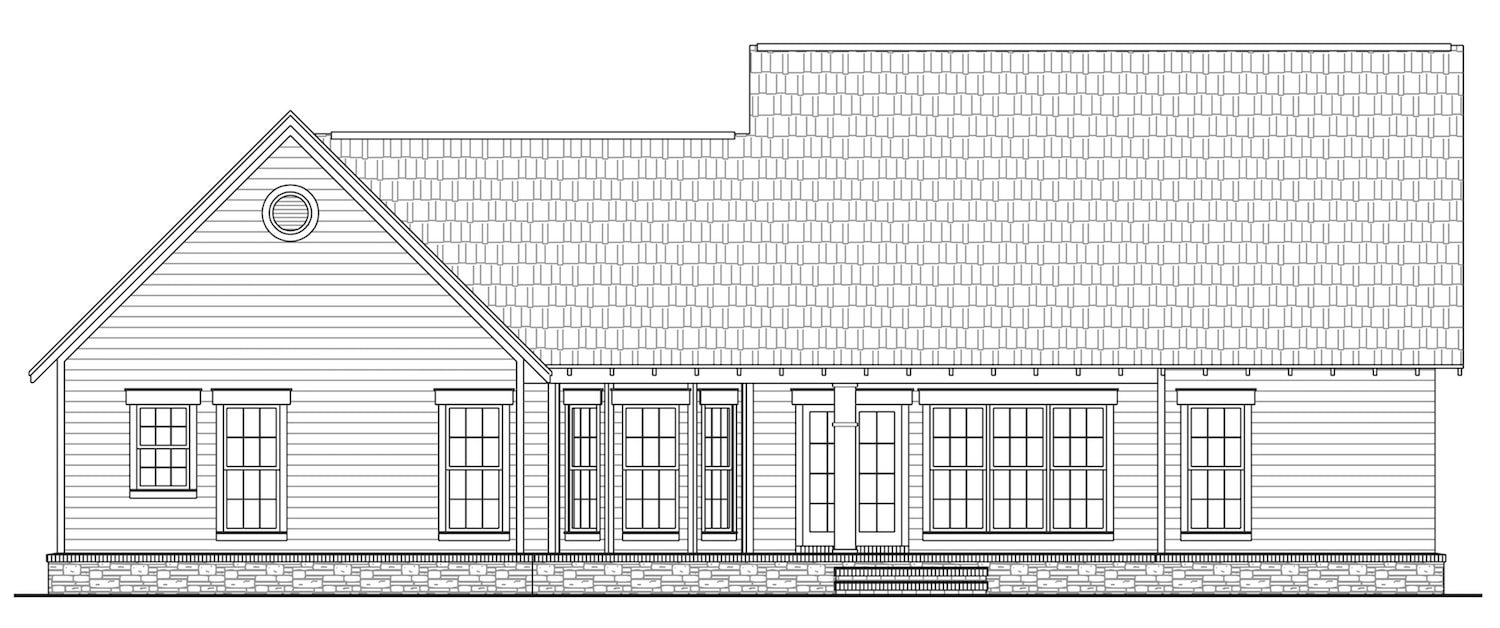

141-1239: Home Plan Rear Elevation
141-1239: Home Interior Photograph-Kitchen
141-1239: Home Interior Photograph-Kitchen: Breakfast Nook
141-1239: Home Interior Photograph-Great Room

About Plan # 141-1239

About Plan # 141-1239

1800 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 65' 0" WIDTH 56' 8" DEPTH 2 GARAGE BAY

This charming ranch-style home plan with Craftsman influences (Plan #141-1239) has 1800 square feet of living space. The 1-story floor plan includes 3 bedrooms.

From the front porch to the rear, every aspect of the home plan is designed for all your family's needs.

Opening into a lovely foyer, the floor plan invites you into the great room, impressive with its vaulted ceiling, and a gas log fireplace, perfect for the family that loves to entertain. The great room connects with the open kitchen. The kitchen has an island counter and bar plus breakfast area. The flex space can be used as a dining area or a study.

The master suite, with a grand walk-in closet, jetted tub, and separate toilet, is located on the other side of the home plan, along with the laundry room and two-car garage with storage area. The house plan also features a bonus room on the upper level. This plan is packed to the roof with features and opportunities

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

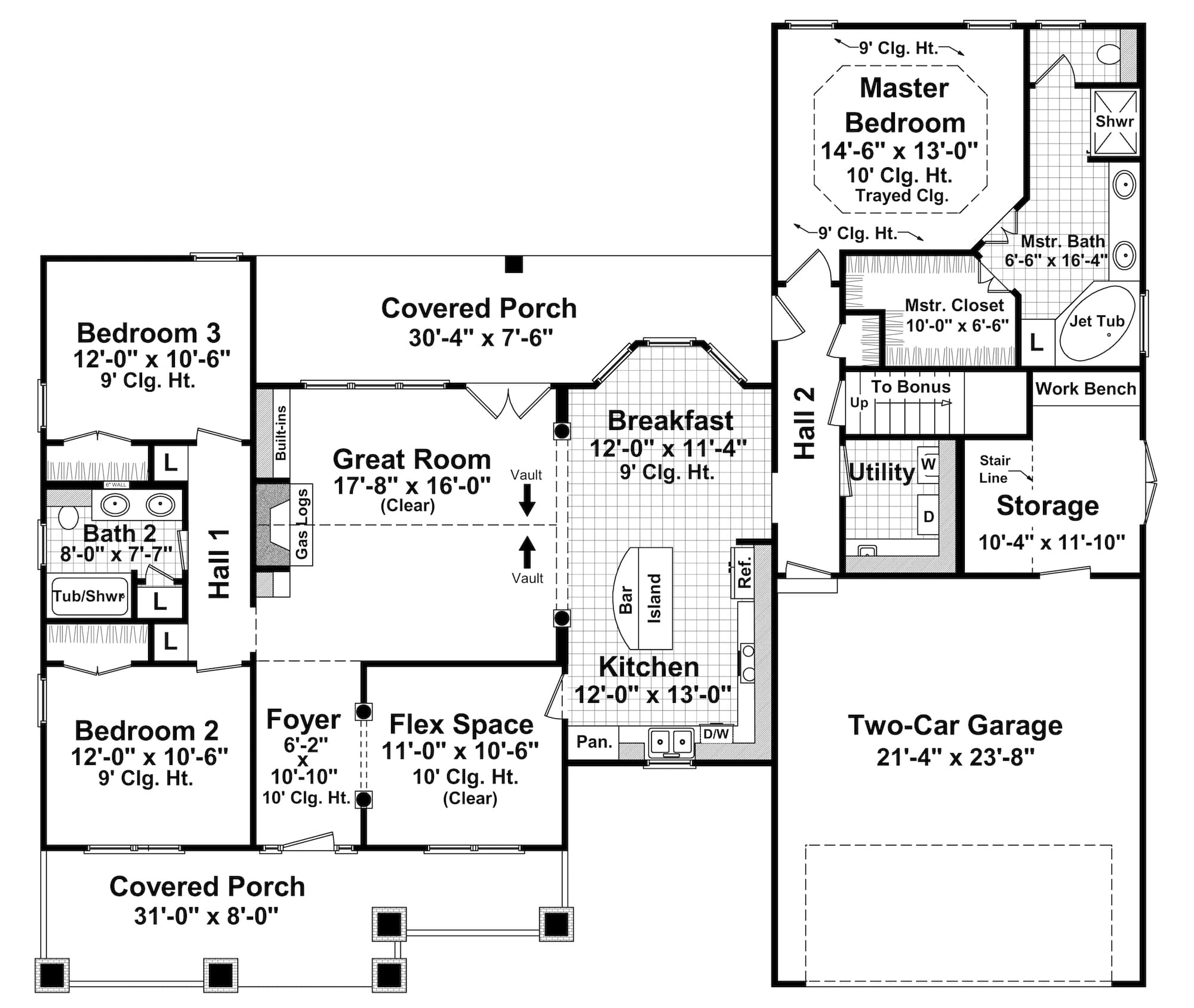

Home Plan: #141-1239 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #141-1239

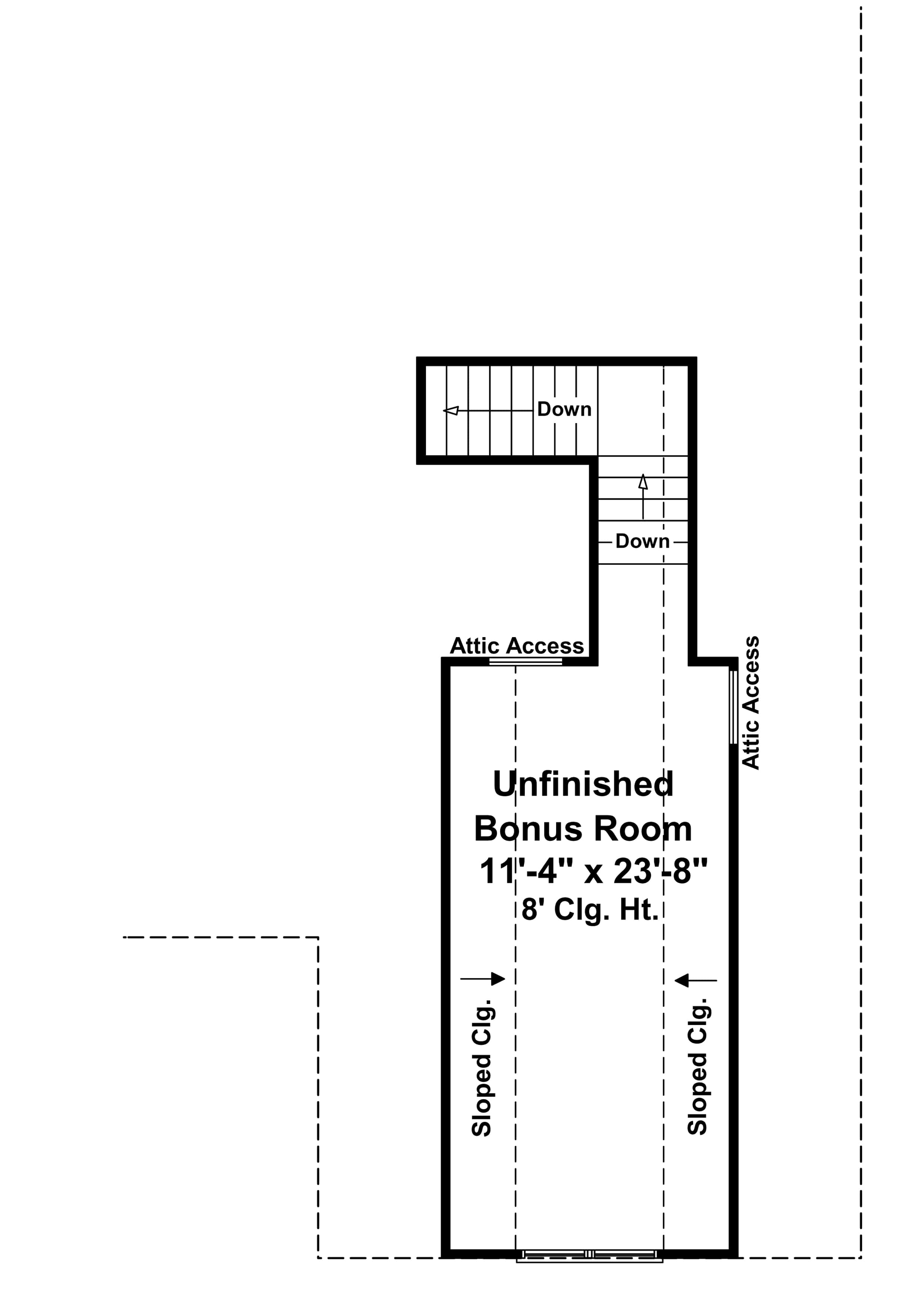

#141-1239 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #141-1239
Home Plan: #141-1239 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #141-1239
#141-1239 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Ranch Plan #141-1239
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1239
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1800
Main Floor:
1800
Unfinished Sq Ft:
Bonus Room:
326
Garage :
680
Porch :
429

Dimensions

Width:
65' 0"
Depth:
56' 8"
Ridge Height:
23' 7"

Architectural Styles

1 1/2 Story
Arts and Crafts
Country
Craftsman
Farmhouse
Ranch
Southern
Traditional

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Energy Efficient
Family Room
Fireplace
Interior Photos
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
