Ranch home (ThePlanCollection: Plan #141-1318)

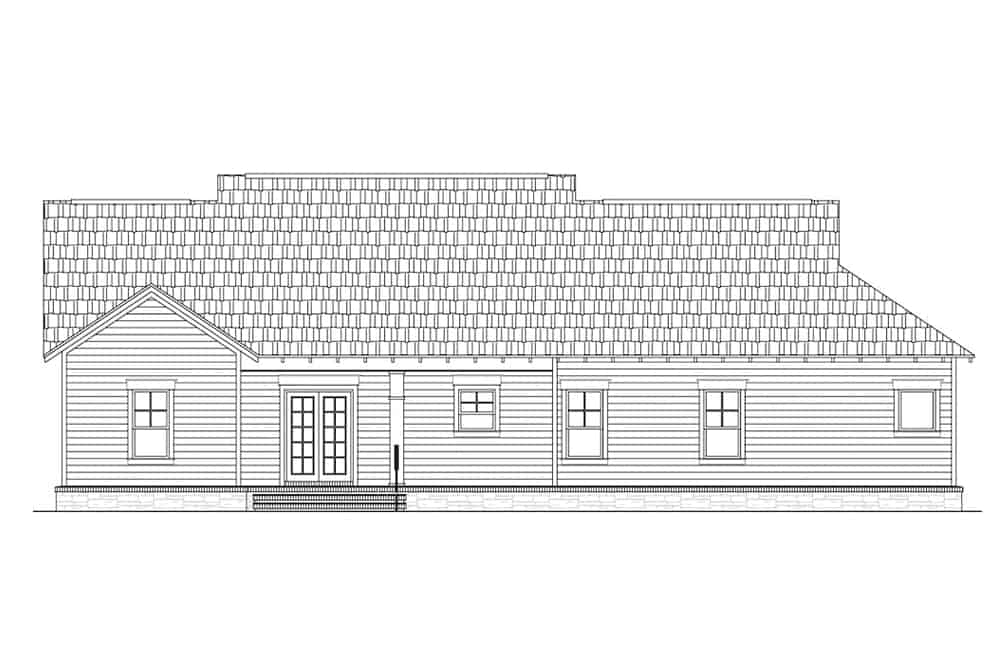

141-1318: Home Plan Rear Elevation
3-Bedroom, 1800 Sq Ft Ranch Home - Plan #141-1318 - Main Exterior
141-1318: Home Plan Rear Elevation

About Plan # 141-1318

About Plan # 141-1318

1800 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 65' 0" WIDTH 52' 10" DEPTH 2 GARAGE BAY

This inviting ranch with a total heated area of 1,800 square feet includes all the features you and your family have always dreamed of. The well-appointed floor plan design uses every available space while providing many extras that you would expect to find in a much larger home. The elegant combination of stones and siding materials will capture your heart as you pass along. This house is definitely a must-have for you and your family.

Upon stepping to the front of the house, a nice-looking two-layered front porch roof will usher you to walk into this great room with trayed ceilings, built-in cabinets, and a gas log fireplace. An eating area is provided within close proximity to the well-equipped kitchen and features beautiful views. The kitchen includes an eating bar and island that provides plenty of cabinets and counter space. The front and back porch can serve as an overflow area during festive occasions or gatherings.

The 607-square-foot 2-car garage with its wooden entry point at the front and a nice clerestory window give it an excellent appeal to this house. This oversized garage is large enough for today's vehicles and includes a separate storage area. It also provides a very flexible layout and private access to the master bedroom. The master suite features vaulted ceilings and a large walk-in closet, tub and separate shower, dual lavatories, and an enclosed toilet area. The other two bedrooms are well-sized with closets and share a compartmented bathroom.

Other amenities provided by this house include the laundry room, media & hobby room, a comfortable fireplace, and ample amount of storage spaces. This design truly features everything that makes a house a home.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

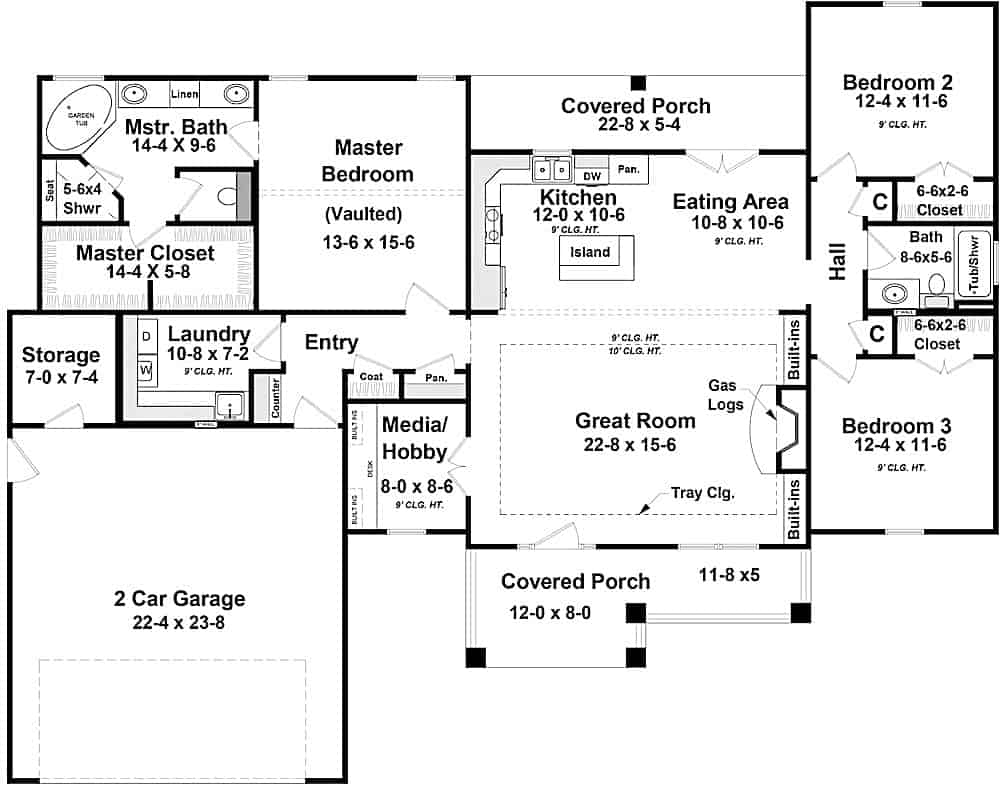

Home Plan: #141-1318 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #141-1318
Home Plan: #141-1318 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #141-1318
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1318
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1800
Main Floor:
1800
Unfinished Sq Ft:
Garage :
607
Porch :
286

Dimensions

Width:
65' 0"
Depth:
52' 10"

Architectural Styles

Country
Ranch
Cottage

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Media Room
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)! USDA Approval is available for this plan. If interested, submit a modification request for a free quote. What is USDA Approval? Certification that a particular house plan meets the housing requirements of the US Department of Agriculture's Rural Housing Service. This is one of the requirements if you intend to apply for a loan through the Rural Housing Service.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
