4-Bedroom, 2988 Sq Ft Craftsman Plan with Guest Bedroom

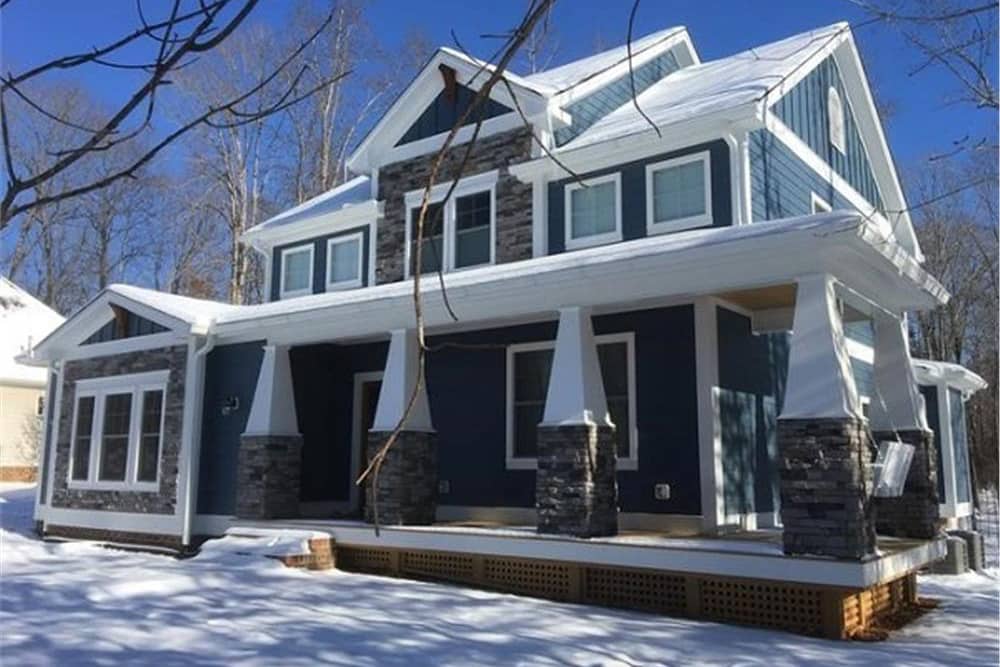

Color photograph of Craftsman home plan (ThePlanCollection: House Plan #189-1093)
189-1093: Home Plan Rendering-Front Door
189-1093: Home Plan Rendering
4-Bedroom, 2988 Sq Ft Craftsman Home Plan - 189-1093 - Main Exterior
189-1093: Home Plan Rendering-Front Door
189-1093: Home Plan Rendering

About Plan # 189-1093

About Plan # 189-1093

2988 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 45' 9" WIDTH 55' 10" DEPTH 2 GARAGE BAY

This lovely Luxury style home plan with Craftsman influences (House Plan #189-1093) has 2988 square feet of living space. The 2 story floor plan includes 4 bedrooms and 3 bathrooms.

  • Expansive wraparound porch
  • Large foyer
  • Guest room
  • Open floor plan
  • Kitchen island
  • walk-in pantry
  • Great room with fireplace
  • Sizable Screen porch
  • Laundry room/mudroom
  • 1st-floor master suite
  • Split master bath with access to the laundry room/ water closet
  • Media/bonus room

Each plan set includes the following:

  • PERSPECTIVES: Front exterior color rendering of what the house would look like once built. Aerial view of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FIRST FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • SECOND FLOOR PLAN (if any): Includes the same details as found on the first floor plan.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys. Includes roof framing plan.
  • FRAMING PLANS: Includes the first floor framing, second floor framing, and the second floor ceiling framing plans.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematic defining the location of lighting fixtures, switches, outlets, fans, etc.
  • BUILDING SECTIONS AND DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes eave detail and typical stair detail.
  • INTERIOR PERSPECTIVES & ELEVATIONS: Includes interior perspectives where deemed necessary and kitchen elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

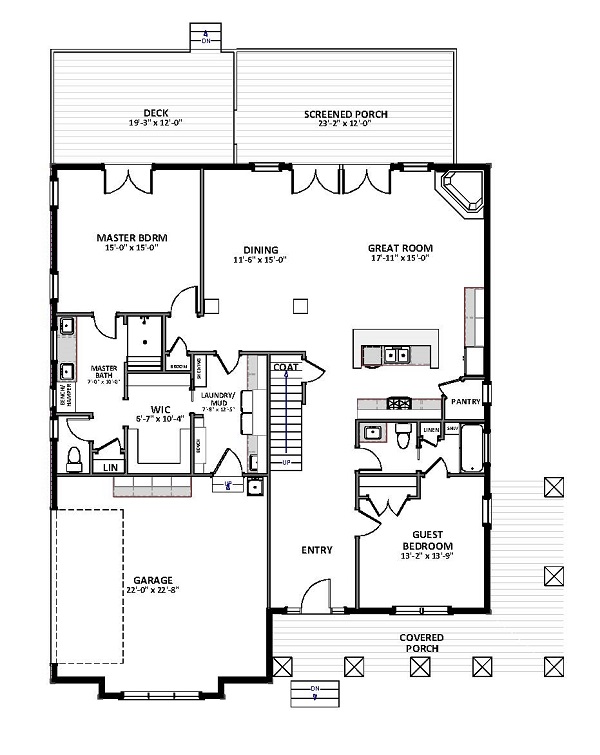

Home Plan: #189-1093 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #189-1093

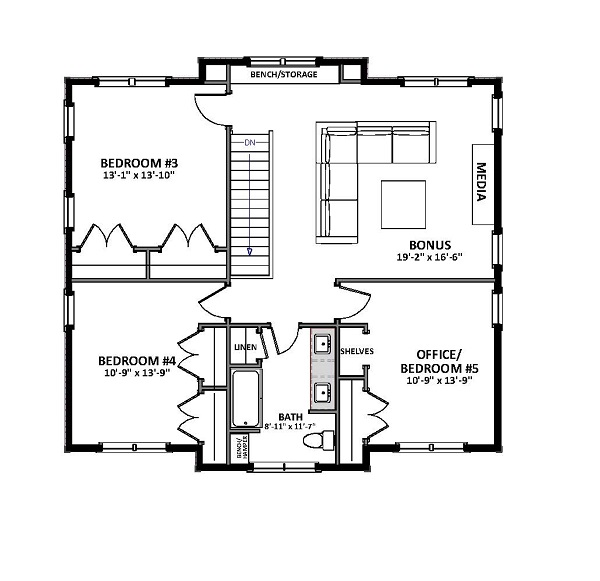

#189-1093 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #189-1093
Home Plan: #189-1093 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #189-1093
#189-1093 Floor Plan Second Story - upper level Floor Plan Second Story of Craftsman Plan #189-1093
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 189-1093
Floors:
2
Bedrooms:
4
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
2988
Main Floor:
1818
Upper Floor:
1170
Unfinished Sq Ft:
Garage :
482
Porch :
492

Dimensions

Width:
45' 9"
Depth:
55' 10"
Ridge Height:
31' 10"

Architectural Styles

Arts and Crafts
Country
Craftsman
Farmhouse
Luxury
Traditional

Exterior Wall Material

Rock/Stone
Vinyl Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling
9 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Fireplace
Guest Room
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please note: The total square footage is 4081.


Please Note: CAD Files for this plan typically take 2-3 additional business days to prepare. PLEASE NOTE: Some options (different foundations, RRR, etc.) may take an additional 2-3 business days to prepare! Please keep this in mind regarding shipping when ordering. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
