4-Bedroom, 3401 Sq Ft Ranch Plan with Main Floor Master

Ranch home (ThePlanCollection: Plan #189-1117)
189-1117: Home Plan Rendering

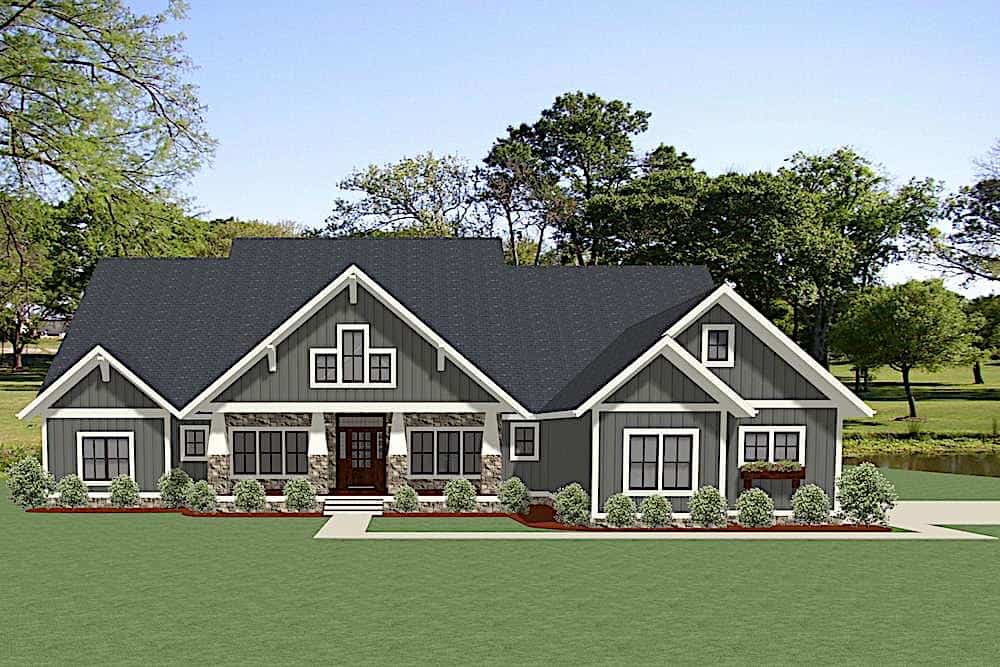

4-Bedroom, 3401 Sq Ft Ranch Home - Plan #189-1117 - Main Exterior
189-1117: Home Plan Rendering

About Plan # 189-1117

About Plan # 189-1117

3401 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 80' 4" WIDTH 82' 9" DEPTH 2 GARAGE BAY

This lovely Ranch style home with Country influences (Plan #189-1117) has 3401 square feet of living space. The 1 story floor plan includes 4 bedrooms.

Each plan set includes the following:

  • PERSPECTIVES: Front exterior color rendering of what the house would look like once built. Aerial view of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FIRST FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • SECOND FLOOR PLAN (if any): Includes the same details as found on the first floor plan.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys. Includes roof framing plan.
  • FRAMING PLANS: Includes the first floor framing, second floor framing, and the second floor ceiling framing plans.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematic defining the location of lighting fixtures, switches, outlets, fans, etc.
  • BUILDING SECTIONS AND DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes eave detail and typical stair detail.
  • INTERIOR PERSPECTIVES & ELEVATIONS: Includes interior perspectives where deemed necessary and kitchen elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

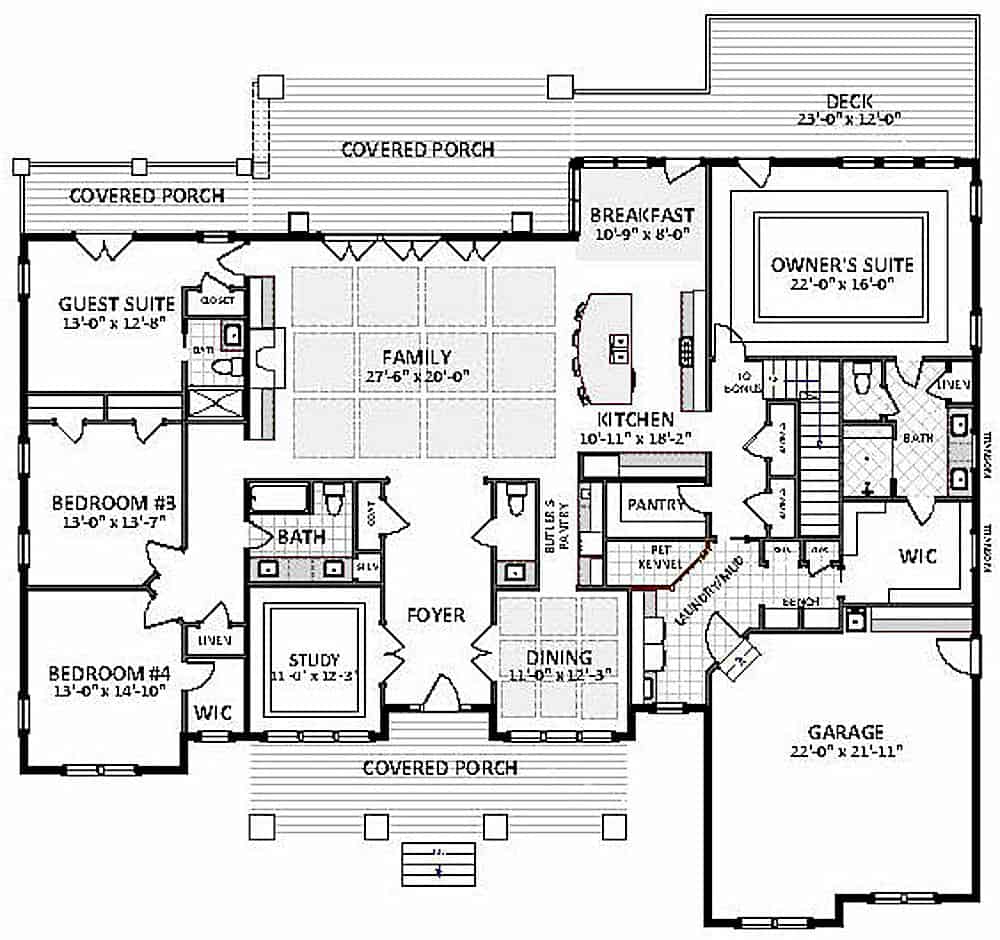

Home Plan: #189-1117 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #189-1117

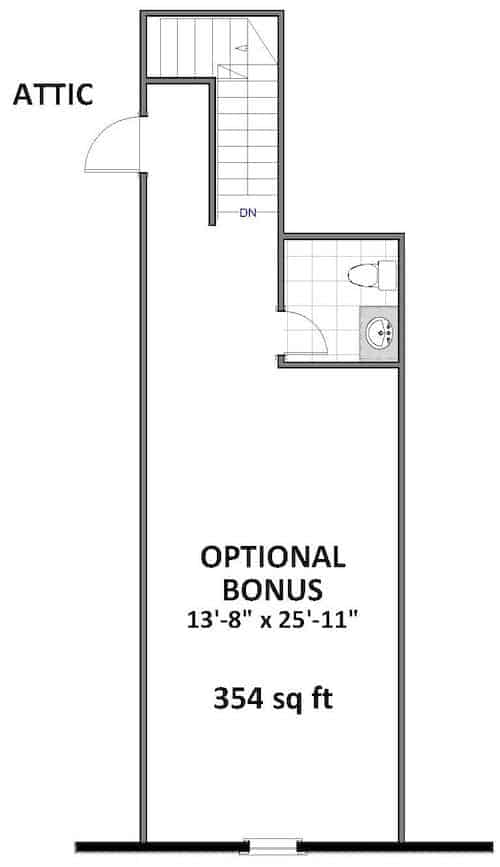

#189-1117 Floor Plan Garage - garage Floor Plan Garage of Ranch Plan #189-1117
Home Plan: #189-1117 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #189-1117
#189-1117 Floor Plan Garage - garage Floor Plan Garage of Ranch Plan #189-1117
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 189-1117
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3401
Main Floor:
3401
Lower Floor:
656
Unfinished Sq Ft:
Bonus Room:
513
Garage :
705
Porch :
1142

Dimensions

Width:
80' 4"
Depth:
82' 9"
Ridge Height:
34' 10"

Architectural Styles

Country
Luxury
Ranch

Exterior Wall Material

Rock/Stone
Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Family Room
Fireplace
Library
Main Level Laundry
Open Floor Plan
Split Bathroom

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

Please Note: CAD Files for this plan typically take 2-3 additional business days to prepare. PLEASE NOTE: Some options (different foundations, RRR, etc.) may take an additional 2-3 business days to prepare! Please keep this in mind regarding shipping when ordering. Thank you!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
