About Plan # 123-1004

About Plan # 123-1004

2614 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 80' 0" WIDTH 63' 0" DEPTH 2 GARAGE BAY

Far from ordinary, this Southern-style home comes complete with 4 spacious bedrooms and 2.5 baths. With an open floor plan concept, this home also has two covered porches and a sun room, which gives it a bigger feel than its 2,614 square feet would suggest. With a relatively simple structure, each room room is large and comfortable. There is also an attached two car garage with and optional third car bay.

Each plan set typically includes the following:

  • FLOOR PLAN(S): At ¼" scale, showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes a window and door schedule.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF LAYOUT: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and layout defining the location of lighting fixtures, receptacles, switches, outlets, etc.
  • INTERIOR ELEVATIONS: Includes cabinet details, columns, and walls with unique conditions.
  • BUILDING SECTIONS AND SPECIFICATIONS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

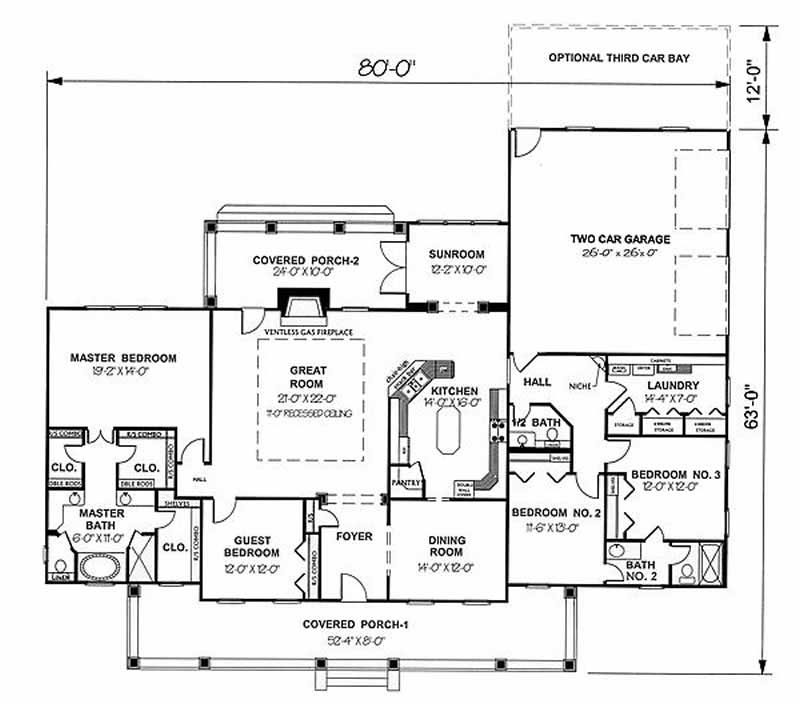

Home Plan: #123-1004 Floor Plan First Story - main Floor Plan First Story of Southern Plan #123-1004
Home Plan: #123-1004 Floor Plan First Story - main Floor Plan First Story of Southern Plan #123-1004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 123-1004
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2614
Main Floor:
2614
Unfinished Sq Ft:
Garage :
676

Dimensions

Width:
80' 0"
Depth:
63' 0"
Ridge Height:
25'' 0"

Architectural Styles

Ranch
Southern
Texas Style

Exterior Wall Material

Rock/Stone
Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Dining Room
Fireplace
Guest Room
Interior Photos
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
