4-Bedroom, 2972 Sq Ft Farmhouse Plan with Split Master Bedroom

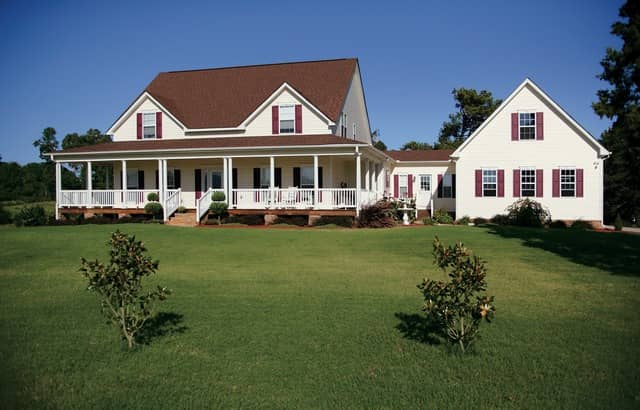

Color photograph of house plan #109-1093
109-1093 house plan front rendering

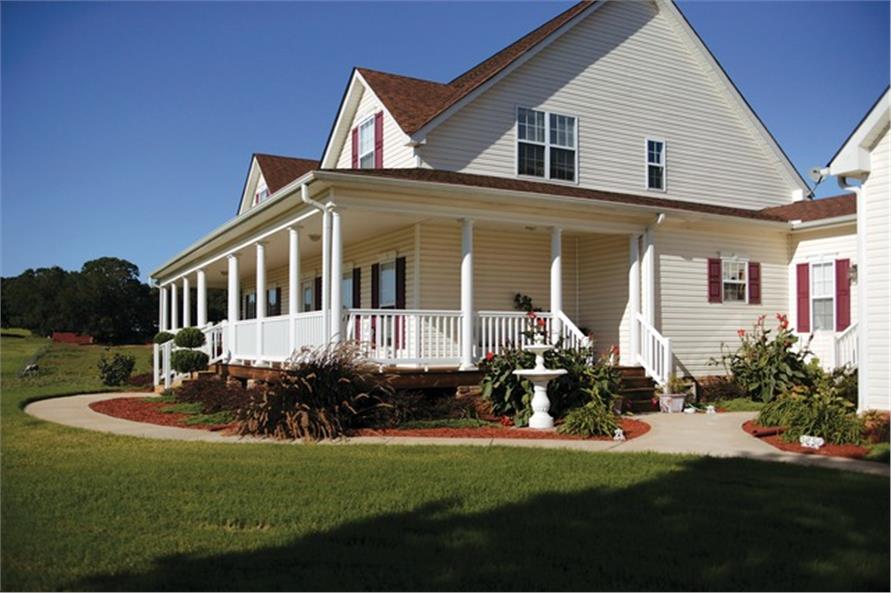

109-1093 porch view

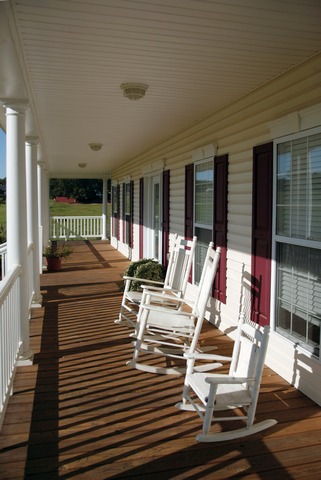

109-1093 house plan porch side view

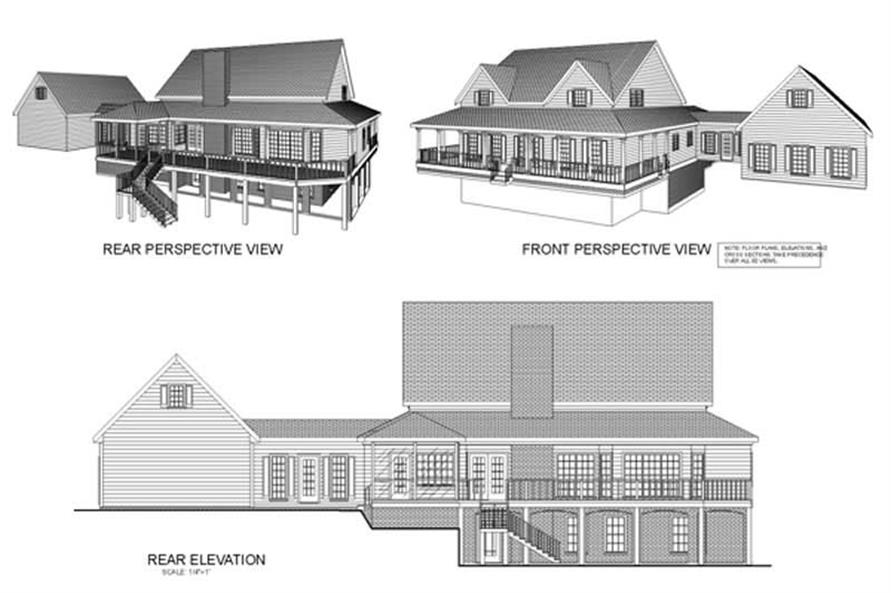

REAR ELEVATION

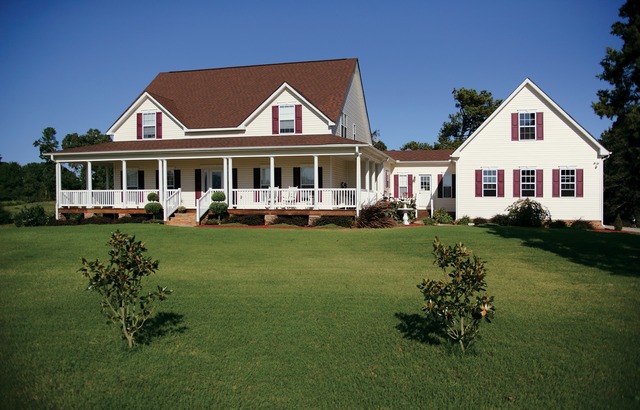

4-Bedroom, 2972 Sq Ft Farmhouse House Plan - 109-1093 - Front Exterior
109-1093 house plan front rendering
109-1093 porch view
109-1093 house plan porch side view
REAR ELEVATION

About Plan # 109-1093

About Plan # 109-1093

2972 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 55' 8" WIDTH 49' 2" DEPTH 3 GARAGE BAY

This country house plan has a lower level is an open design with very little wasted space. Flanking the two-story entry are the living and dining rooms, each measuring nearly 15'x 12'. Beyond the bridge above the entry is a 19'x17' two story family room with a fireplace. The spacious kitchen is open to the family room and features a breakfast bar and a built-in table in the cook top island. The laundry room includes a laundry tub. The master suite includes a bayed 14'-9 x 18'-5 bedroom and a beautiful corner his & hers bath/closet arrangement. Except for the two-story foyer and family room, ceiling heights on the main level are 9'.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

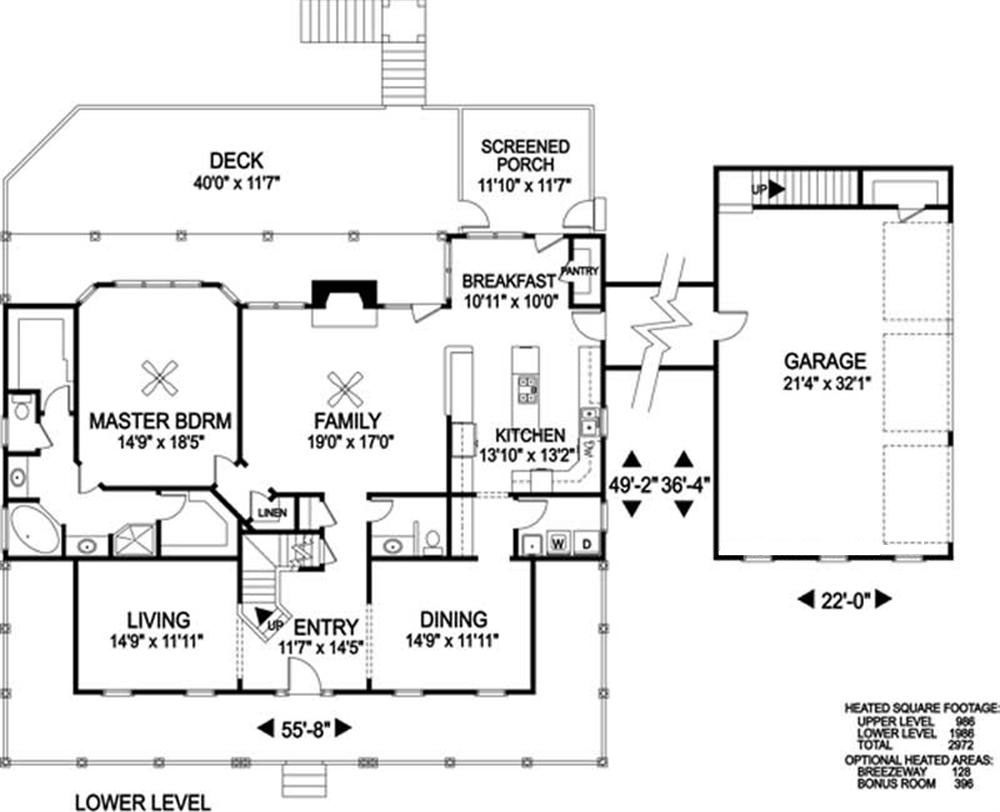

Home Plan: #109-1093 Floor Plan First Story - first story Floor Plan First Story of Farmhouse Plan #109-1093

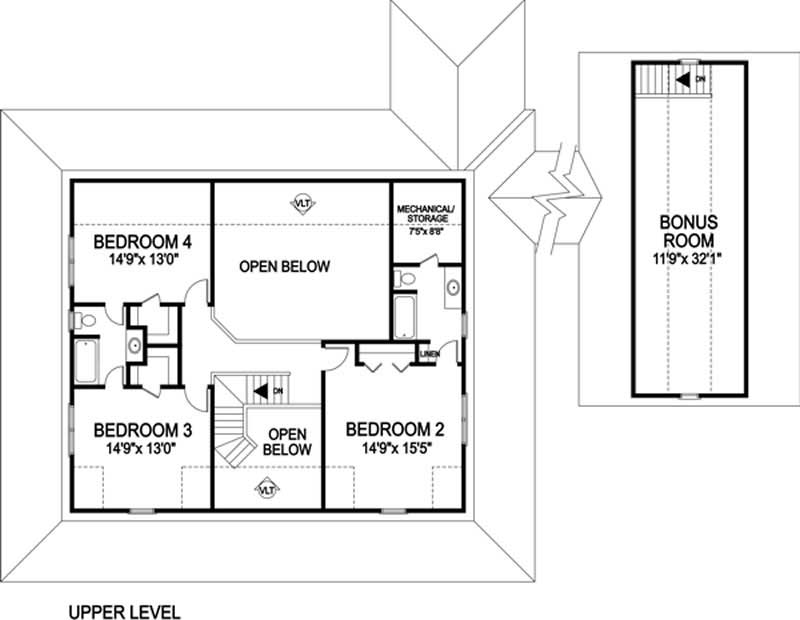

#109-1093 Floor Plan Second Story - second Floor Plan Second Story of Farmhouse Plan #109-1093
