3-Bedroom, 1798 Sq Ft Traditional Plan with Swimming Pool

Color rendering of Traditional home plan (ThePlanCollection: House Plan #109-1005)
109-1005: Home Plan Rear Elevation

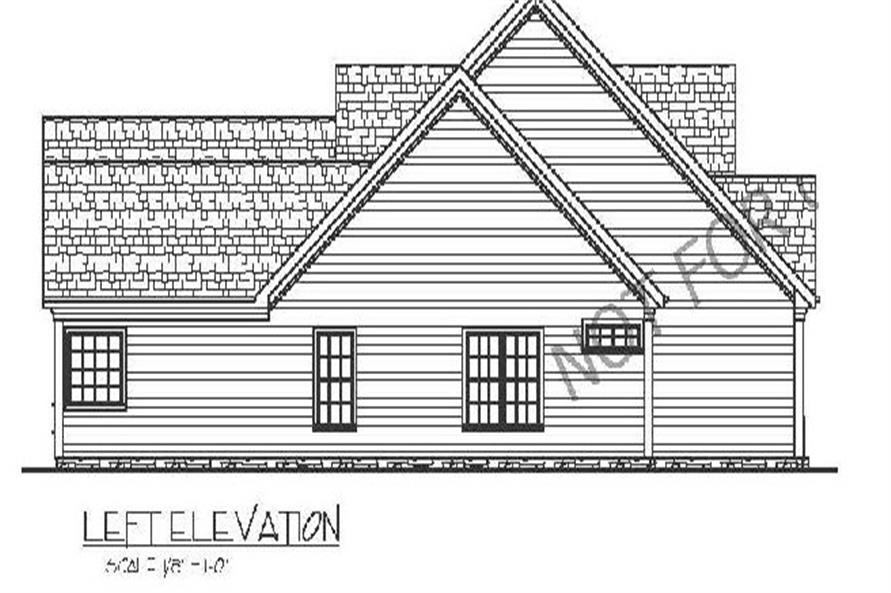

109-1005: Home Plan Left Elevation

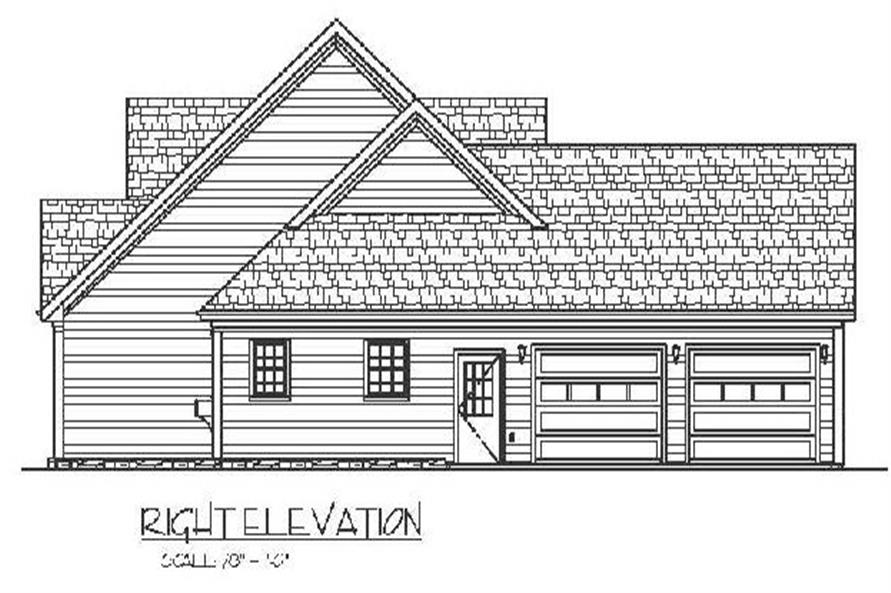

109-1005: Home Plan Right Elevation
3-Bedroom, 1798 Sq Ft Traditional House Plan - 109-1005 - Front Exterior

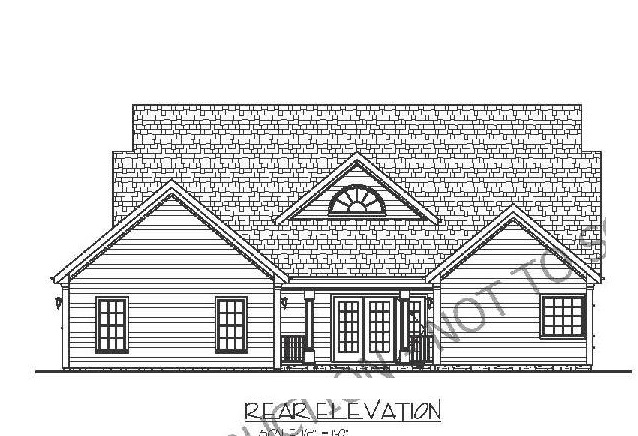

109-1005: Home Plan Rear Elevation

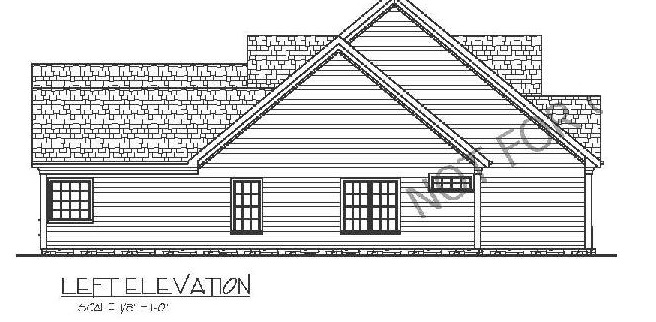

109-1005: Home Plan Left Elevation
109-1005: Home Plan Right Elevation

About Plan # 109-1005

About Plan # 109-1005

1798 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 54' 0" WIDTH 56' 2" DEPTH 2 GARAGE BAY

This lovely Traditional style home plan with Country influences (House Plan #109-1005) has 1798 square feet of living space. The 1 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • COVER SHEET: Digital exterior rendering of the home to provide an idea of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • UPPER FLOOR PLAN (if any): Same details as the main floor plan plus upper floor framing schematic.
  • ROOF FRAMING PLAN: Dimensioned plan with 3-D framing schematic showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ELECTRICAL LAYOUT: Specifications and notes, defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. Included on the floor plans.
  • CROSS SECTIONS AND INTERIOR ELEVATION: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • GENERAL CONSTRUCTION DETAILS: Includes IRC code specifications and methodologies.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

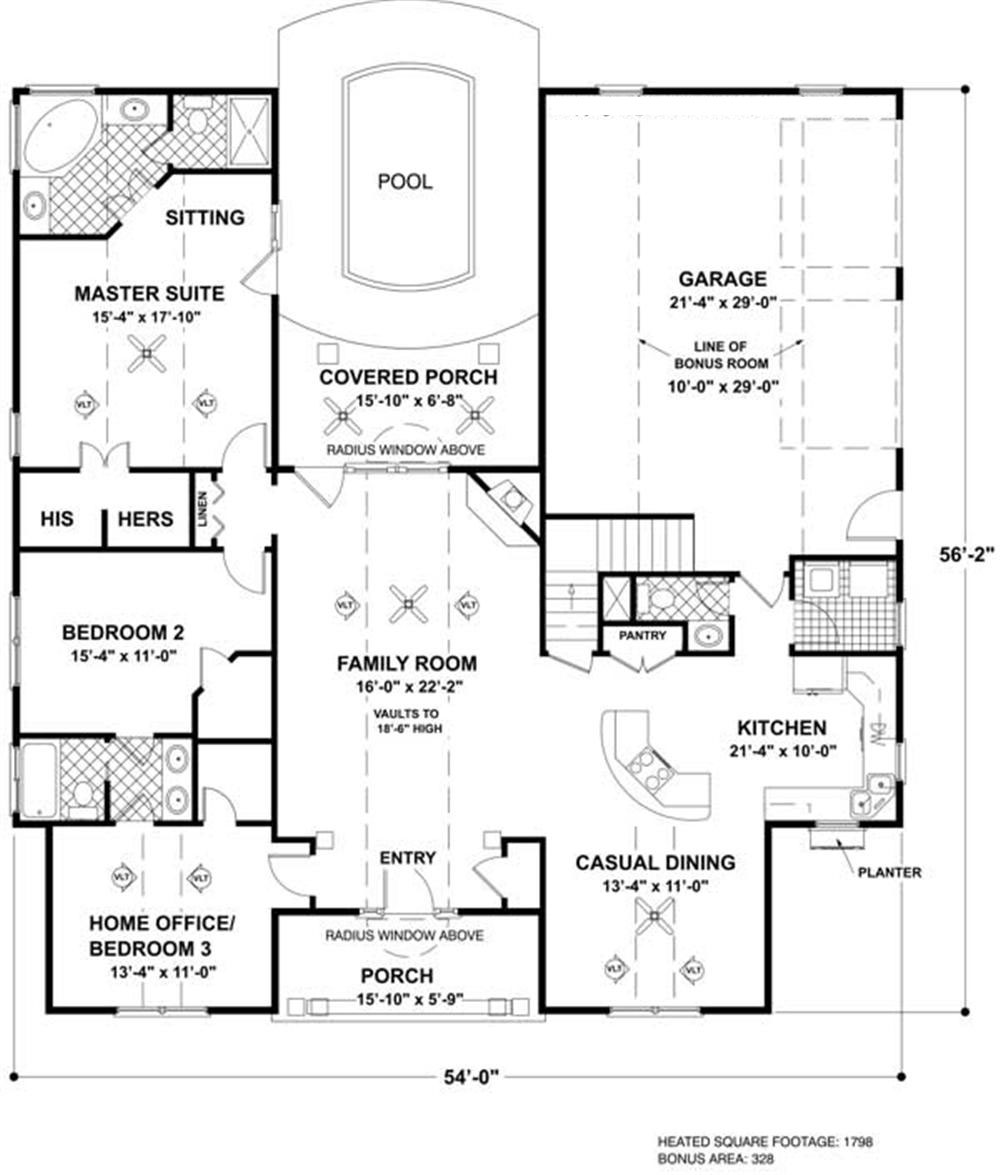

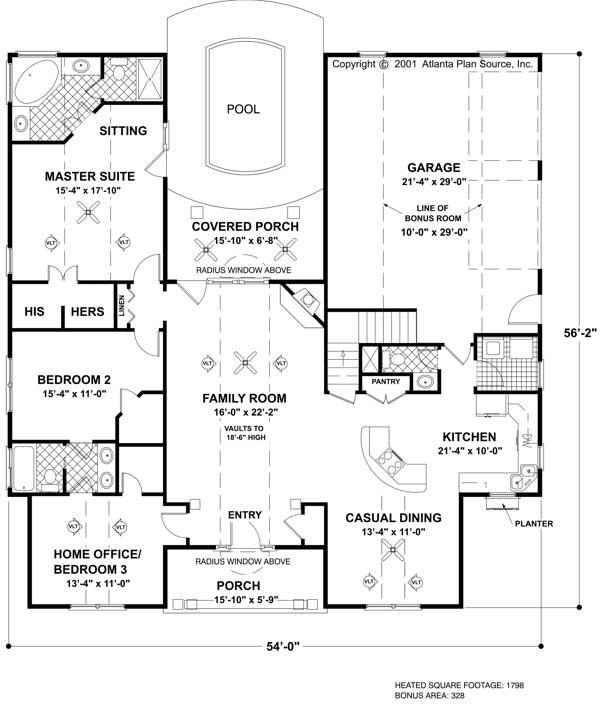

Home Plan: #109-1005 Floor Plan First Story - first story Floor Plan First Story of Traditional Plan #109-1005
