4-Bedroom, 1938 Sq Ft Florida Style Plan with Walk-in Pantry
Related House Plans
| 1938 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 45' 0" WIDTH | 71' 0" DEPTH | 2 GARAGE BAY |
A welcoming front porch with bold columns, an attractive metal shed roof and clerestory dormer above add tremendous curb appeal to this arts & craft ranch house plan. The clerestory dormer bathes the entire main living area with natural light. This distinctive home features a 14\'-8\" tall ceiling upon entering and this volume continues throughout main living areas.
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and cabinet elevations.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
1 Reviews Write Your Own Review

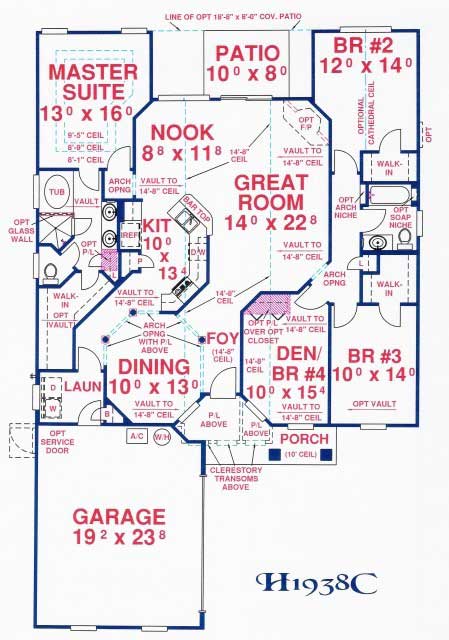

FLOOR PLANS Flip Images
