4-Bedroom, 2245 Sq Ft Florida Style Plan with Eating bar and Breakfast Nook

front elevation

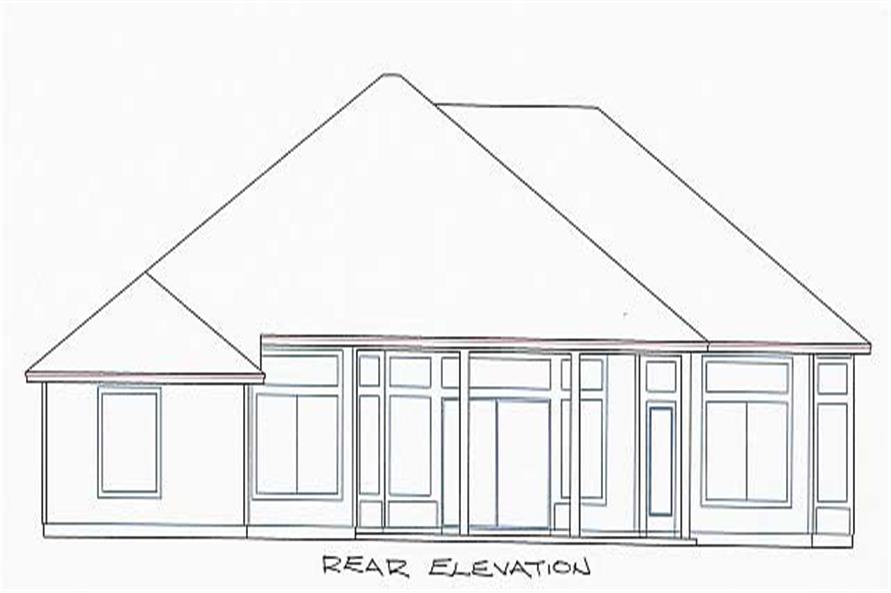

Home Plan Rear Elevation

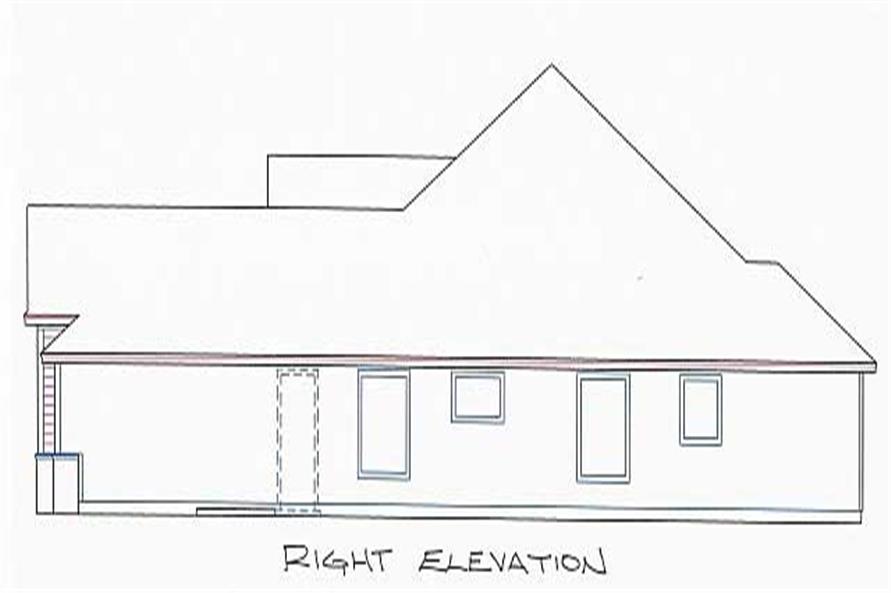

Home Plan Left Elevation
Home Plan Right Elevation
4-Bedroom, 2245 Sq Ft Florida Style Home Plan - 150-1005 - Main Exterior
Home Plan Rear Elevation

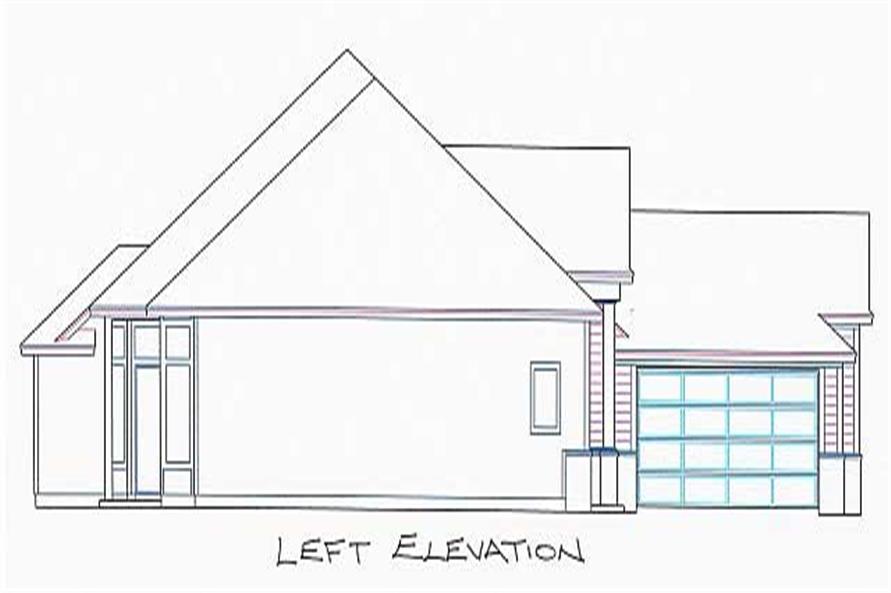

Home Plan Left Elevation
Home Plan Right Elevation

About Plan # 150-1005

About Plan # 150-1005

2245 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 59' 8" WIDTH 73' 2" DEPTH 2 GARAGE BAY

A great looking coastal home plan with many features; side entrance garage, high ceilings, 4 bedrooms and much much more.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

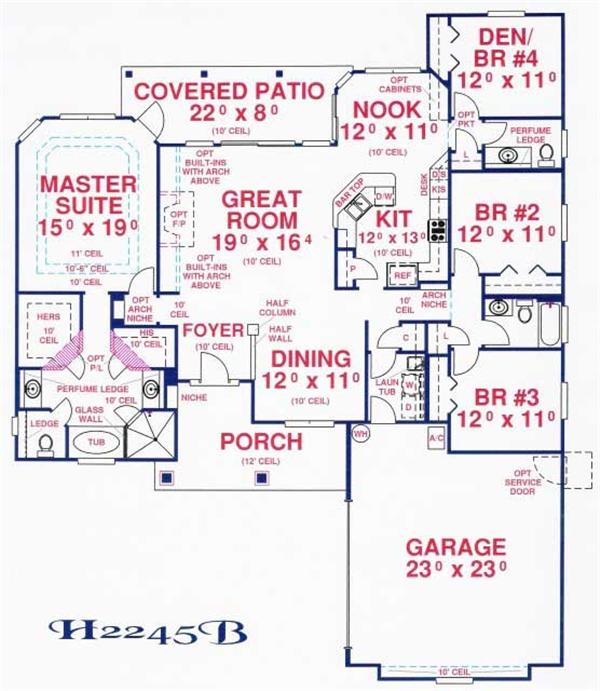

Home Plan: #150-1005 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #150-1005
Home Plan: #150-1005 Floor Plan First Story - first story Floor Plan First Story of Florida Style Plan #150-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 150-1005
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2245
Main Floor:
2245
Unfinished Sq Ft:
Garage :
614

Dimensions

Width:
59' 8"
Depth:
73' 2"
Ridge Height:
23' 0"

Architectural Styles

Beachfront
Coastal
Craftsman
Florida Style
Southern
Traditional
Vacation Homes

Exterior Wall Material

Stucco
Vinyl Siding
Wood Siding

Roofing Type

Hip

Roofing Material

Asphalt Shingles
Metal

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Split Bathroom

Garage Type

Attached Garage

Construction Methods

Southern

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

For ALL plan packages from this designer - please check for shipping timeline BEFORE ordering! Note: Reproducible Master is printed on bond paper. PLEASE NOTE - CAD files may take 4 to 6 weeks to create, depending on designer’s current workload at the time of purchase. Please call to confirm BEFORE ordering! NOTE: Alternate foundations and other options are available. Please send in a modification request for a free quote. Thank you!
