4-Bedroom, 2941 Sq Ft Ranch Plan with Dining Room

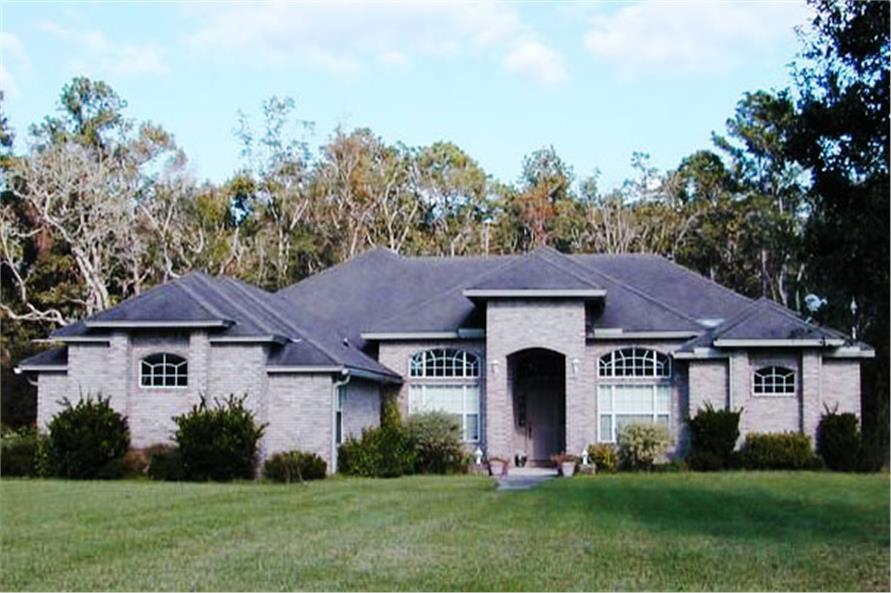

Front elevation of Ranch home (ThePlanCollection: House Plan #150-1016)
4-Bedroom, 2941 Sq Ft Ranch Home Plan - 150-1016 - Main Exterior

About Plan # 150-1016

About Plan # 150-1016

2941 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 72' 6" WIDTH 91' 1" DEPTH 2 GARAGE BAY

This contemporary ranch is wonderful for growing families. With four bedrooms and four bathrooms, the study can be changed to a 5th bedroom. Making the space even more impressive are the ceiling heights: 12' ceiling in the dining room, 10' ceiling in main areas, with 8' ceilings in the bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

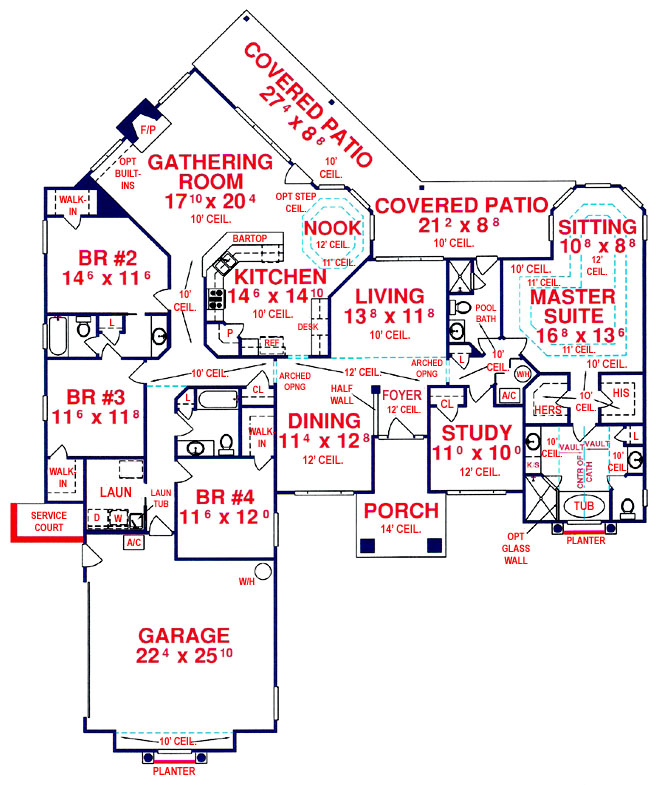

Home Plan: #150-1016 Floor Plan First Story - main level Floor Plan Main Level of Florida Style Plan #150-1016
Home Plan: #150-1016 Floor Plan First Story - main level Floor Plan Main Level of Florida Style Plan #150-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 150-1016
Floors:
1
Bedrooms:
4
Full Baths:
4
Garage :
2

Square Footage

Heated Sq Feet:
2941
Main Floor:
2941
Unfinished Sq Ft:
Garage :
574
Porch :
499

Dimensions

Width:
72' 6"
Depth:
91' 1"
Ridge Height:
22' 5"

Architectural Styles

Contemporary
Country
Ranch
Southern
Texas Style
Traditional

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling
8 Foot Ceiling

Special Feature

Color Photos
Dining Room
Family Room
Fireplace
Guest Room
Home Office
L-Shaped
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Patio

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

For ALL plan packages from this designer - please check for shipping timeline BEFORE ordering! Note: Reproducible Master is printed on bond paper. PLEASE NOTE - CAD files may take 4 to 6 weeks to create, depending on designer’s current workload at the time of purchase. Please call to confirm BEFORE ordering! NOTE: Alternate foundations and other options are available. Please send in a modification request for a free quote. Thank you!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
