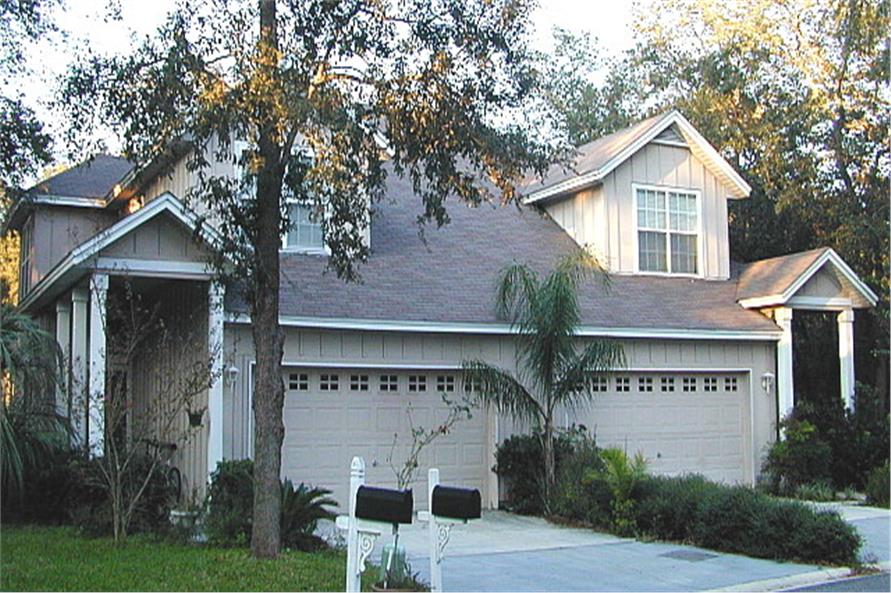

Front elevation of Multi-Unit home (ThePlanCollection: House Plan #150-1012)
3-Bedroom, 3206 Sq Ft Multi-Unit Home Plan - 150-1012 - Main Exterior

About Plan # 150-1012

About Plan # 150-1012

3206 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 56' 4" WIDTH 66' 6" DEPTH 2 GARAGE BAY

This is a Duplex with 3BR/2Bath & 1603 sq.ft. in each unit and garage. Total covered area of entire duplex is 4704 sq. ft.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall section and cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

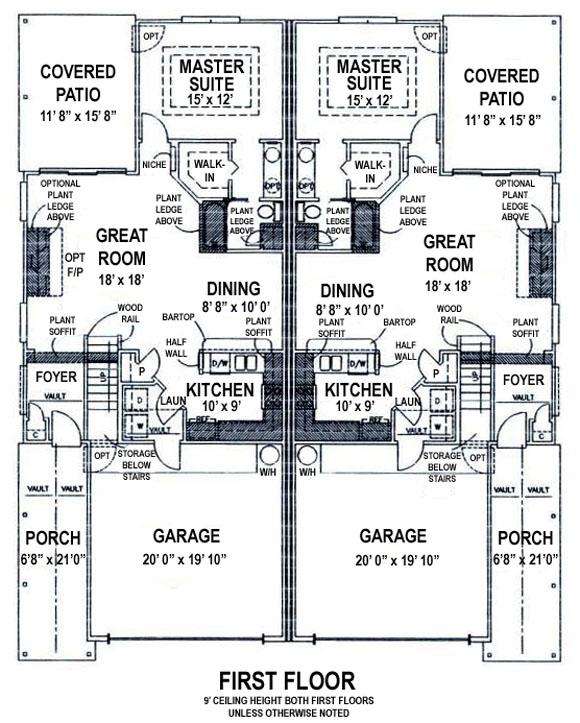

Home Plan: #150-1012 Floor Plan First Story - duplex main level Floor Plan First Story of Multi-Unit Plan #150-1012

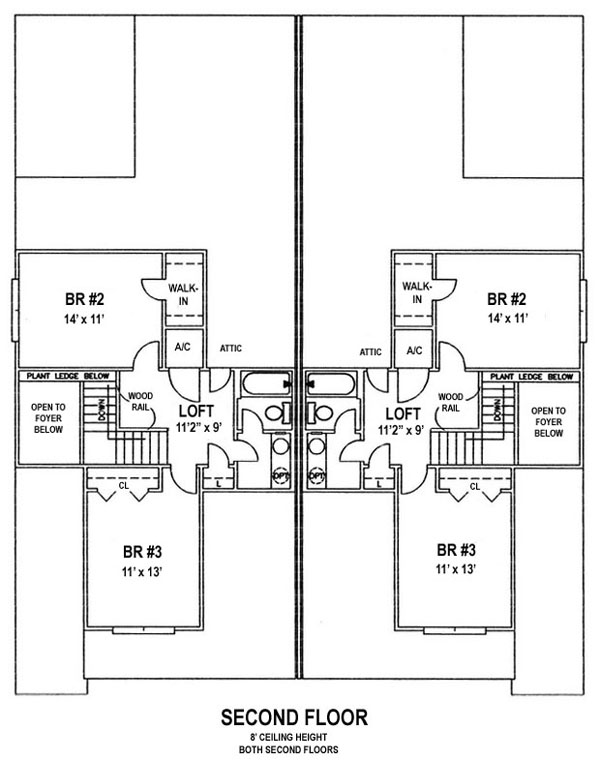

#150-1012 Floor Plan Second Story - duplex second level Floor Plan Second Story of Multi-Unit Plan #150-1012

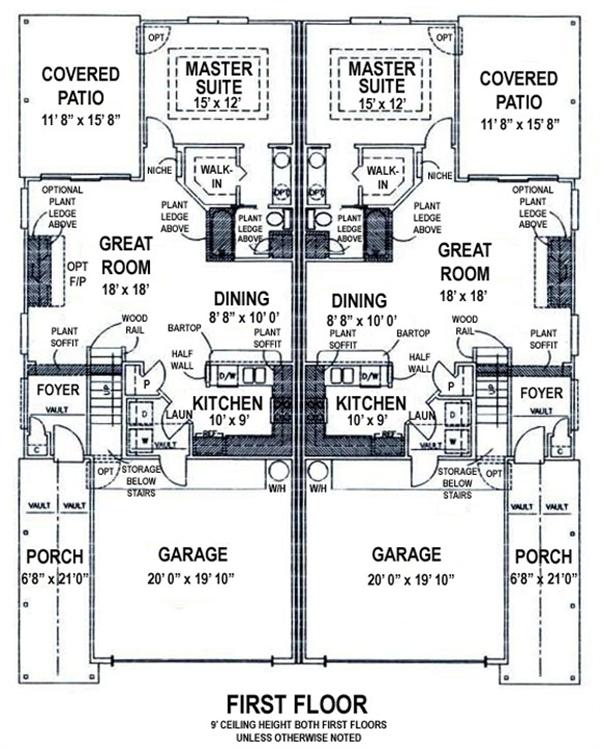

Home Plan: #150-1012 Floor Plan First Story - duplex main level Floor Plan First Story of Multi-Unit Plan #150-1012

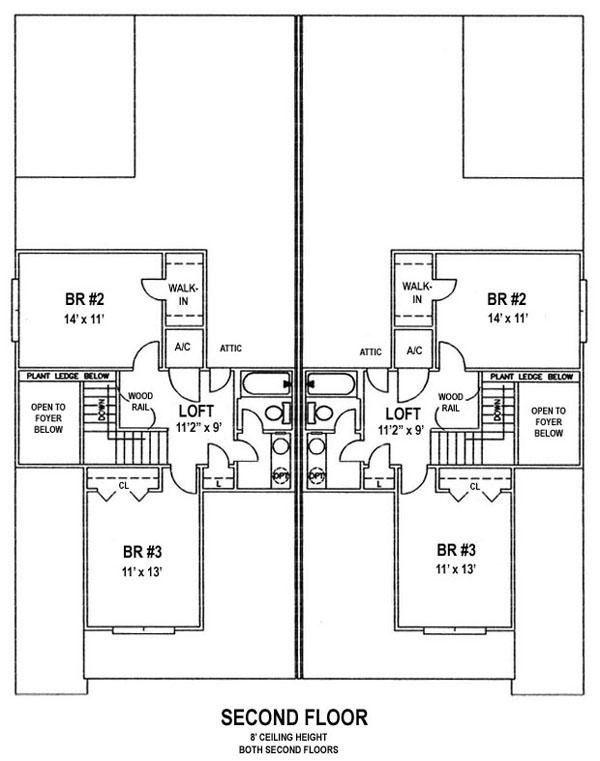

#150-1012 Floor Plan Second Story - duplex second level Floor Plan Second Story of Multi-Unit Plan #150-1012
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 150-1012
Floors:
2
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
3206
Main Floor:
1011
Upper Floor:
593
Unfinished Sq Ft:
Garage :
420
Porch :
329

Dimensions

Width:
56' 4"
Depth:
66' 6"

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

For ALL plan packages from this designer - please check for shipping timeline BEFORE ordering! PLEASE NOTE - CAD files may take 4 to 6 weeks to create, depending on designer’s current workload at the time of purchase. Please call to confirm BEFORE ordering! NOTE: Alternate foundations and other options are available. Please send in a modification request for a free quote. Thank you!

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
