3-Bedroom, 1496 Sq Ft Ranch Plan with Master Bathroom

#109-1062

RENDERING of this 3-Bedroom,1496 Sq Ft Plan -1496

#109-1062

Enlarge Photos

Flip Plan Photos

Photographs may reflect modified designs. Copyright held by designer.

3-Bedroom, 1496 Sq Ft Ranch Plan with Master Bathroom

#109-1062

#109-1062

#109-1062

About Plan # 109-1062

1496 SQUARE FEET	3 BEDROOMS	2 FULL BATH	0 HALF BATH
1 FLOOR	48' 0" WIDTH	30' 0" DEPTH	0 GARAGE BAY

House Plan Description House Plan Description
What's IncludedWhat's Included

This increasingly popular split-foyer design features 1,496 sq. ft. of living space. Highlighting both the living room and dining room is a vaulted ceiling. A fireplace in the living room adds warmth to the open living/dining area. The efficient kitchen features an angled countertop, pantry and eat-in breakfast nook. Measuring 12'x16', the master suite features, separate his and hers closets and a spacious master bath with separate step-up tub and shower. The remaining two bedrooms share a conveniently located hall bath.

Each plan set includes the following:

Rendering cover page

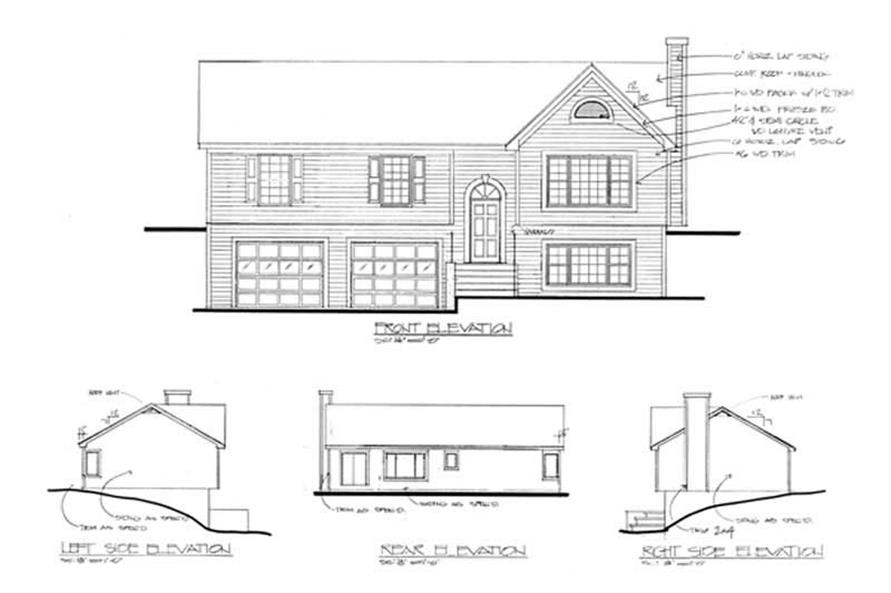

Elevations
Floor plans
Foundation plan
Cabinet/interior elevations
Roof plan
Section
Construction details
IRC code specifications

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.
Site Plan - handled locally when required.
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
Energy calculations - handled locally when required.

Write Your Own Review

This plan can be customized!

Submit your changes for a FREE quote.

Modify this plan

This plan can be customized!

Submit your changes for a FREE quote.

Modify this plan

How much will this home cost to build?

Order a Cost-to-Build Report

FLOOR PLANS Flip Images

Home Plan: #109-1062 Floor Plan First Story - main

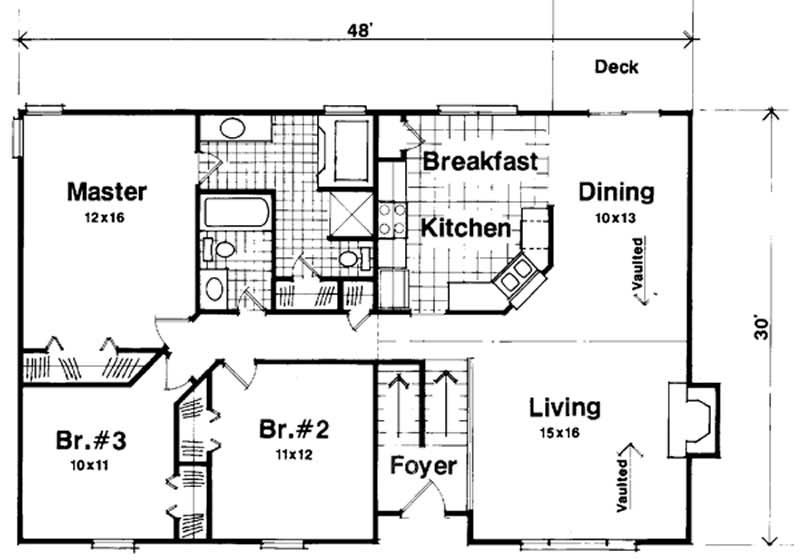

Floor Plan First Story of Ranch Plan #109-1062

Home Plan: #109-1062 Floor Plan First Story - main

How much will this plancost to build?

Order a Cost-to-Build Report

Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:

# 109-1062

Floors:

Bedrooms:

Full Baths:

Square Footage

Heated Sq Feet:

1496

Main Floor:

1428

Unfinished Sq Ft:

Lower Floor:

Dimensions

Width:

48' 0"

Depth:

30' 0"

Architectural Styles

Ranch

Small House Plans

Traditional

Exterior Wall Material

Vinyl Siding

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room

Fireplace

Garage Type

Under Main Floor Entry

Exterior Wall Framing

2x4

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!

PRICING OPTIONS

PDF - Single Build$1045.00

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

5 Sets$1145.00

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

8 Sets$1195.00

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Reproducible Set$1245.00

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

CAD - Single Build$1495.00

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
