4-Bedroom, 2187 Sq Ft Ranch Plan with Master Bathroom

Main image for house plan # 14454

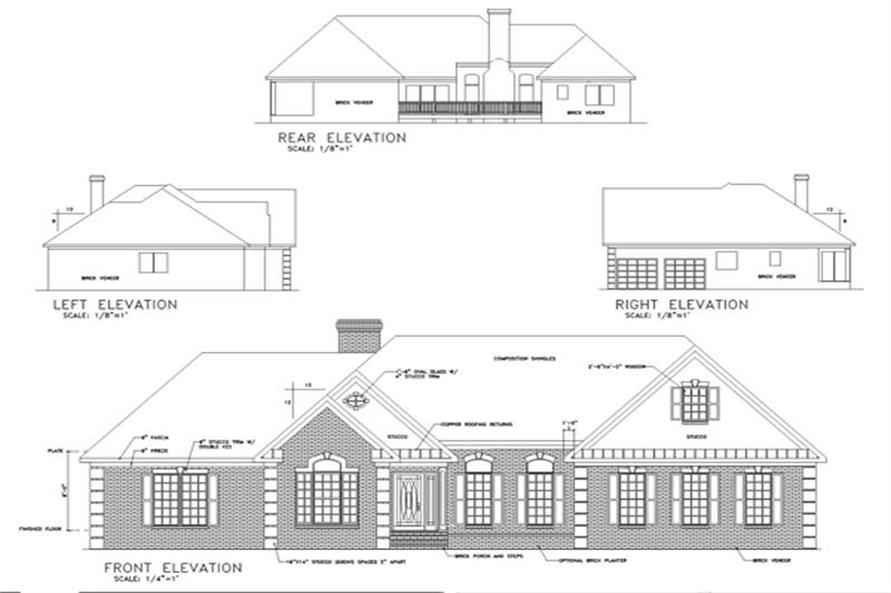

REAR ELEVATION
4-Bedroom, 2187 Sq Ft Ranch Home Plan - 109-1166 - Main Exterior
REAR ELEVATION

About Plan # 109-1166

About Plan # 109-1166

2187 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 70' 4" WIDTH 47' 4" DEPTH 0 GARAGE BAY
The master suite is exceptional, with an enormous bath, spacious walk-in closet, and a unique morning porch, a perfect place for that first cup of coffee. An abundance of windows too brighten the breakfast room and kitchen. Vaulted and raised ceilings adorn the living, family room, dining, foyer, kitchen, breakfast, and master suite. The 3 additional bedrooms each measure approximately 12' x 11' with 2 featuring walk-in closets. The roomy 28' x 11' deck may be accessed from both the family room and the master suite.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

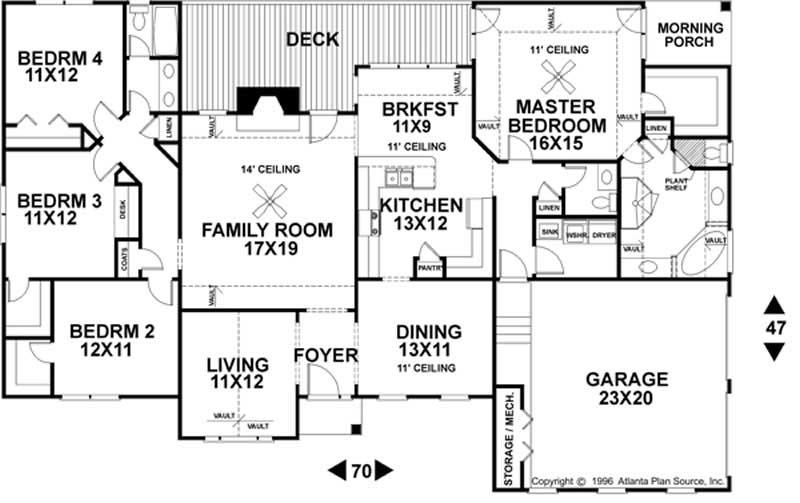

Home Plan: #109-1166 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #109-1166
