3-Bedroom, 1820 Sq Ft Craftsman Plan with Covered Front Porch

This image shows the front elevation of these Craftsman Homeplans.
Home Plan Rear Elevation

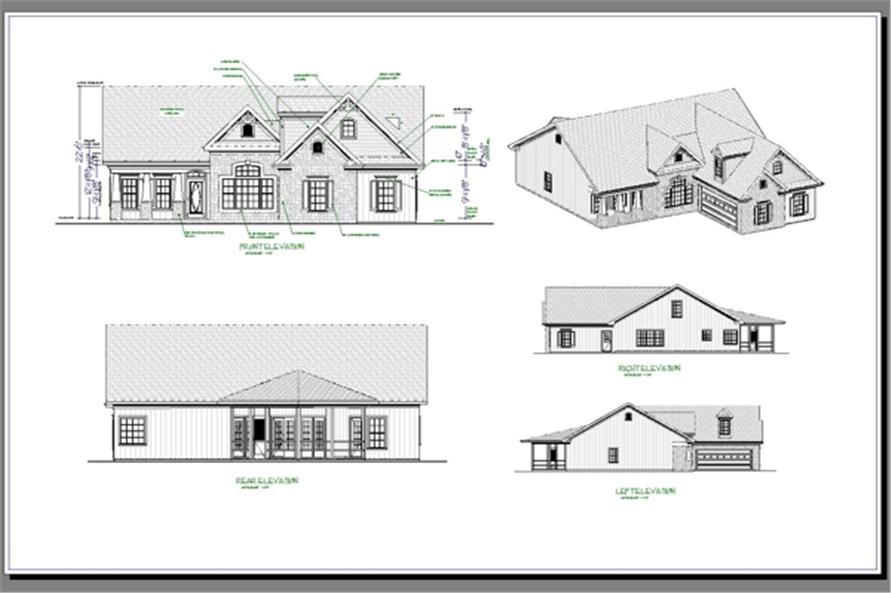

109-1017 alternate elevations
3-Bedroom, 1820 Sq Ft Craftsman House Plan - 109-1017 - Front Exterior
Home Plan Rear Elevation
109-1017 alternate elevations

About Plan # 109-1017

About Plan # 109-1017

1820 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 50' 0" WIDTH 74' 3" DEPTH 2 GARAGE BAY

This irresistible 1,820 sq. ft. home features craftsman styling reminiscent of the early 20th century. A covered porch invites you to enter the spacious dining and family room areas. Raised ceilings, an arch-top window unit and a fireplace add drama to this space. Accessible from the family room, a screened porch offers the perfect spot for sheltered socializing. The roomy kitchen features a breakfast nook, pantry and access to the laundry room through a pocket door. Located near the kitchen, the master suite sets a dreamy tone with its tray ceiling and sitting area which accesses the screened porch. Separate his and hers closets provide ample hanging space for clothing. The spacious master bath has a separate shower and corner garden tub. A powder room for guests is just outside the master suite. On the opposite side of this floor plan, two generous bedrooms share a bathroom. The real surprise of this design is located through a door off the breakfast room. Steps lead up to two bonus rooms offering limitless possibilities for home office space, a craft room, guest room, playroom, etc. Together they offer nearly 800 sq. ft. of additional living space. This plan is one in a series of Jim Wells signature designs, the defining element being the foremost walls of the screened porch which form a W.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

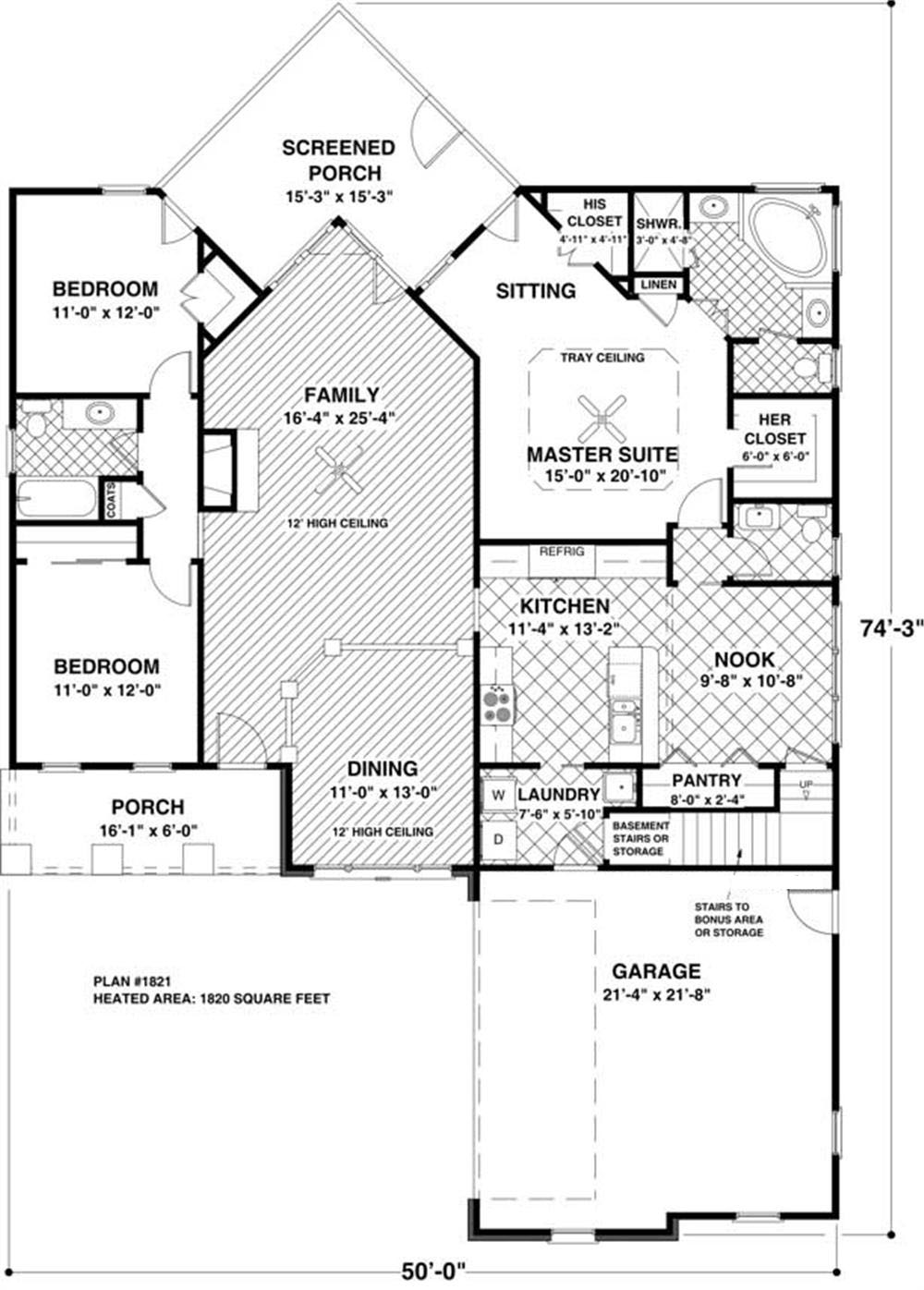

Home Plan: #109-1017 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1017

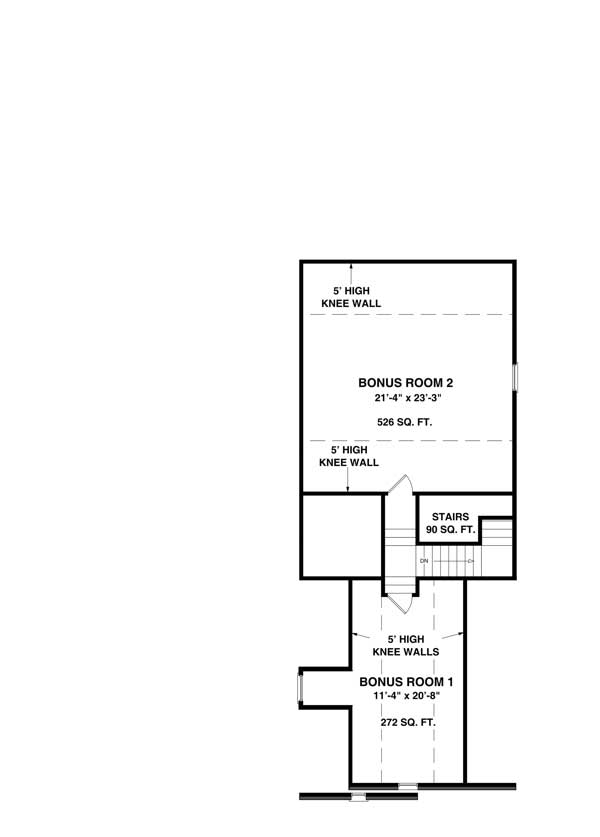

#109-1017 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Craftsman Plan #109-1017
