3-Bedroom, 1776 Sq Ft Ranch Plan with Walk In Closet
Related House Plans

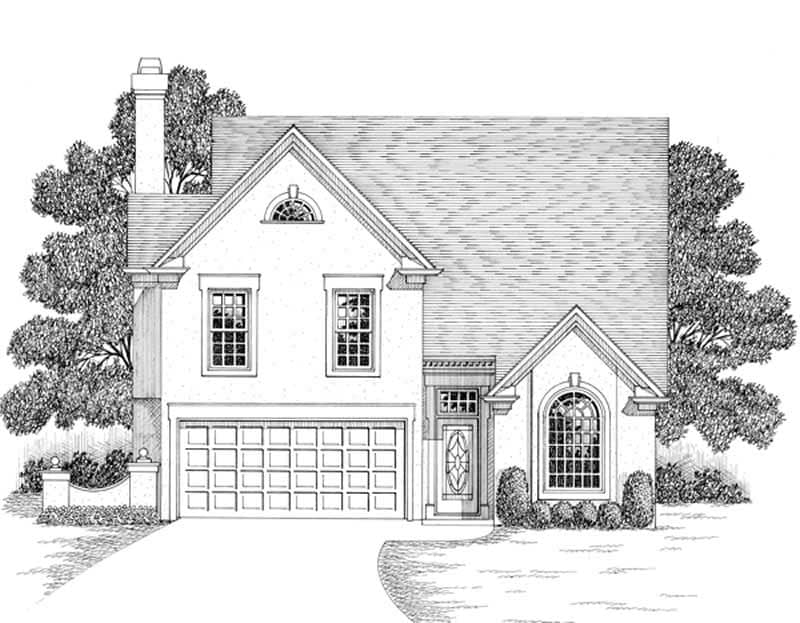

Photographs may reflect modified designs. Copyright held by designer.
| 1776 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 35' 0" WIDTH | 36' 0" DEPTH | 1 GARAGE BAY |
Narrow lot? Here is a beautiful 1,776 square foot European stucco that is perfect for it. This 3 bedroom, 2-1/2 bath home features a large master bedroom with a trey ceiling and a vaulted master bath. The dramatic open foyer leads to an 18'x16' living area with a wet bar. Two columns adorning the entry to the dining room and a vaulted breakfast room complete this unusual plan.
Each plan set includes the following:
- Rendering cover page
- Elevations
- Floor plans
- Foundation plan
- Cabinet/interior elevations
- Roof plan
- Section
- Construction details
- IRC code specifications
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Home Plan: #109-1146 Floor Plan First Story
-
main

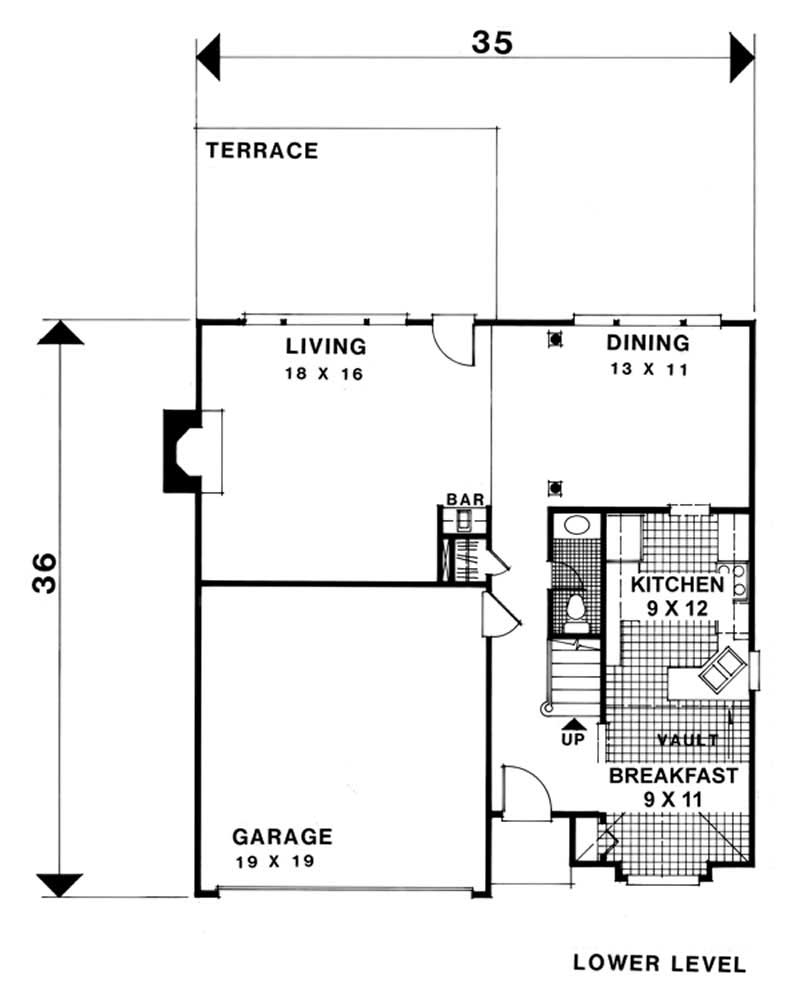

![Floor Plan First Story of Ranch Plan #109-1146]( "MAIN FLOOR PLAN")
#109-1146 Floor Plan Second Story
-
second

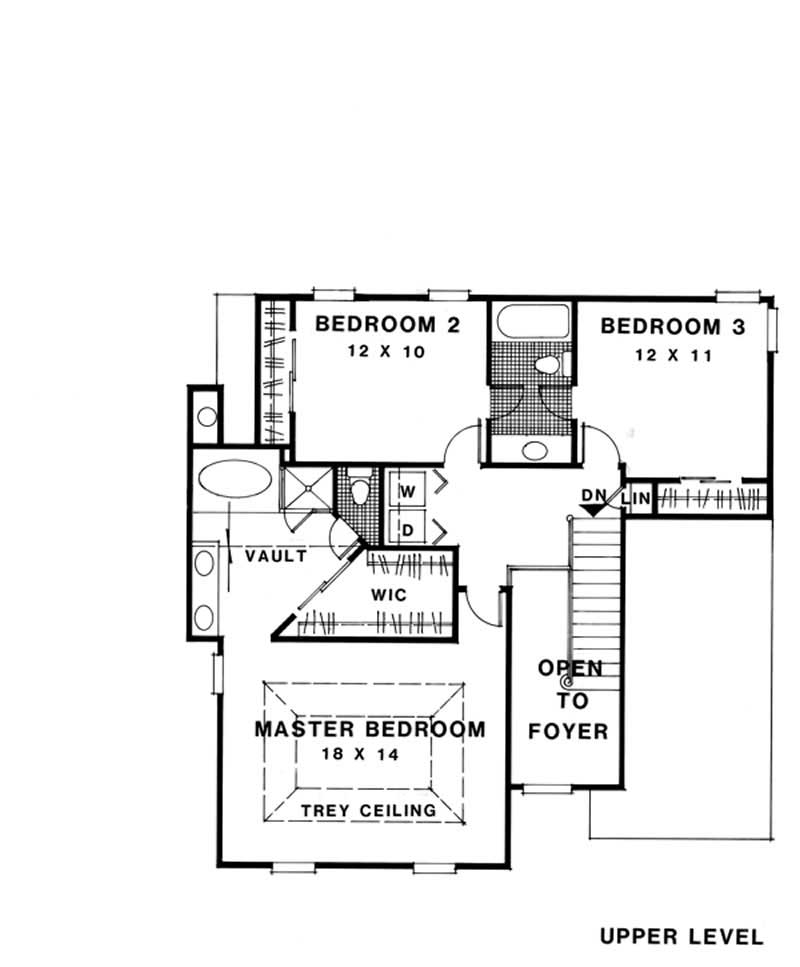

![Floor Plan Second Story of Ranch Plan #109-1146]( "SECOND FLOOR PLAN")
Home Plan: #109-1146 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #109-1146]( "MAIN FLOOR PLAN")
#109-1146 Floor Plan Second Story
-
second
![Floor Plan Second Story of Ranch Plan #109-1146]( "SECOND FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 109-1146
Floors:
2
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1776
Main Floor:
865
Upper Floor:
911
Unfinished Sq Ft:
Dimensions
Width:
35' 0"
Depth:
36' 0"
Architectural Styles
Bungalow
Exterior Wall Material
Stucco
Roof Pitch
10/12
Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
Special Feature
Dining Room
Garage Type
Front Entry
Exterior Wall Framing
2x4
Building Lot Type
Narrow Lot Design
Additional Notes from Designer
Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you!
PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.
PRICING OPTIONS
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
