3-Bedroom, 1683 Sq Ft Bungalow Plan with Eat-In Kitchen

Color rendering of House Plan #178-1144

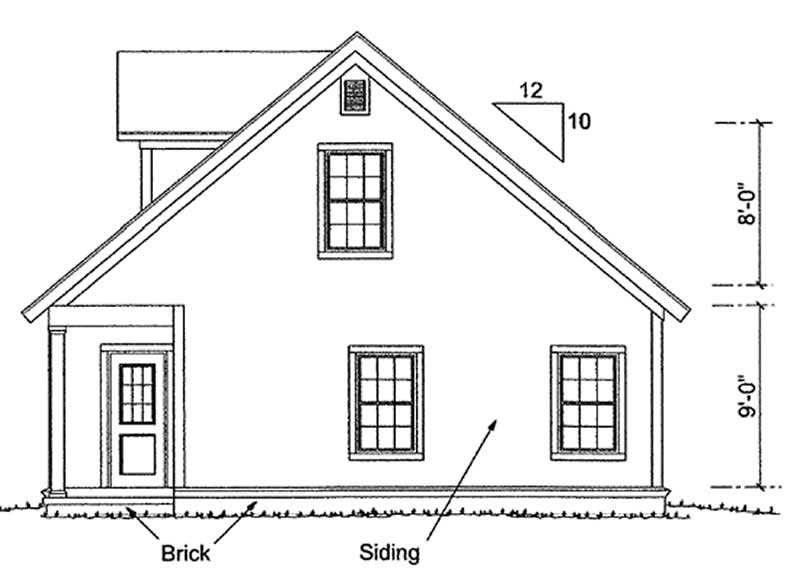

REAR ELEVATION
178-1144: Home Plan Rendering
3-Bedroom, 1683 Sq Ft Bungalow Home Plan - 178-1144 - Main Exterior
REAR ELEVATION
178-1144: Home Plan Rendering

About Plan # 178-1144

About Plan # 178-1144

1683 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 30' 0" WIDTH 49' 0" DEPTH 0 GARAGE BAY

This charming  Bungalow style home was designed with a very nostalgic feel and much have amenities (House Plan #178-1144). The inviting front porch leads guests to the spacious living. The living room has views of the dining area. The kitchen is open to the dining area. The kitchen has an island and a split eating bar with access to the laundry room and half bath. To the rear of this master suite including a walk-in closet and split bathroom.

This plan has 1683 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, floor joist span directions, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

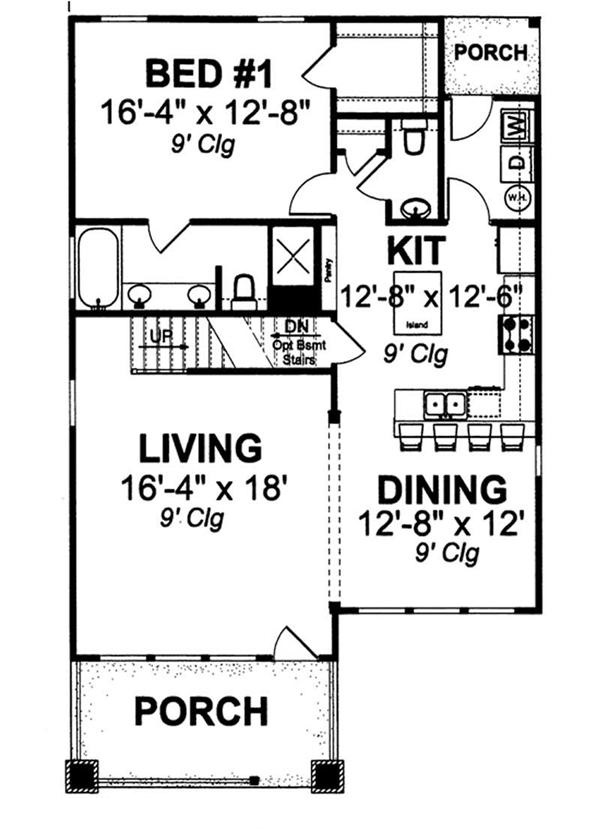

Home Plan: #178-1144 Floor Plan First Story - first floor Floor Plan First Story of Bungalow Plan #178-1144

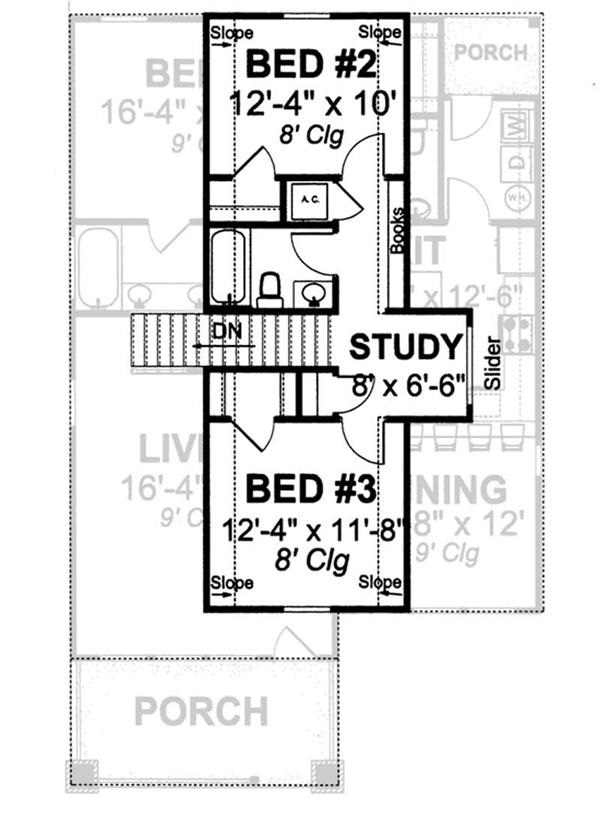

#178-1144 Floor Plan Second Story - second story Floor Plan Second Story of Bungalow Plan #178-1144
