3-Bedroom, 1389 Sq Ft Bungalow Plan with Main Floor Master

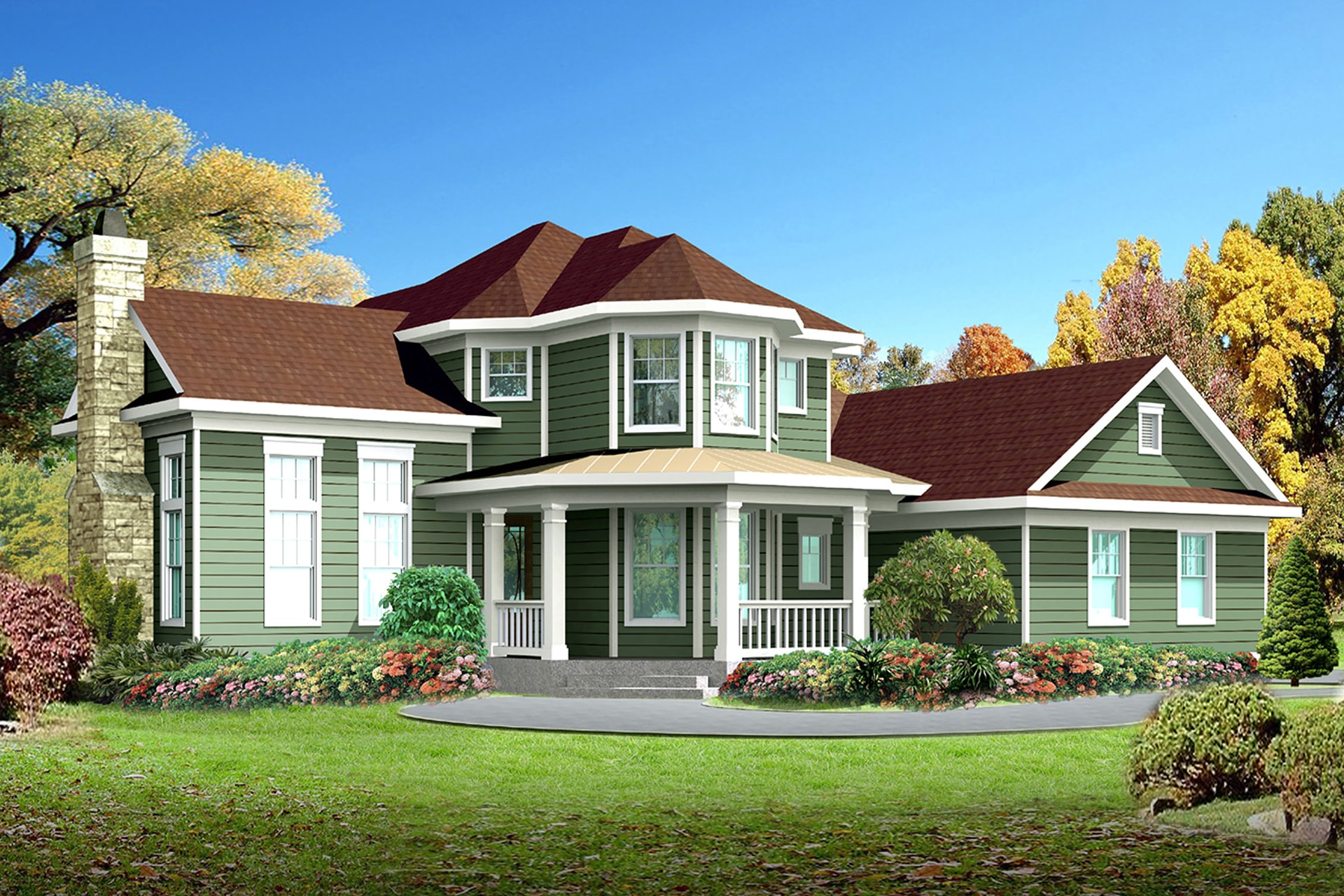

Main Image
Thumbnail Image

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #136-1003

Sq Ft
1389
Sq Ft
Bedrooms
3
Bedrooms
Bathroom
2
Baths
Half Baths
0
Half Baths
Bedrooms
1
Cars
Bedrooms
2
Stories
Bedrooms
20' 0'
Width
Bedrooms
67
Depth
From$1500What's included
STEP 1Bedrooms
STEP 2Bedrooms
STEP 3Bedrooms

Subtotal:$0
Plan Collection

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Floor Plans

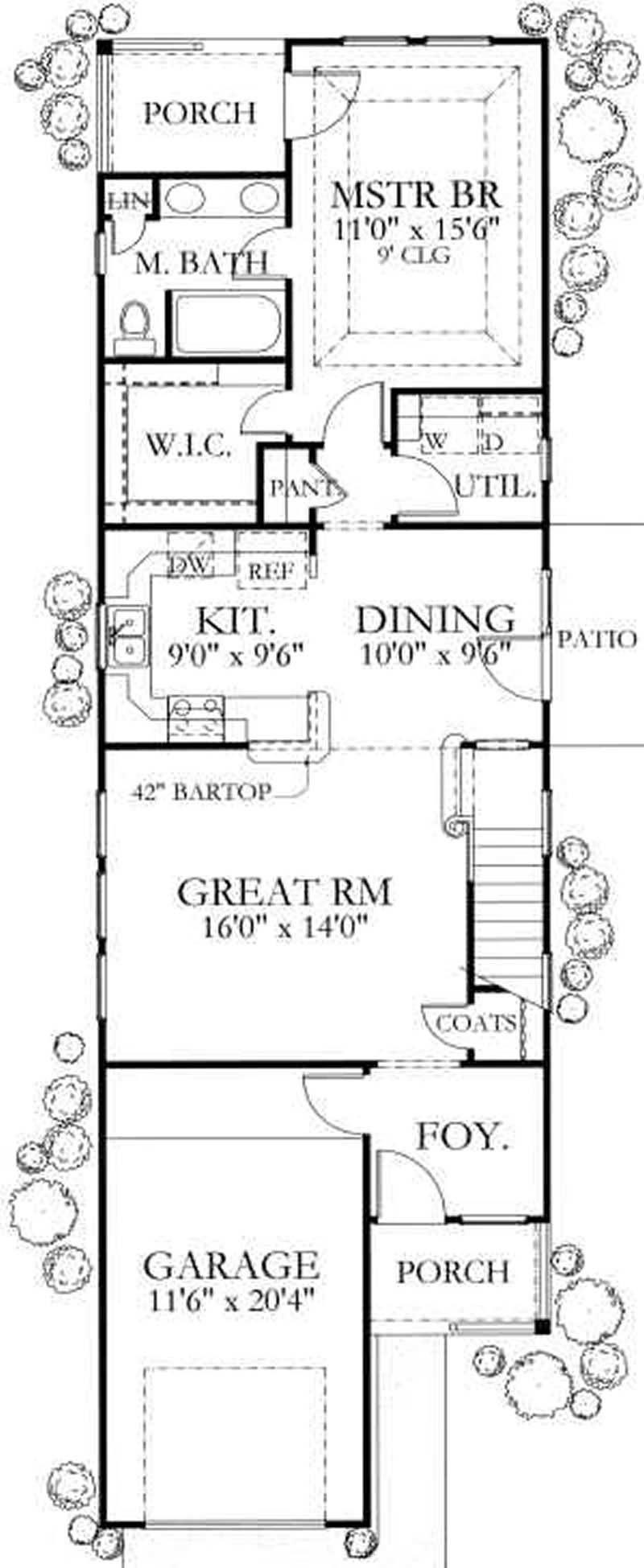

First Floor Plan

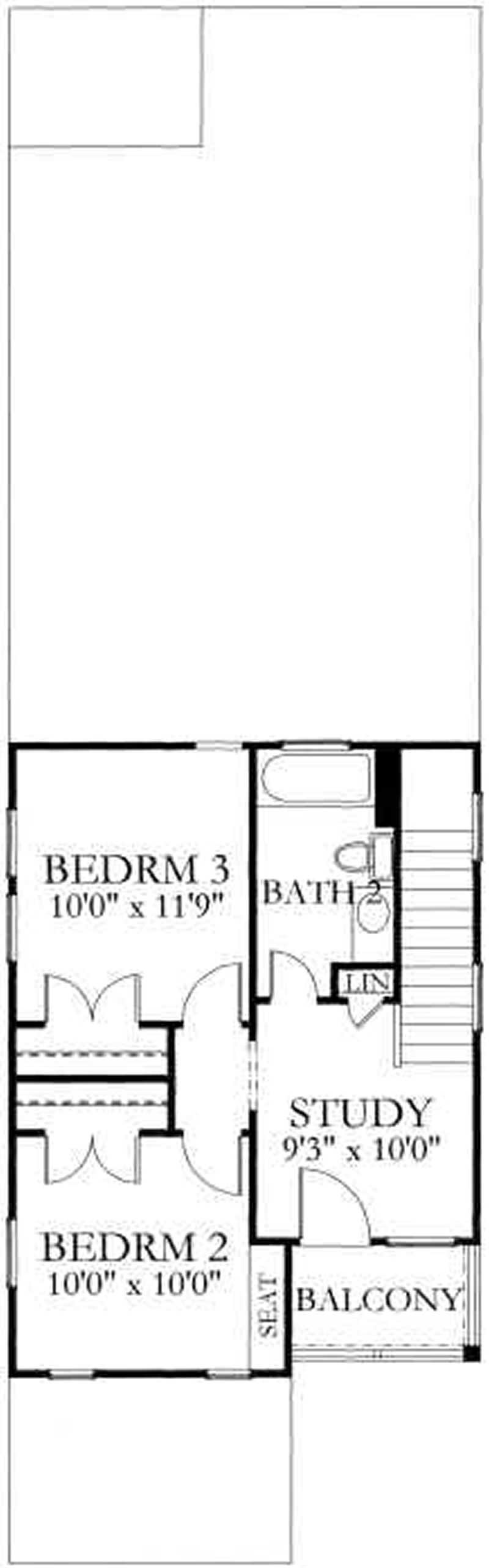

Second Floor Plan
First Floor Plan
First Floor Plan
Plan Collection

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

This two-story bungalow house plan is designed to fit a very narrow lot with an access to the garage from the front. A study loft with a balcony over the entry and a master suite with a 9' coffered ceiling and a private back porch are some of the key features of this house plan. An optional basement is accessed by stairs which replace an existing coat closet.

Home Details

Summary
Plan #:136-1003
Floors:2
Bedrooms:3
Full Baths:2
Half Baths:0
Garage:
Square Footage
Heated Area::1389 Sq. Ft.
Main Floor:935 Sq. Ft.
Upper Floor:454 Sq. Ft.
Dimensions
Ridge Height:25' 0''
Architectural Styles
Exterior Wall Material
Vinyl Siding
Roofing Material
Asphalt Shingles
Roof Pitch
8/12
Ceiling Height
8 Foot Ceiling
Special Feature
Mother in law apartment
Garage Type
Attached Garage
Exterior Wall Framing
2x4
Building Lot Type
Narrow Lot Design
Porches and Exterior Features
Covered Front Porch

What’s Included

Most plan sets include the following:

icon text-secondary-400 includedCover Sheet

icon text-secondary-400 includedFloor Plans

icon text-secondary-400 includedExterior Elevations

icon text-secondary-400 includedInterior Elevations

icon text-secondary-400 includedElectrical Layout

icon text-secondary-400 includedSchematic Framing Plan

icon text-secondary-400 includedRoof Plan

icon text-secondary-400 includedFoundation Plan (non-engineered)

icon text-secondary-400 includedGeneric wall sections & details​

What’s Not Included

These items are  NOT included:

icon text-secondary-400 includedArchitectural or Engineering Stamp - handled locally if required.

icon text-secondary-400 includedSite Plan - handled locally when required.

icon text-secondary-400 includedMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

icon text-secondary-400 includedPlumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

icon text-secondary-400 includedEnergy calculations - handled locally when required.
