3-Bedroom, 1355 Sq Ft Small House Plans Plan with Kitchen Island

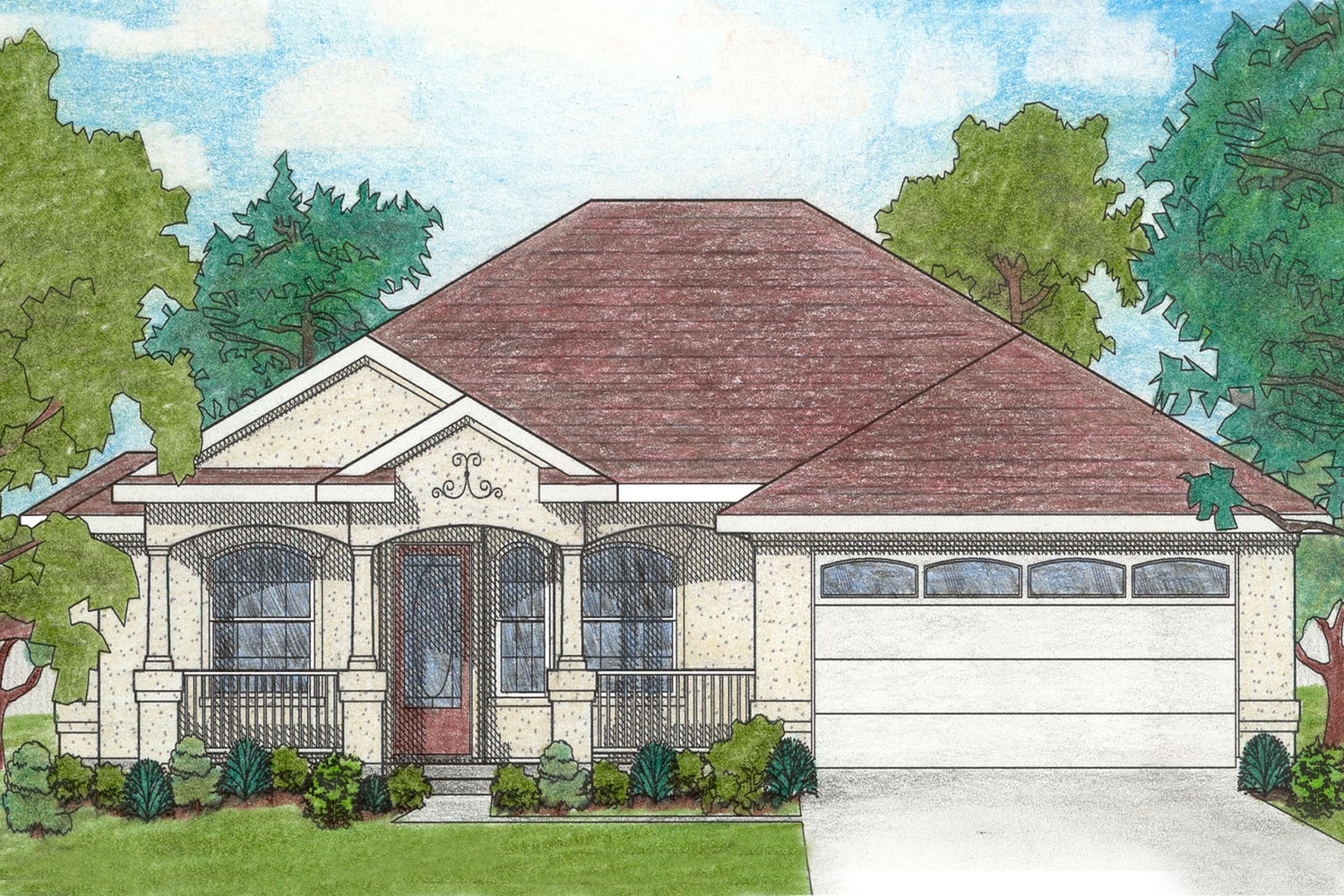

Front elevation of Small House Plans home (ThePlanCollection: House Plan #136-1017)
136-1017: Home Plan Front Elevation
3-Bedroom, 1355 Sq Ft Small House Plans - 136-1017 - Main Exterior
136-1017: Home Plan Front Elevation

About Plan # 136-1017

About Plan # 136-1017


One of the most important features of this stucco home is it's large front porch with wrought iron rail, stucco columns, and arches above. The great room opens to the foyer and dining room towards the front and to a kitchen, lit by a skylight, along a side. The master suite features a 9' coffered ceiling and his and her walk-in closets. Multiple arched openings and columns give the interior a very spacious look.

This well-designed plan provides many amenities that you would expect to find in a much larger home (Plan# 136-1017). Multiple arched openings and columns give this 1355 square foot home a very spacious look. The home comes complete with 3 bedrooms and 2 bathrooms - all on a single floor.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

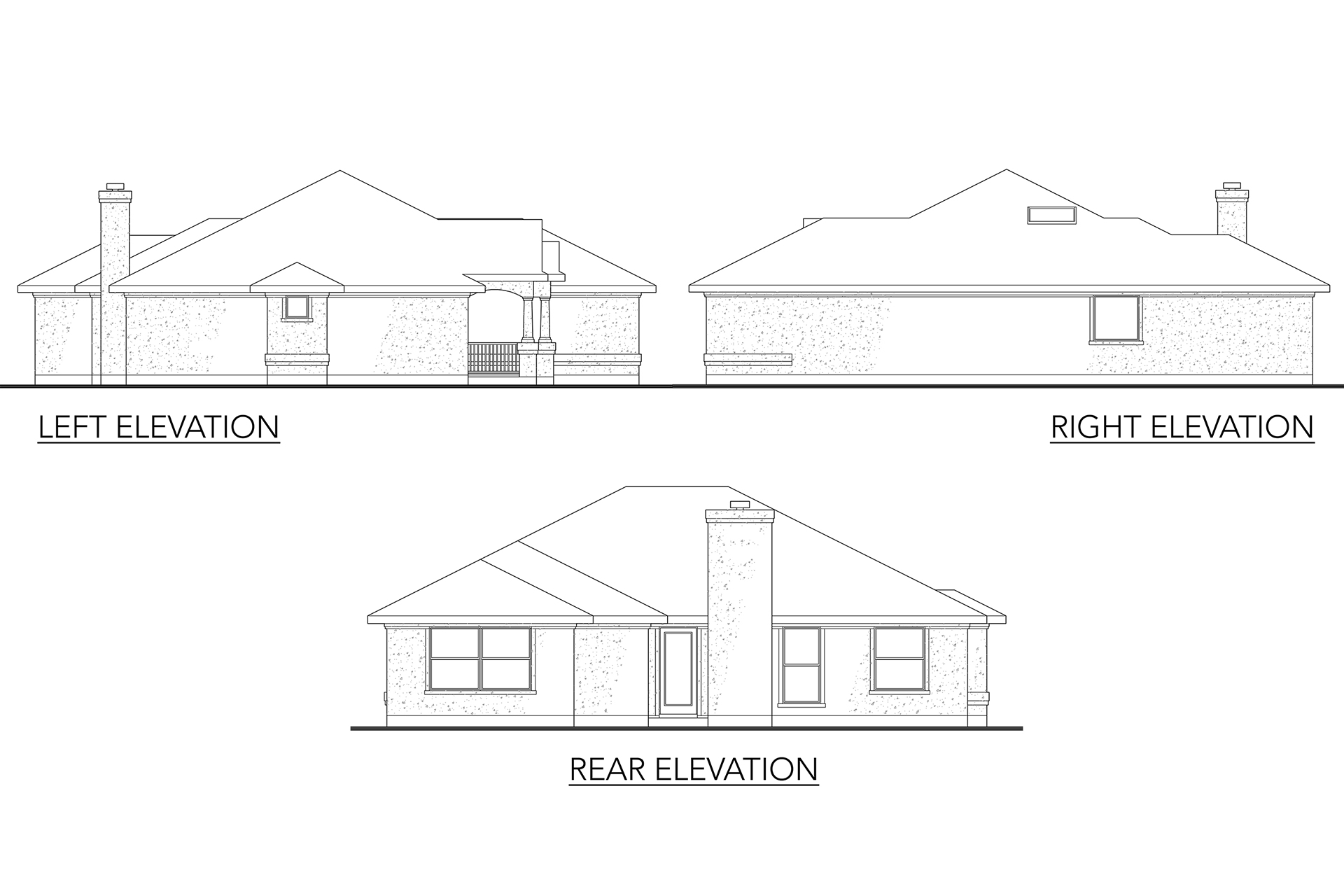

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

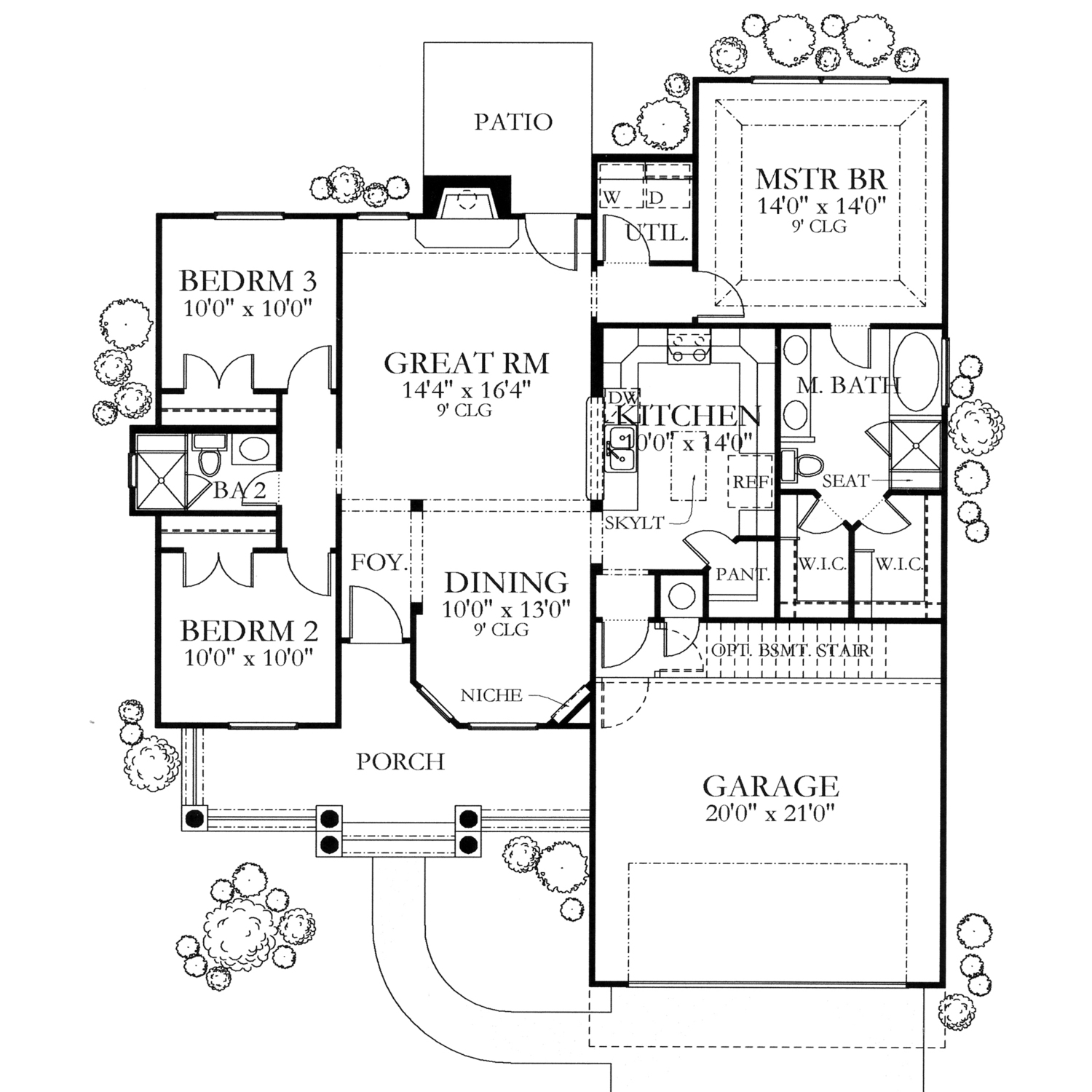

Home Plan: #136-1017 Floor Plan First Story - first Floor Plan First Story of Small House Plans #136-1017
