Traditional style ranch home (ThePlanCollection: House Plan #142-1004)

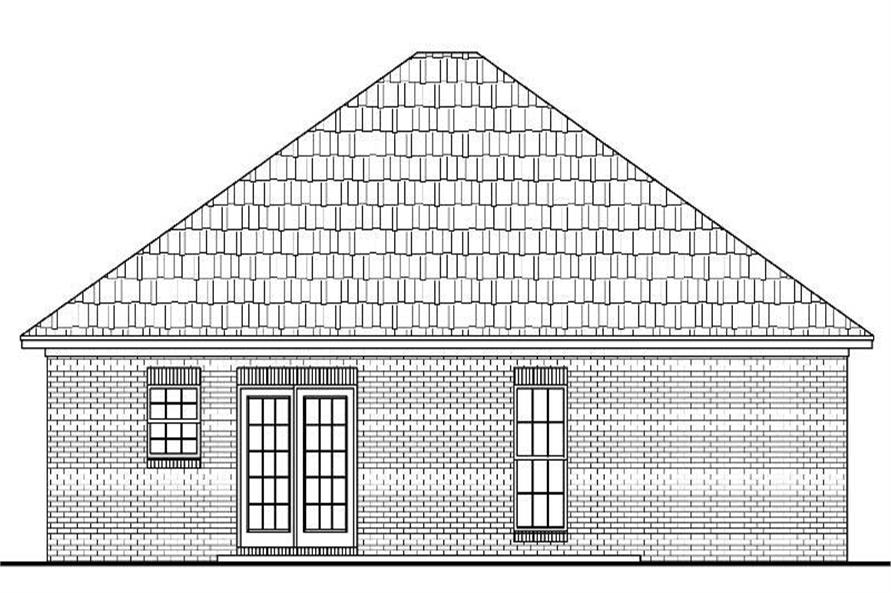

Home Plan Rear Elevation
3-Bedroom, 1200 Sq Ft Small House Plans - 142-1004 - Front Exterior
Home Plan Rear Elevation

About Plan # 142-1004

About Plan # 142-1004

1200 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 39' 6" DEPTH 1 GARAGE BAY

This traditional house plan weaves different spaces and activities together to create warm and cozy invitations – for residents and visitors alike. Step in from the covered front porch and carport into the central living room, strategically placed to create a central social node within the small home plan.

The living room offers access to the three bedrooms and flows into a combined dining/kitchen area. Overlooking and spilling out onto the rear patio, the open L-shape kitchen comes with the luxury of a separate pantry. The patio beyond also offers opportunities in outdoor dining when the weather cooperates.

The floor plan’s three bedrooms are laid out in a space efficient L-shape, with the master suite located at the front of the house plan. The other two bedrooms are found along the rear elevation of the home plan, overlooking the patio. They share access to the common split bathroom. The master bathroom comes with a walk-in closet.

The floor plan also features a utilities room and a carport with access to a small storage room.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Dimensional floor plan
  • Exterior views
  • Roof plan
  • Electrical layout
  • Wall section(s)
  • Building section(s)
  • Cabinet elevations

.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

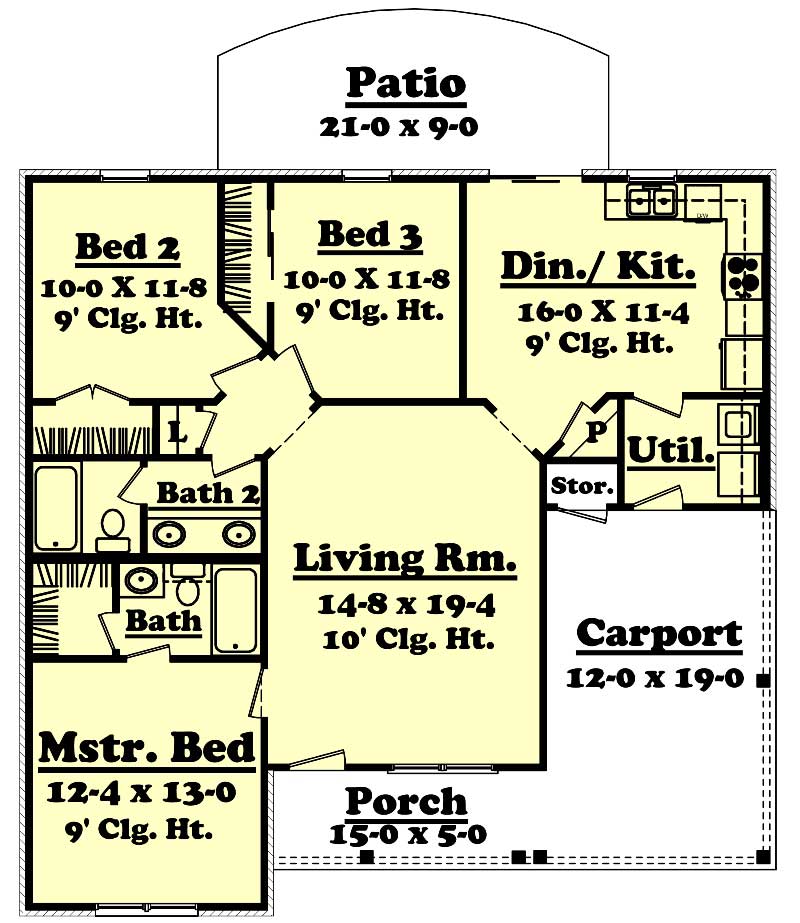

Home Plan: #142-1004 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #142-1004
Home Plan: #142-1004 Floor Plan First Story - first story Floor Plan First Story of Small House Plans #142-1004
