3-Bedroom, 1618 Sq Ft Bungalow Plan with Split Master Bedroom

Color rendering of Bungalow home plan (ThePlanCollection: House Plan #100-1137)
100-1137: Home Plan Rendering
3-Bedroom, 1618 Sq Ft Bungalow House Plan - 100-1137 - Front Exterior
100-1137: Home Plan Rendering

About Plan # 100-1137

About Plan # 100-1137

1618 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 50' 0" WIDTH 28' 8" DEPTH 2 GARAGE BAY

This lovely Bungalow style home with Craftsman influences (House Plan #100-1137) has 1618 square feet of living space. The 2 story floor plan includes 3 bedrooms, 2 full bathrooms, and 1 half bath.

If you would like a duplex version, check out plan 100-1138.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

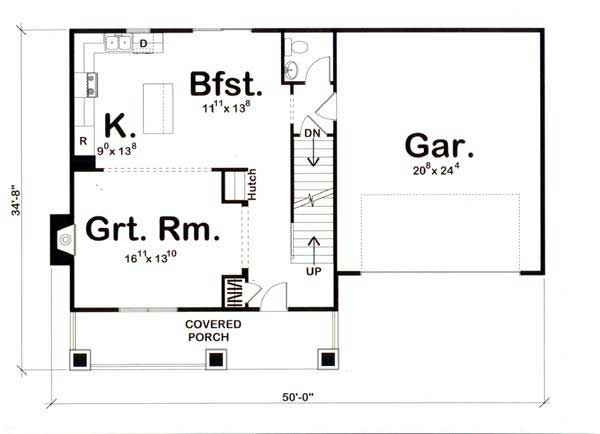

Home Plan: #100-1137 Floor Plan First Story - first story Floor Plan First Story of Bungalow Plan #100-1137

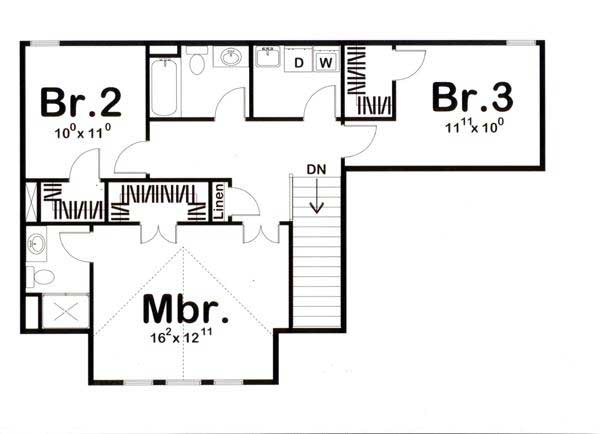

#100-1137 Floor Plan Second Story - second story Floor Plan Second Story of Bungalow Plan #100-1137
Home Plan: #100-1137 Floor Plan First Story - first story Floor Plan First Story of Bungalow Plan #100-1137
#100-1137 Floor Plan Second Story - second story Floor Plan Second Story of Bungalow Plan #100-1137
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1137
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
1618
Main Floor:
774
Upper Floor:
844
Unfinished Sq Ft:

Dimensions

Width:
50' 0"
Depth:
28' 8"
Ridge Height:
25-6' 0"

Architectural Styles

Country
Bungalow
Craftsman

Exterior Wall Material

Brick
Wood Siding
Shakes

Roofing Type

Hip
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Special Feature

Fireplace
Family Room
Vaulted Ceilings
Second Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Walk In Closet
Second Floor Master

Additional Notes from Designer

The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
